B2212

DTC B2212 DOOR CLOSER MOTOR MALFUNCTION ON PASSENGER SIDE DOOR

CIRCUIT DESCRIPTION

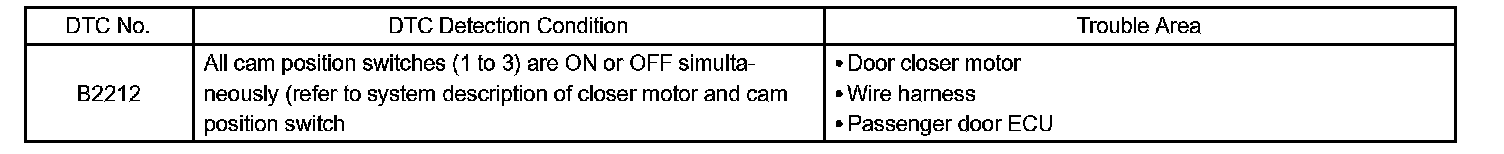

DTC Detection Condition:

This DTC is output when a malfunction is detected in the cam position circuit.

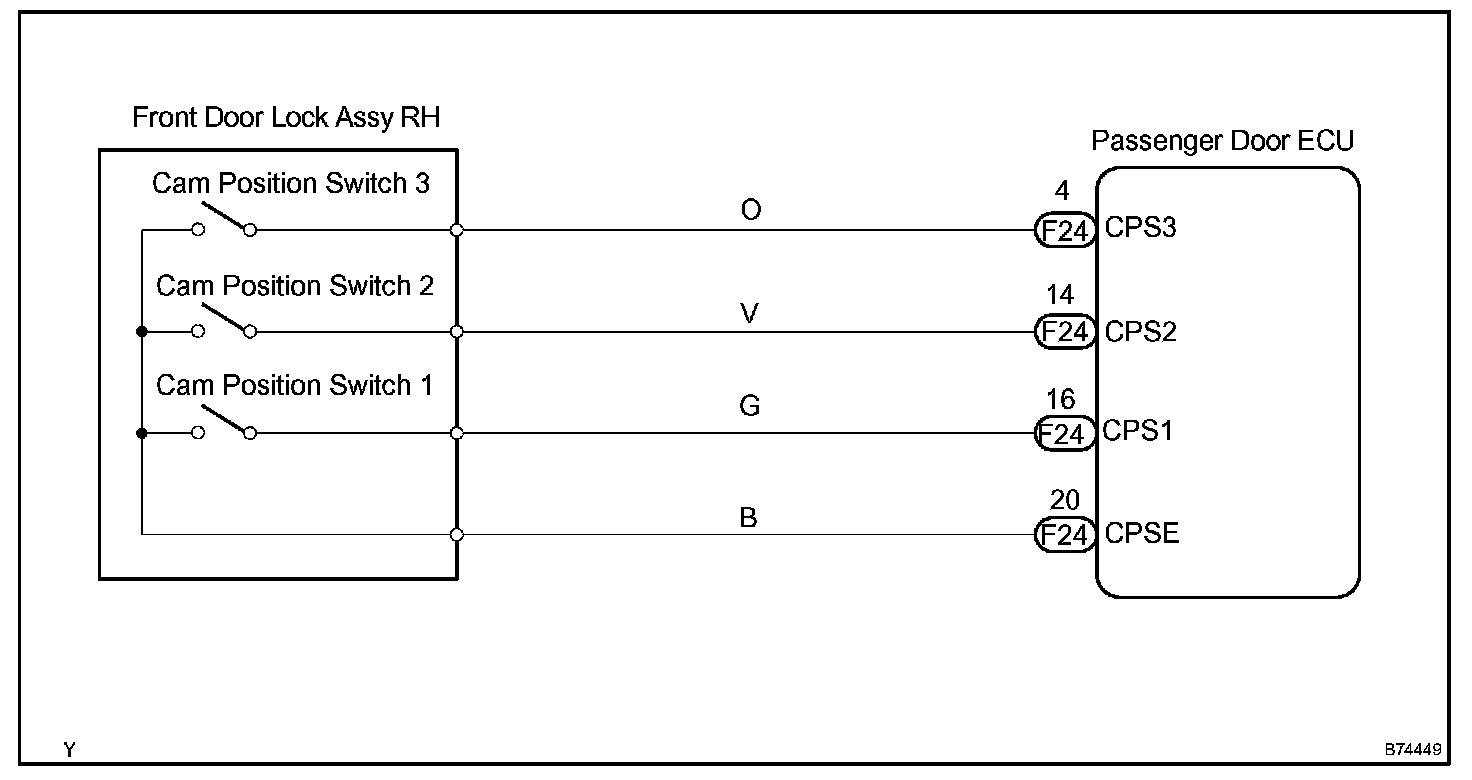

Wiring Diagram:

Step 1-2:

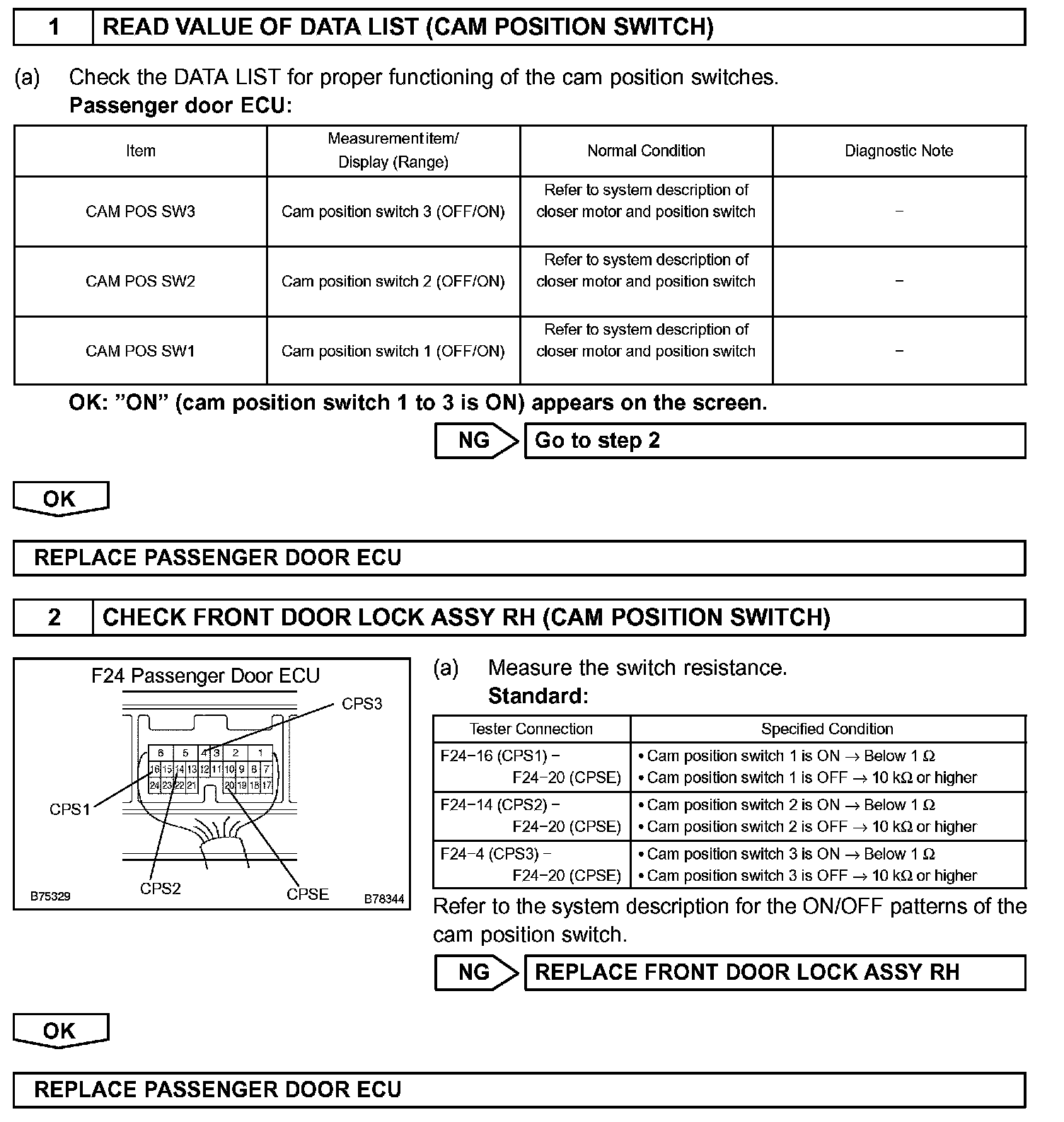

INSPECTION PROCEDURE
