B2211

DTC B2211 DOOR CLOSER MOTOR MALFUNCTION ON DRIVER SIDE DOOR

CIRCUIT DESCRIPTION

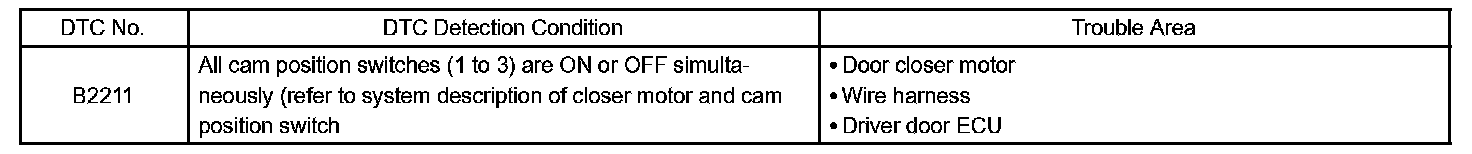

DTC Detecting Condition:

This DTC is output when a malfunction is detected in the cam position circuit.

Wiring Diagram:

Step 1-2:

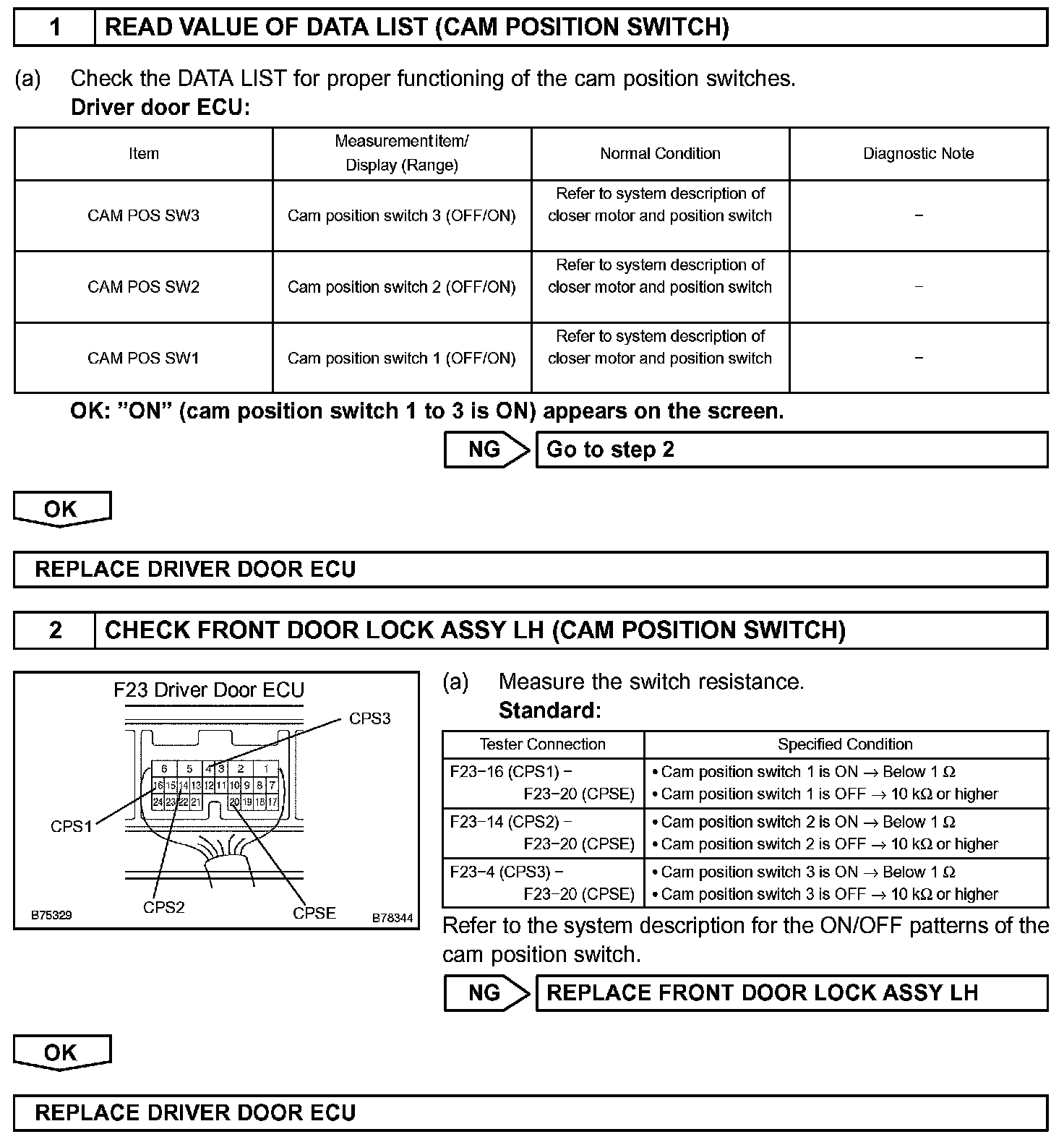

INSPECTION PROCEDURE
