B1435

DTC B1435 MAX COOL DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)

Circuit Description

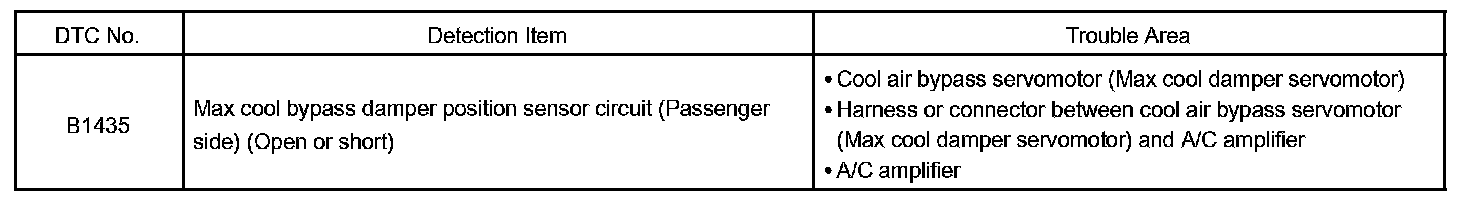

Detection Item:

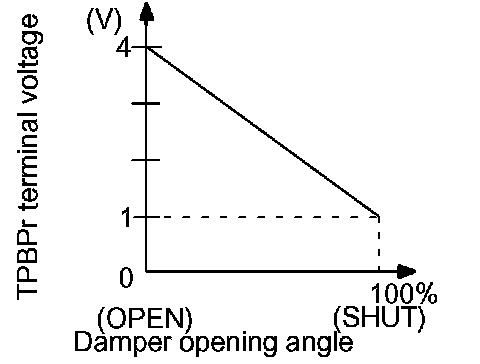

This sensor detects the position of the cool air bypass servo-motor (Max cool damper servomotor) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the cool air bypass servomotor.

Wiring Diagram:

Step 1:

Step 2:

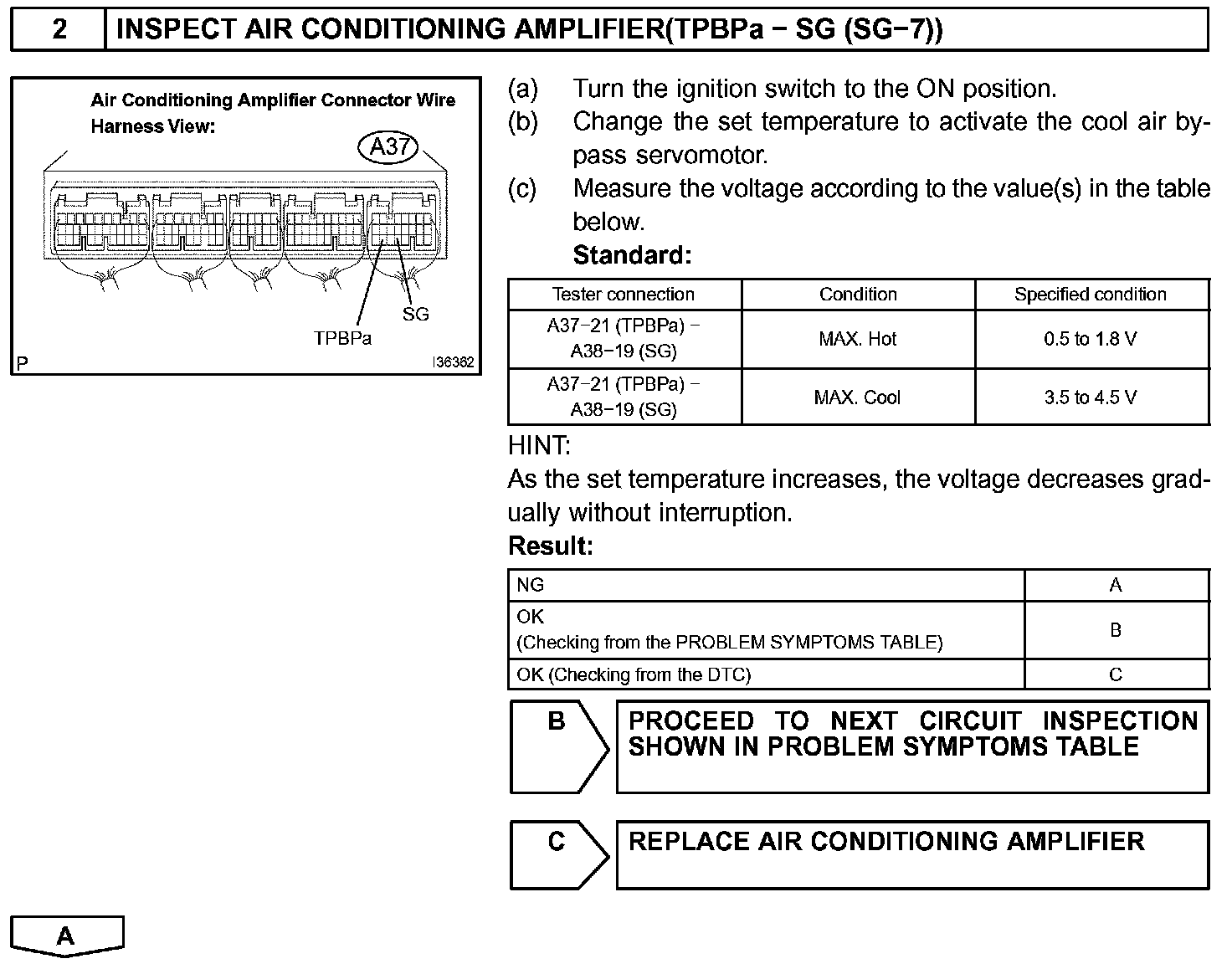

Step 3:

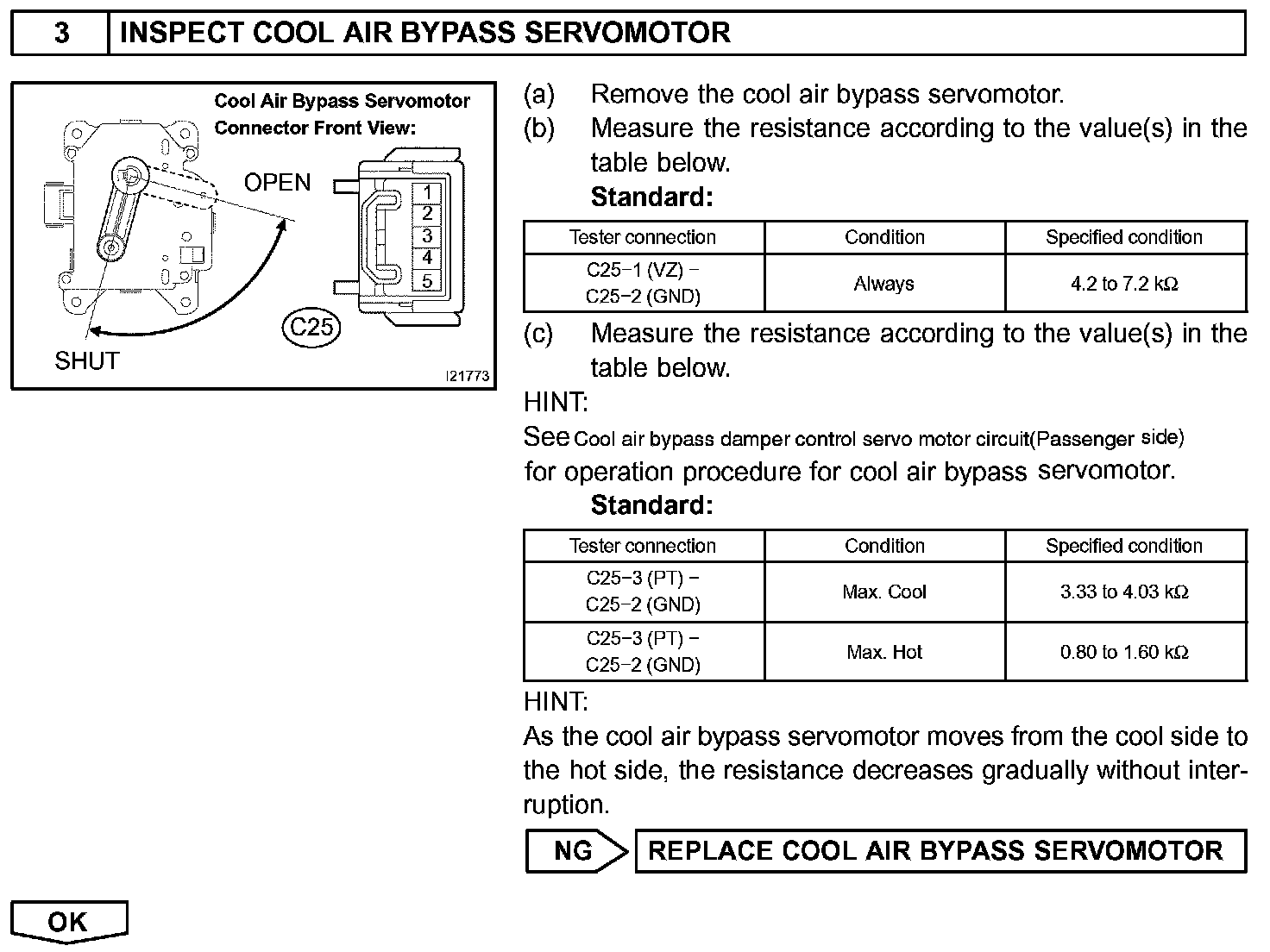

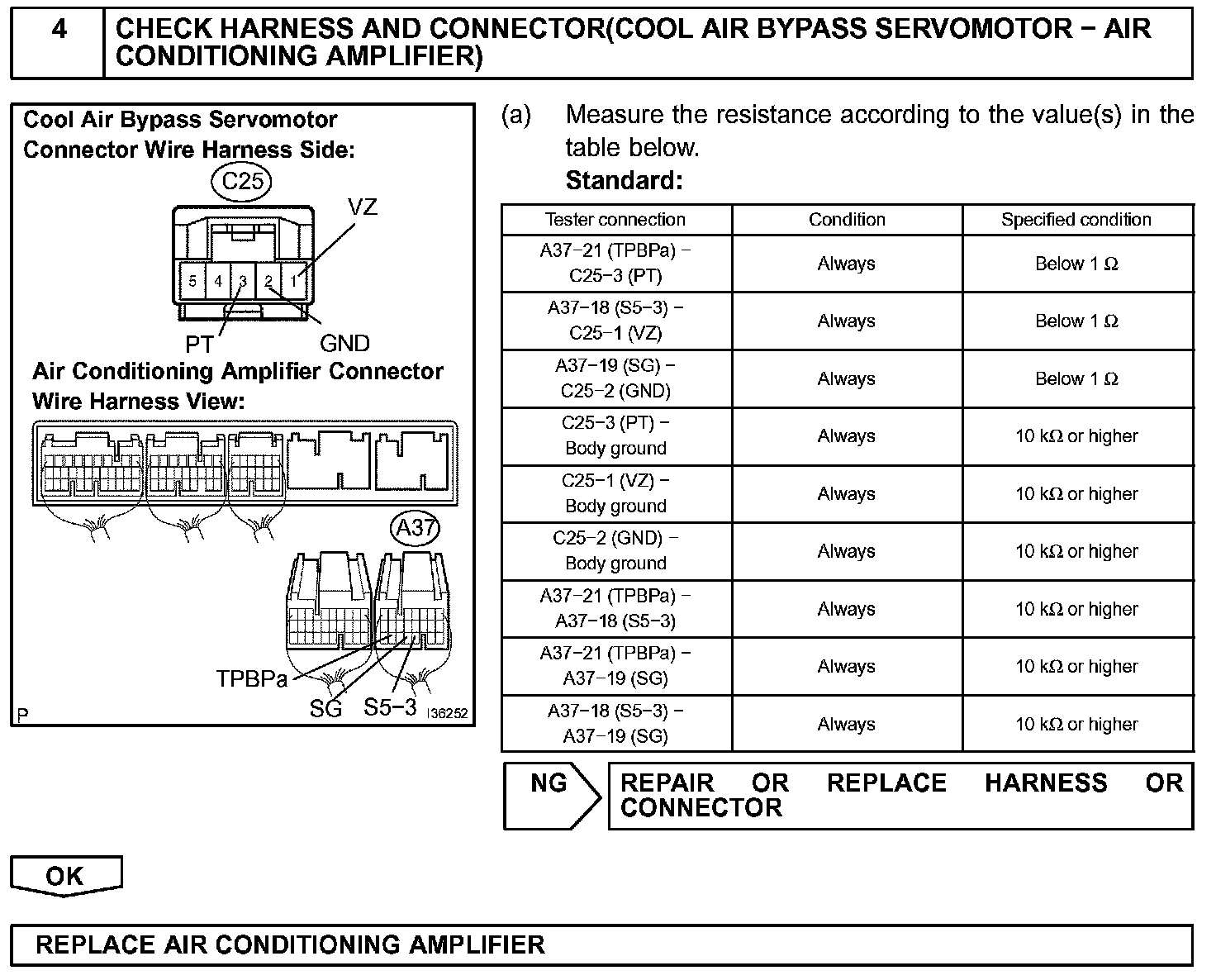

Step 4:

INSPECTION PROCEDURE
