B1434

DTC B1434 MAX COOL DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE)

Circuit Description

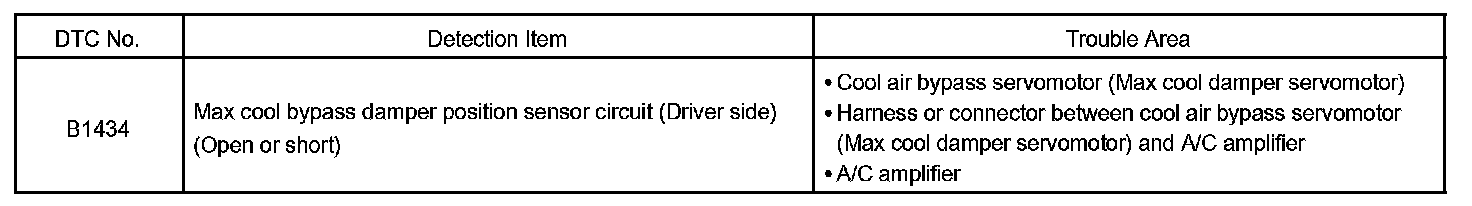

Detection Item:

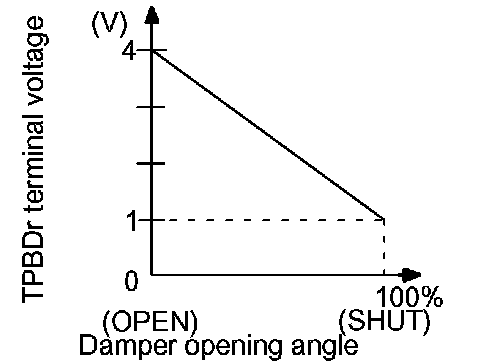

This sensor detects the position of the cool air bypass servomotor (Max cool damper servomotor) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the cool air bypass servomotor.

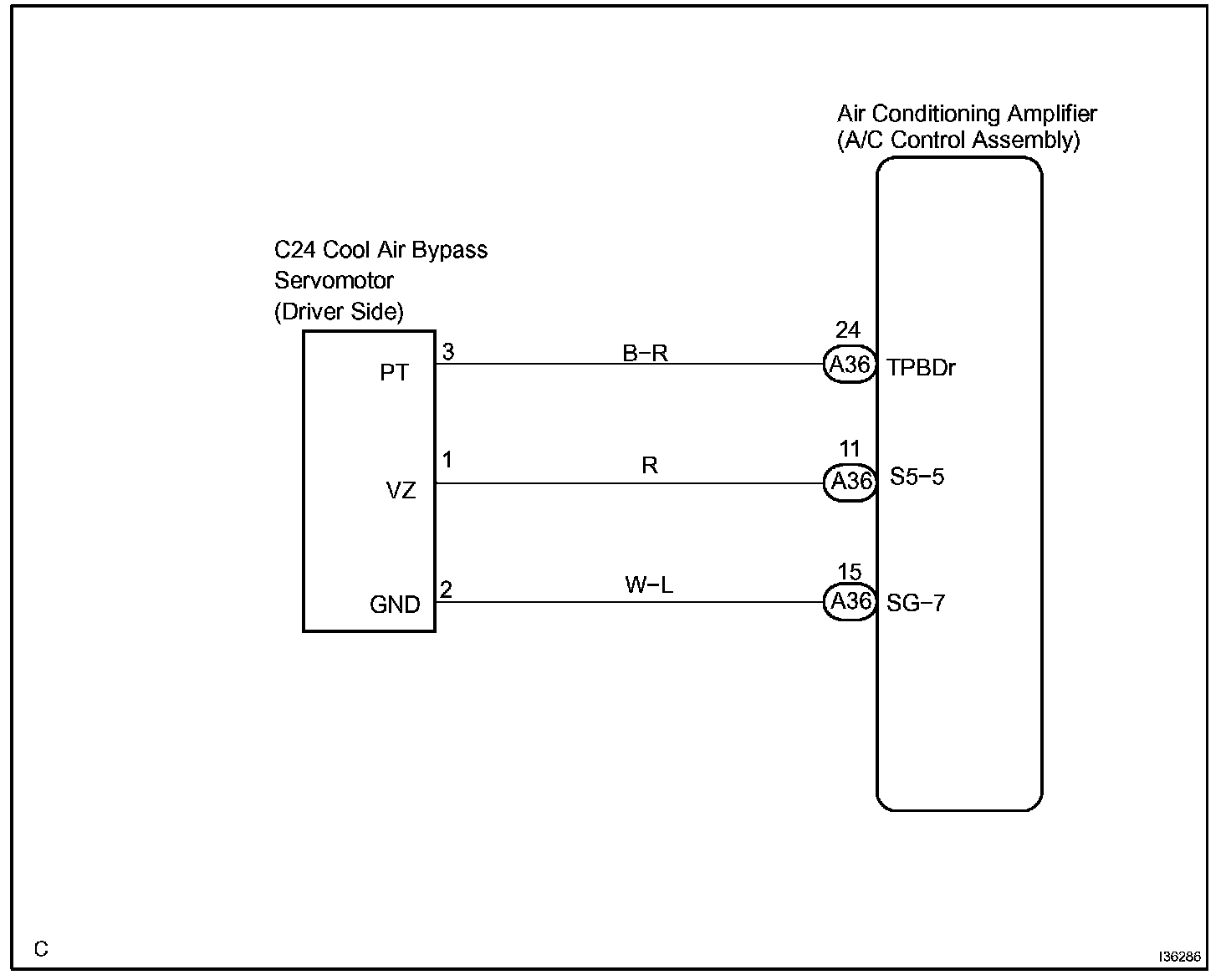

Wiring Diagram:

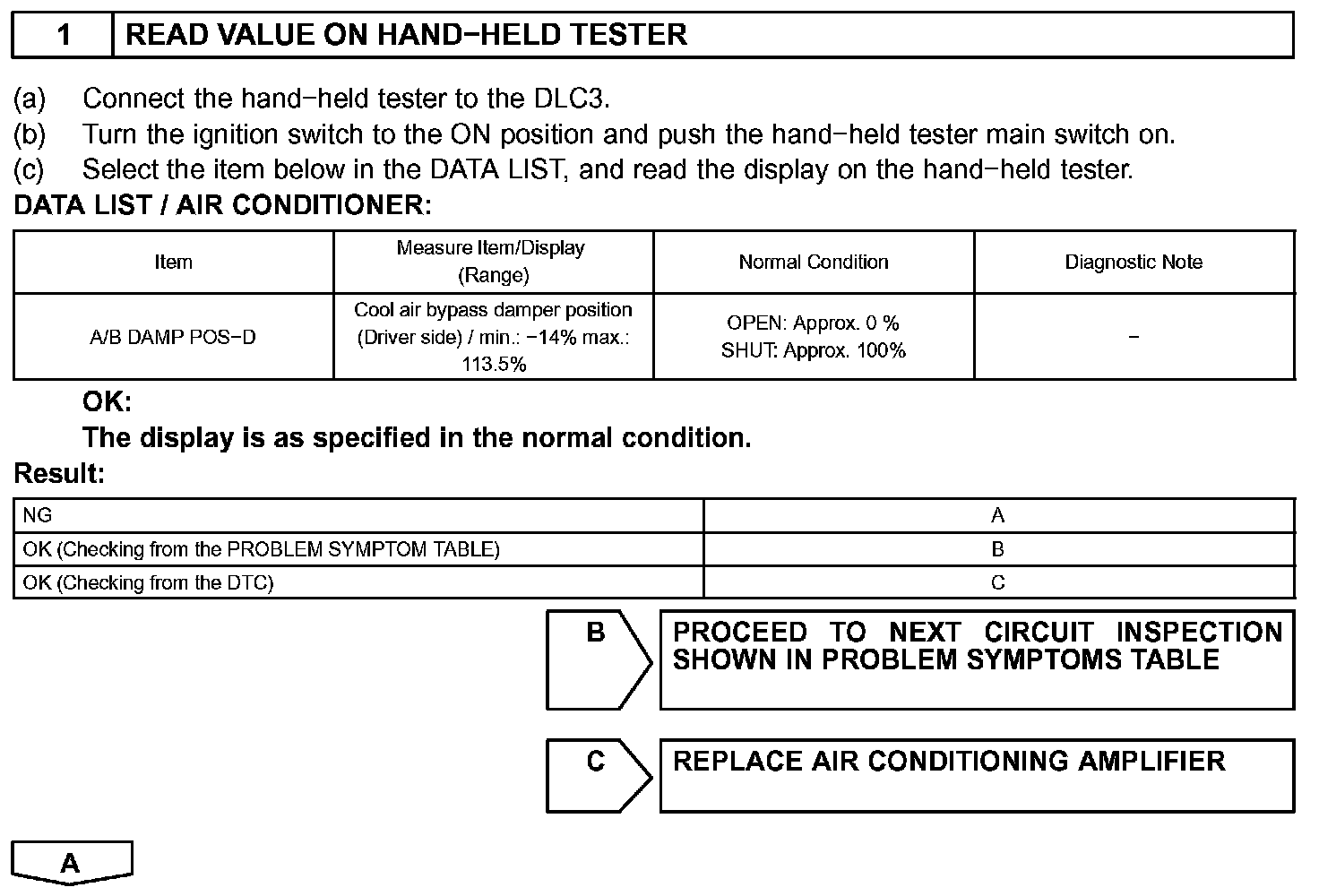

Step 1:

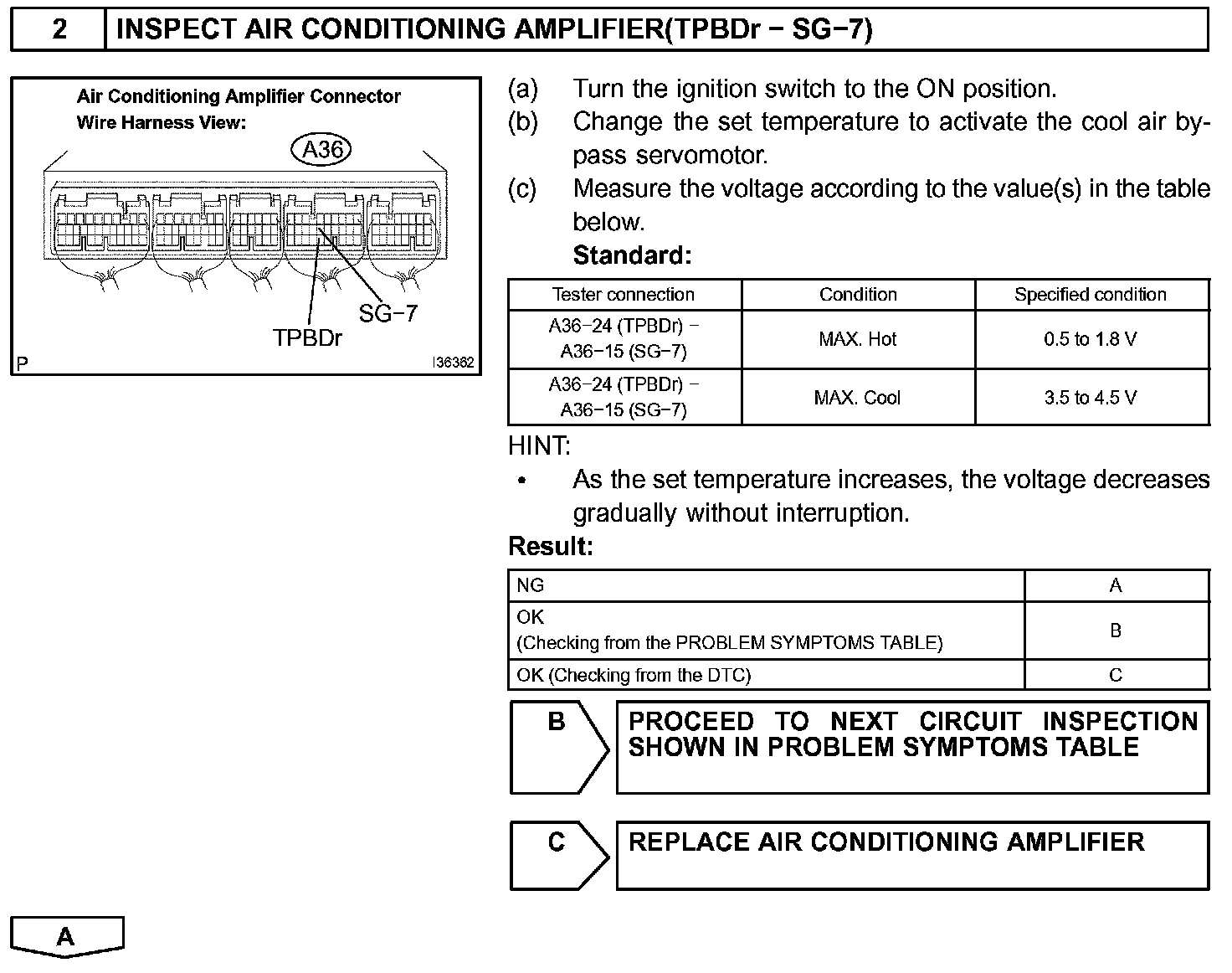

Step 2:

Step 3:

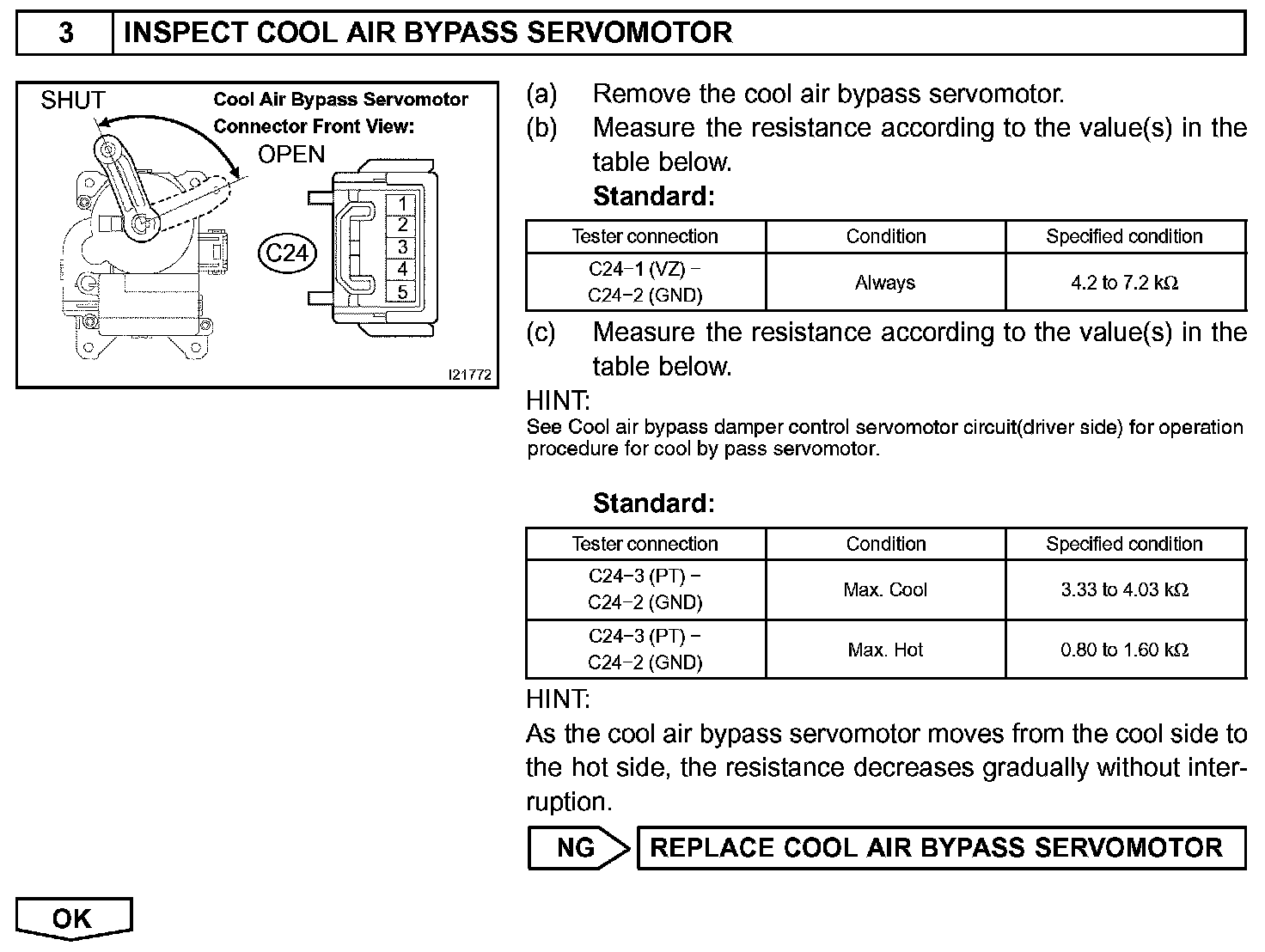

Step 4:

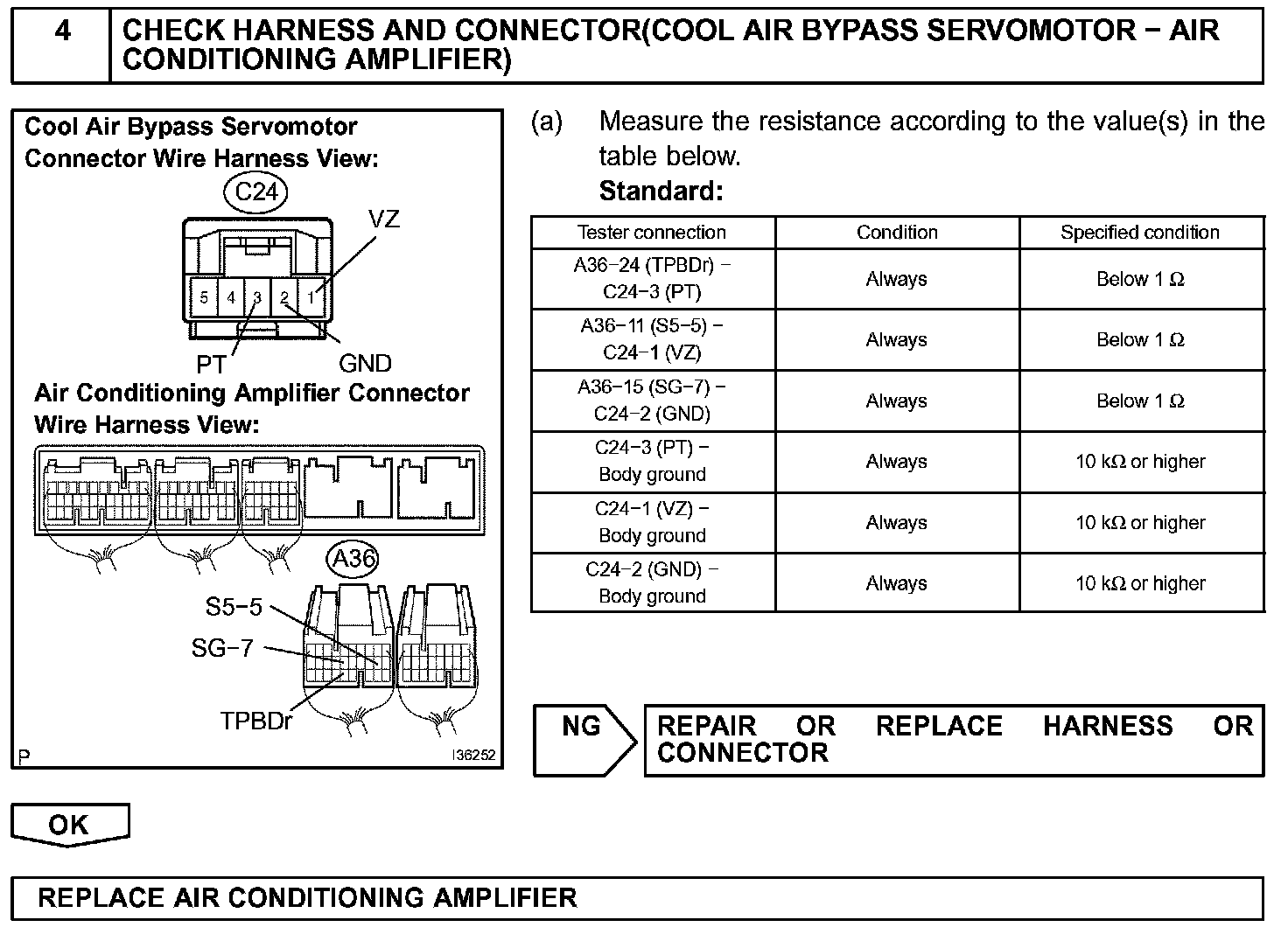

INSPECTION PROCEDURE
