B1423

DTC B1423 PRESSURE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

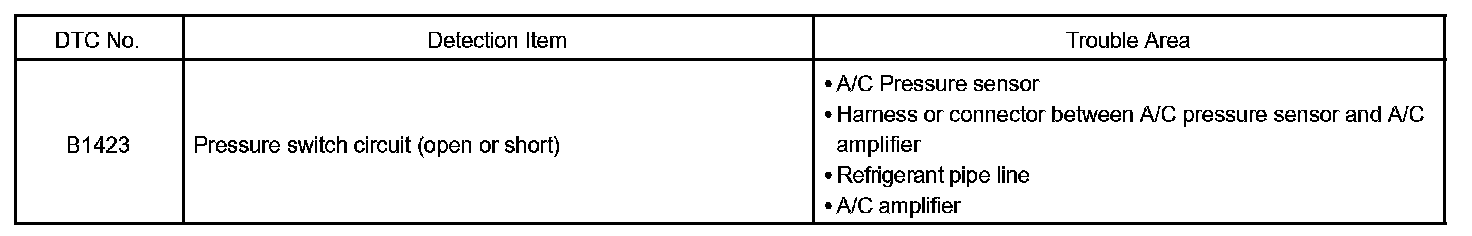

Detection Item:

The pressure switch sends the appropriate signals to the A/C amplifier when the A/C refrigerant pressure drops too low or rises too high.

When the A/C amplifier receives these signals, the compressor does not compress refrigerant.

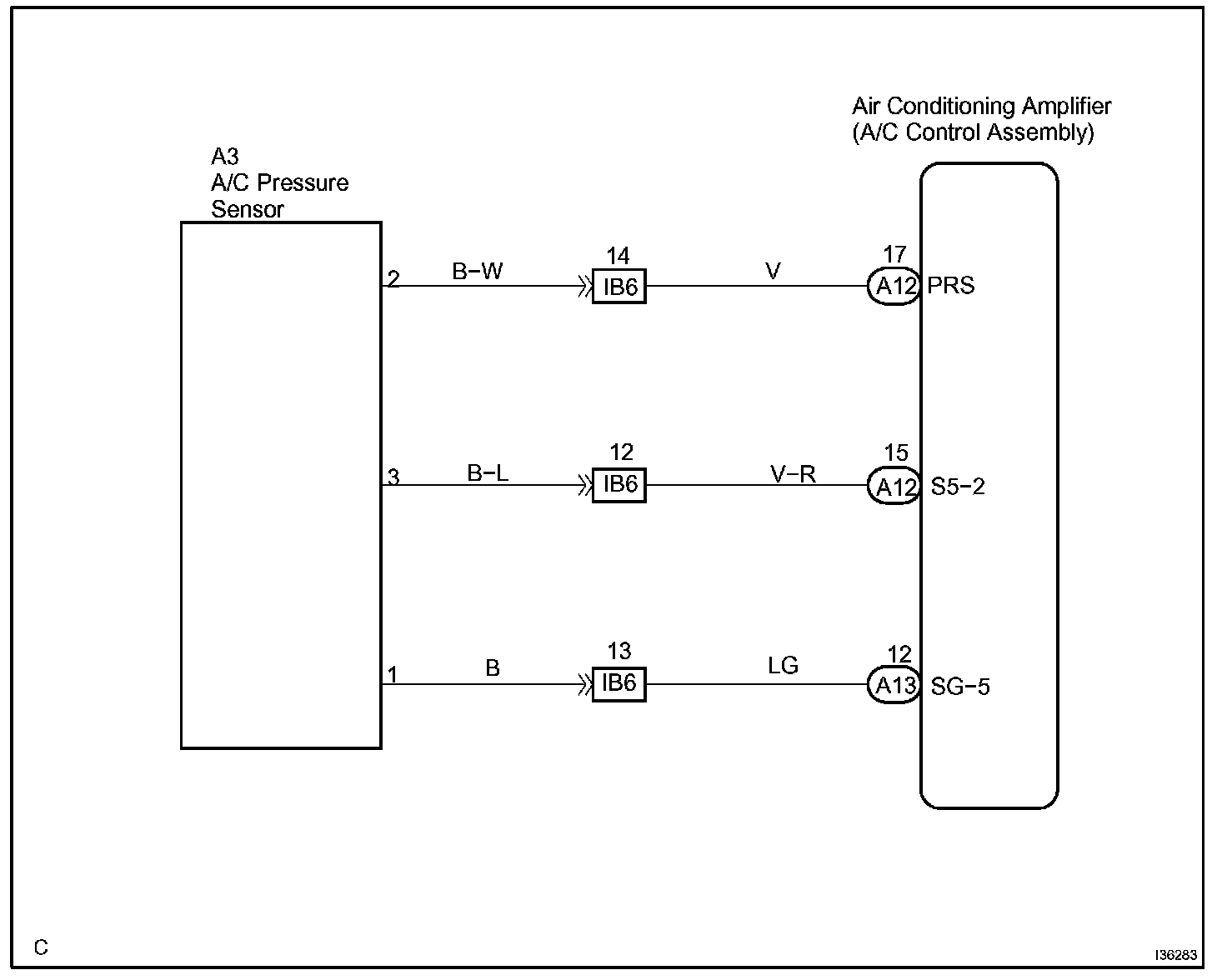

Wiring Diagram:

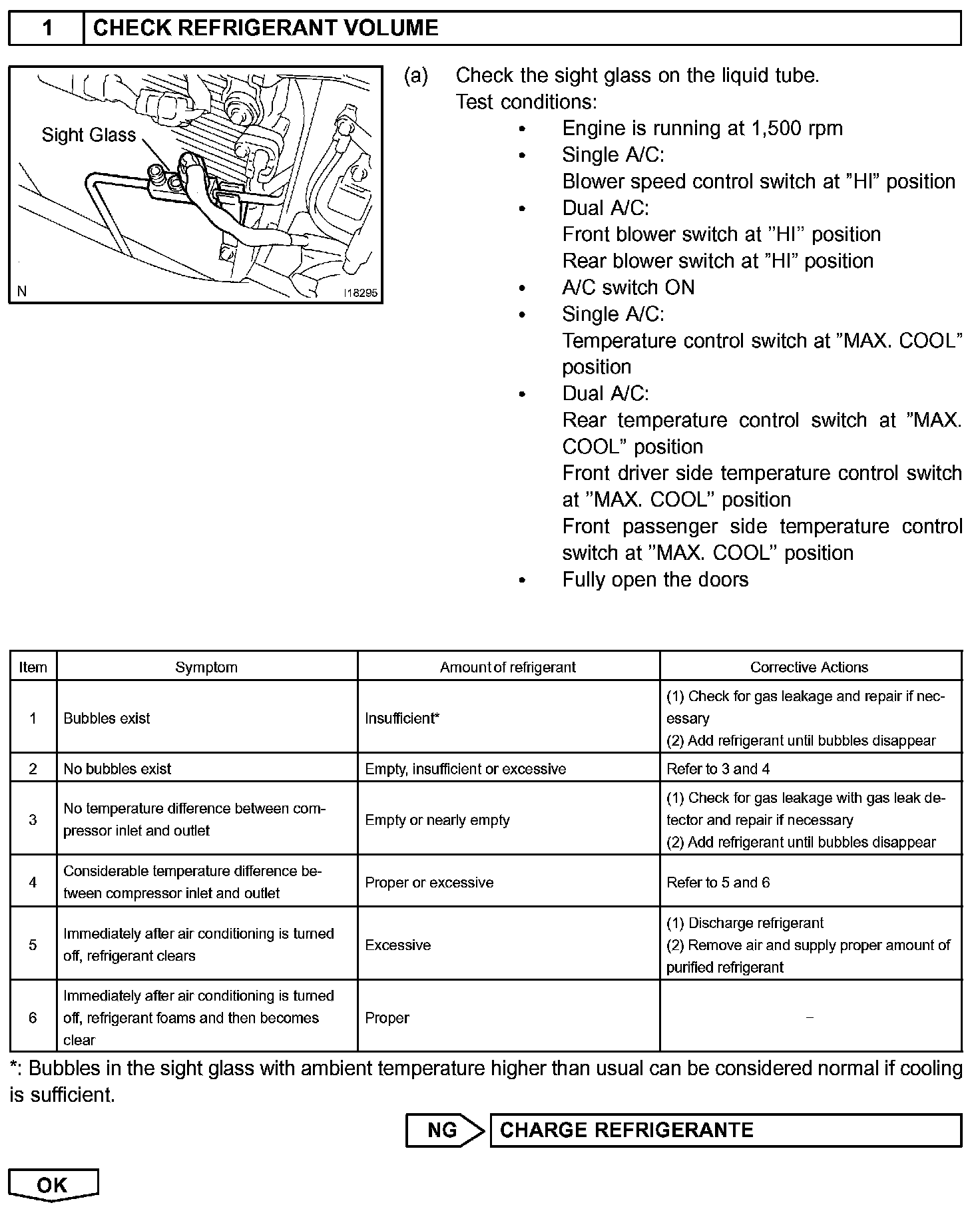

Step 1:

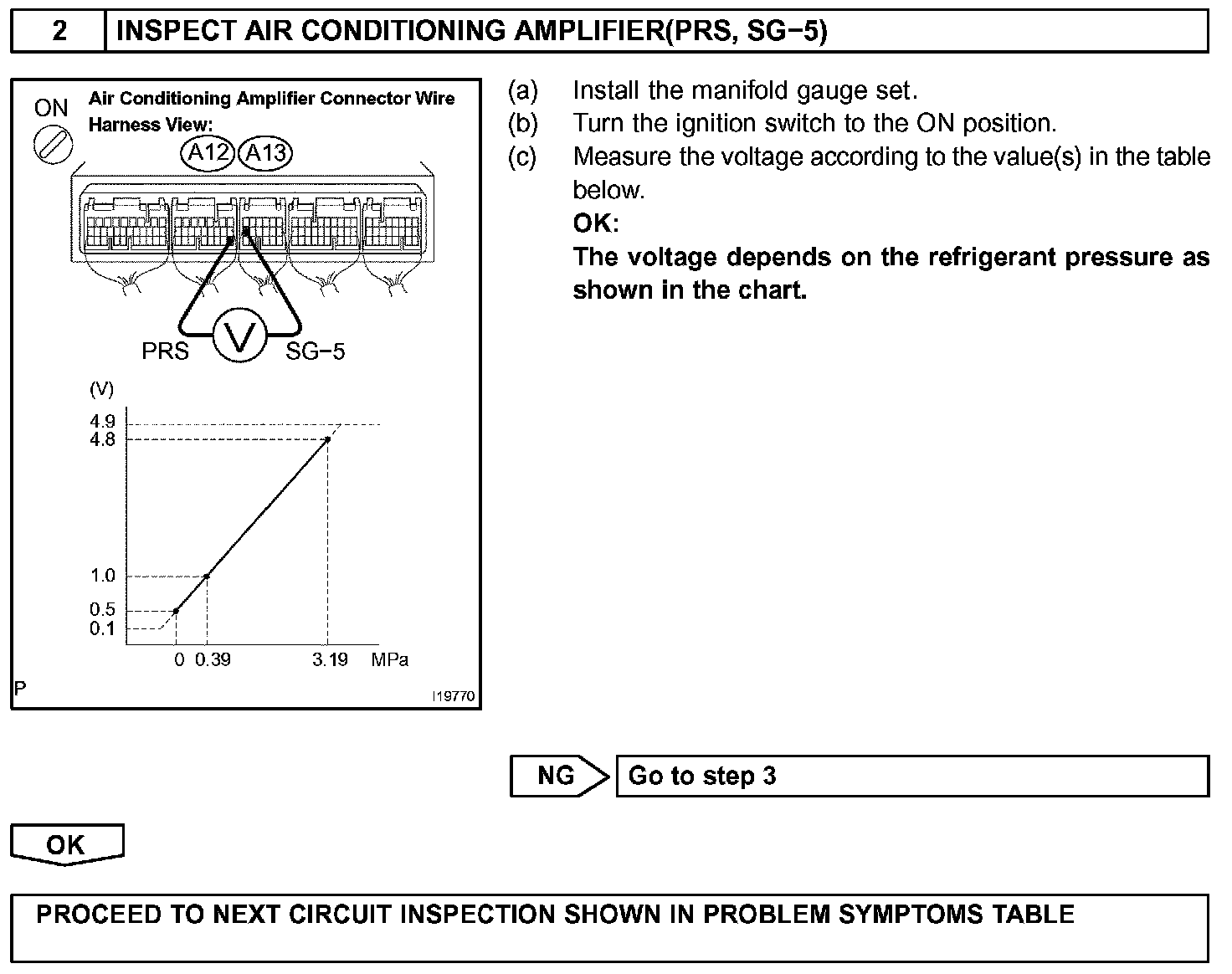

Step 2:

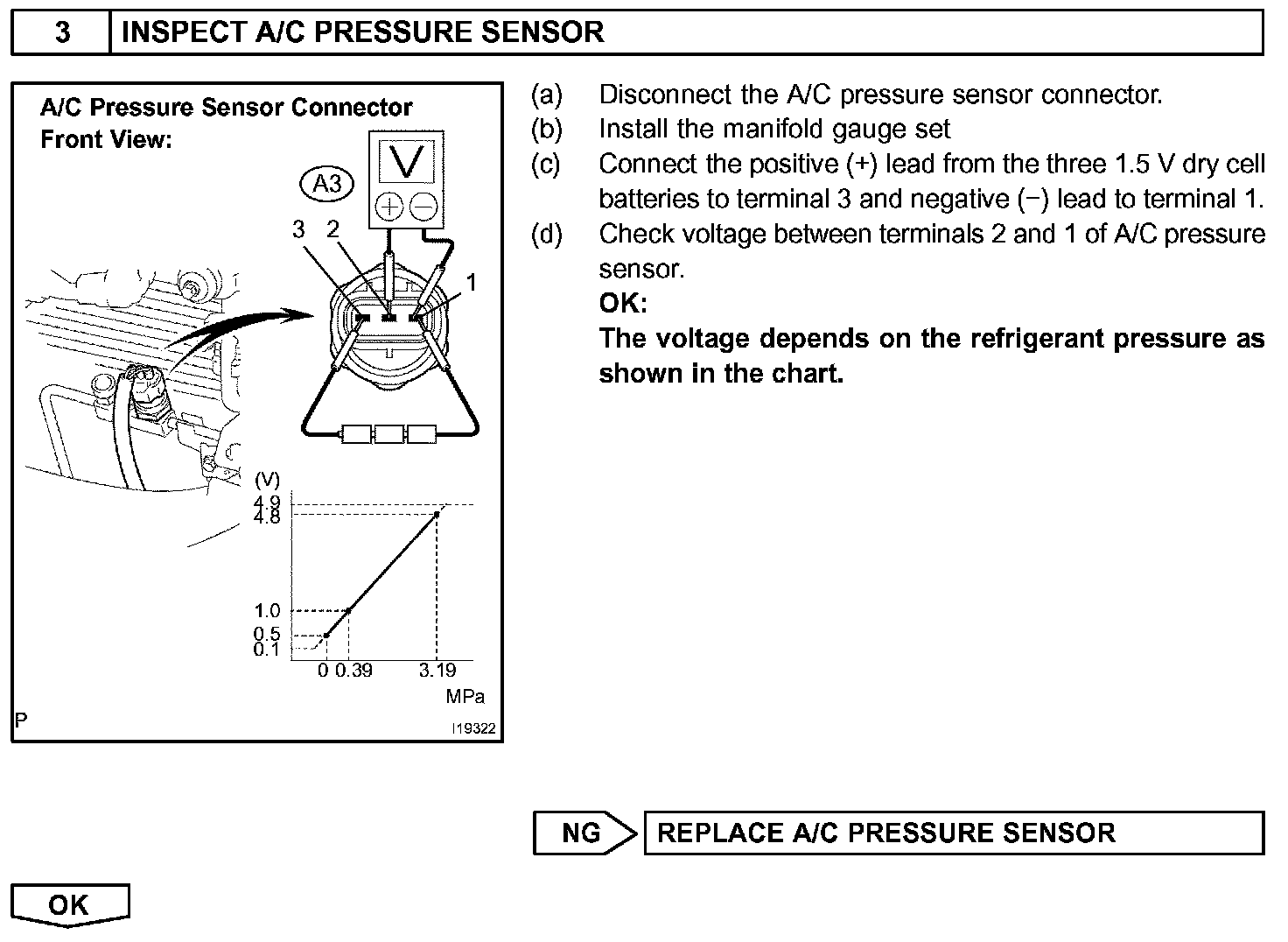

Step 3:

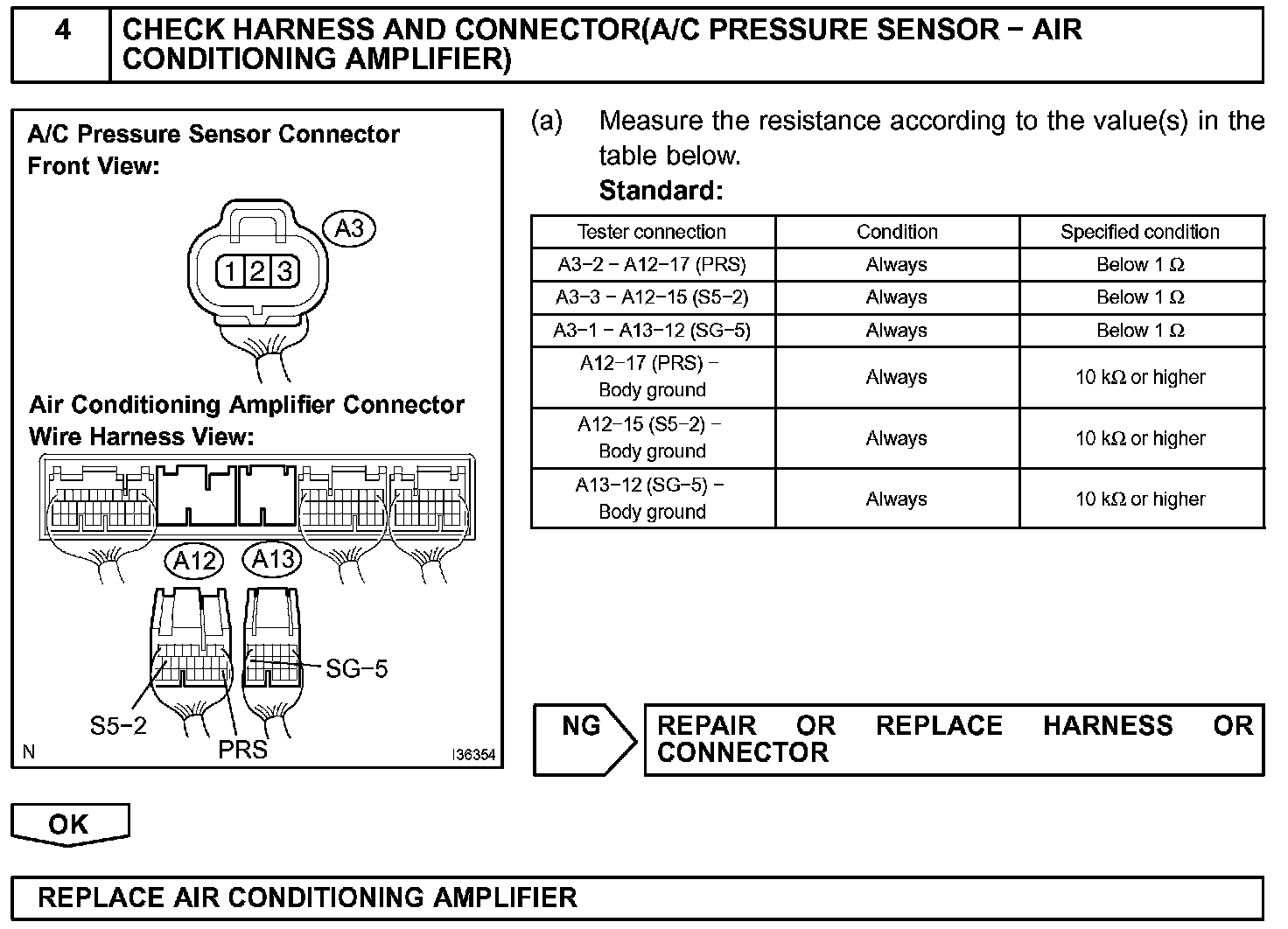

Step 4:

INSPECTION PROCEDURE
