B1416

DTC B1416 AIR DUCT SENSOR CIRCUIT (PASSENGER SIDE)

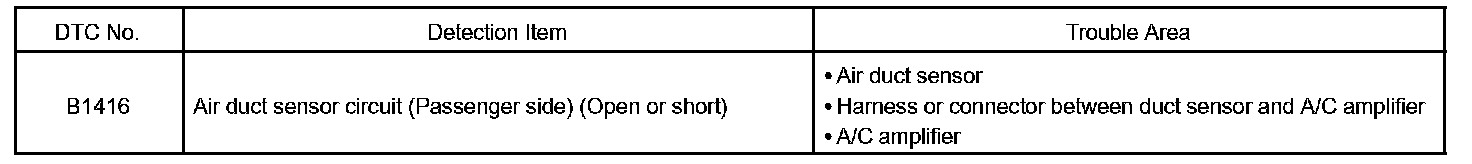

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the register temperature and sends the appropriate signals to the A/C amplifier.

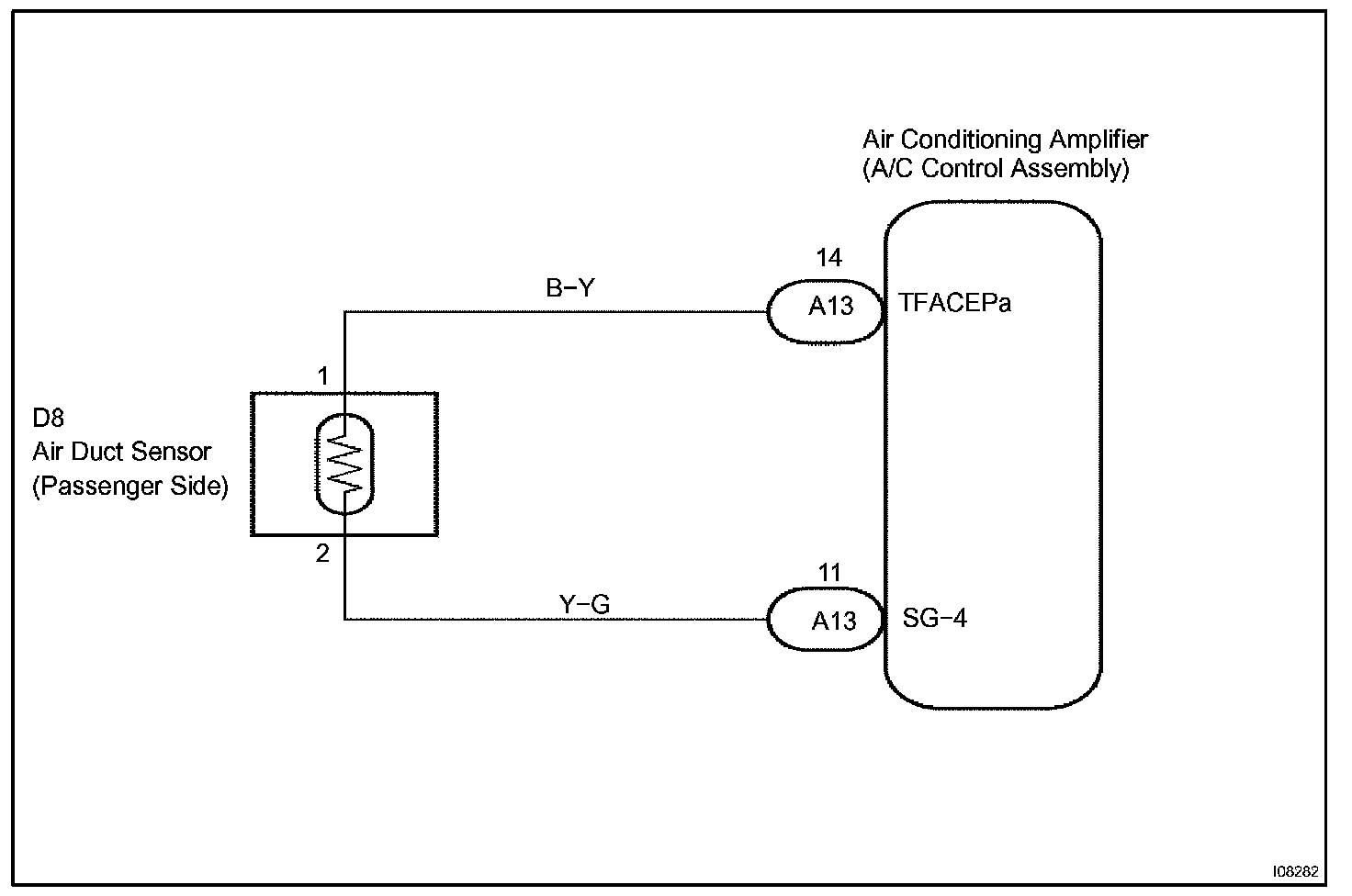

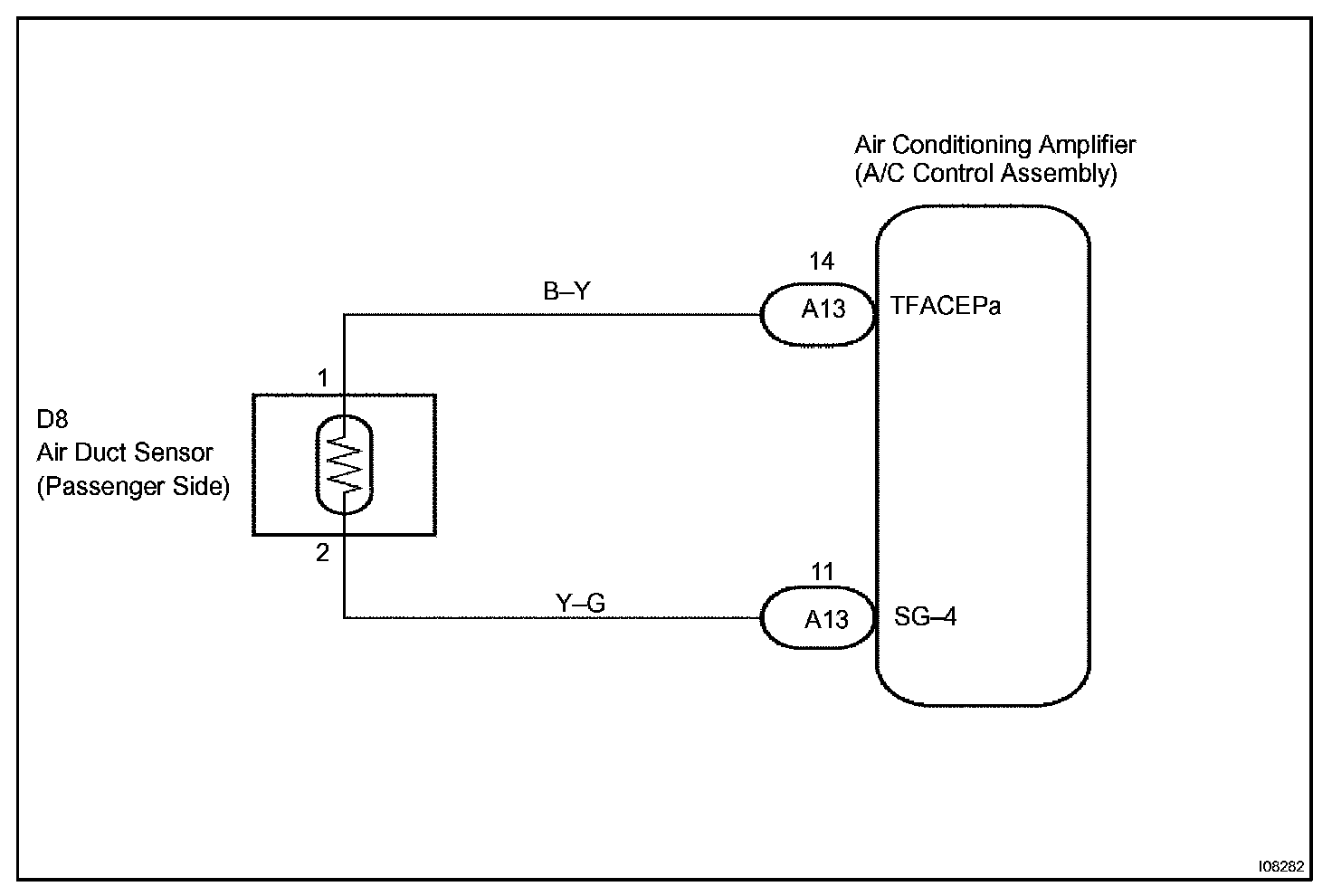

Wiring Diagram:

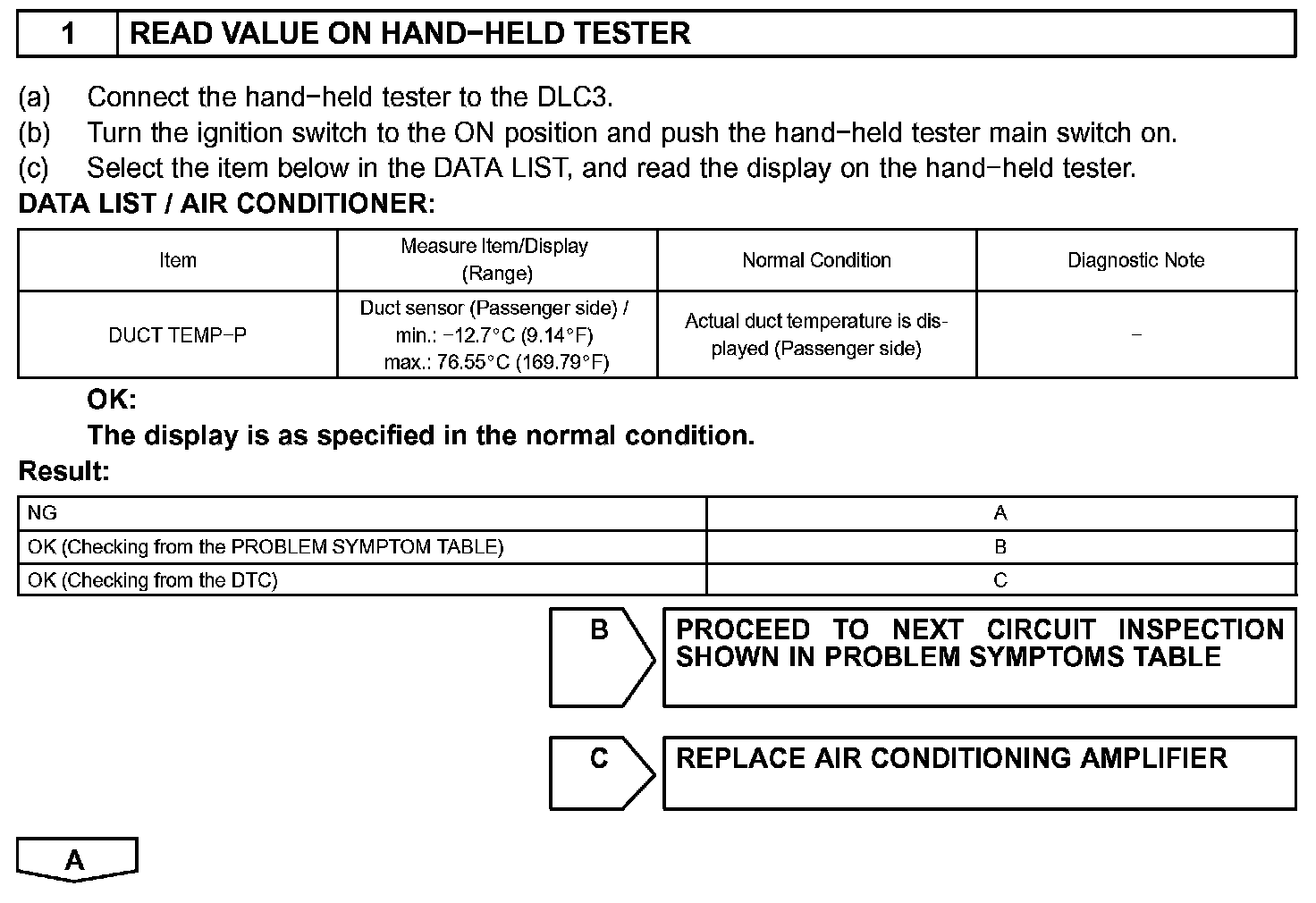

Step 1:

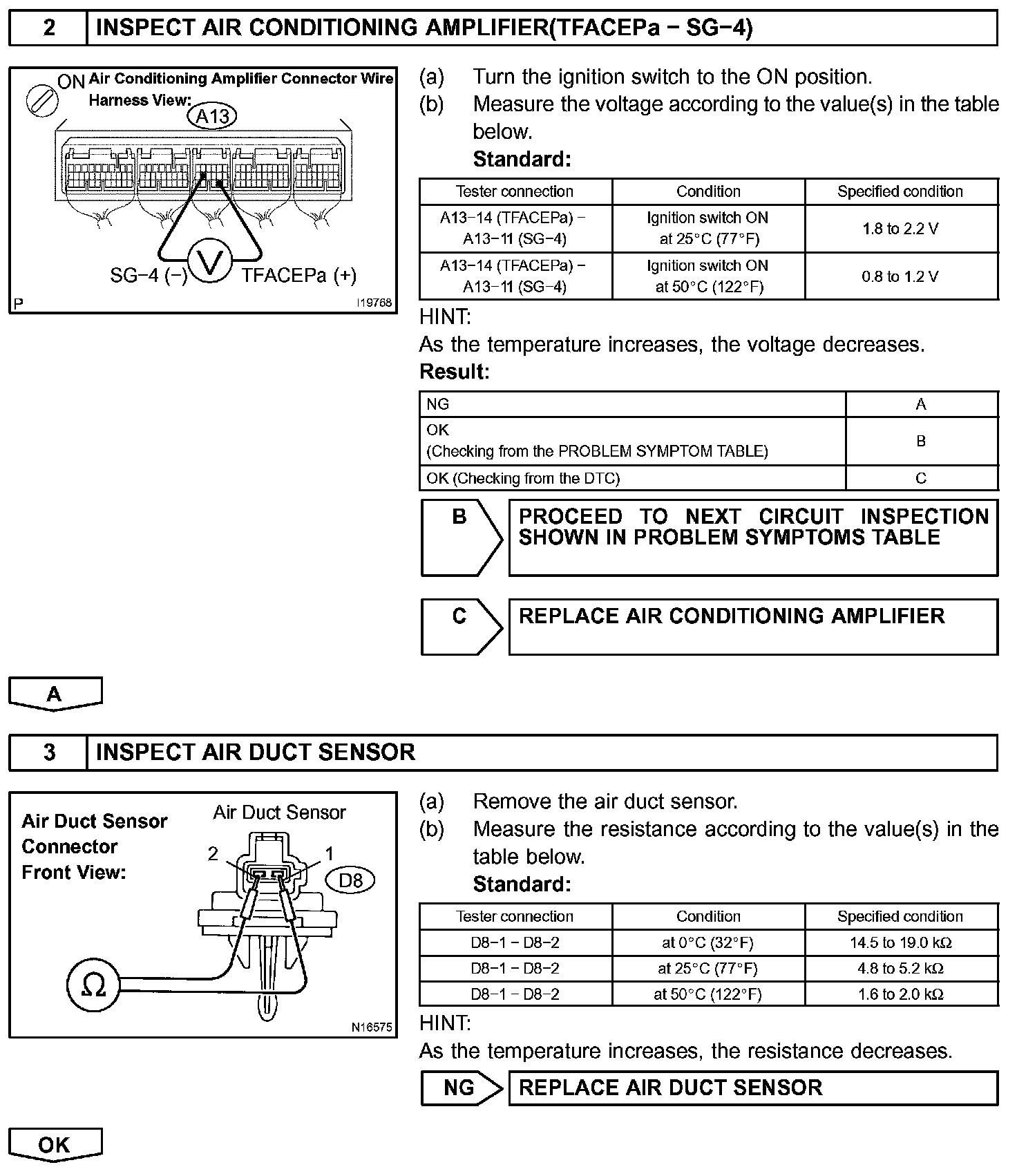

Step 2-3:

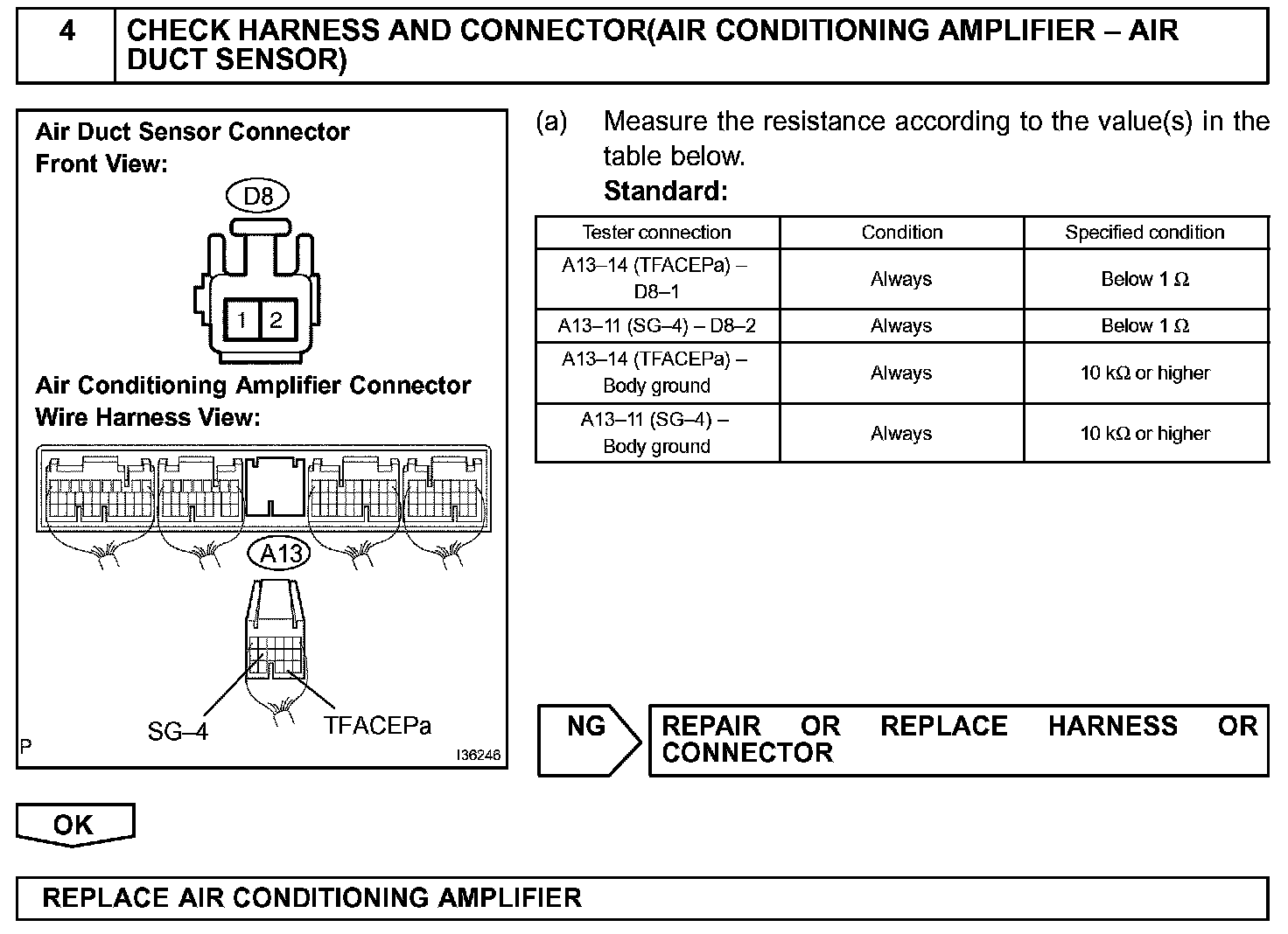

Step 4:

INSPECTION PROCEDURE
