B1413

DTC B1413 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

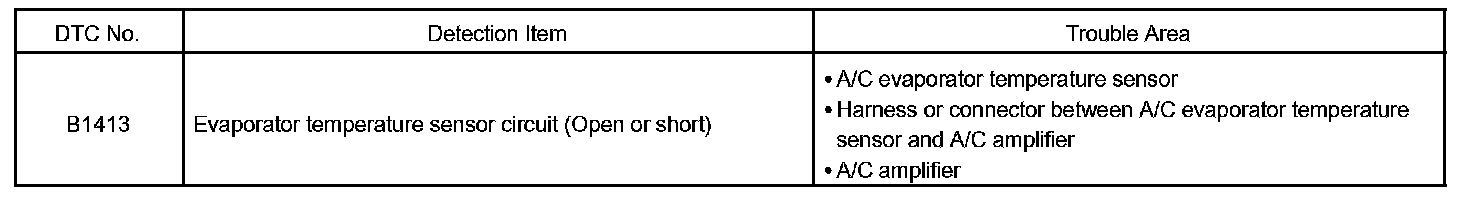

Detection Item:

This sensor detects the evaporator temperature and sends the appropriate signals to the A/C amplifier. It is used for frost prevention, temperature and time lag air flow control.

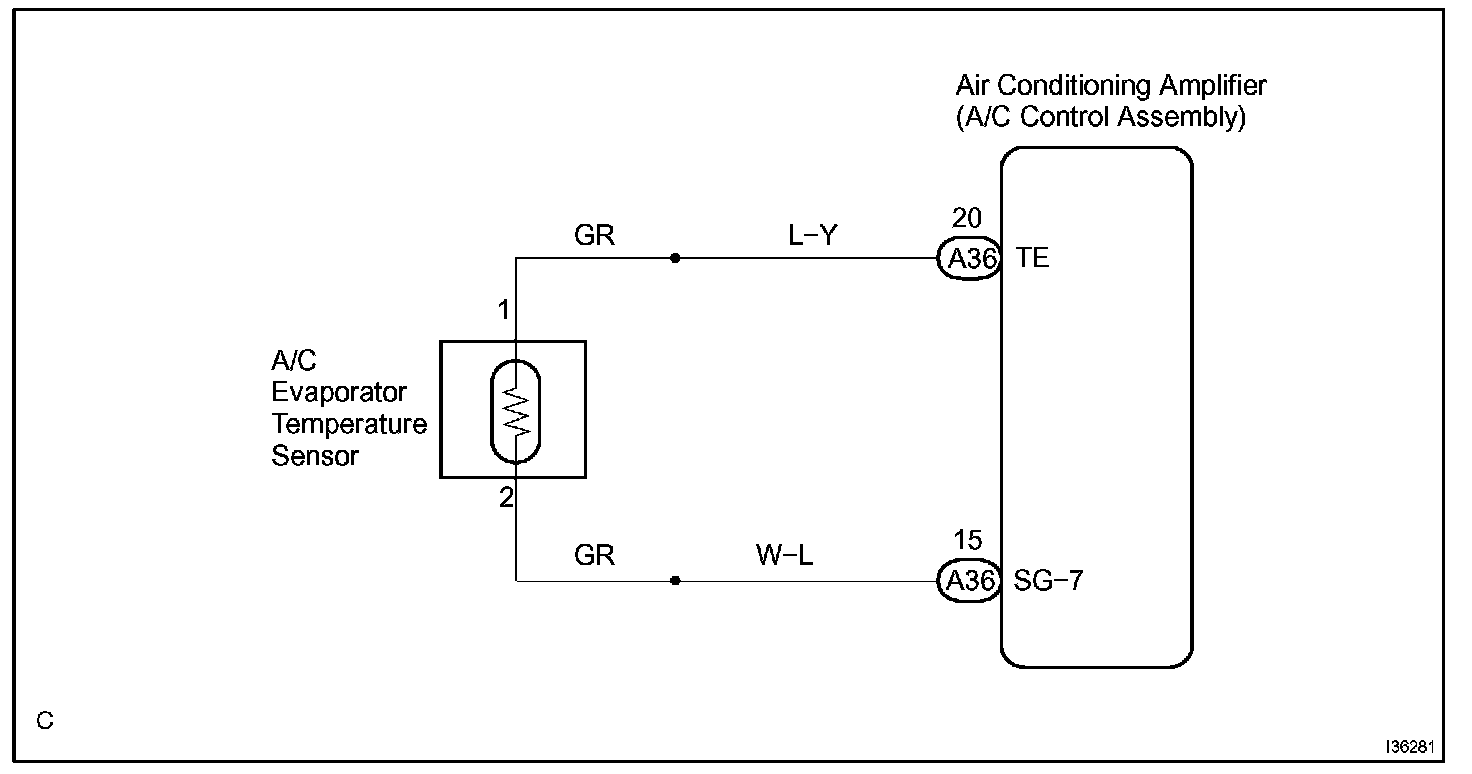

Wiring Diagram:

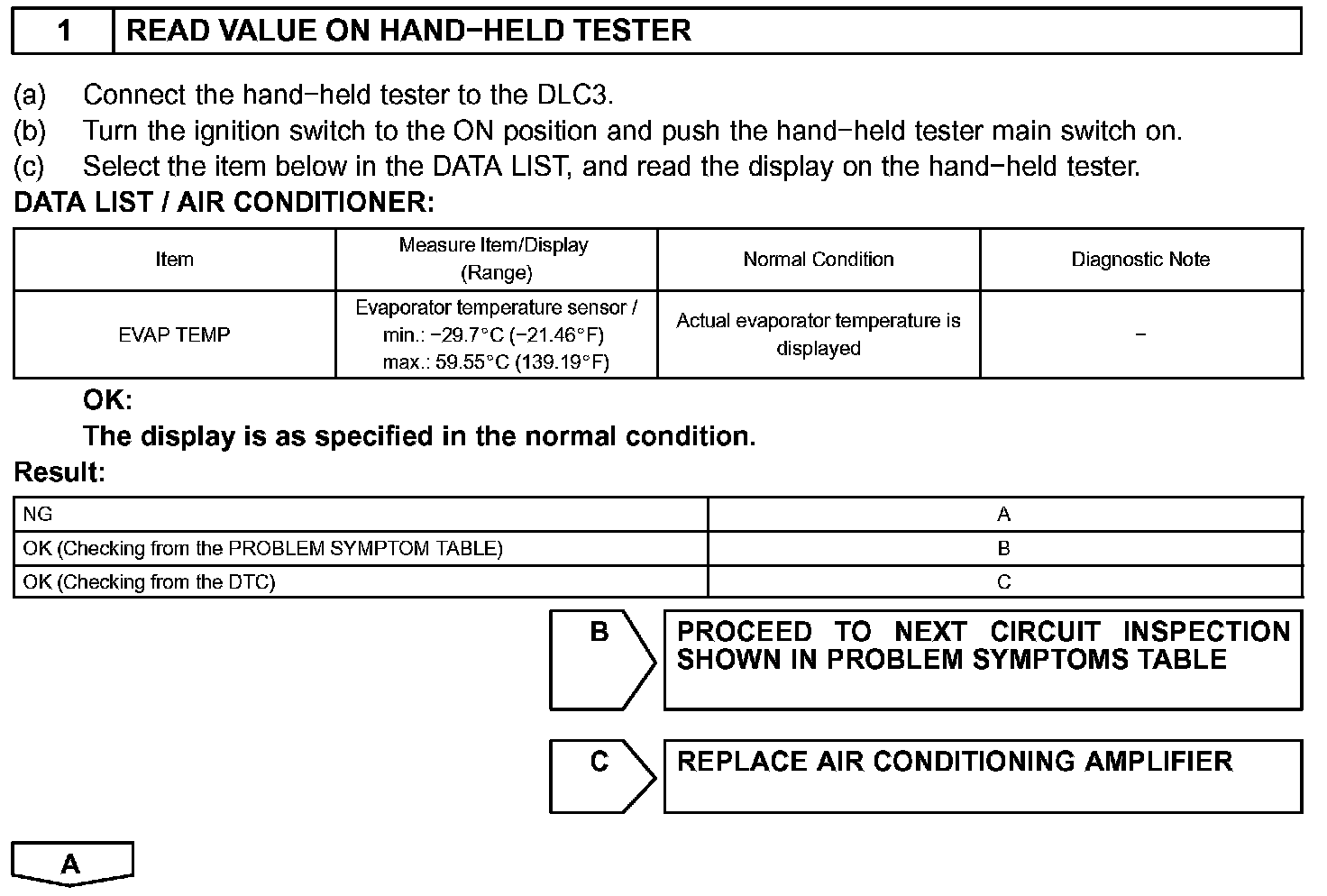

Step 1:

Step 2:

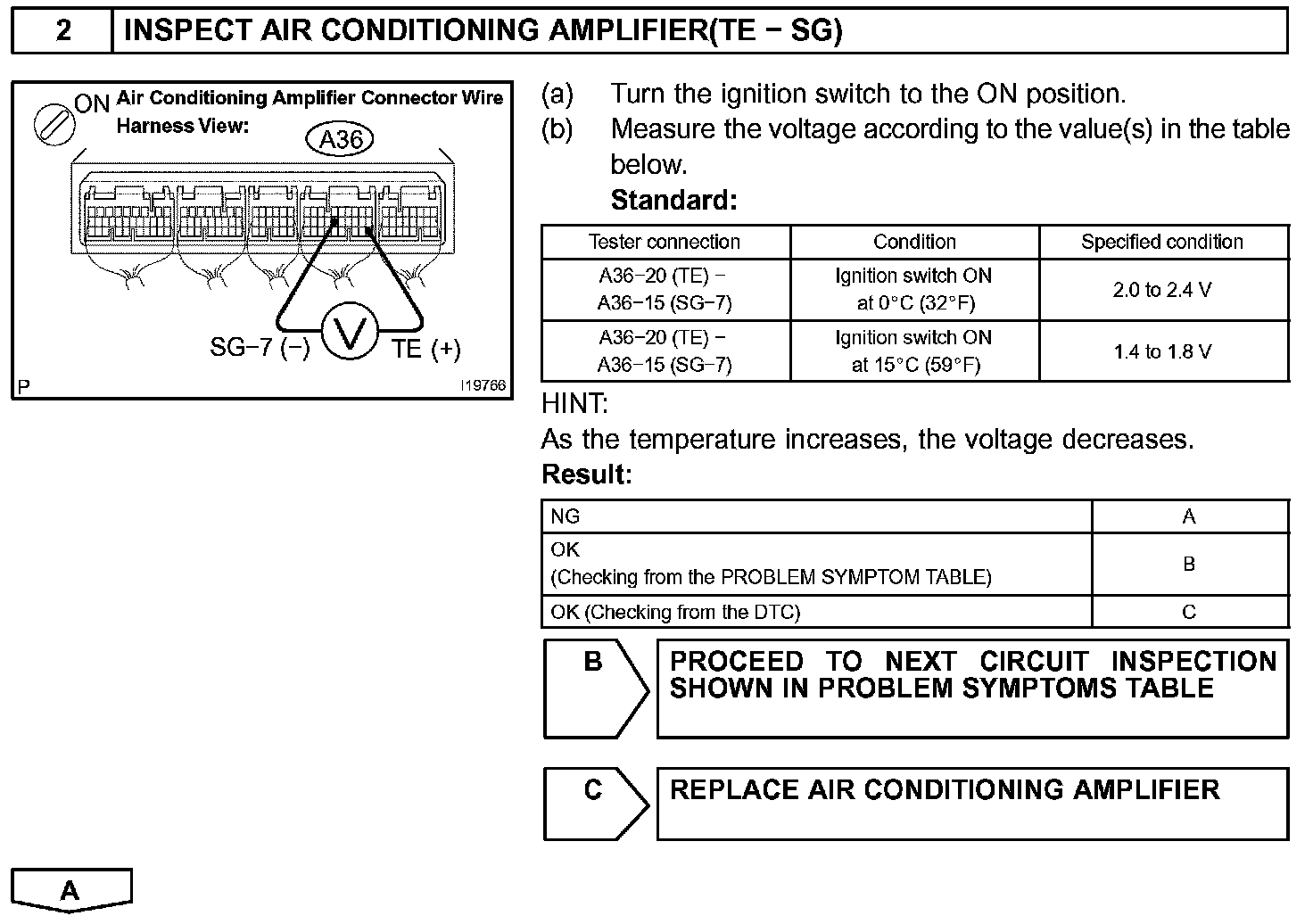

Step 3:

Step 3(continued)-4:

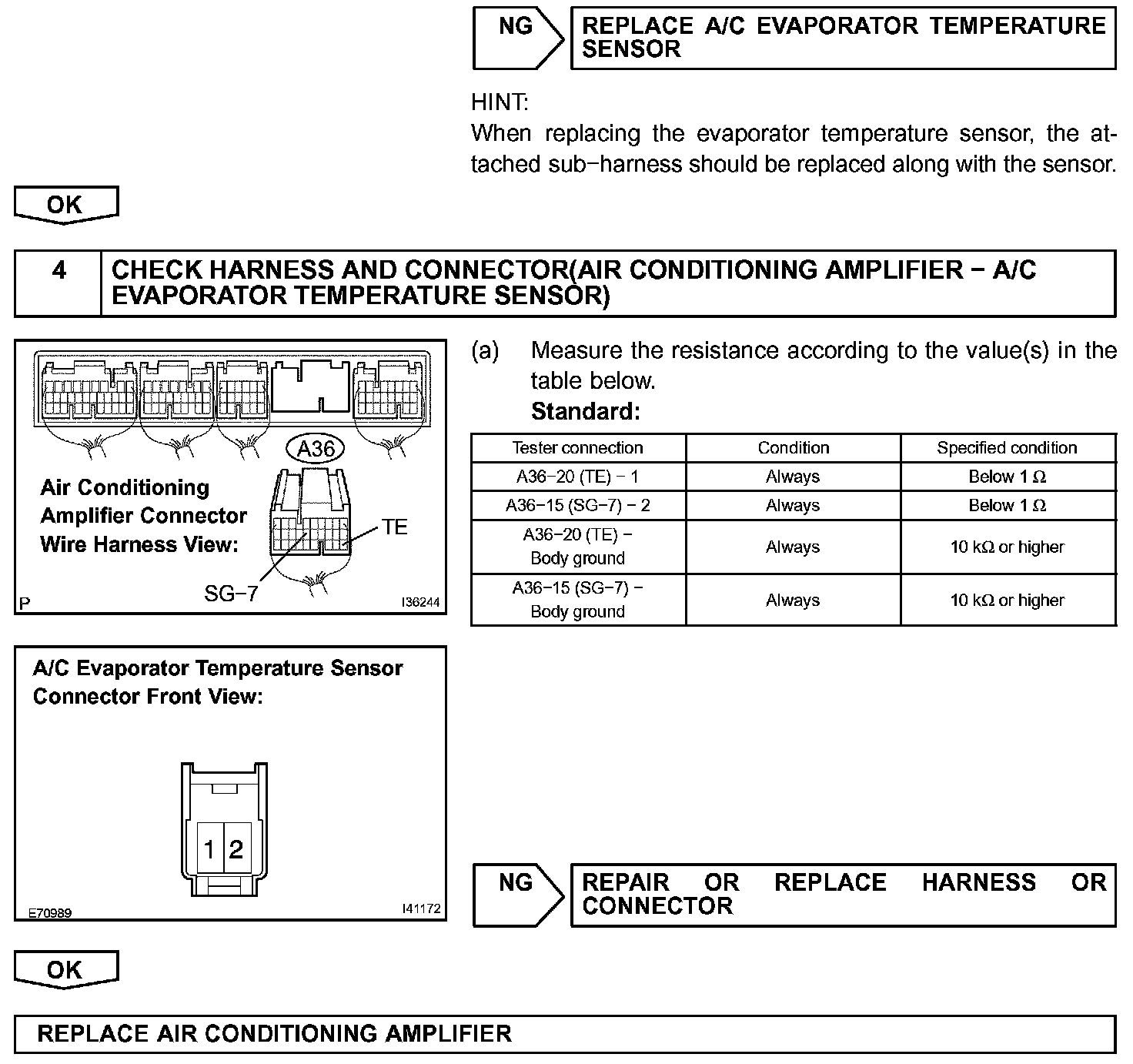

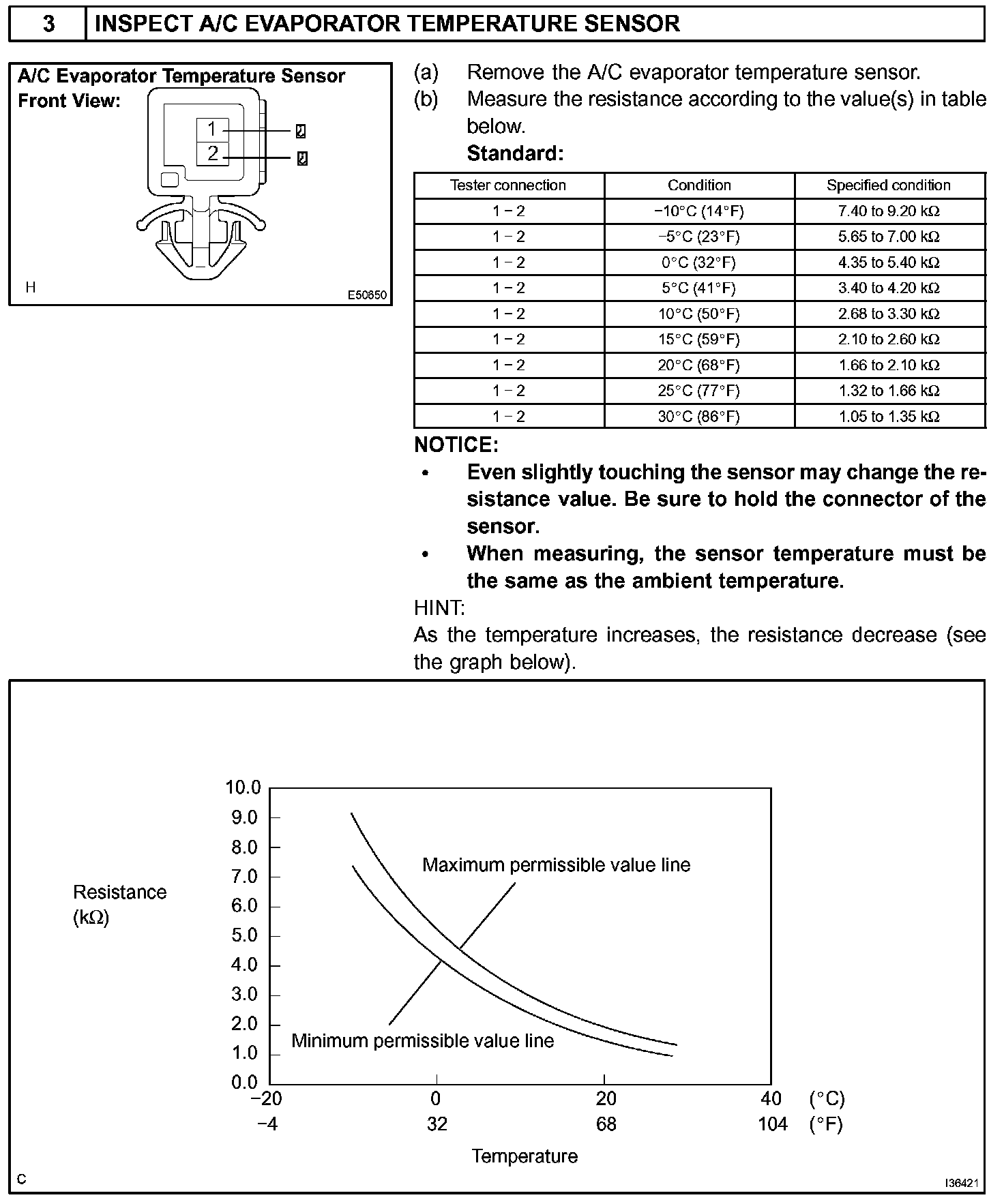

INSPECTION PROCEDURE
