B1299

DTC B1299 REAR LEFT SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

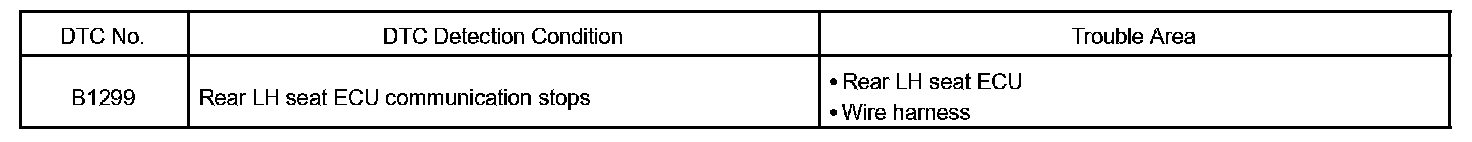

DTC Detecting Condition:

This DTC is detected when communication between the rear LH seat ECU and gateway ECU stops for more than 10 seconds.

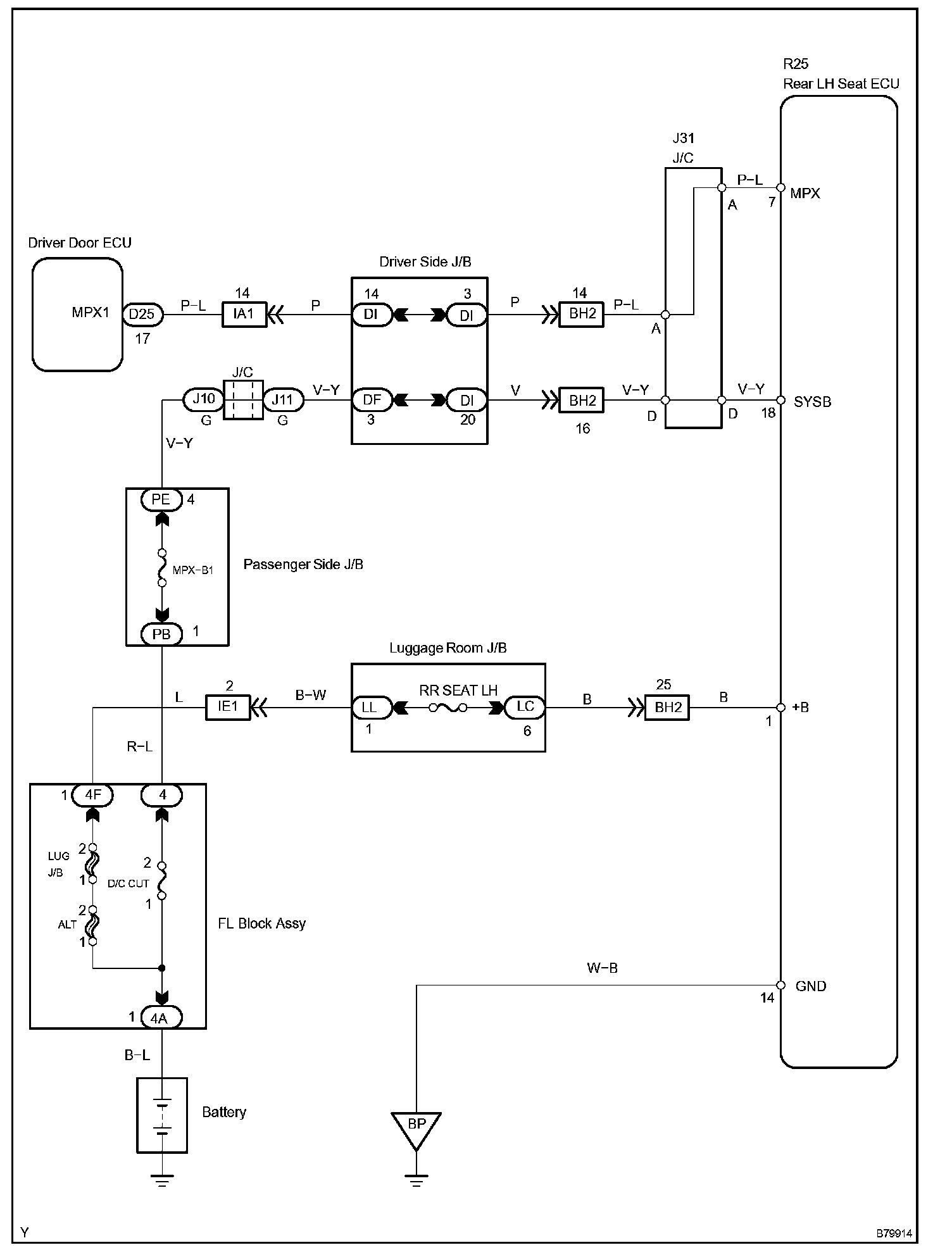

Wiring Diagram:

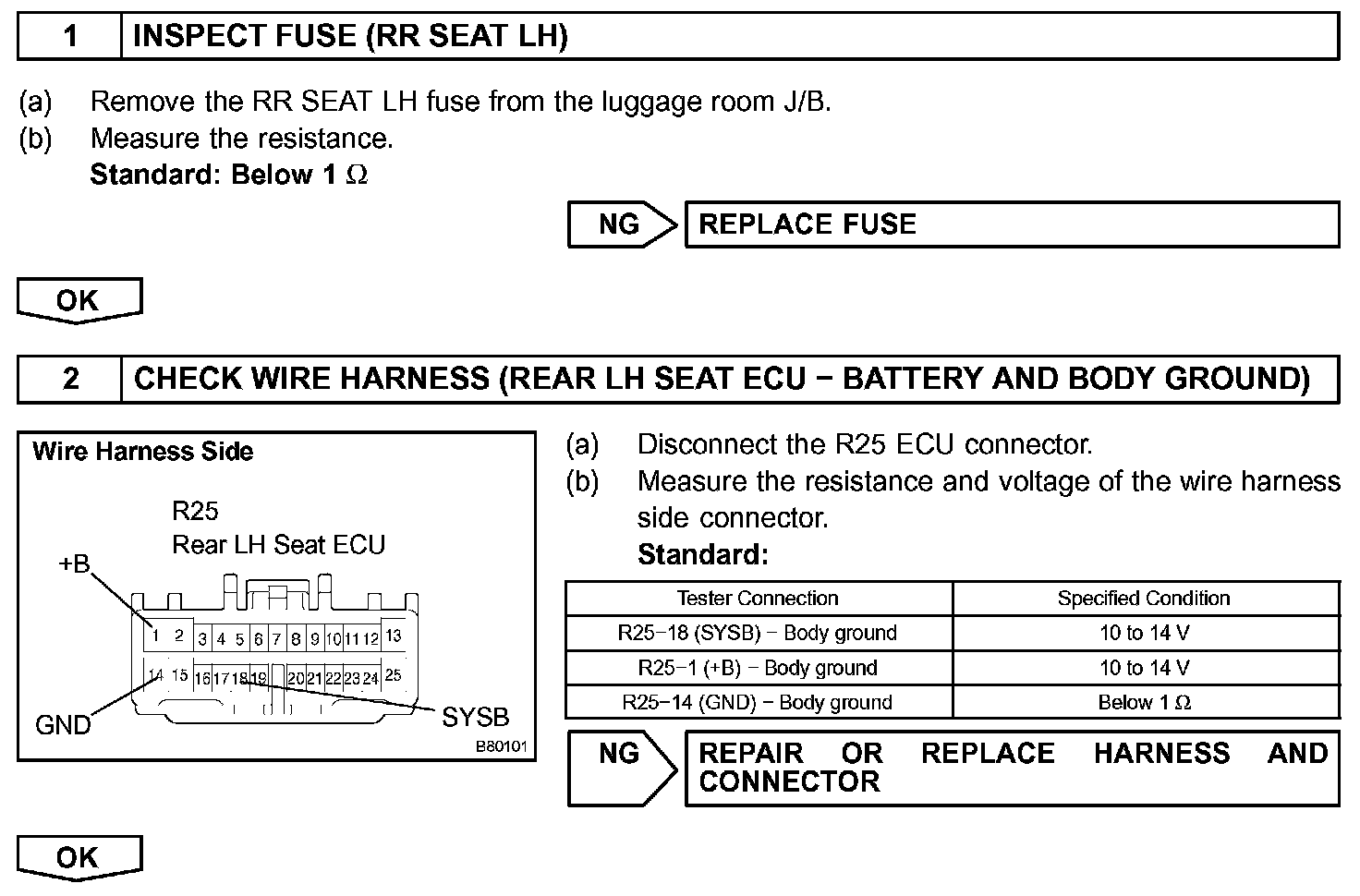

Step 1-2:

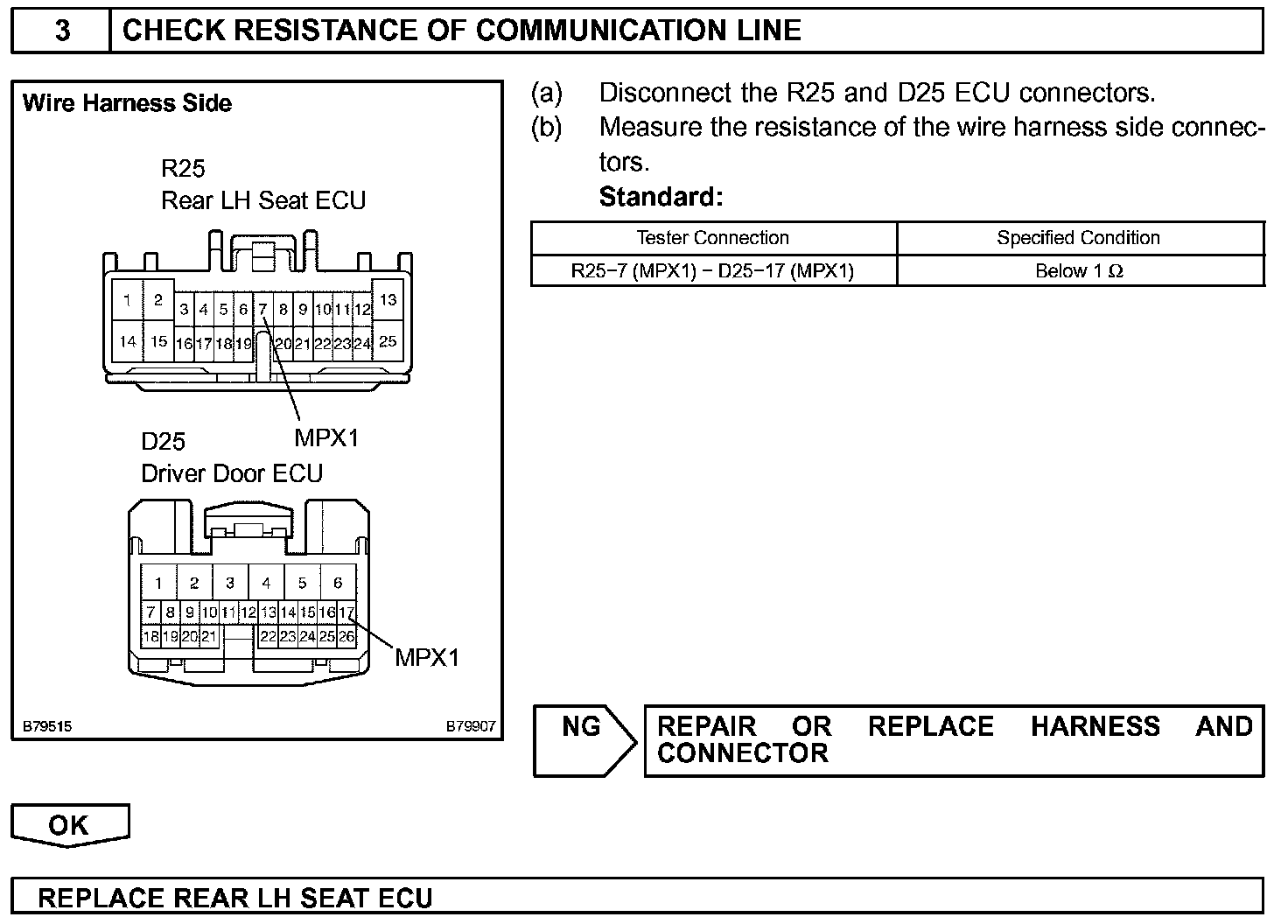

Step 3:

INSPECTION PROCEDURE
