B1298

DTC B1298 REAR RIGHT SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

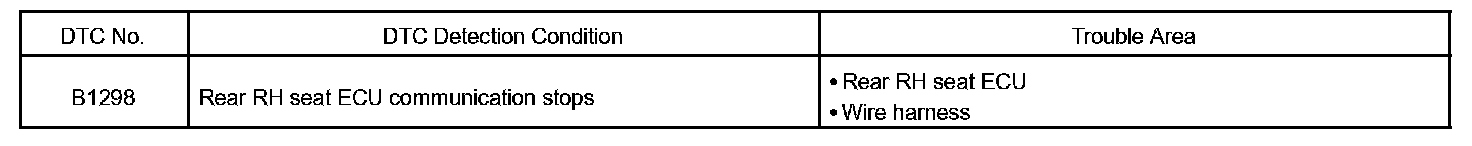

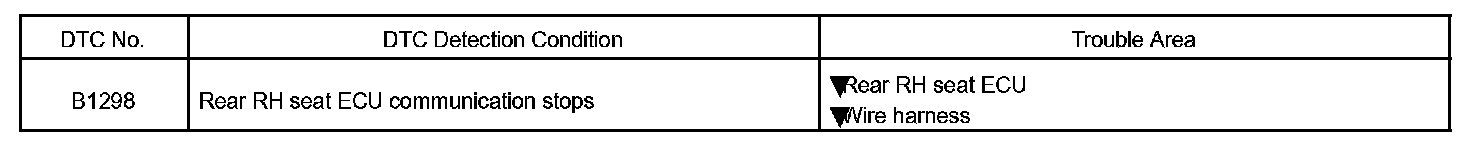

DTC Detection Condition:

This DTC is detected when communication between the rear RH seat ECU and gateway ECU stops for more than 10 seconds.

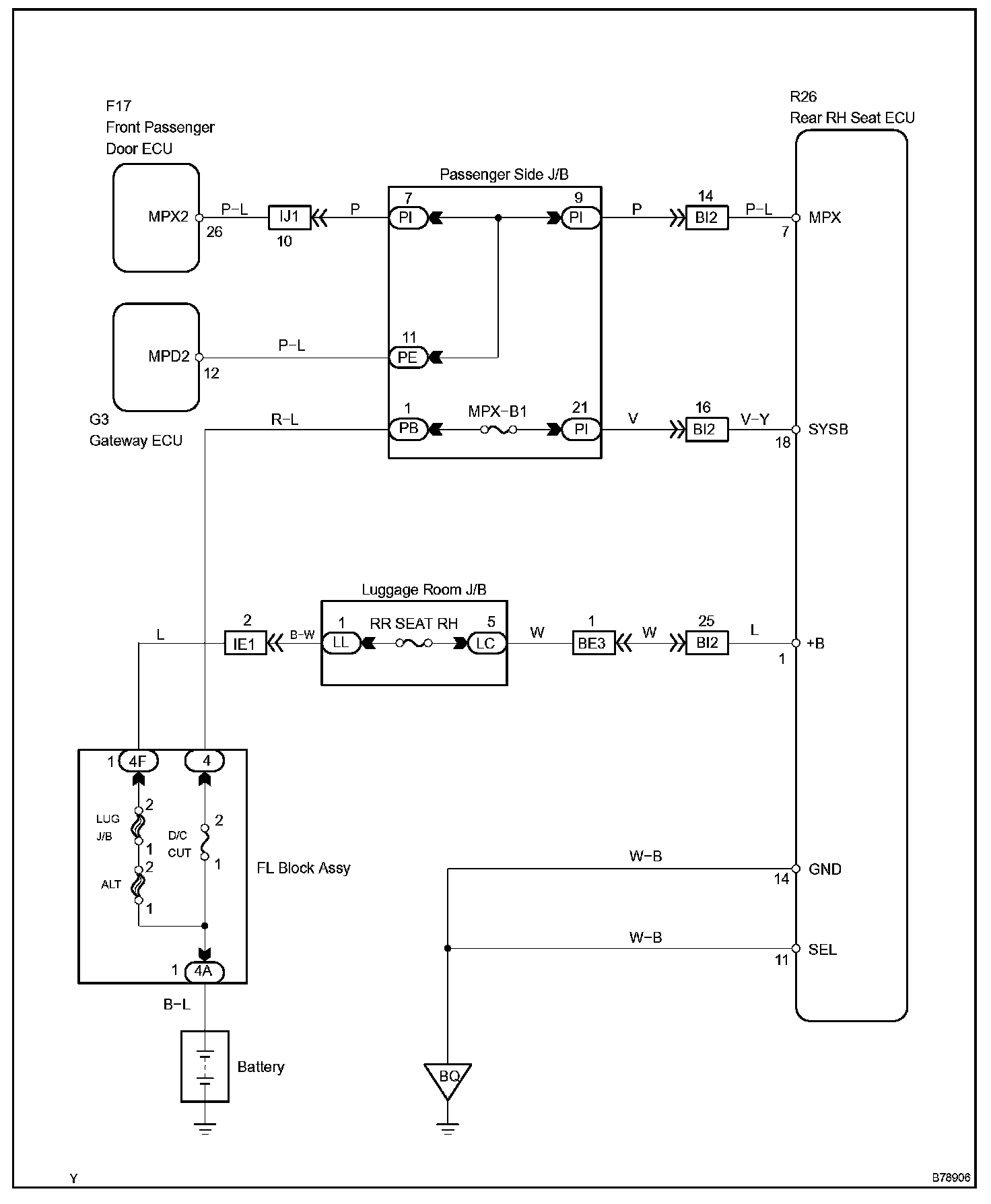

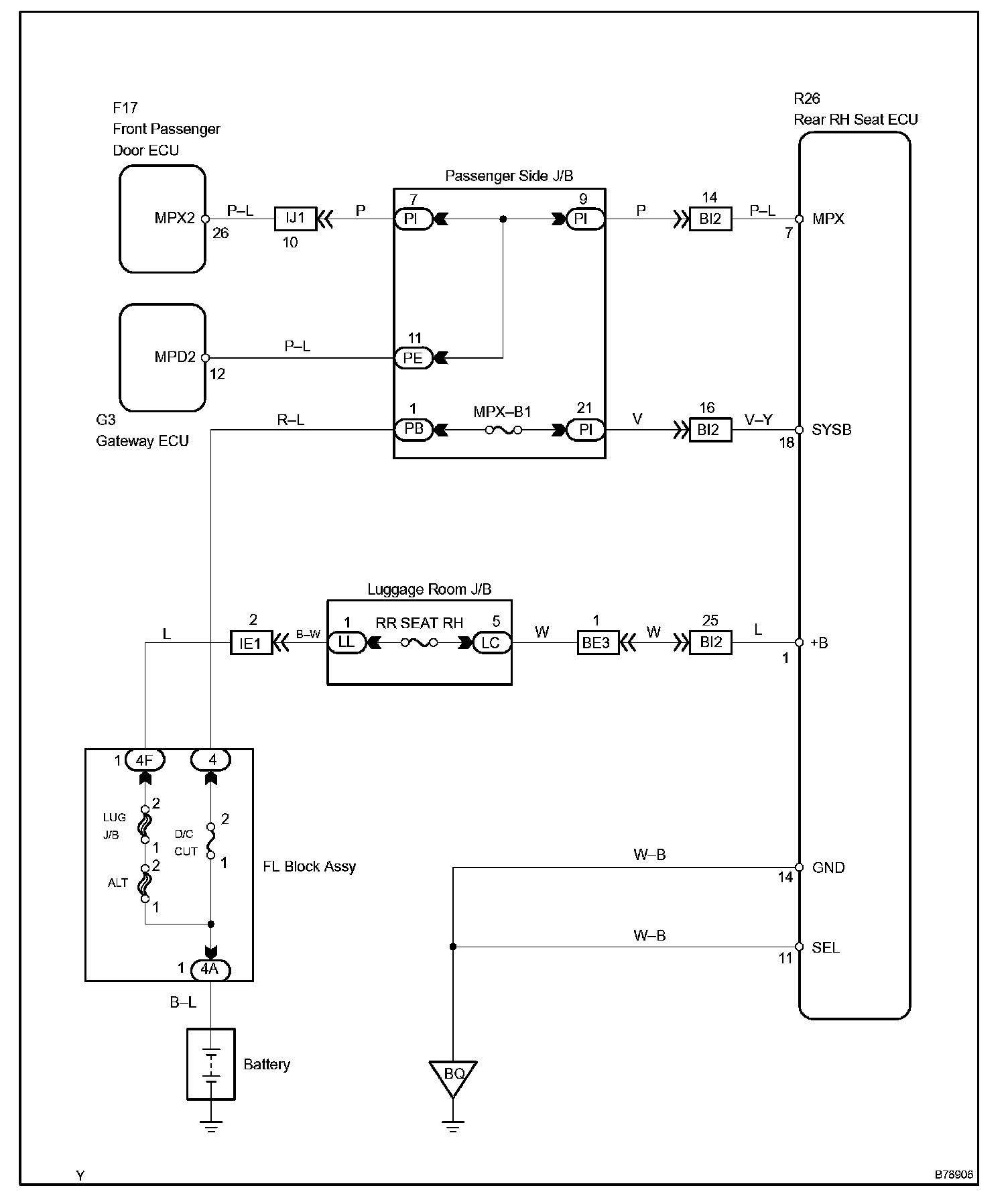

Wiring Diagram:

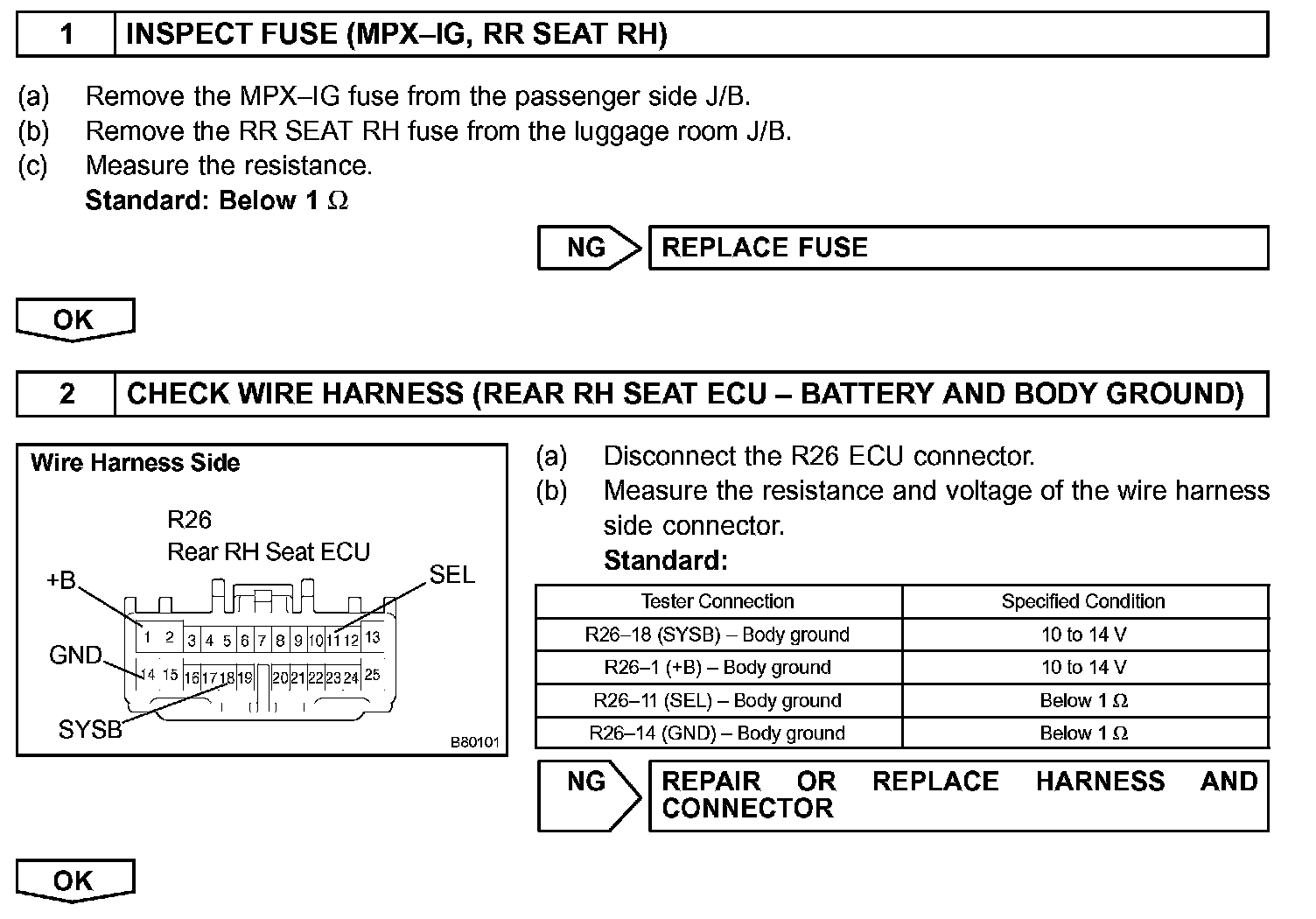

Step 1-2:

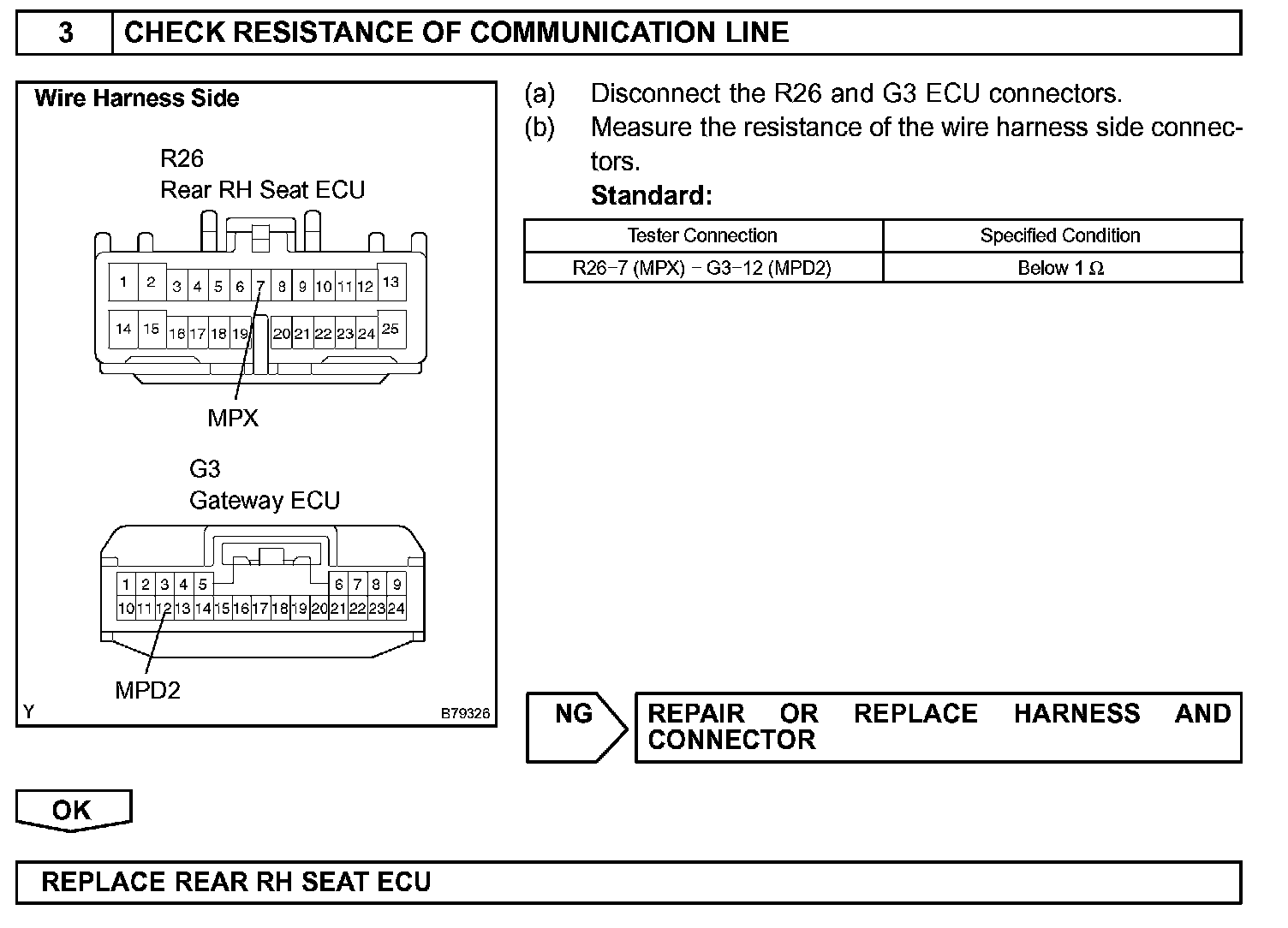

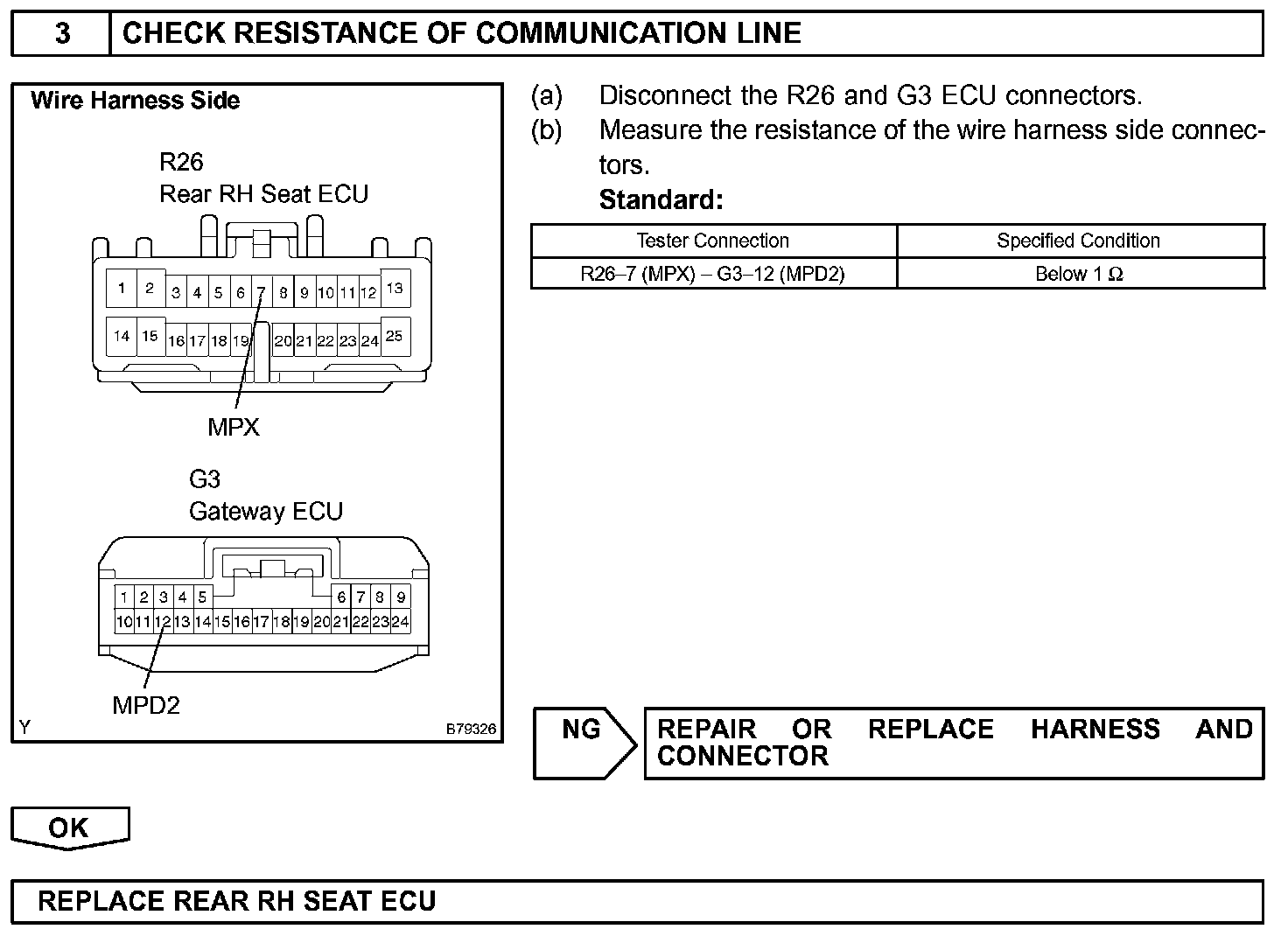

Step 3:

INSPECTION PROCEDURE
