B1294

DTC B1294 IMMOBILIZER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

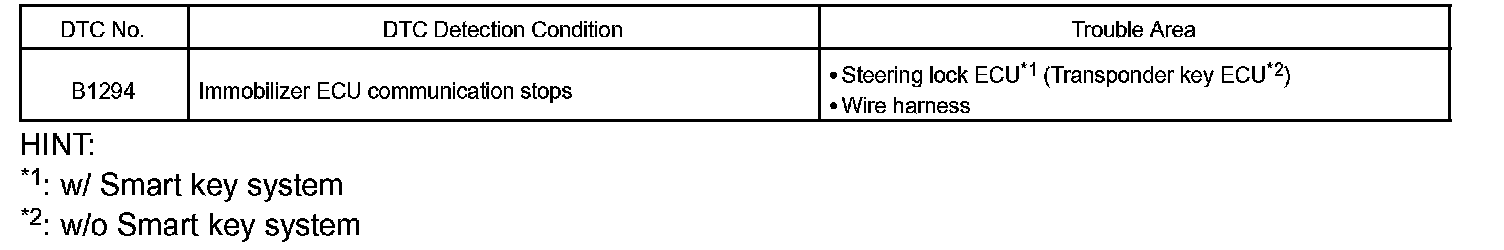

DTC Detection Condition:

This DTC is detected when communication between the immobilizer ECU (steering lock ECU*1 or transponder key ECU*2) and gateway ECU stops more than 10 seconds.

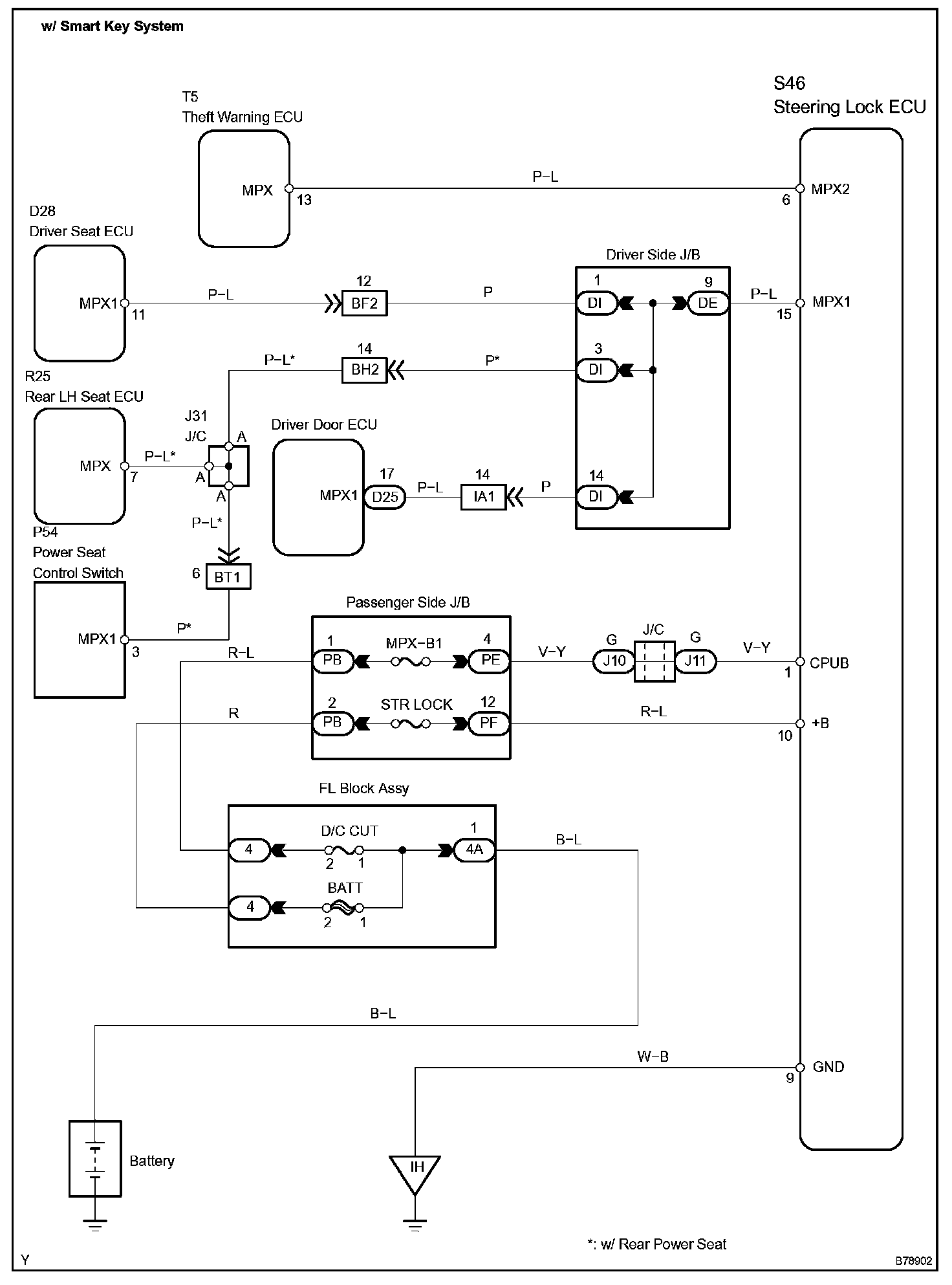

Wiring Diagram w/ Smart Key System:

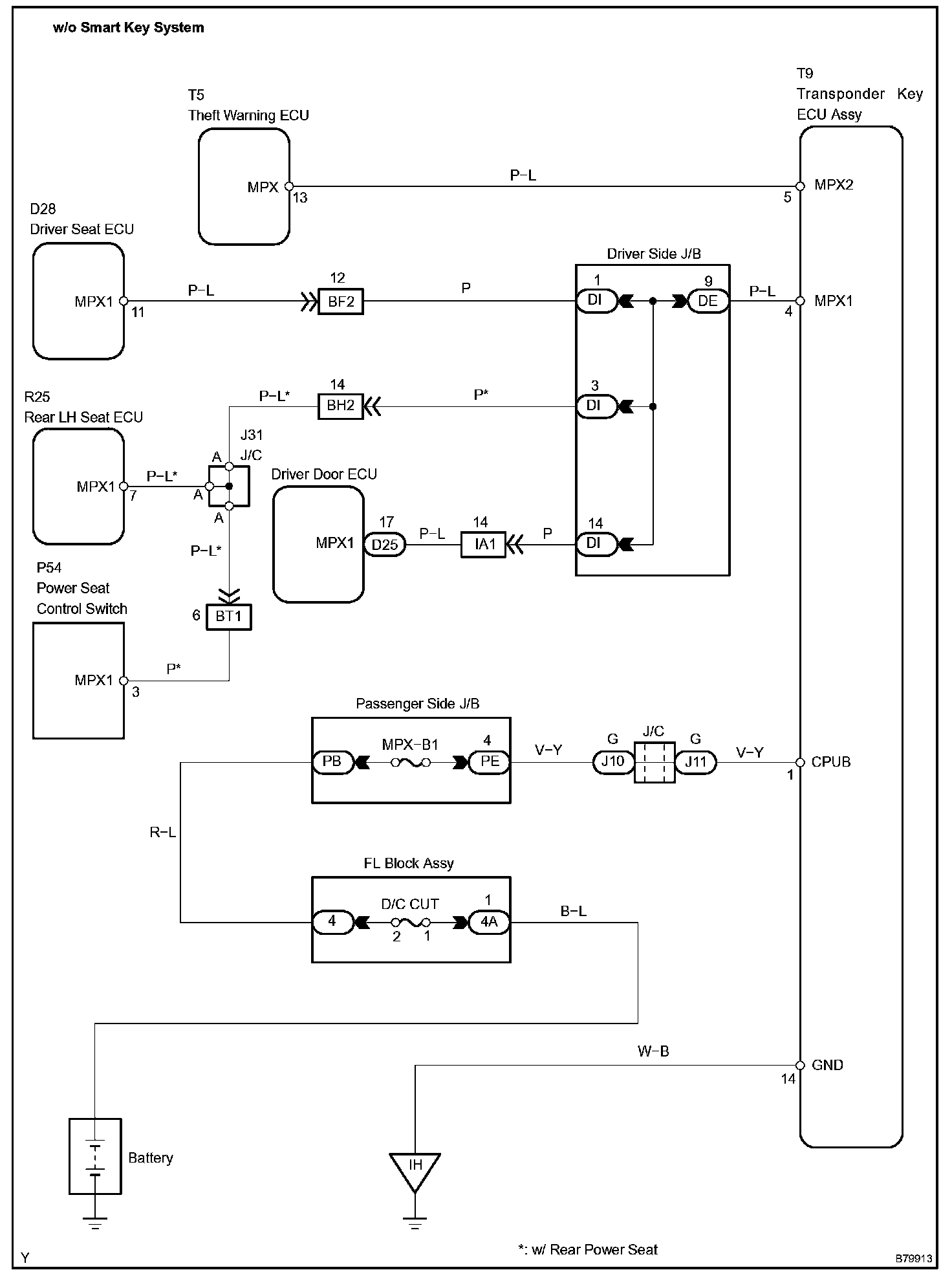

Wiring Diagram w/o Smart Key System:

INSPECTION PROCEDURE

Step 1-2:

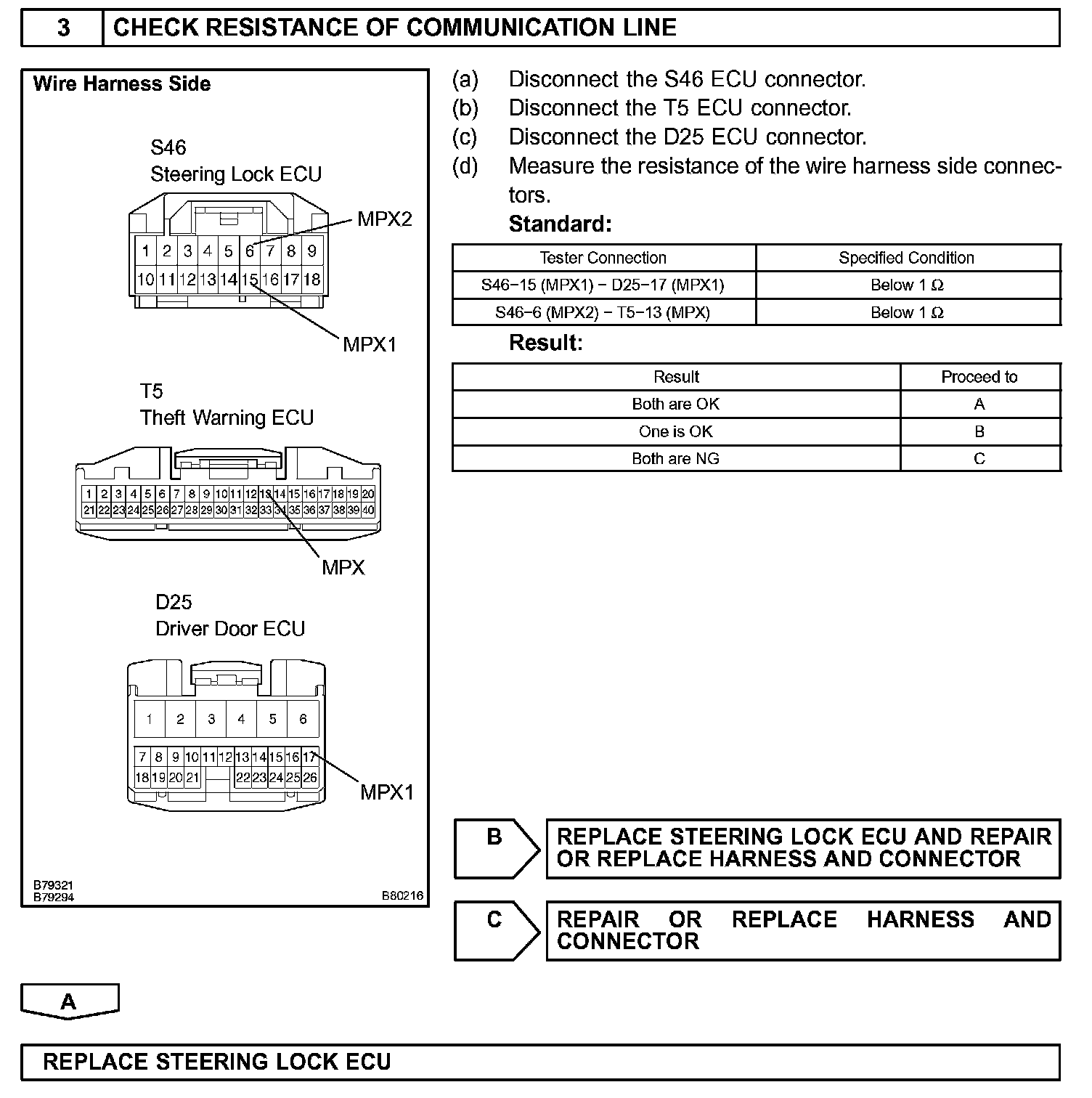

Step 3:

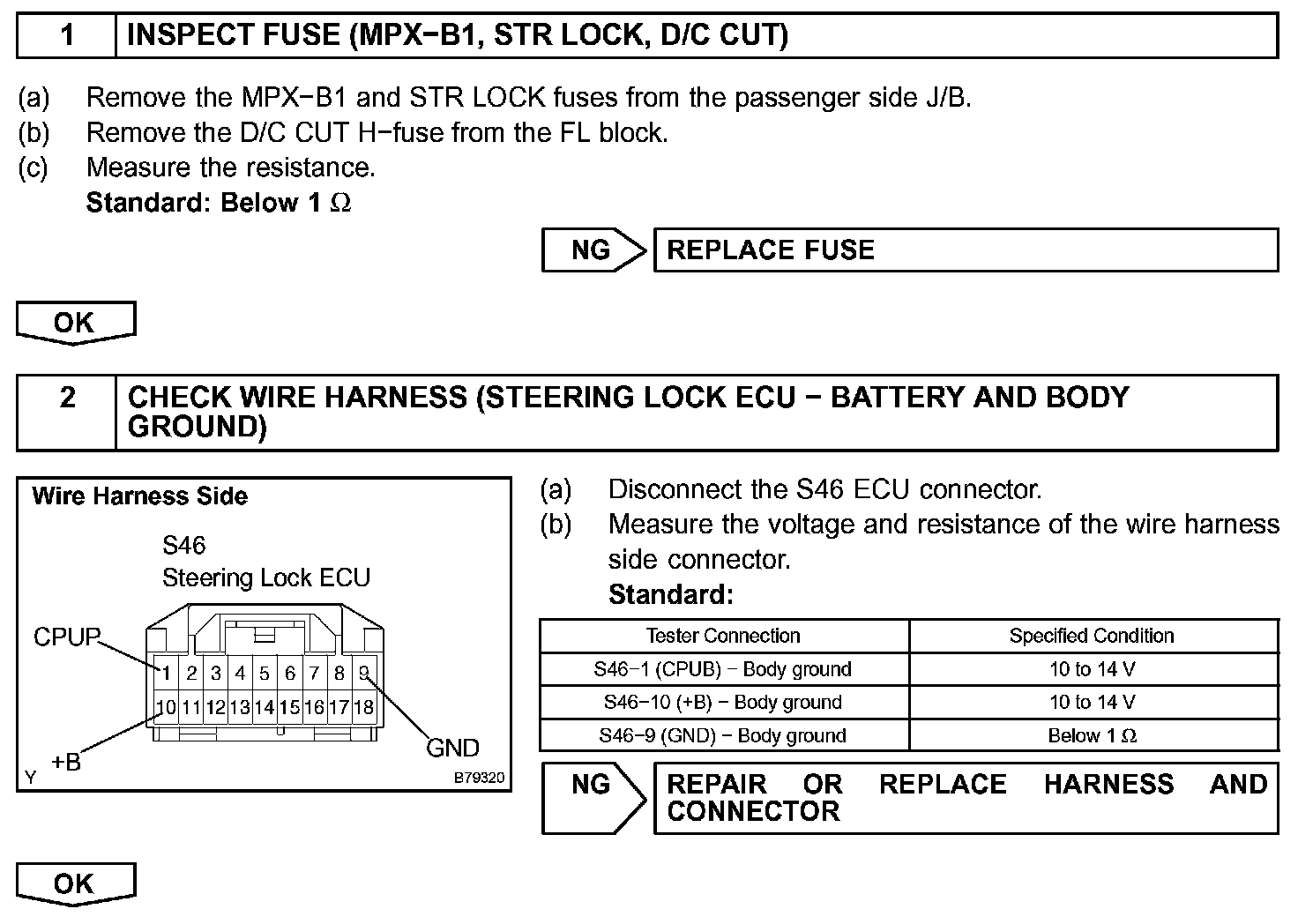

With Smart key system

Step 1-2:

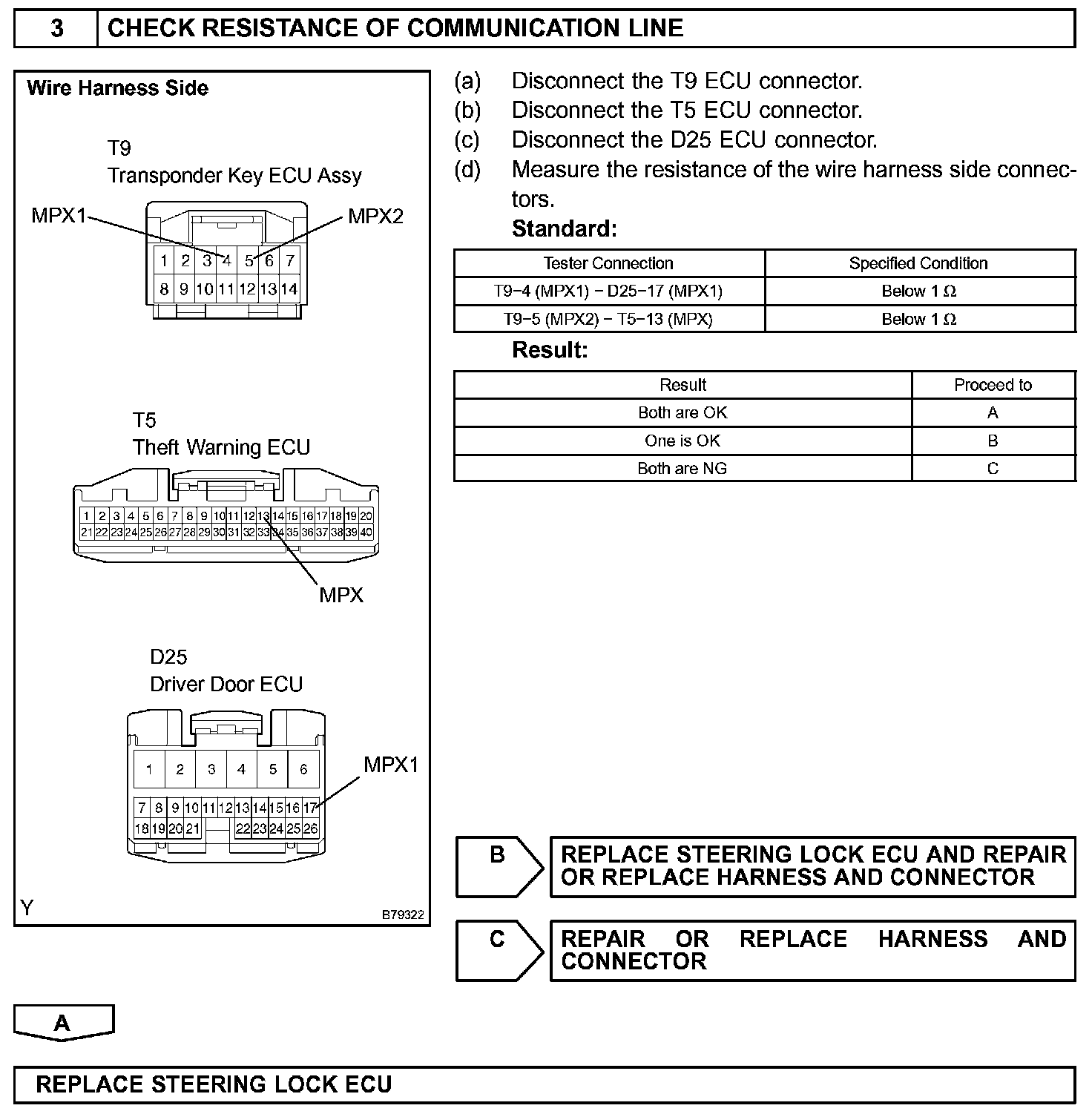

Step 3:

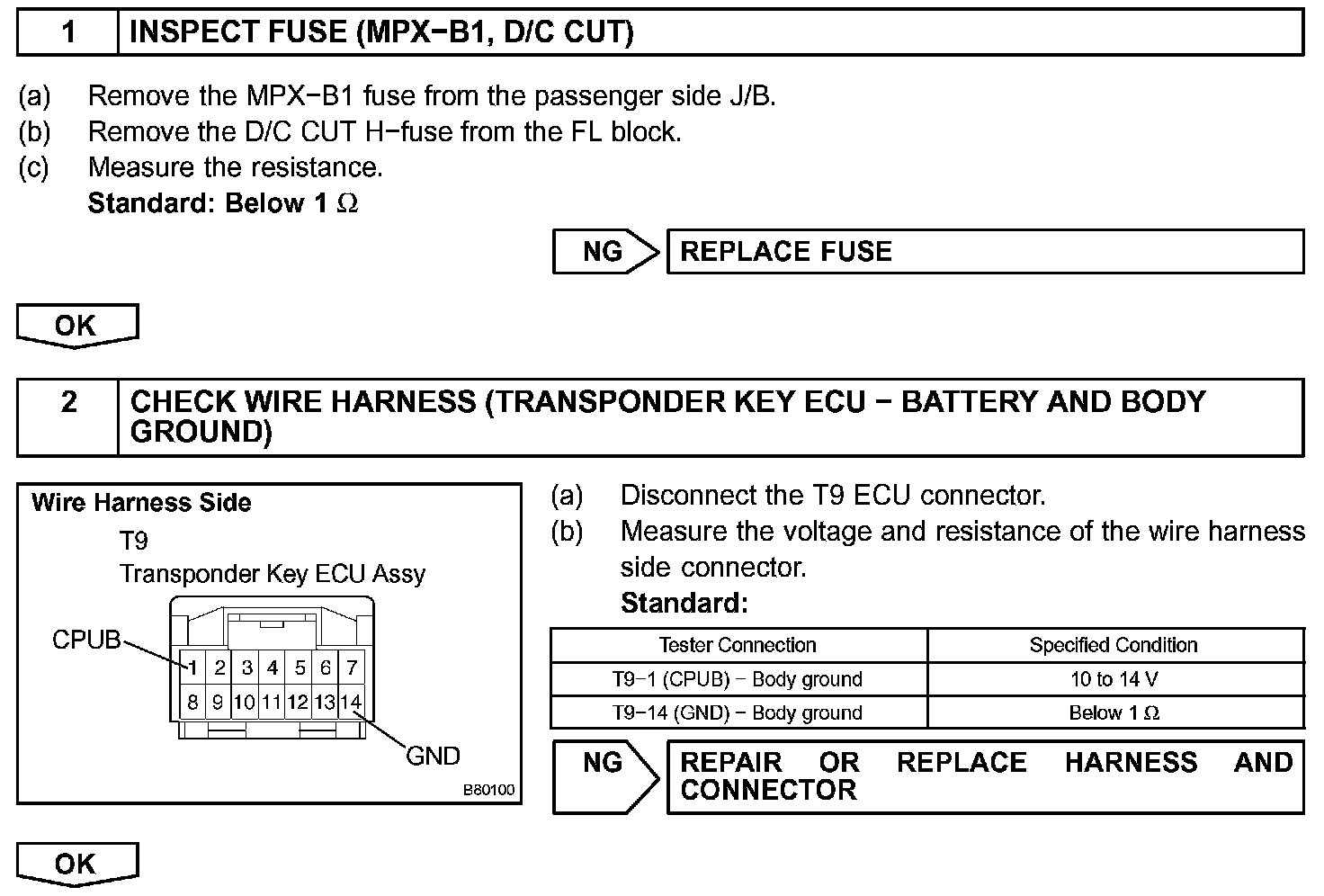

Without Smart key system
