B1278

DTC B1278 COMBINATION SWITCH ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

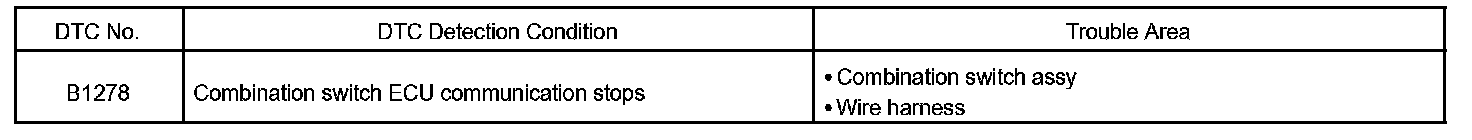

DTC Detection Condition:

This DTC is detected when communication between the combination switch (combination switch ECU) and gateway ECU stops for more than 10 seconds.

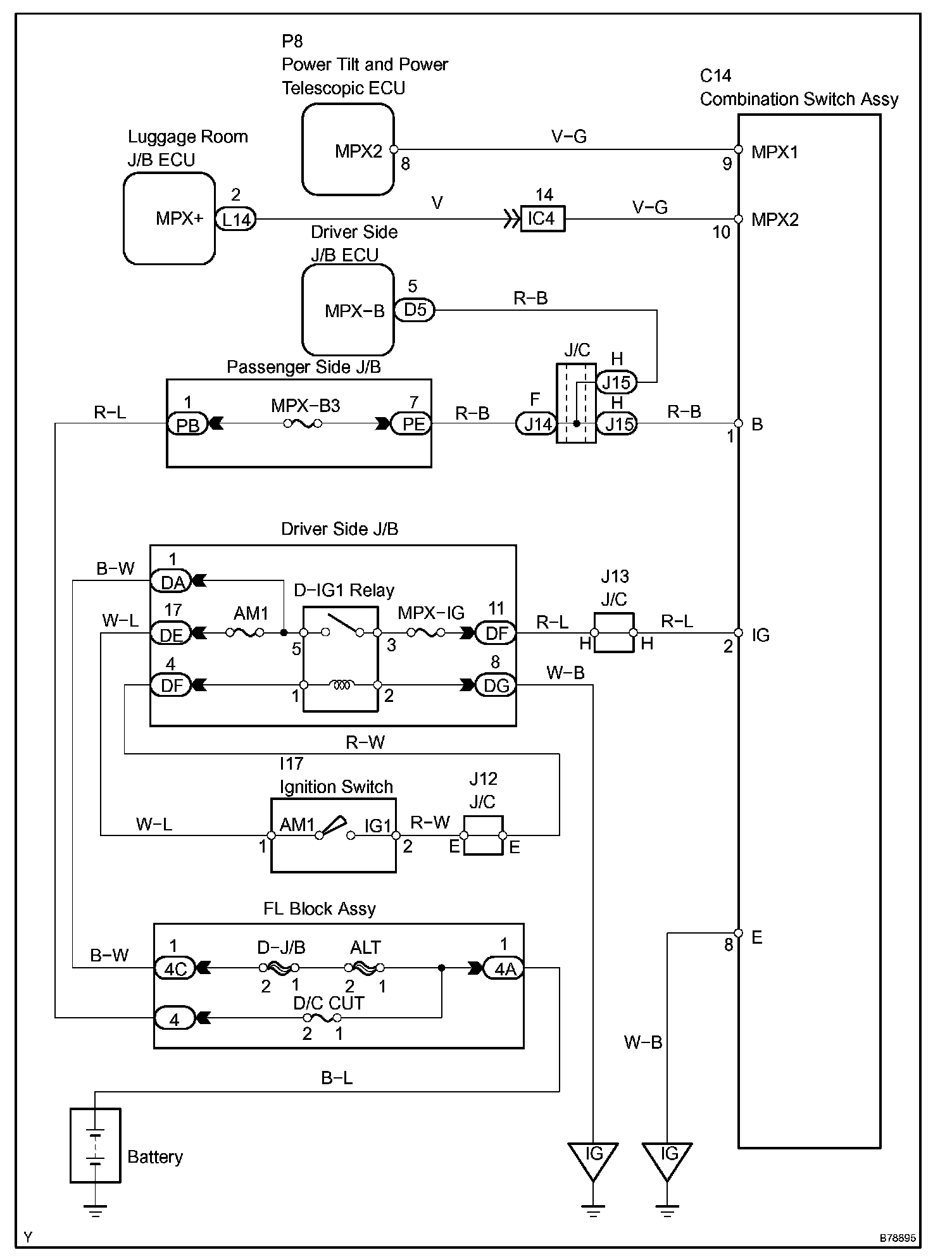

Wiring Diagram:

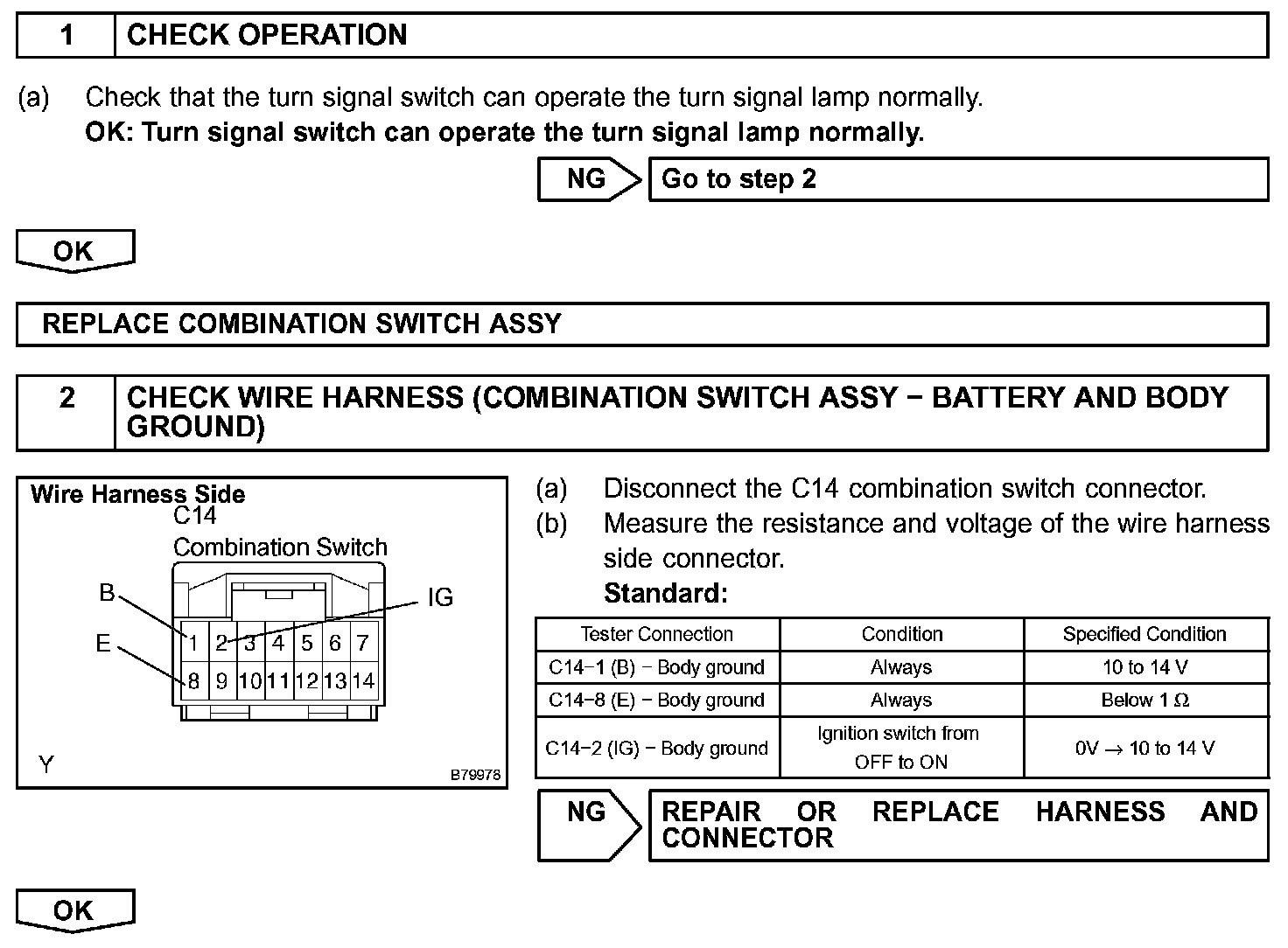

Step 1-2:

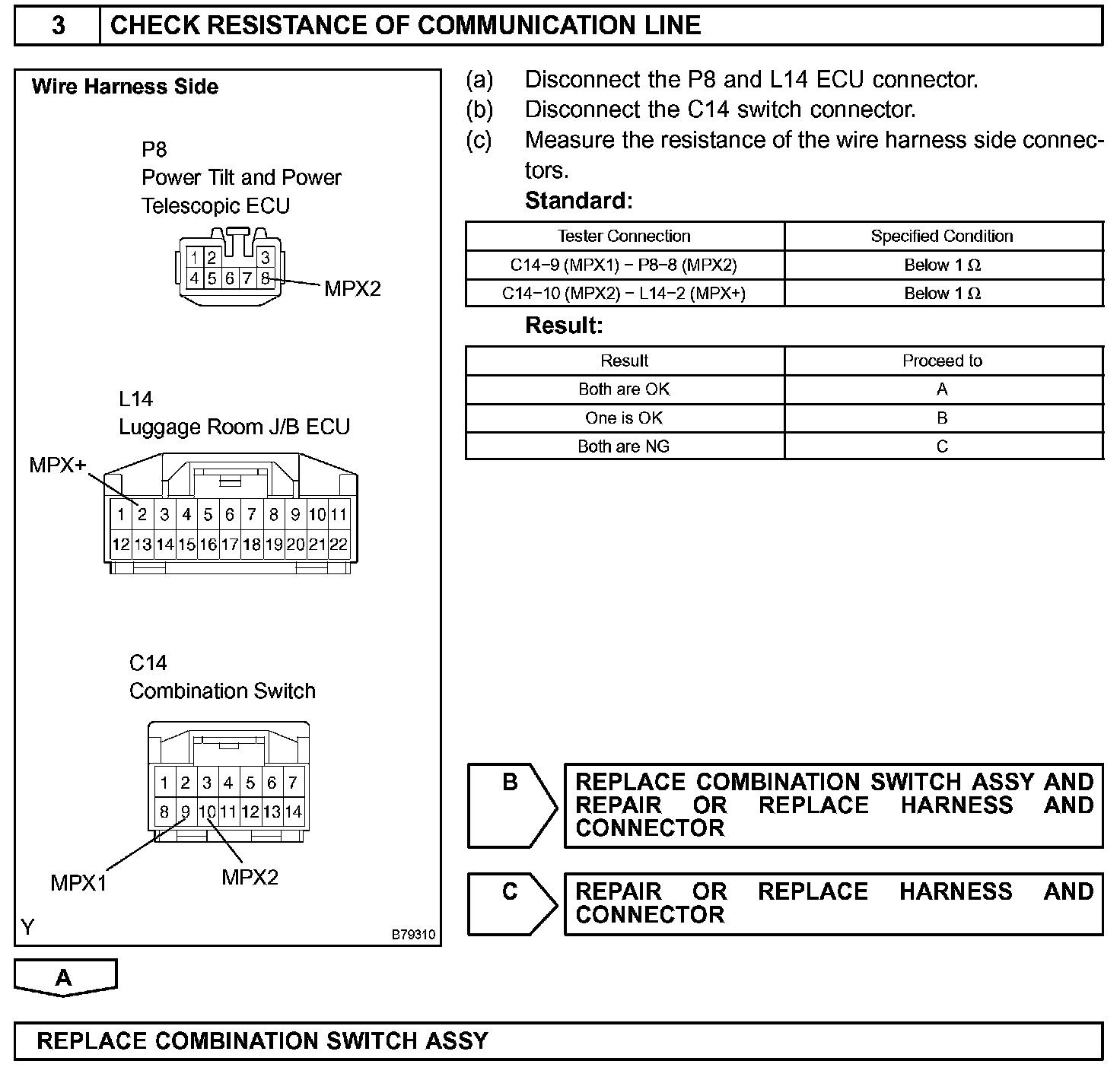

Step 3:

INSPECTION PROCEDURE
