B1275

DTC B1275 ACCESSORY BUS BUFFER COMMUNICATION STOP

CIRCUIT DESCRIPTION

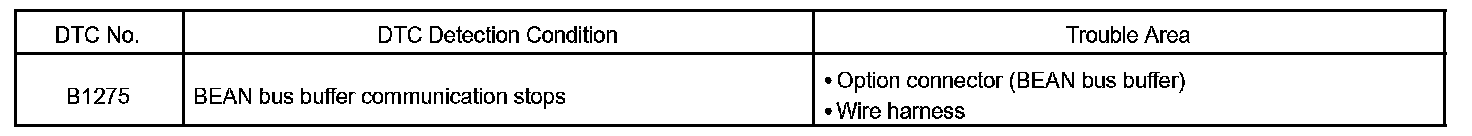

DTC Detecting Condition:

This DTC is detected when communication between the BEAN bus buffer and the gateway ECU stops for more than 10 seconds.

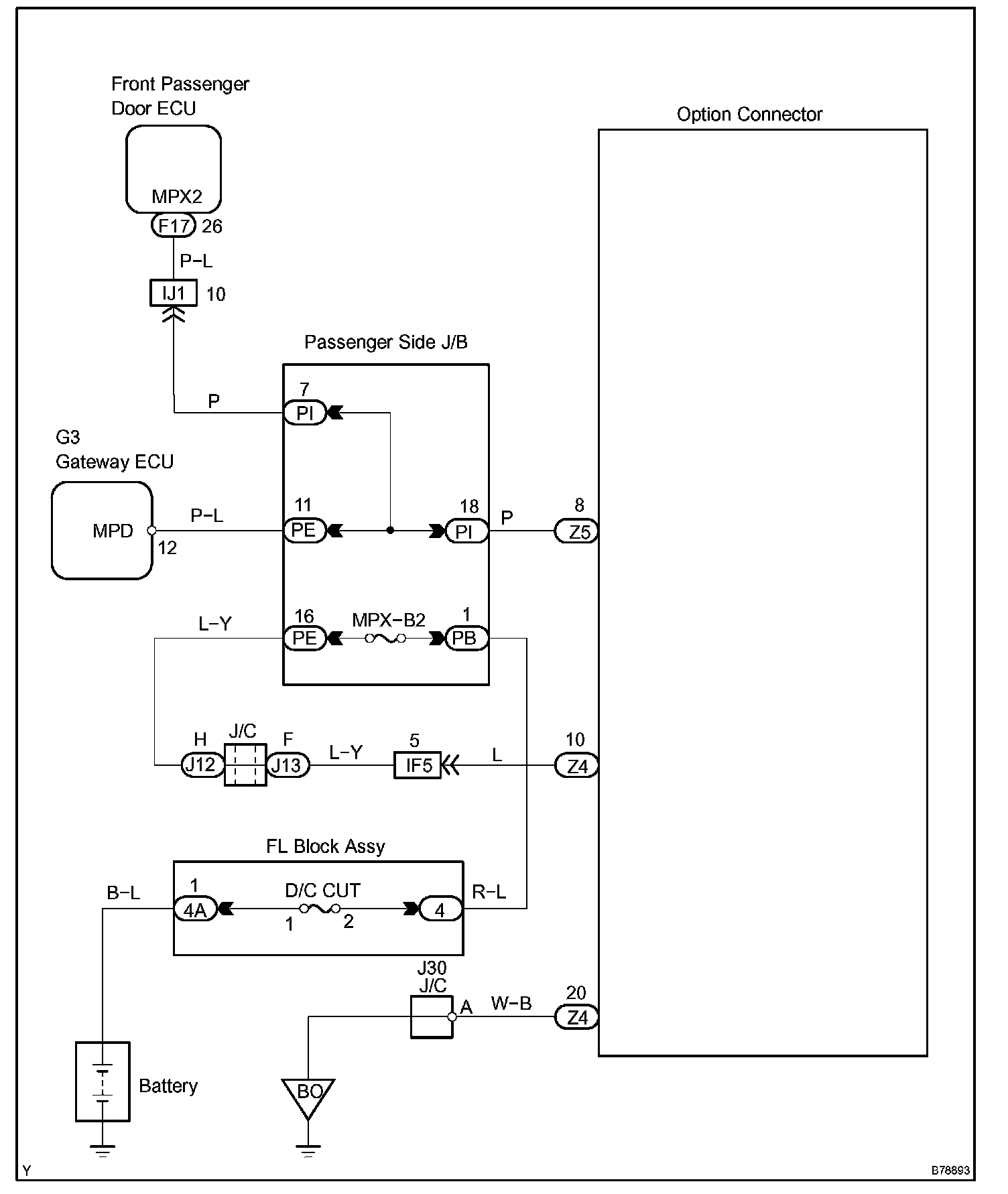

Wiring Diagram:

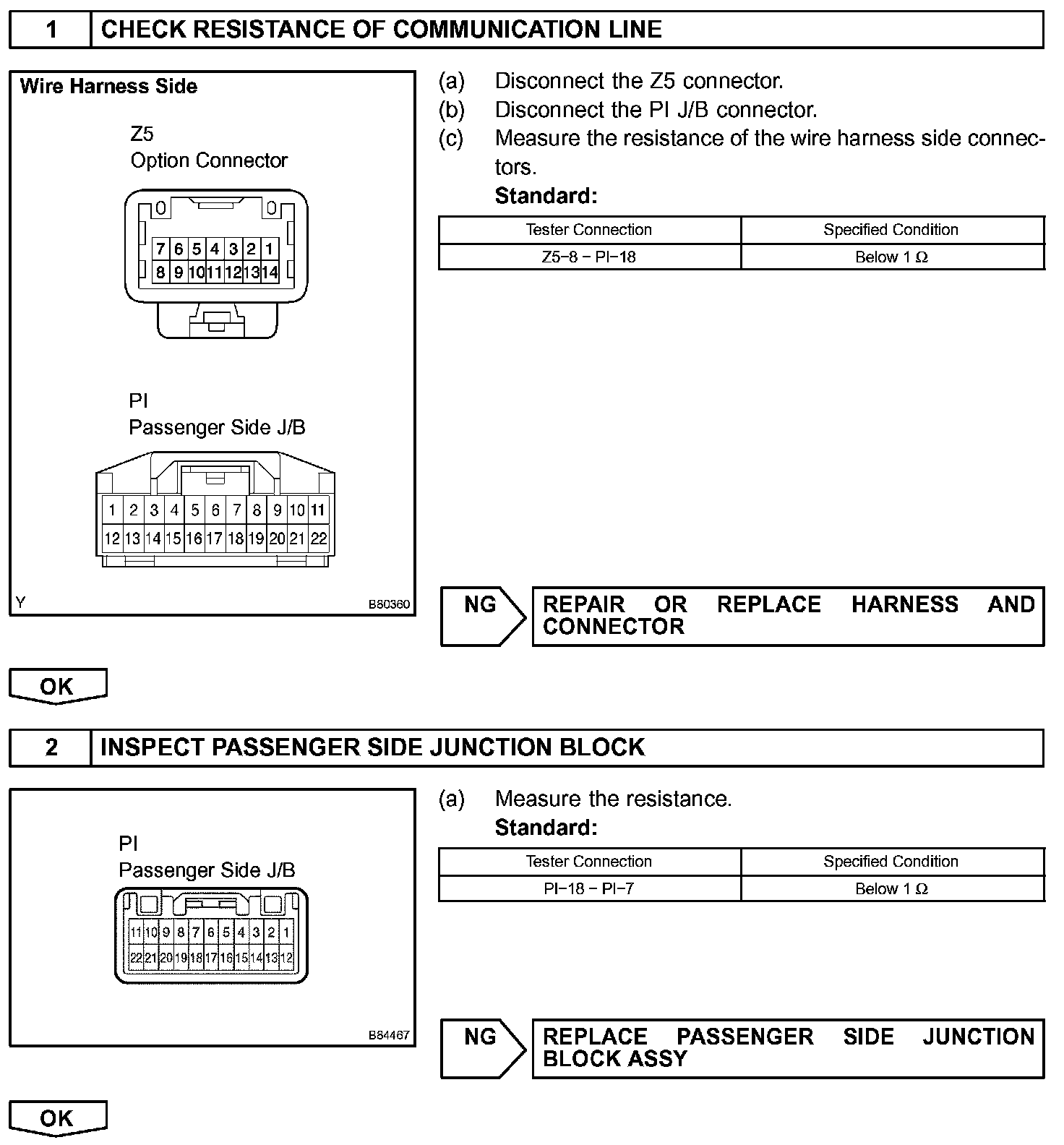

Step 1-2:

Step 3-4:

INSPECTION PROCEDURE
