B1272

DTC B1272 POWER SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

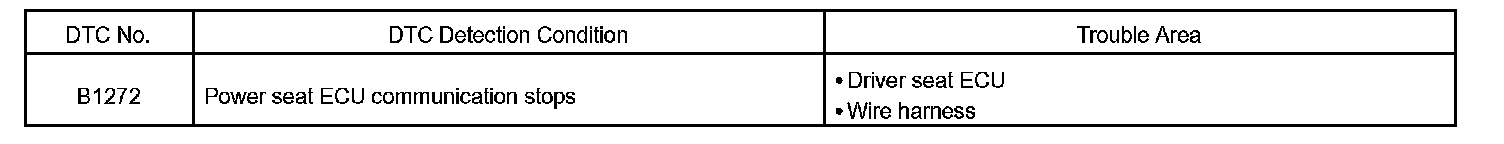

DTC Detection Condition:

This DTC is detected when communication between the driver seat ECU (power seat ECU) and gateway ECU stops for more 10 seconds.

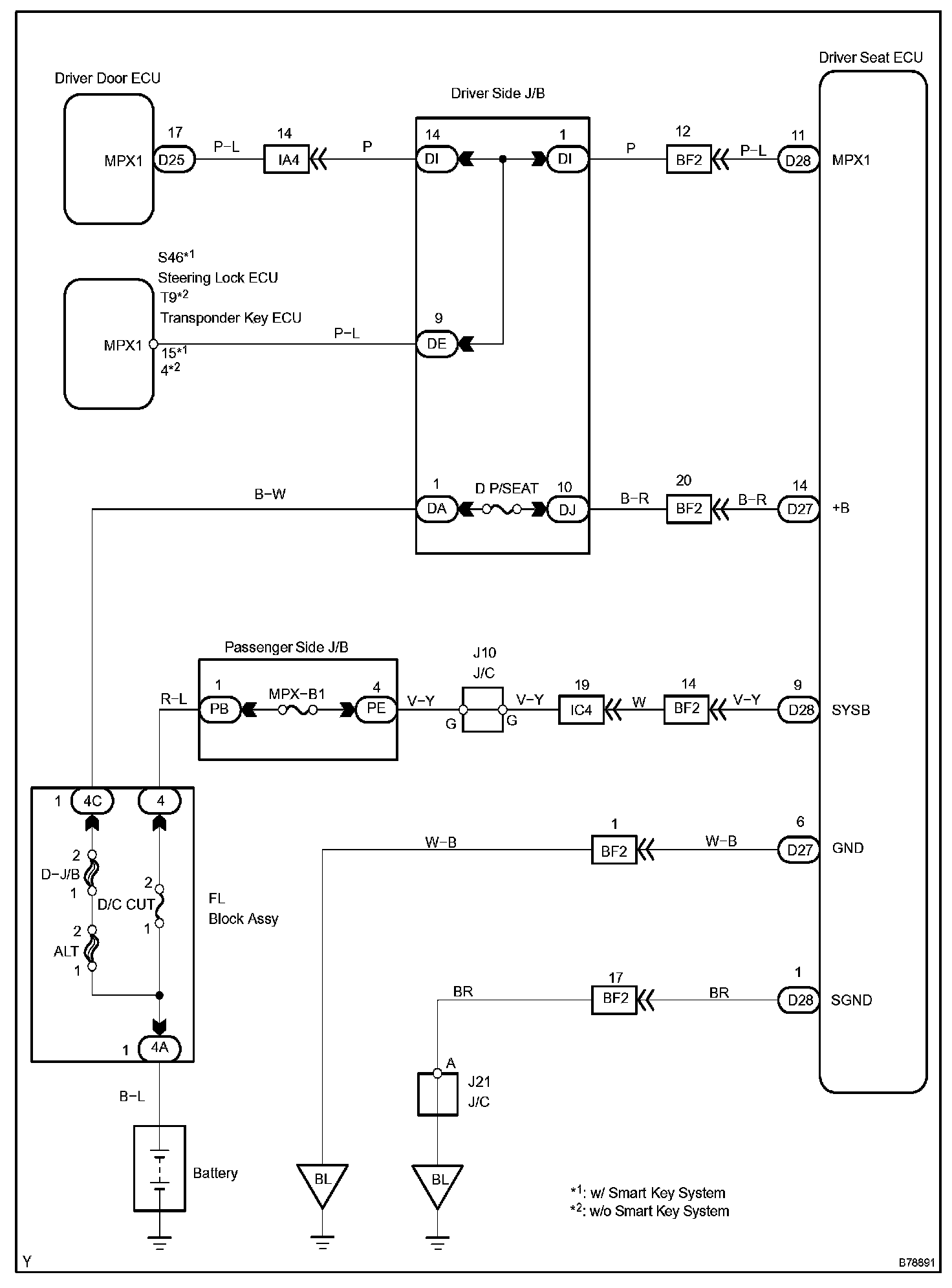

Wiring Diagram:

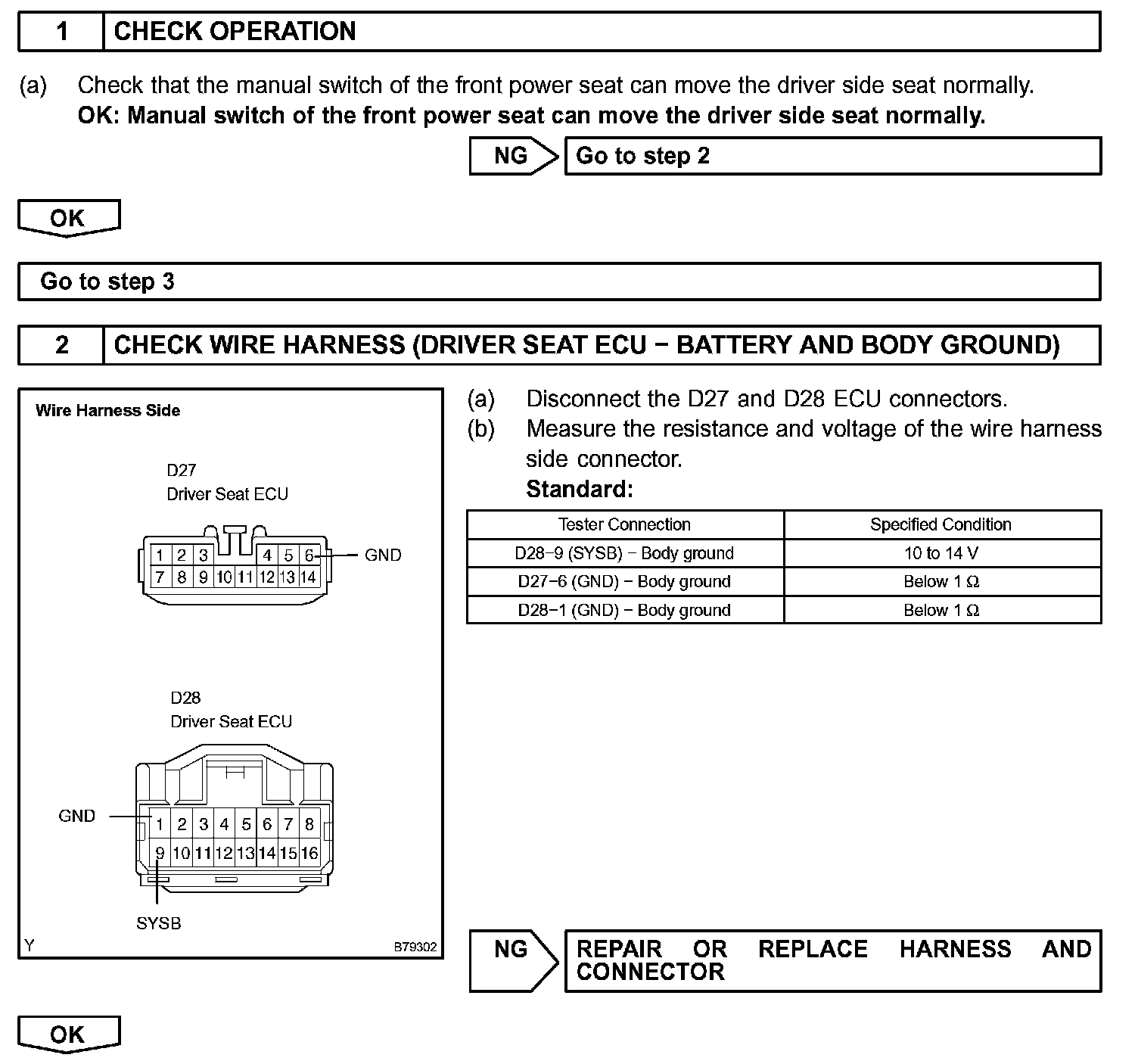

Step 1-2:

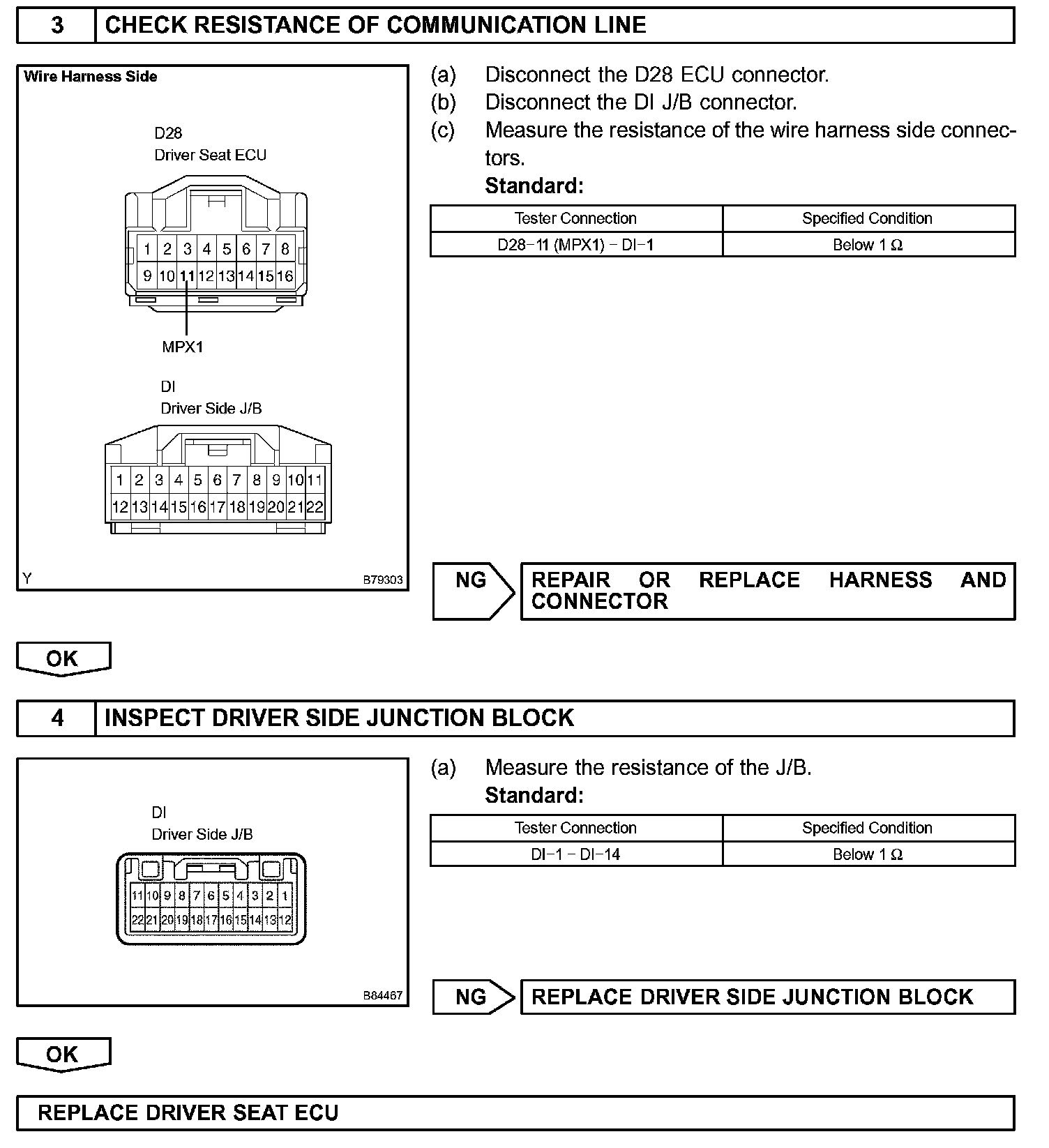

Step 3-4:

INSPECTION PROCEDURE
