B1244

DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION

Circuit Description

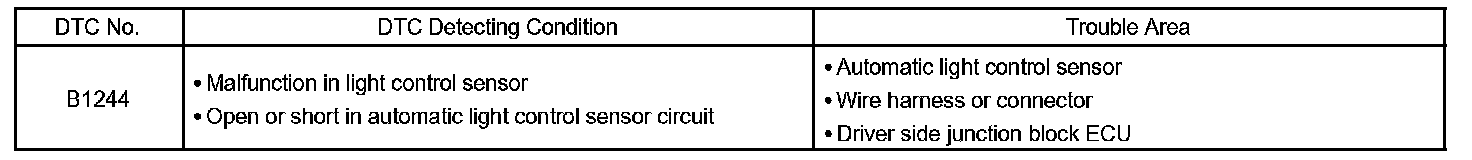

DTC Detecting Condition:

This DTC is output when failure in the light sensor circuit is detected.

Wiring Diagram:

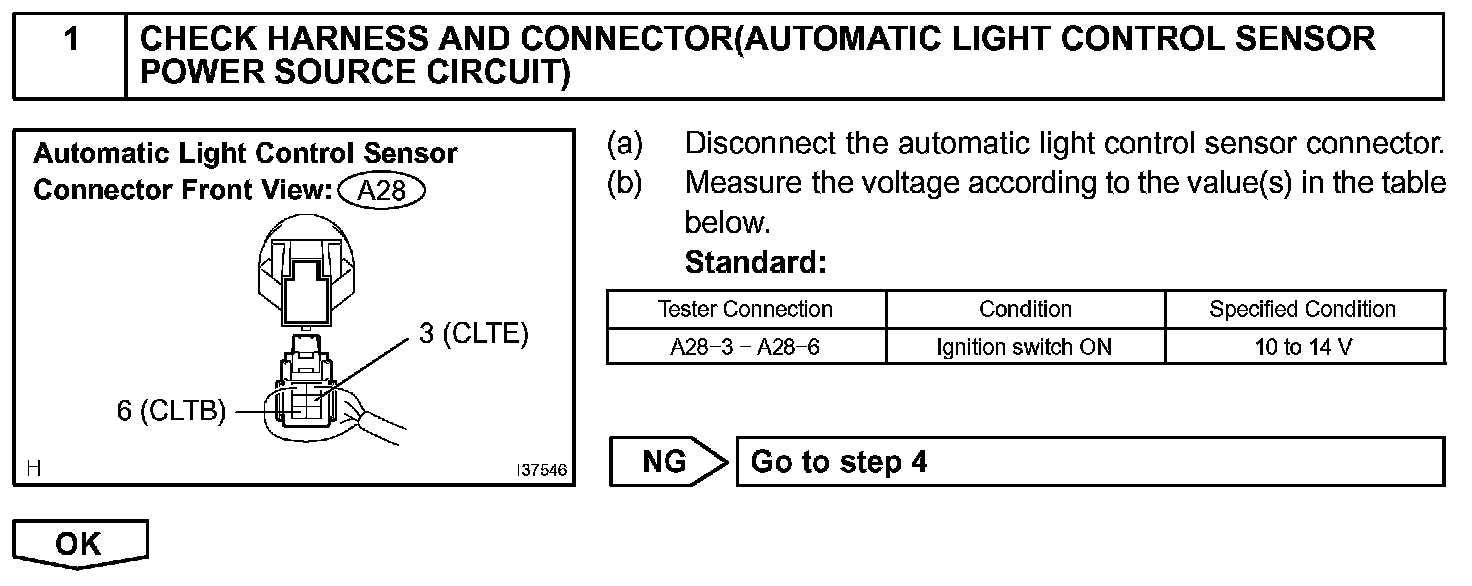

Step 1:

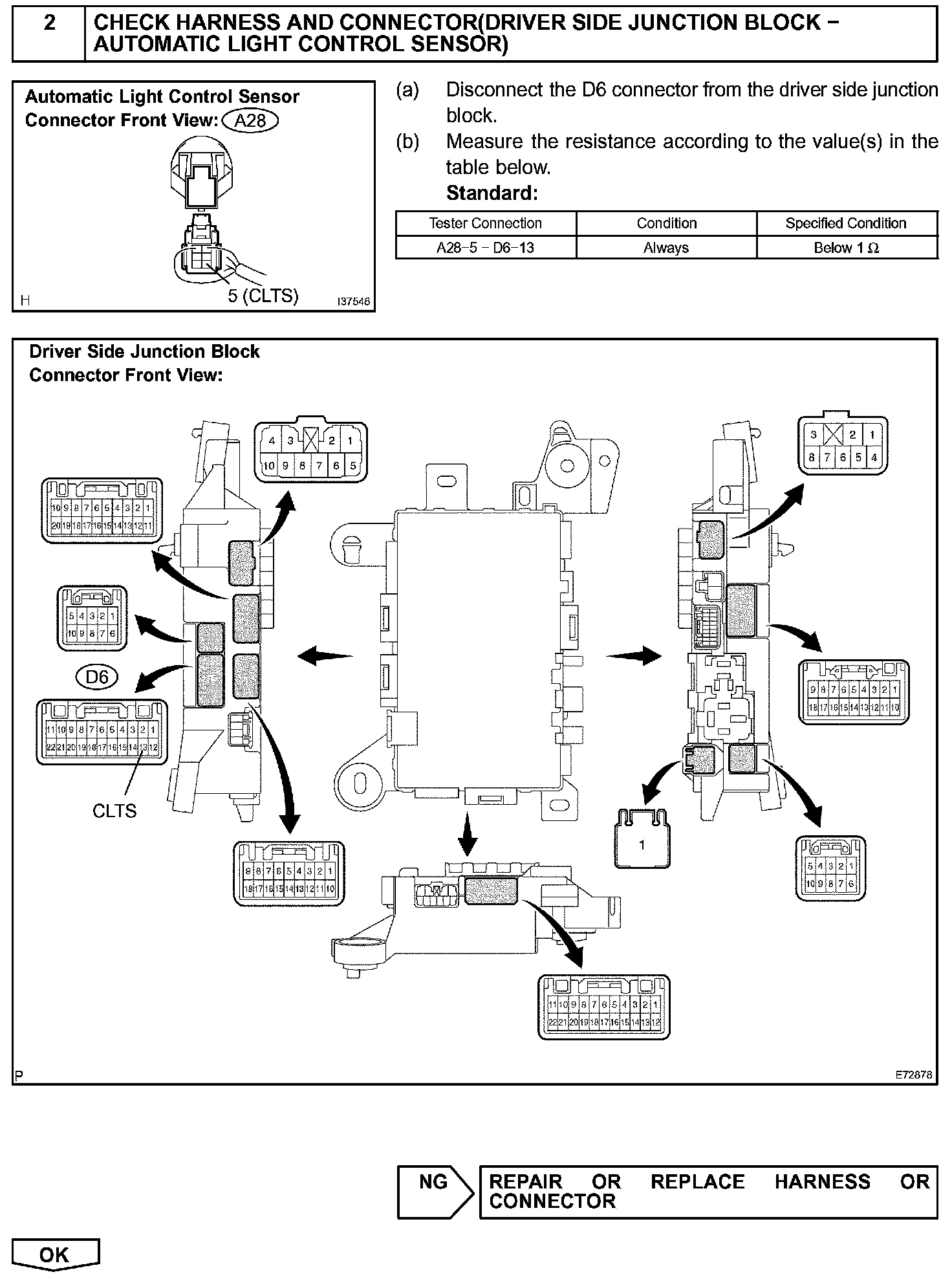

Step 2:

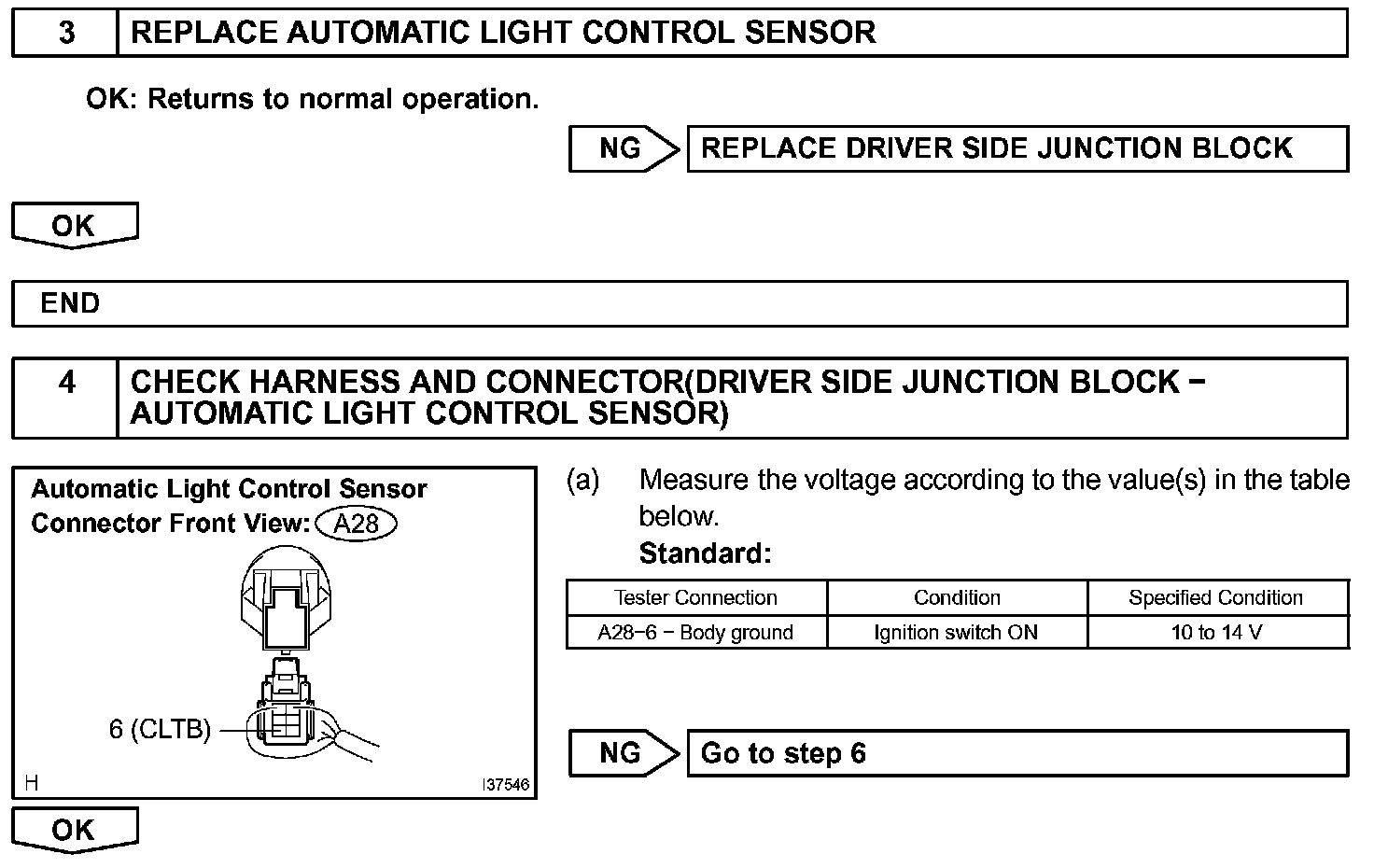

Step 3-4:

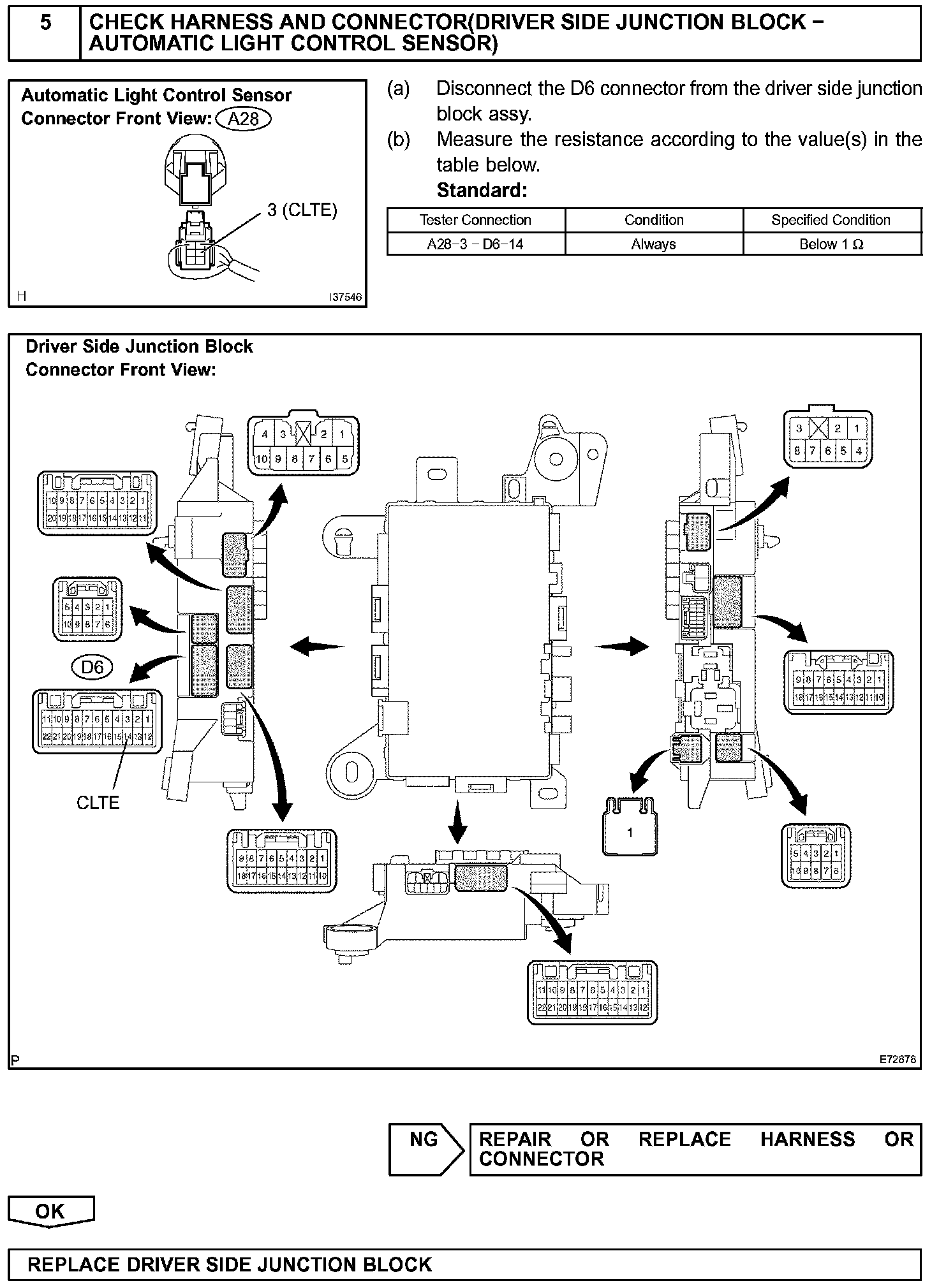

Step 5:

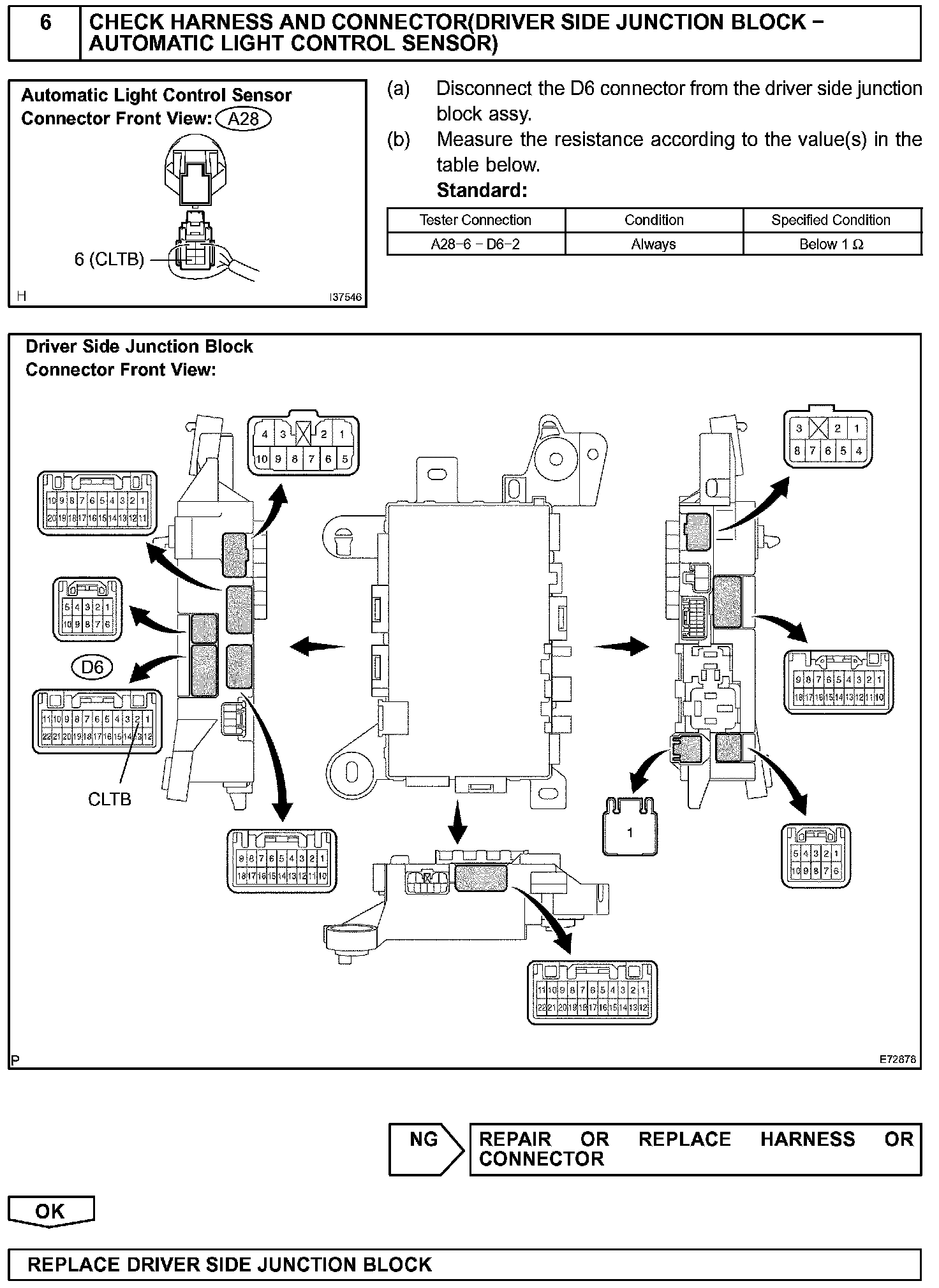

Step 6:

INSPECTION PROCEDURE
