B1217

DTC B1217 REAR LEFT DOOR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

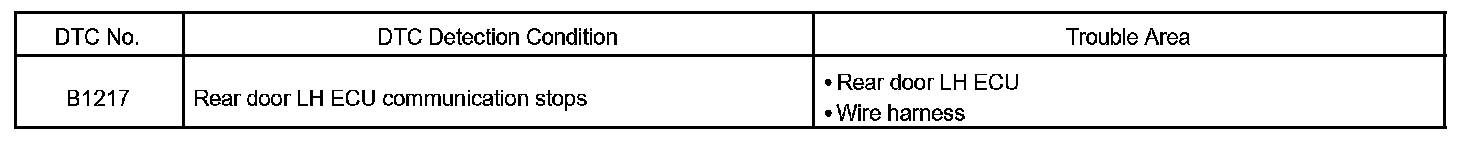

DTC Detection Condition:

This DTC is detected when communication between the rear door LH ECU and gateway ECU stops for more than 10 seconds.

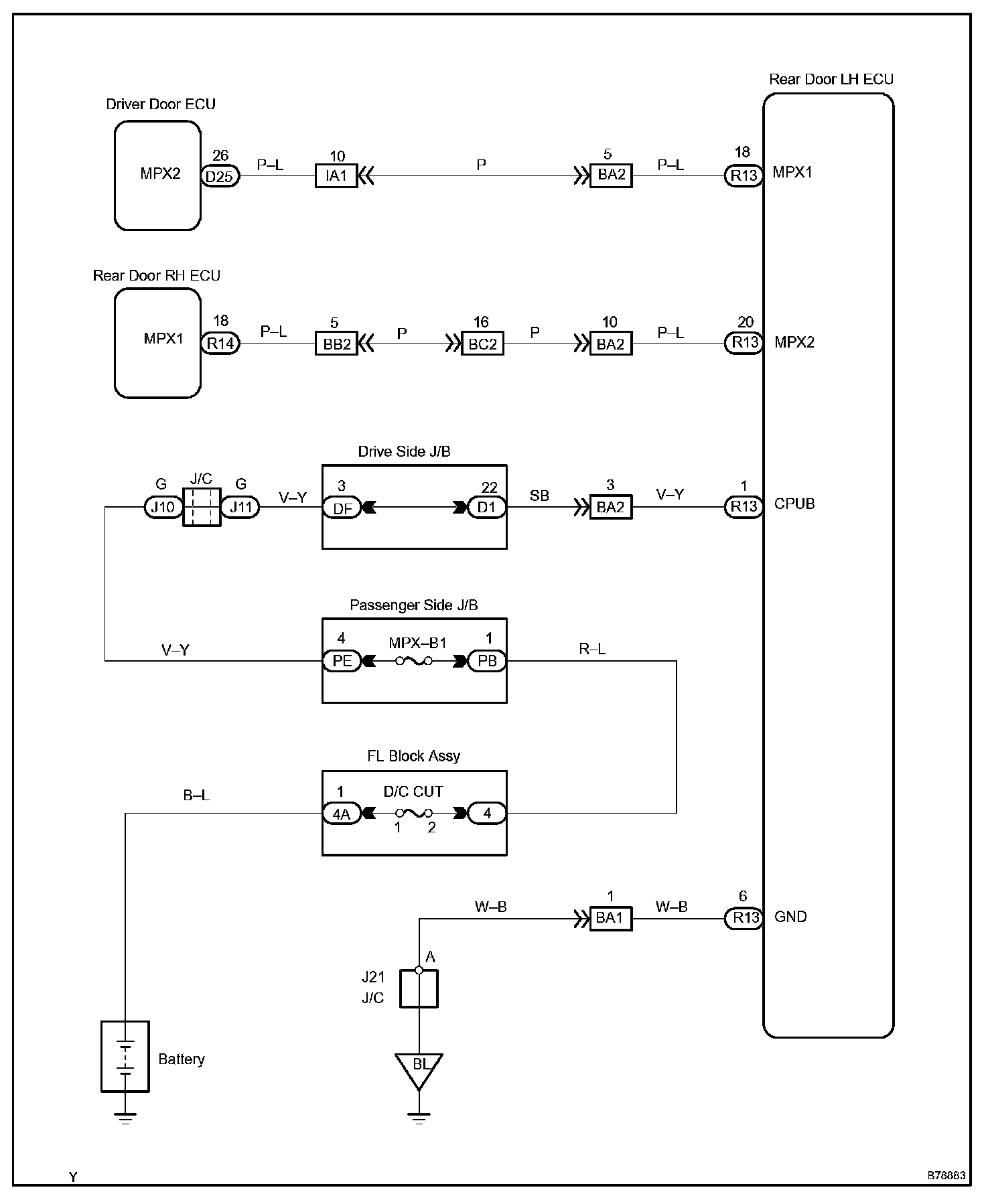

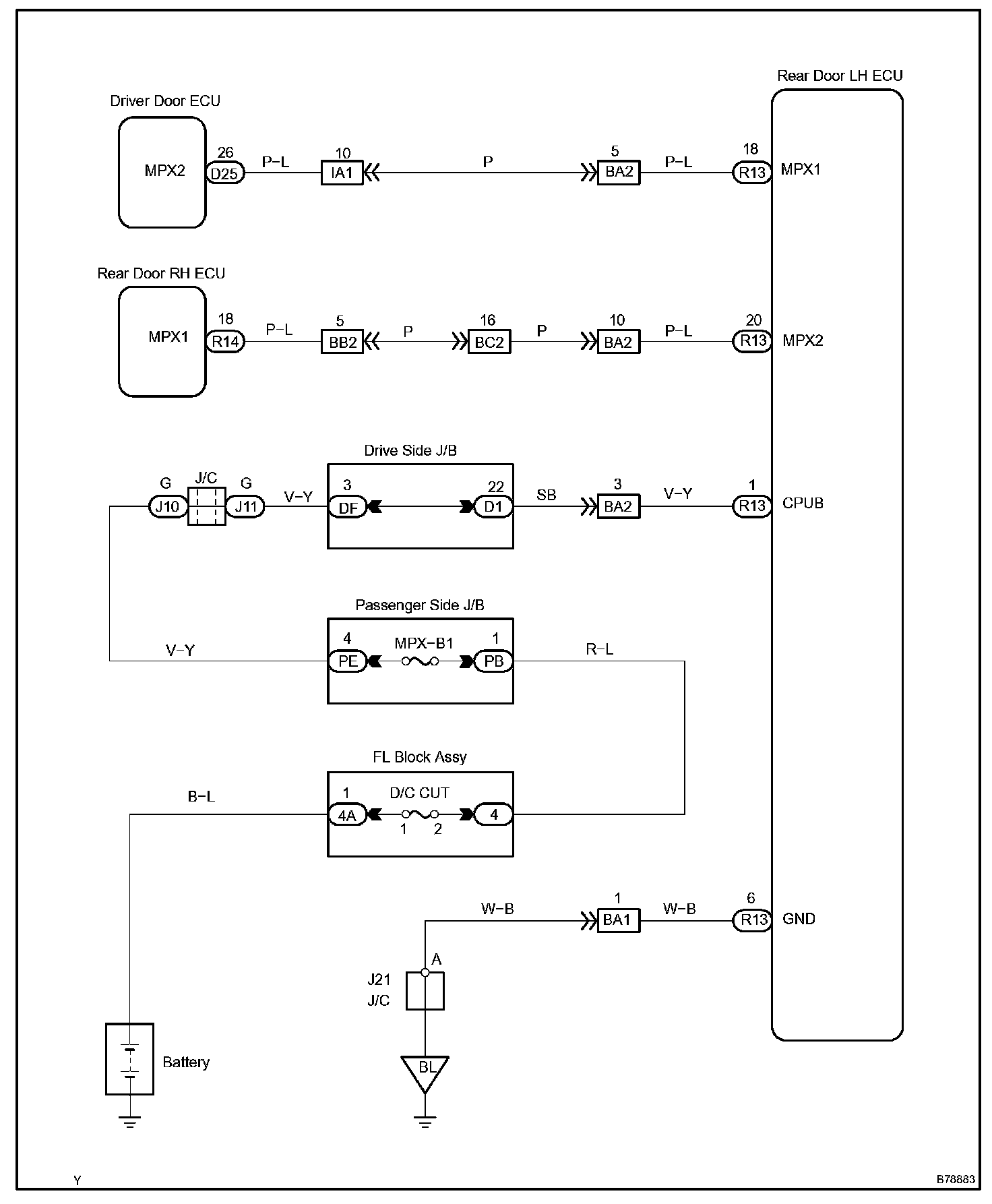

Wiring Diagram:

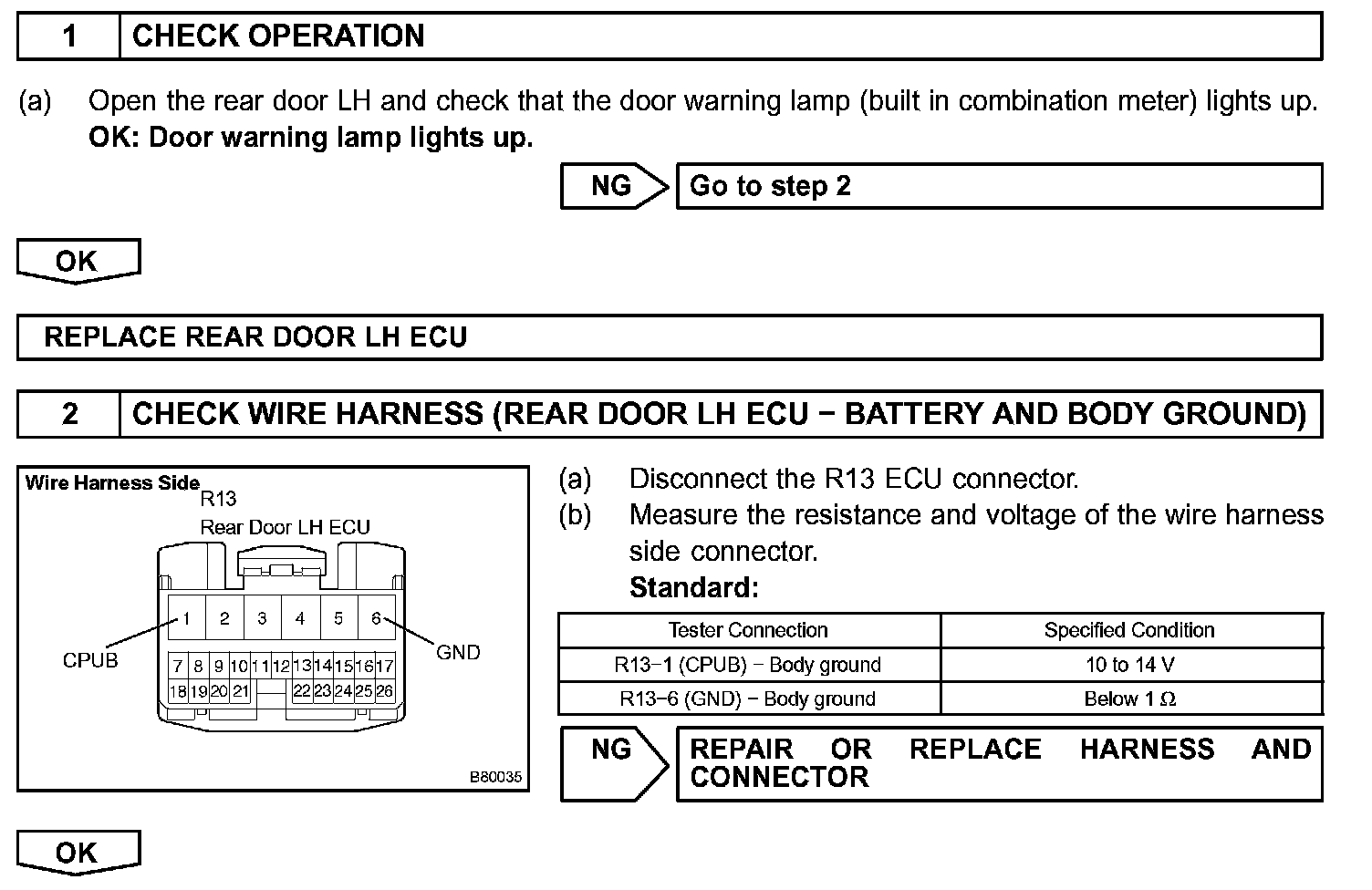

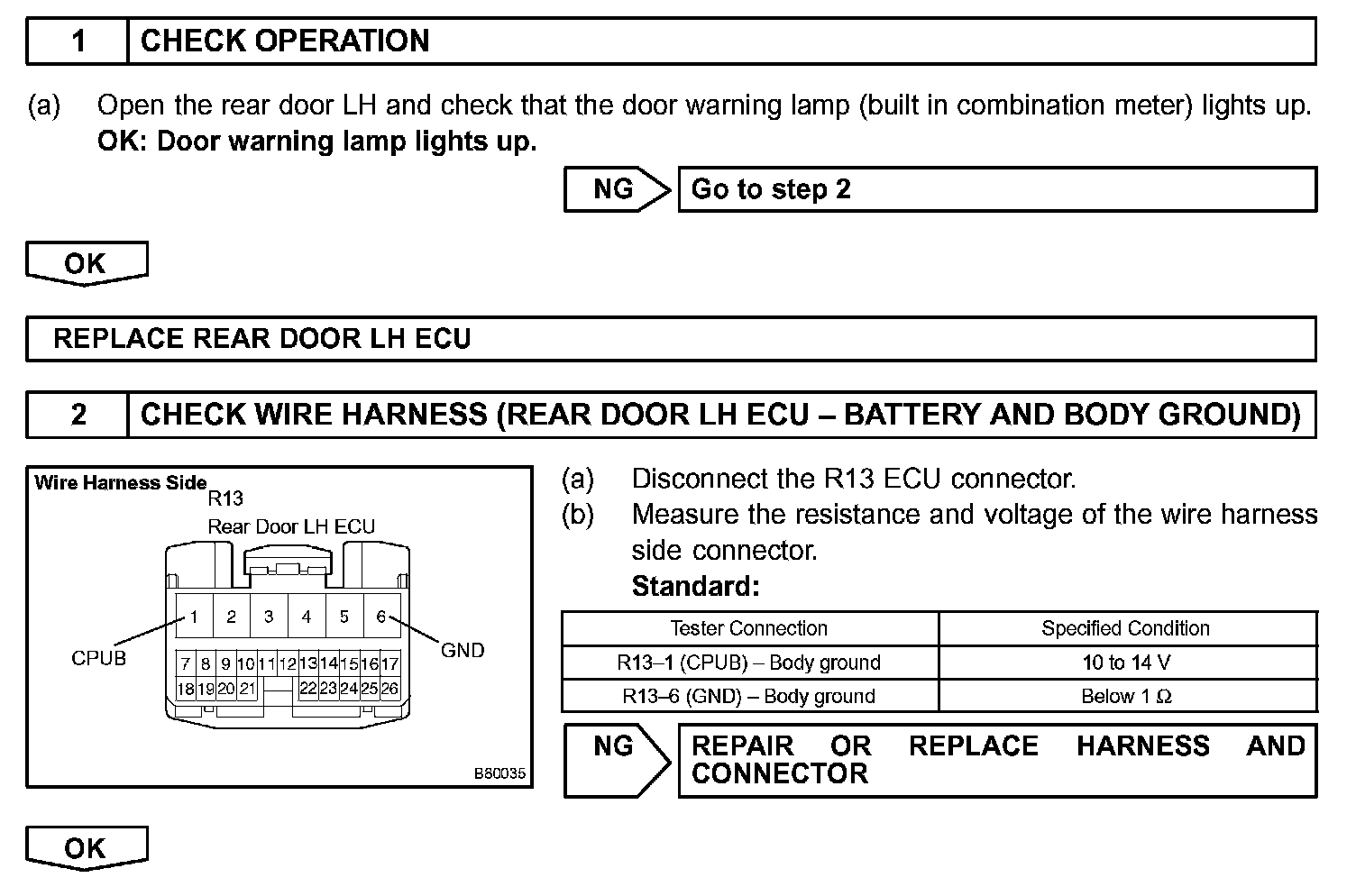

Step 1-2:

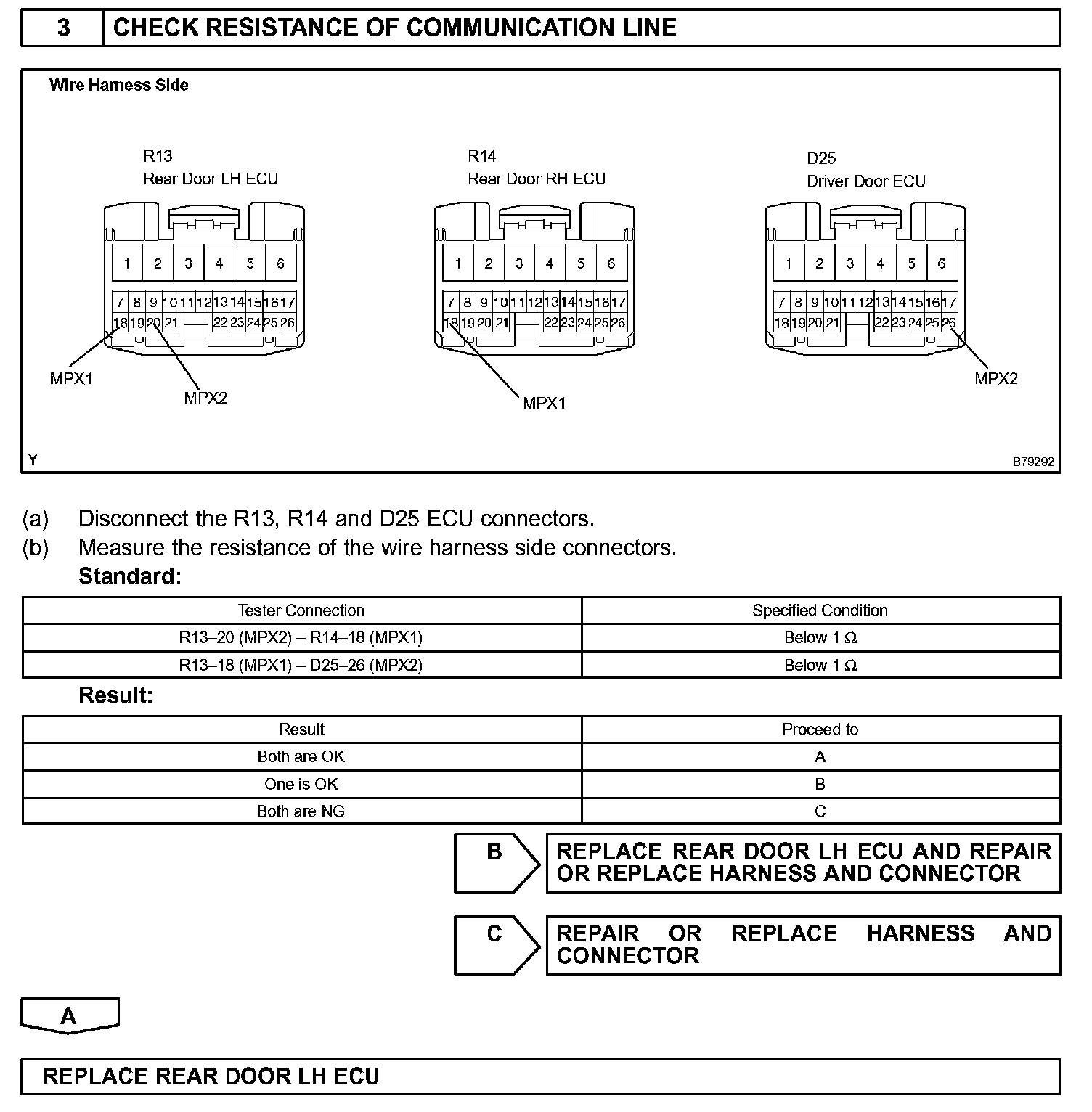

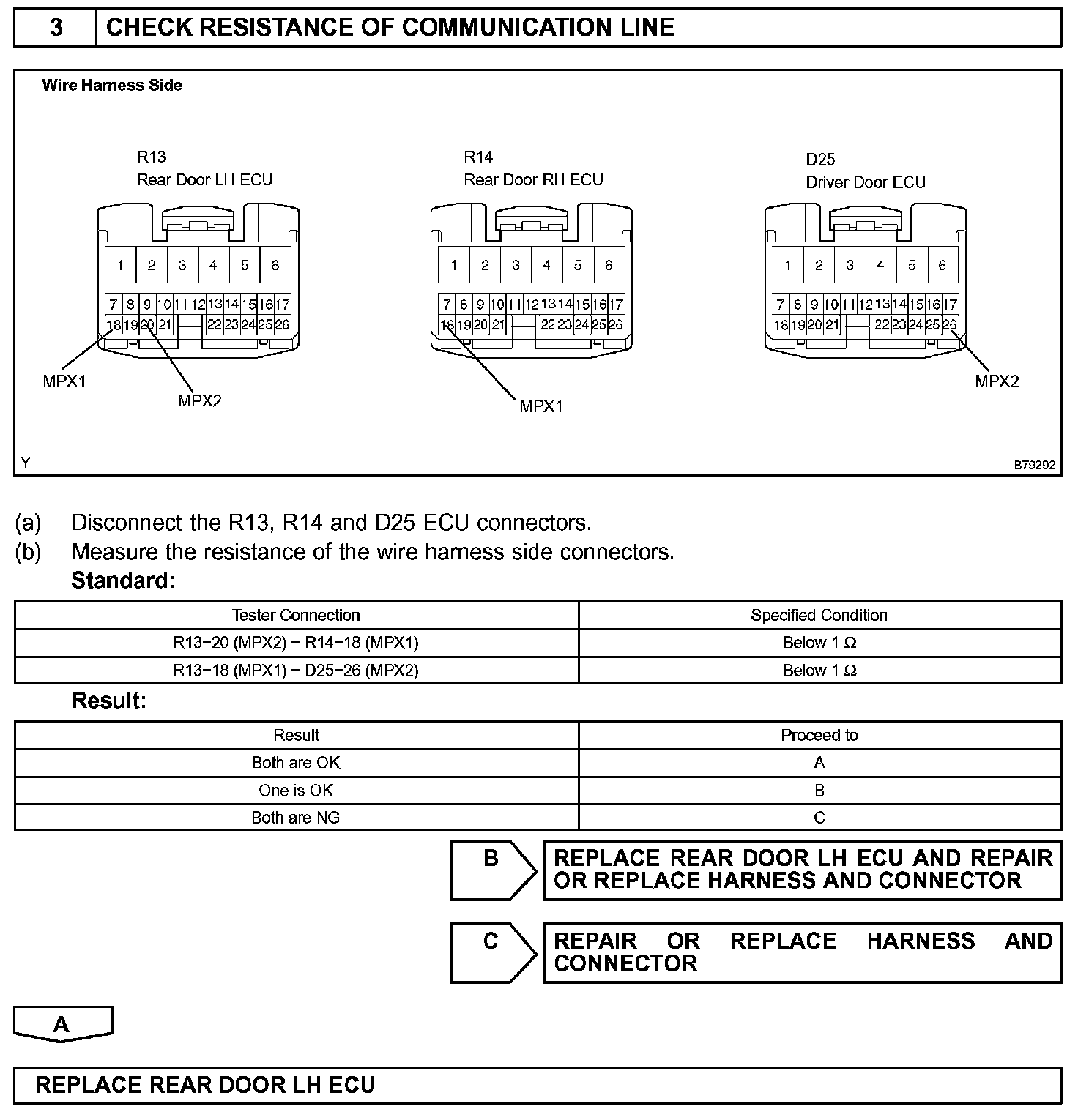

Step 3:

INSPECTION PROCEDURE
