B1212

DTC B1211 DRIVER DOOR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condtion:

This DTC is detected when communication between the driver door ECU and gateway ECU stops for more than 10 seconds.

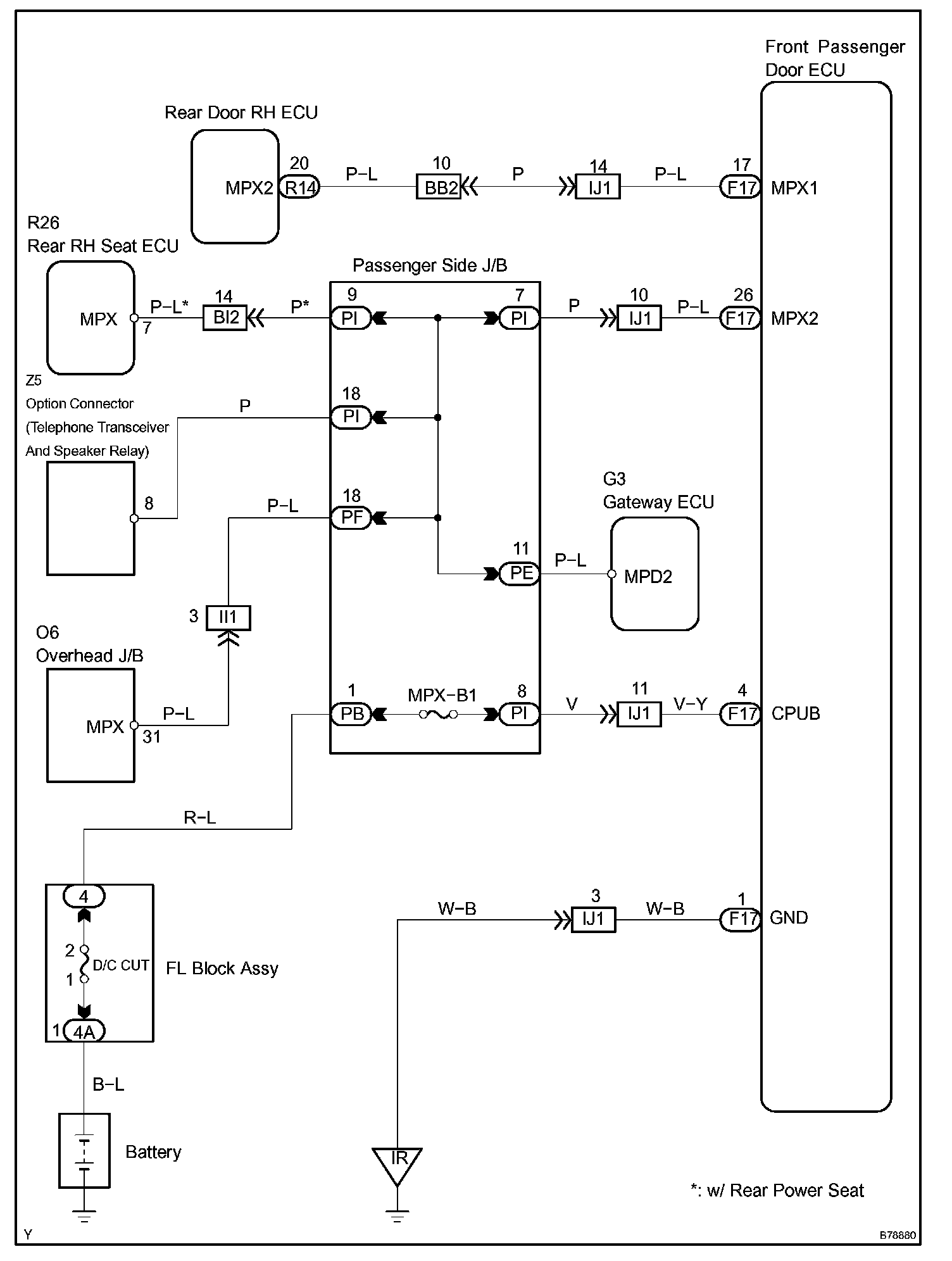

Wiring Diagram:

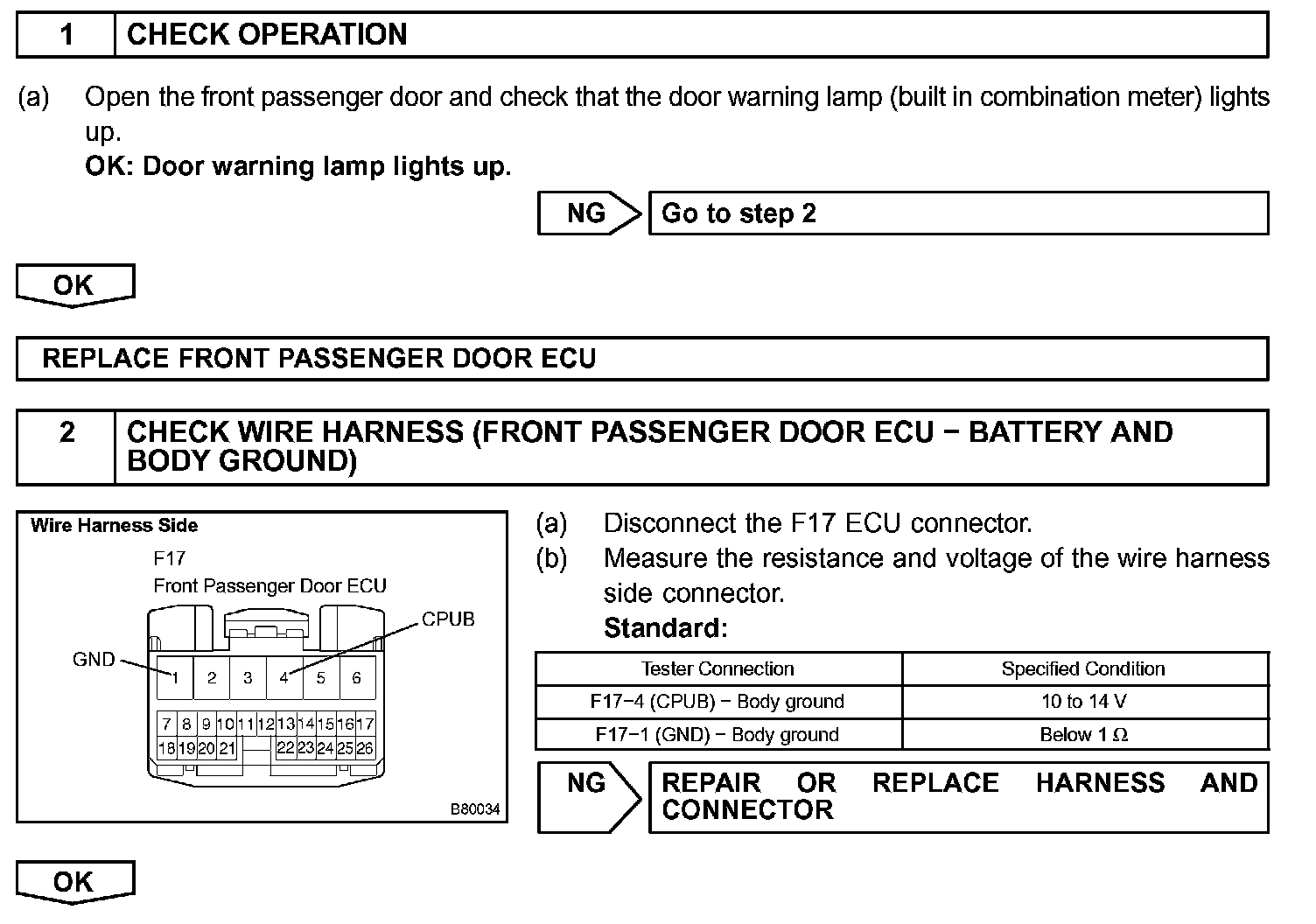

Step 1-2:

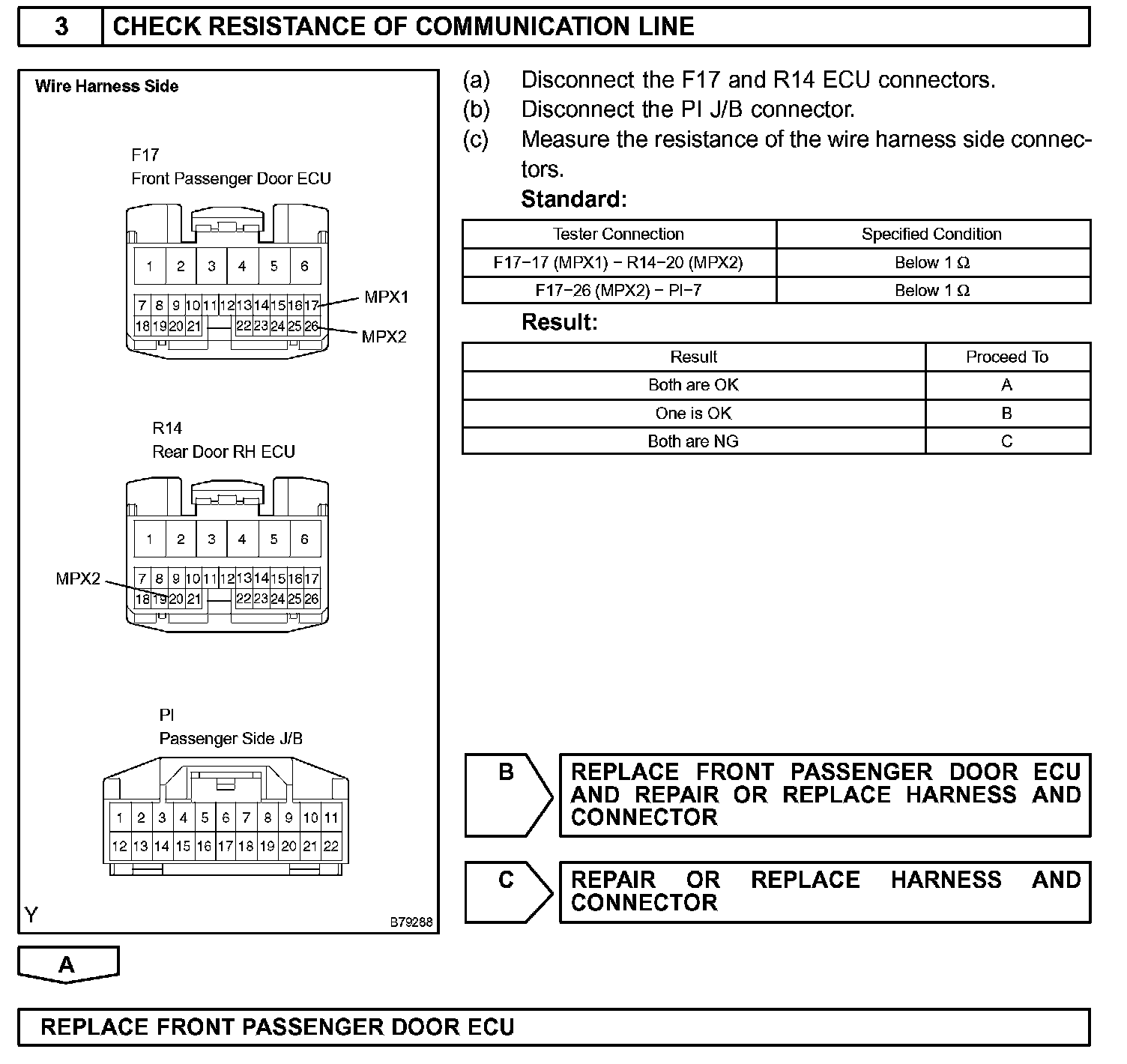

Step 3:

INSPECTION PROCEDURE
