Shift Solenoid Valve
SHIFT SOLENOID VALVEComponents:

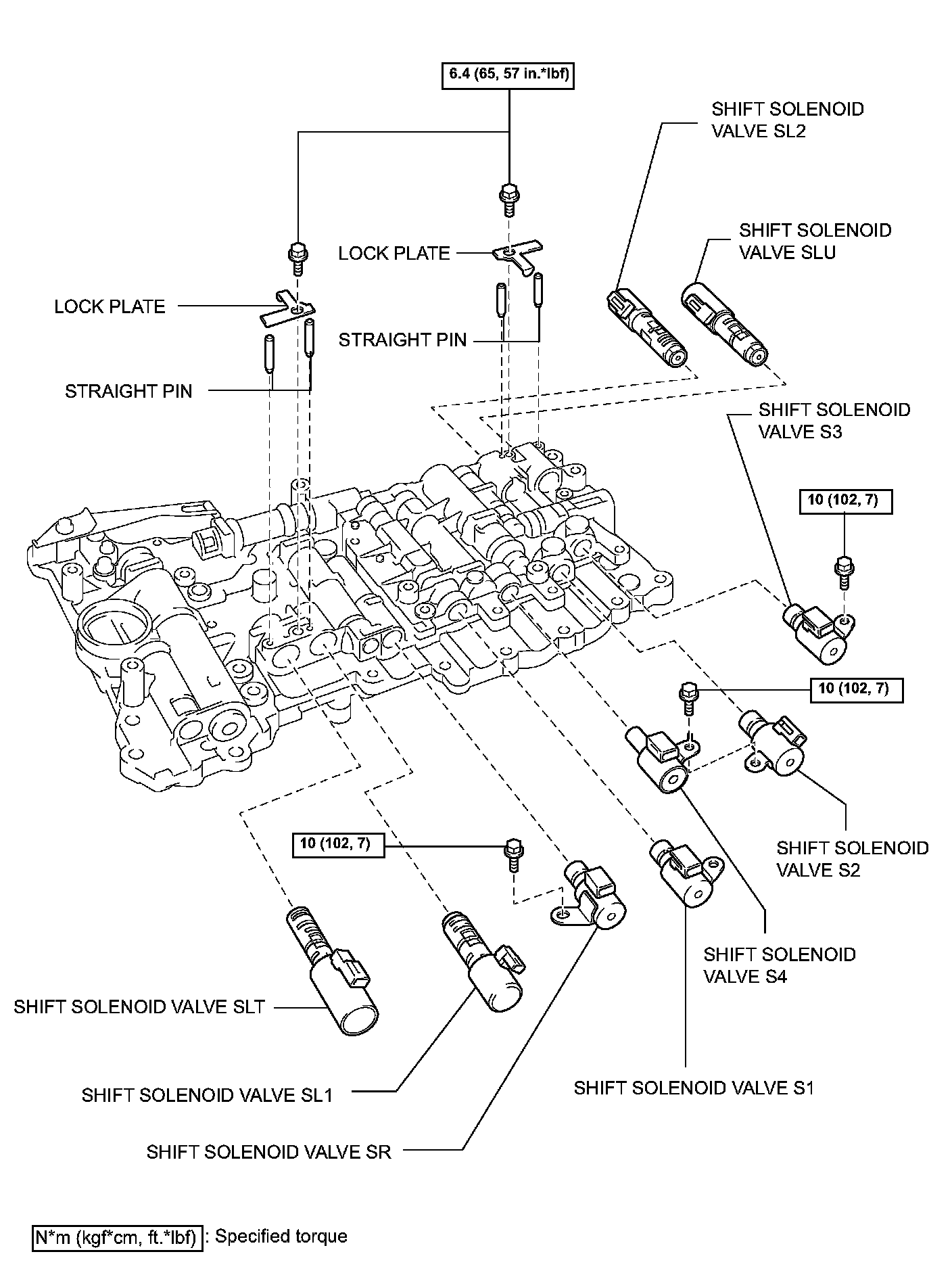

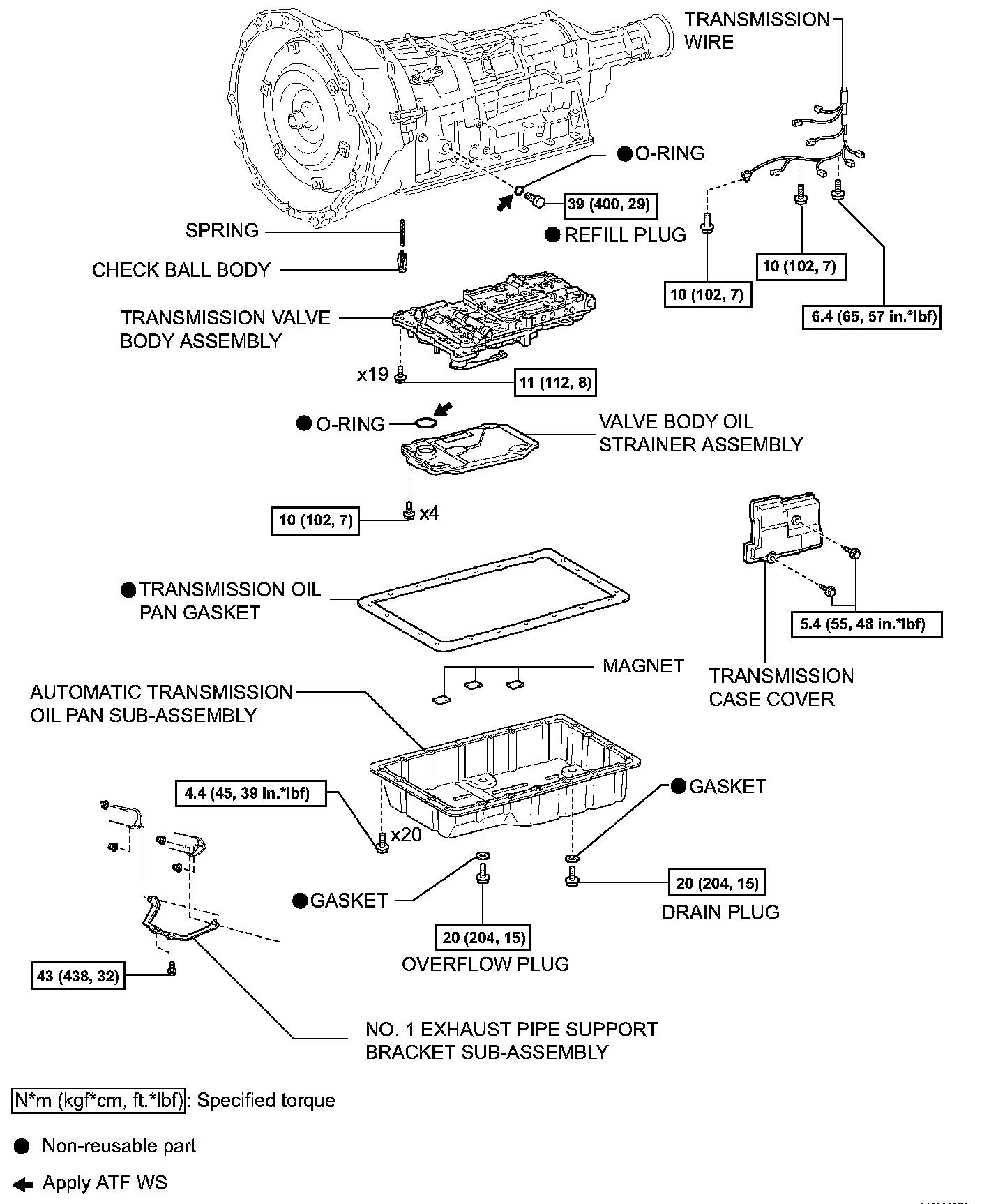

Components:
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. DRAIN AUTOMATIC TRANSMISSION FLUID
3. REMOVE NO.1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
4. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
5. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
6. DISCONNECT TRANSMISSION WIRE
7. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
DISASSEMBLY
1. REMOVE SHIFT SOLENOID VALVE SL2
2. REMOVE SHIFT SOLENOID VALVE SLU
3. REMOVE SHIFT SOLENOID VALVE SLT
4. REMOVE SHIFT SOLENOID VALVE SL1
5. REMOVE SHIFT SOLENOID VALVE SR
6. REMOVE SHIFT SOLENOID VALVE S1
7. REMOVE SHIFT SOLENOID VALVE S4
8. REMOVE SHIFT SOLENOID VALVE S2
9. REMOVE SHIFT SOLENOID VALVE S3
INSPECTION

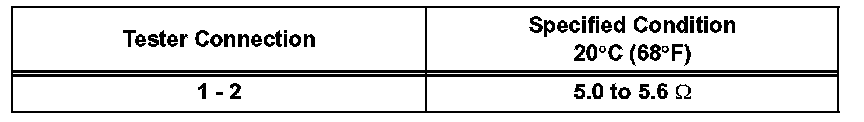

1. INSPECT SHIFT SOLENOID VALVE SL1

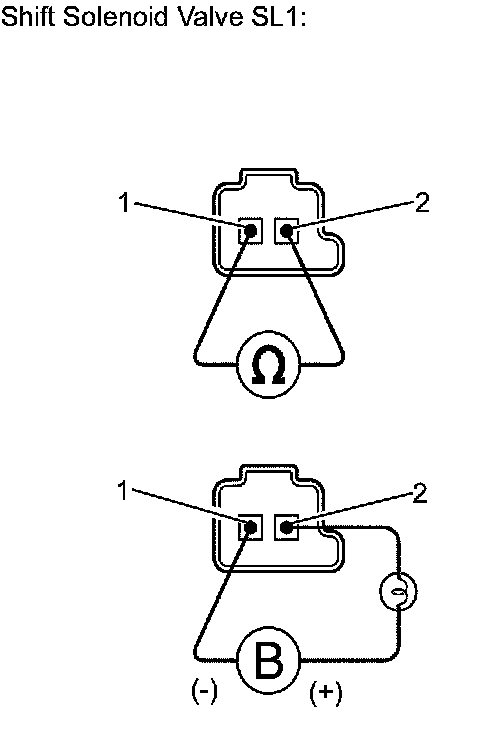

Shift Solenoid Valve SL1:
a) Measure the resistance according to the value(s) in the table.

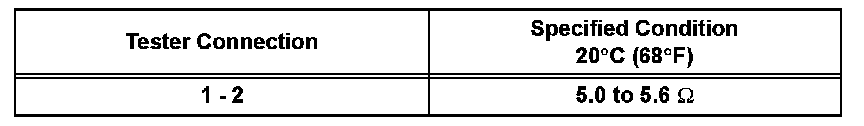

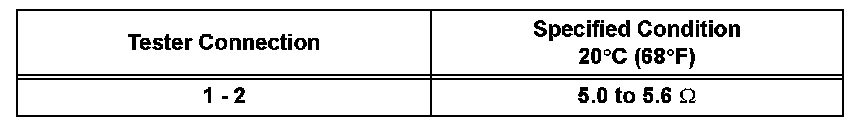

Standard Resistance:
b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the operation of the valve.
OK: The solenoid makes an operating sound. If the resistance is not within the specified range, replace the shift solenoid valve SL1.
2. INSPECT SHIFT SOLENOID VALVE S1

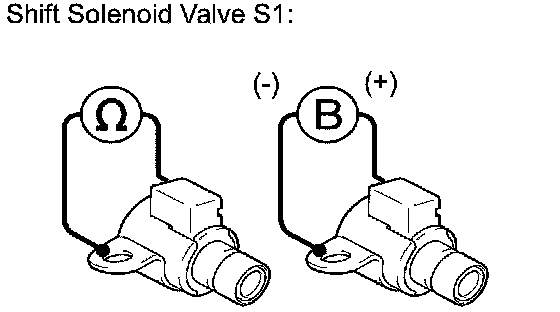

Shift Solenoid Valve S1:
a) Measure the resistance according to the value(s) in the table.

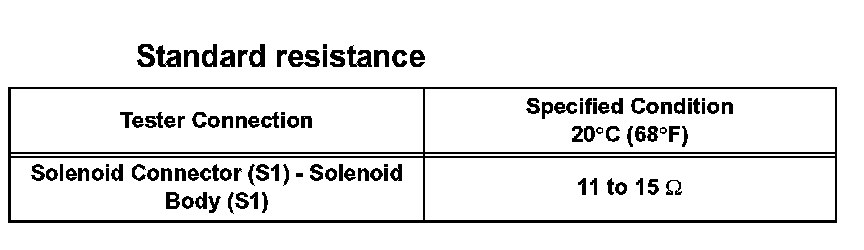

Standard Resistance:
b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, then check the operation of the valve.
OK: The solenoid makes an operating sound.
If the resistance is not within the specified range, replace the shift solenoid valve S1.

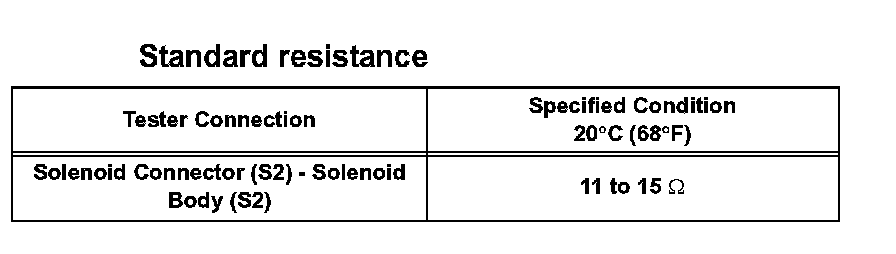

3. INSPECT SHIFT SOLENOID VALVE S2

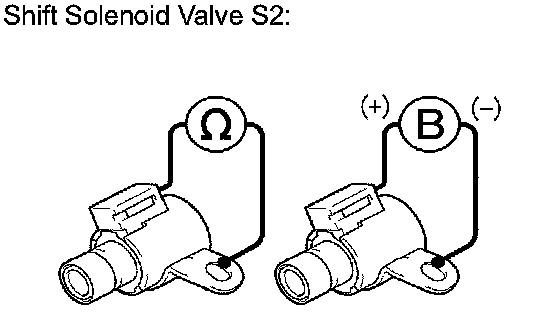

Shift Solenoid Valve S2:
a) Measure the resistance according to the value(s) in the table.
Standard Resistance:
b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating noise.
If the resistance is not within the specified range, replace the shift solenoid valve S2.

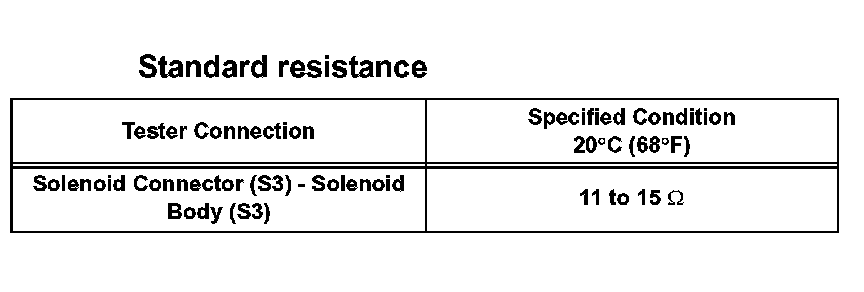

4. INSPECT SHIFT SOLENOID VALVE S3

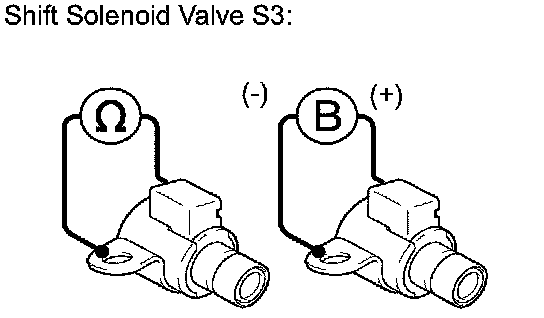

Shift Solenoid Valve S3:
a) Measure the resistance according to the value(s) in the table.
Standard Resistance:
b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, then check the operation of the valve.
OK: The solenoid makes an operating sound.
If the resistance is not within the specified range, replace the shift solenoid valve S3.
5. INSPECT SHIFT SOLENOID VALVE S4

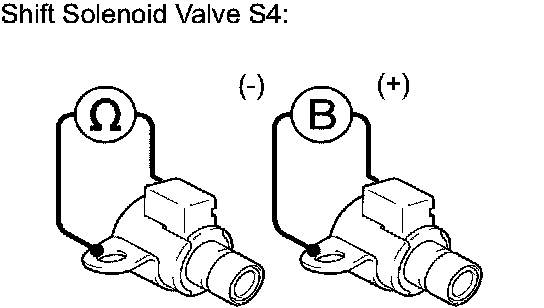

Shift Solenoid Valve S4:
a) Measure the resistance according to the value(s) in the table.

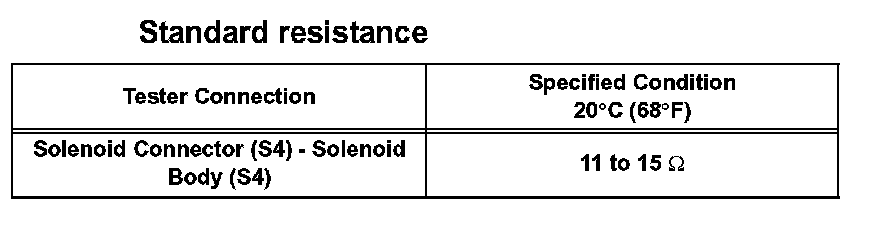

Standard Resistance:
b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK: The solenoid makes an operating sound.
If the resistance is not within the specified range, replace the shift solenoid valve S4.
6. INSPECT SHIFT SOLENOID VALVE SL2

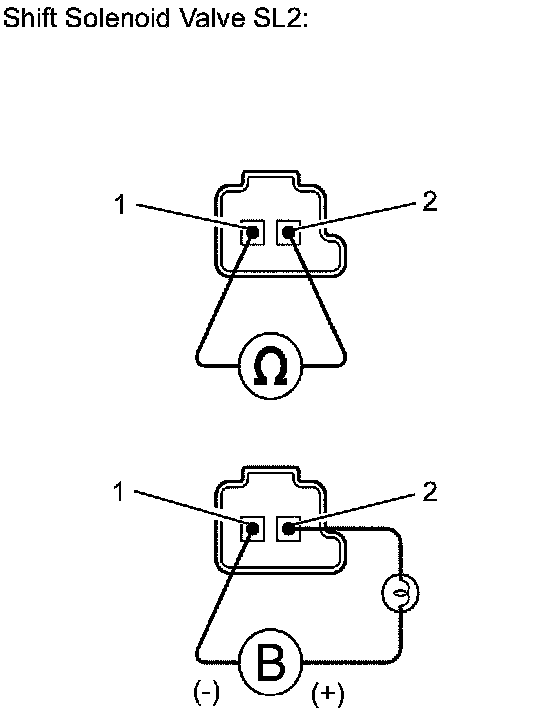

Shift Solenoid Valve SL2:
a) Measure the resistance according to the value(s) in the table.

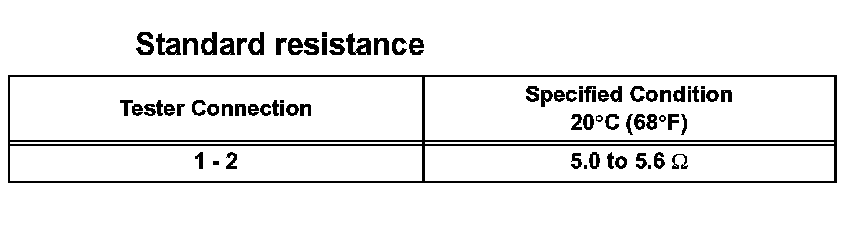

Standard Resistance:
b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the operation of the valve. OK:
The solenoid makes an operating sound. If the resistance is not within the specified range, replace the shift solenoid valve SL2.
7. INSPECT SHIFT SOLENOID VALVE SR

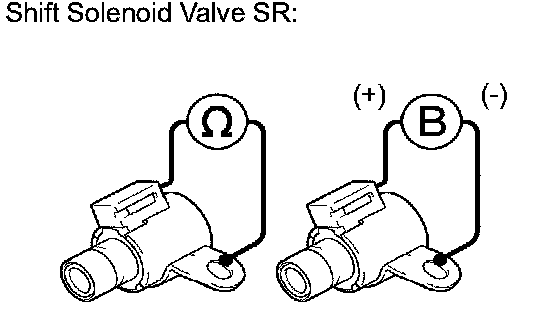

Shift Solenoid Valve SR:
a) Measure the resistance according to the value(s) in the table.

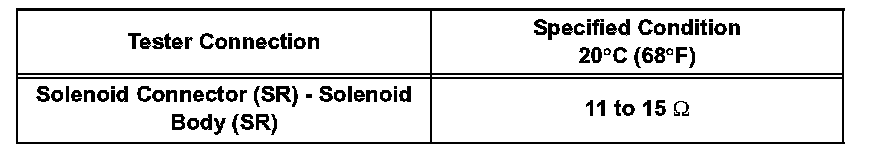

Standard Resistance:
b) Connect the positive (+) lead to the terminal of the solenoid valve connector, and the negative (-) lead to the solenoid body, then check the operation of the valve.
OK: The solenoid makes an operating sound.
If the resistance is not within the specified range, replace the shift solenoid valve SR.
8. INSPECT SHIFT SOLENOID VALVE SLT

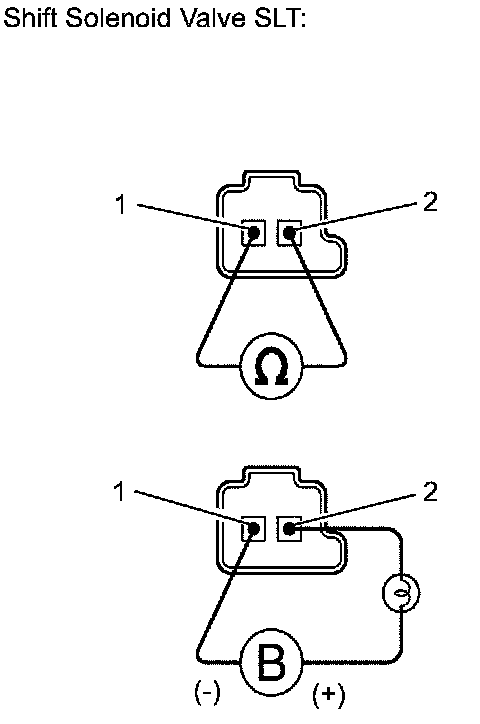

Shift Solenoid Valve SLT:
a) Measure the resistance according to the value(s) in the table.
Standard Resistance:
b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the operation of the valve.
OK: The solenoid makes an operating sound. If the resistance is not within the specified range, replace the shift solenoid valve SLT.
9. INSPECT SHIFT SOLENOID VALVE SLU

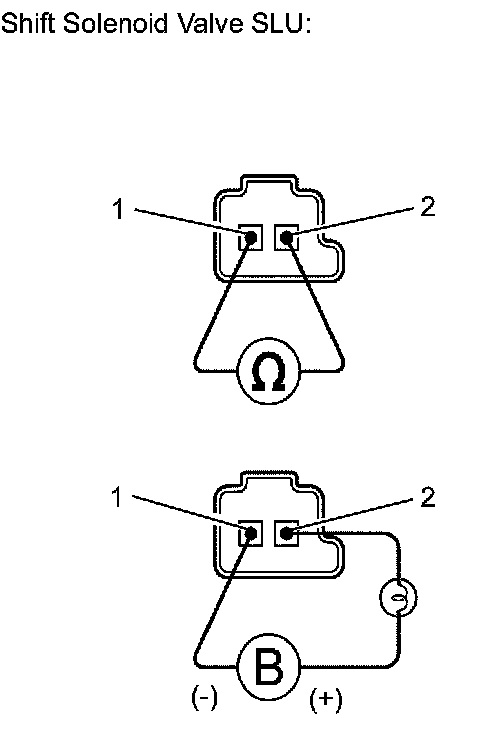

Shift Solenoid Valve SLU:
a) Measure the resistance according to the value(s) in the table.
Standard Resistance:
b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the operation of the valve.
OK: The solenoid makes an operating sound.
If the resistance is not within the specified range, replace the shift solenoid valve SLU.
REASSEMBLY
1. INSTALL SHIFT SOLENOID VALVE S3
2. INSTALL SHIFT SOLENOID VALVE S2
3. INSTALL SHIFT SOLENOID VALVE S4
4. INSTALL SHIFT SOLENOID VALVE S1
5. INSTALL SHIFT SOLENOID VALVE SR
6. INSTALL SHIFT SOLENOID VALVE SL1
7. INSTALL SHIFT SOLENOID VALVE SLT
8. INSTALL SHIFT SOLENOID VALVE SLU
9. INSTALL SHIFT SOLENOID VALVE SL2
INSTALLATION
1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
2. CONNECT TRANSMISSION WIRE
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
5. INSTALL NO.1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. ADD AUTOMATIC TRANSMISSION FLUID
8. RESET MEMORY
9. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
