PS Warning Light Does Not Come On

PS Warning Light does not Come ON

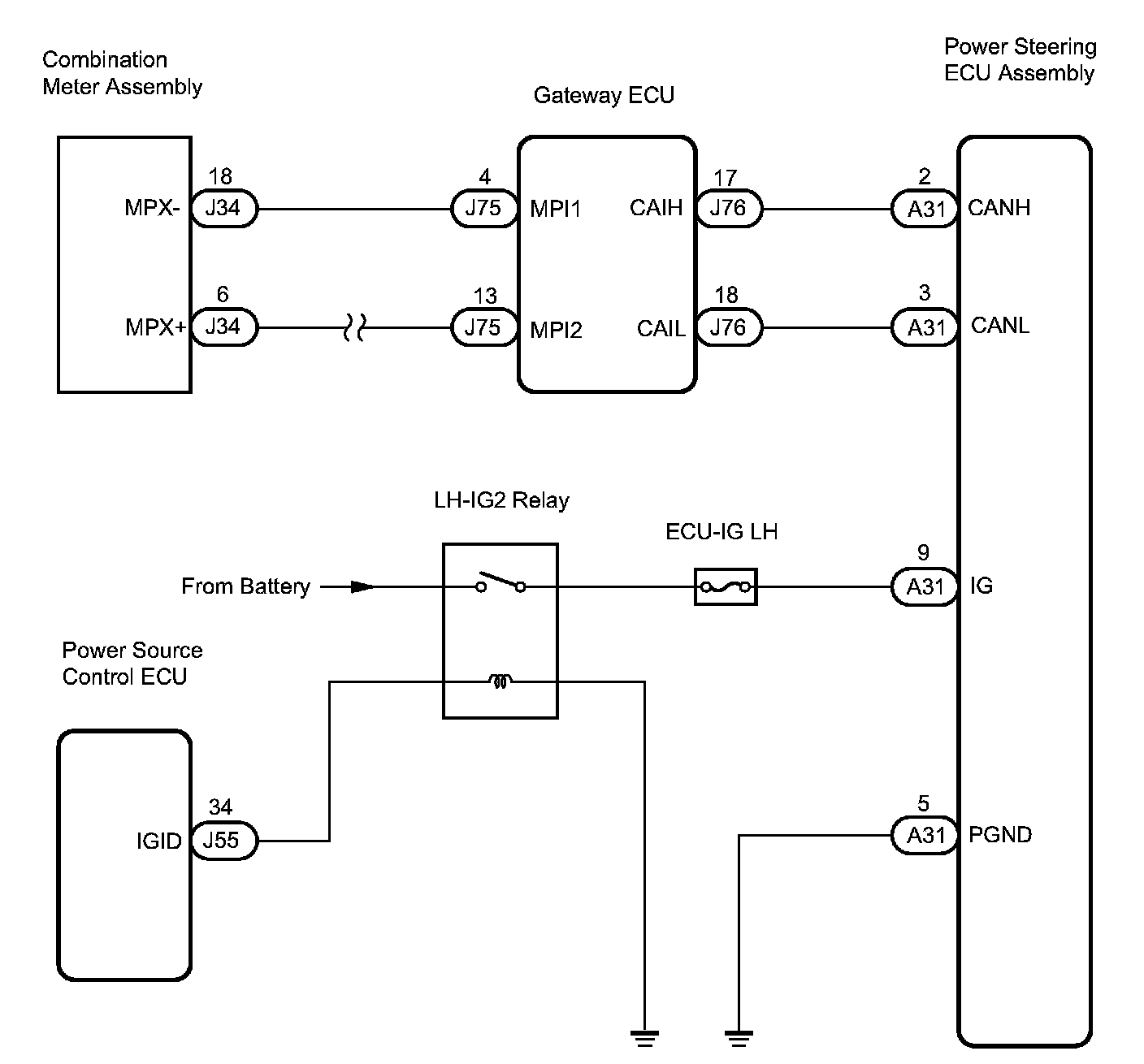

Wiring Diagram:

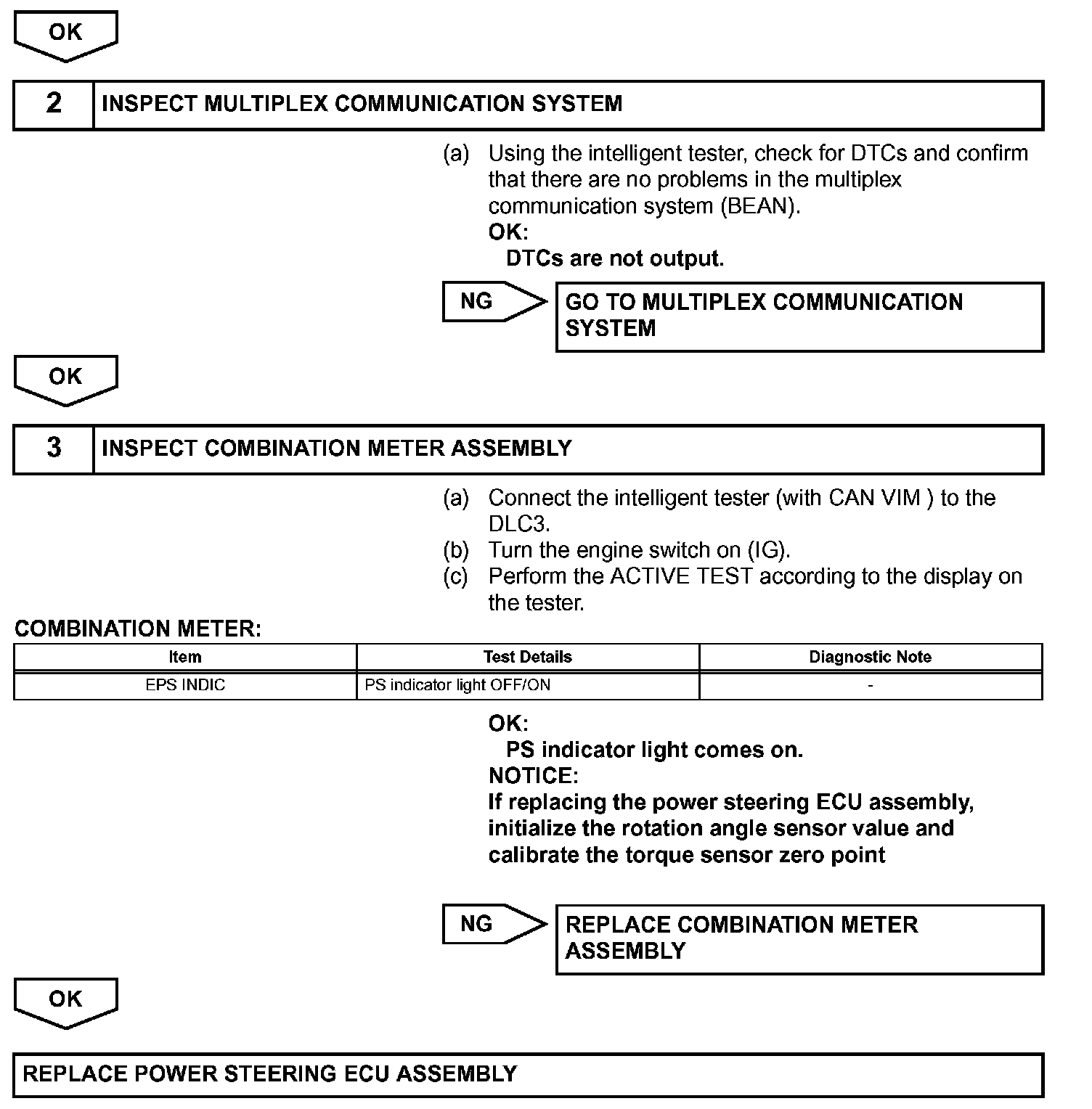

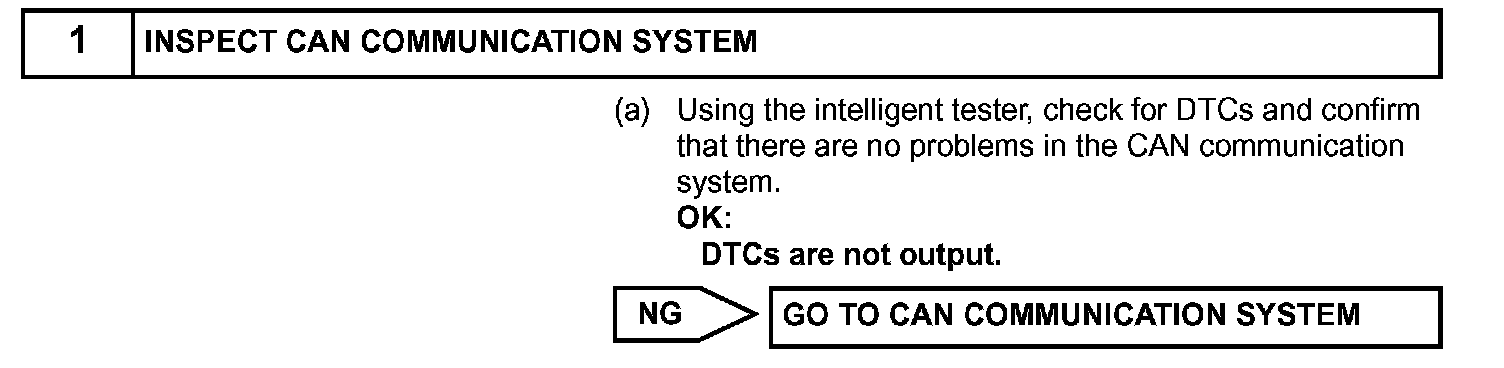

INSPECTION PROCEDURE
