Pinout Values and Diagnostic Parameters

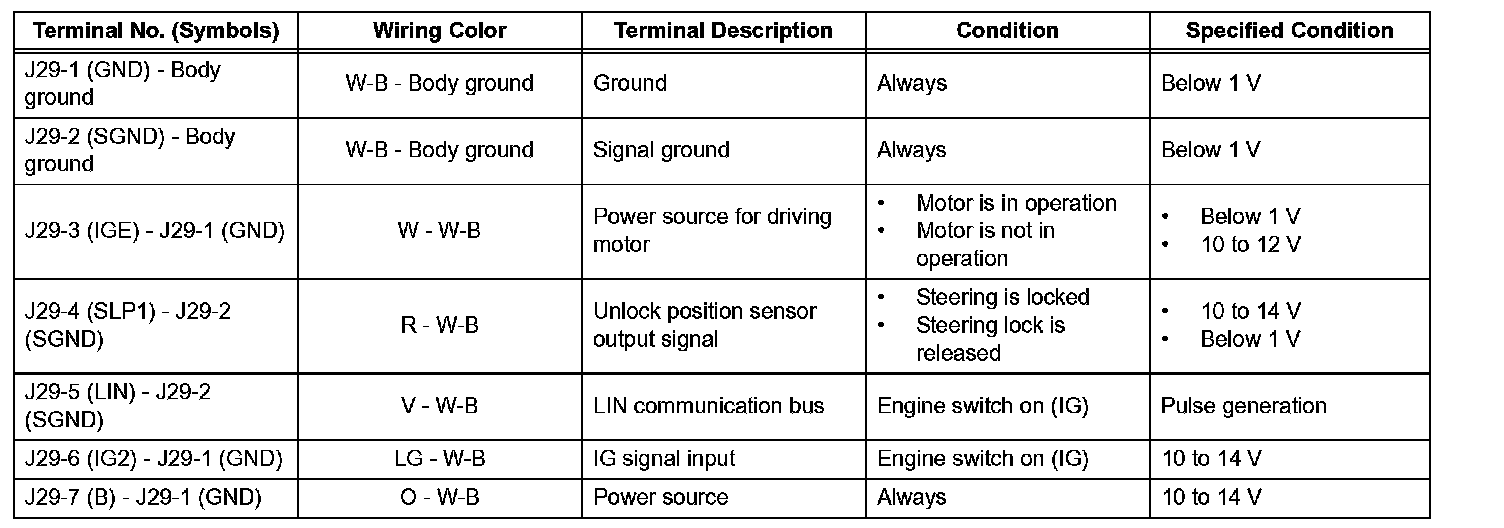

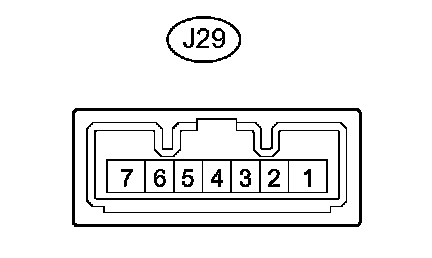

TERMINALS OF ECU




1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
