Home >> Lexus >> 2006 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

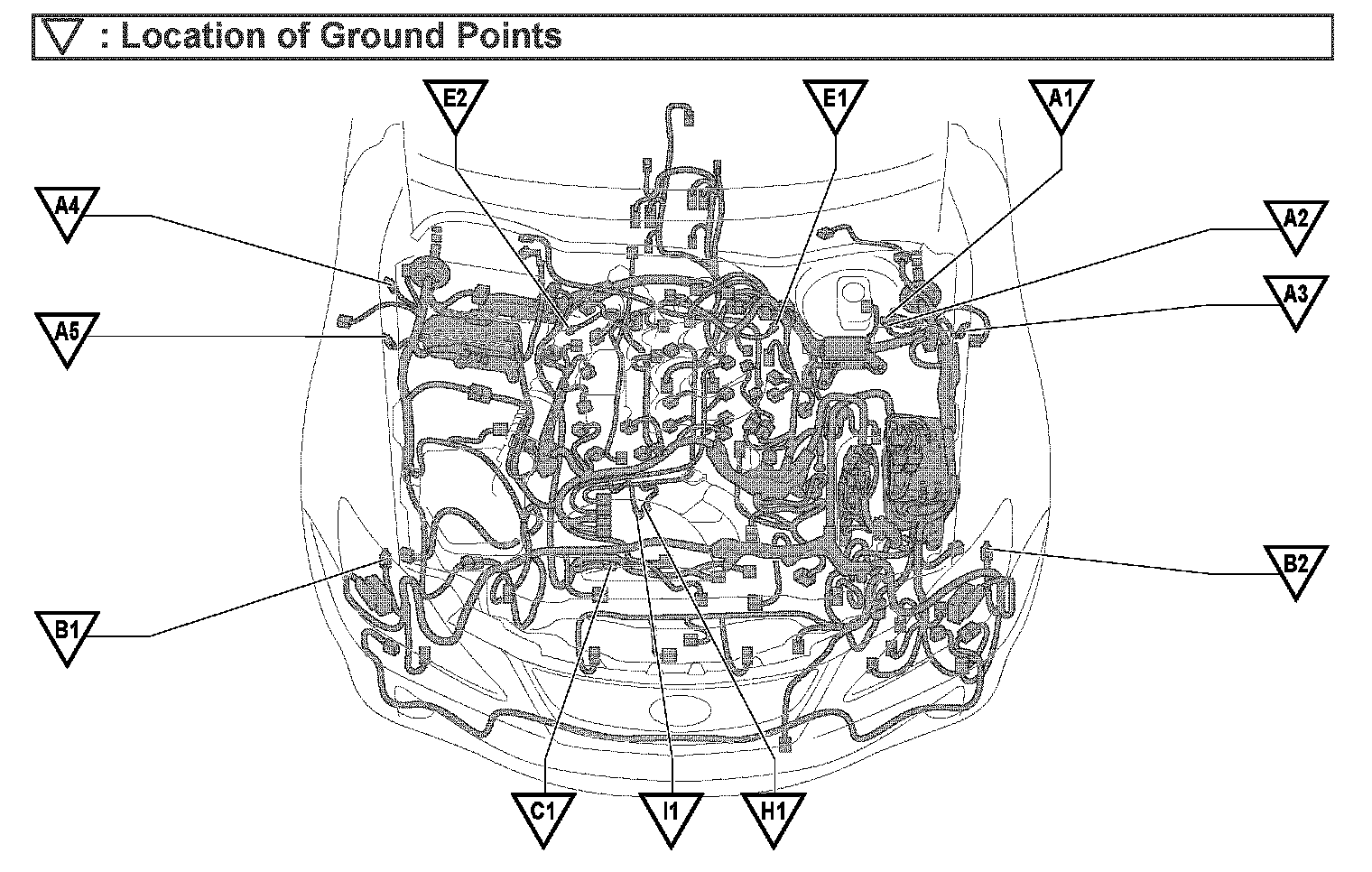

A1-I1:

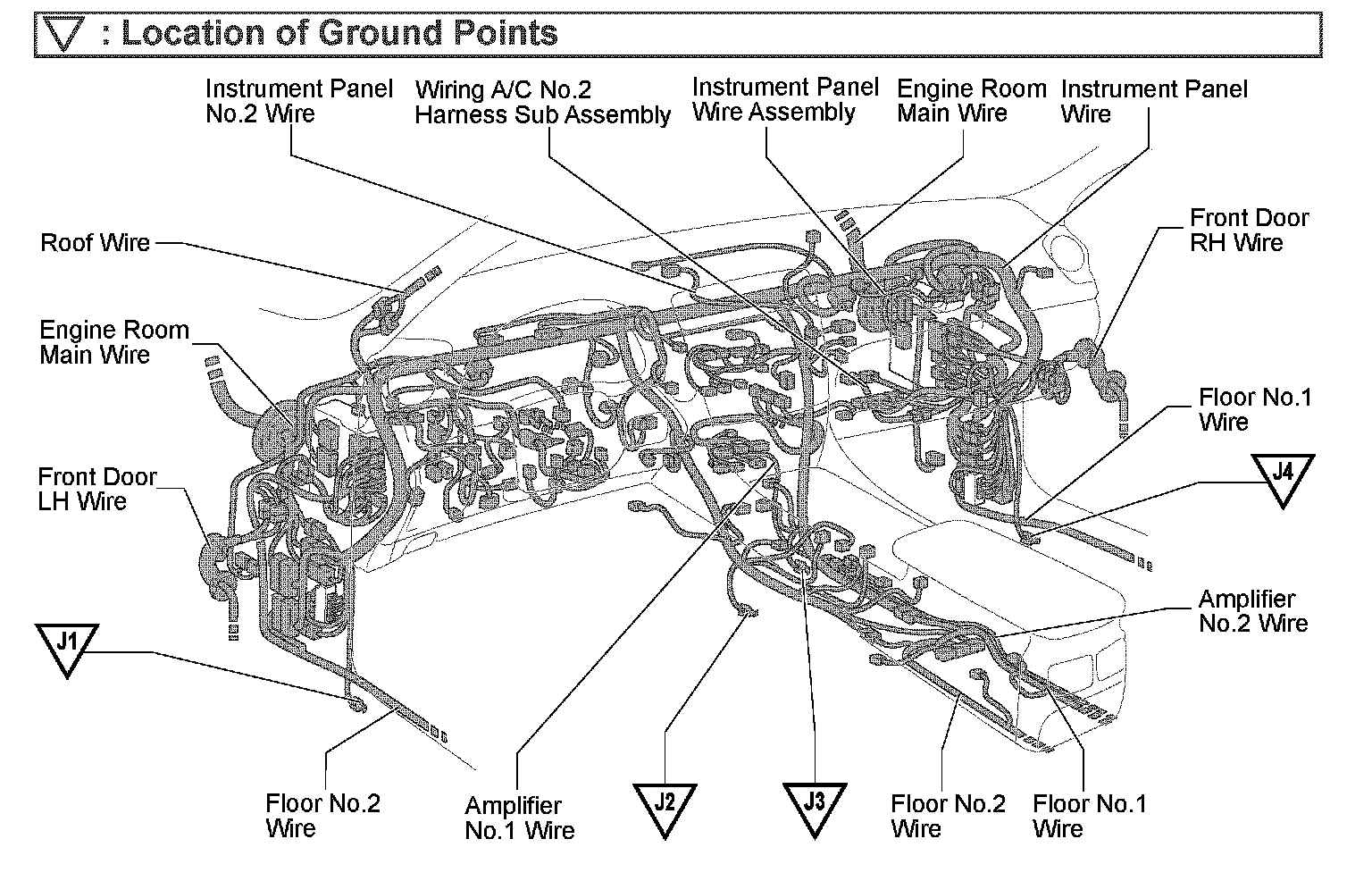

J1-J4:



Ln1-YQ1,P1-Q2:
