Brake Warning Light Remains ON

Brake Warning Light Remains ON

DESCRIPTION
The skid control ECU is connected to the combination meter via CAN and multiplex communications.

If any of these are detected, the BRAKE warning light remains on:
^ The skid control ECU connector is disconnected from the skid control ECU.
^ The brake fluid level is insufficient.
^ The parking brake is applied.
^ The EBD is defective.

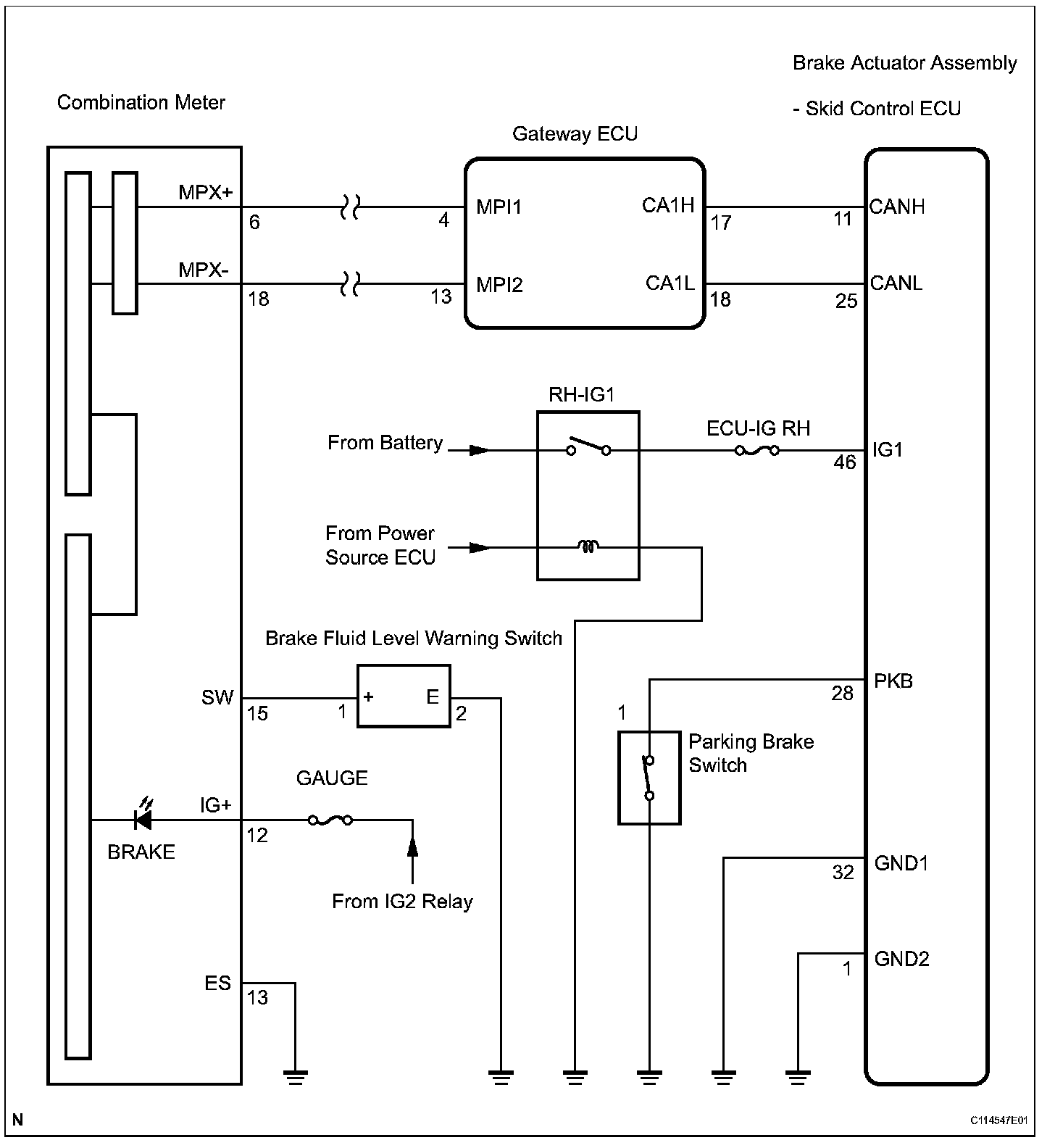

WIRING DIAGRAM:

NOTICE: When replacing the brake actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

Step 1:

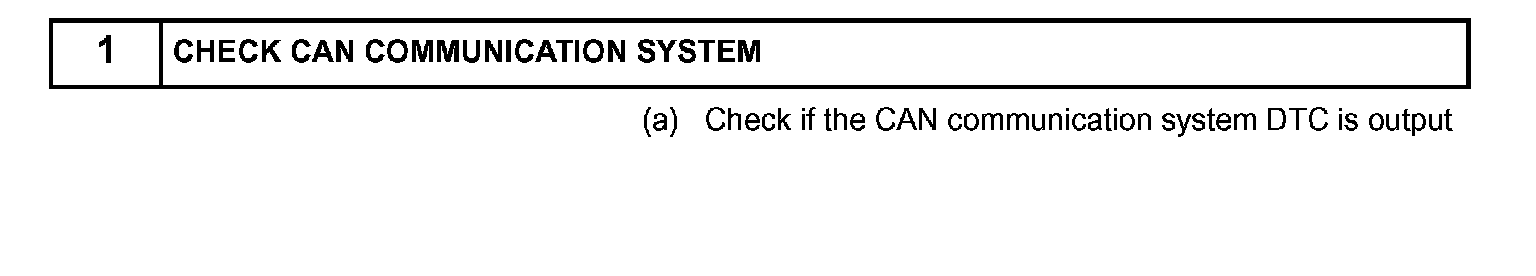

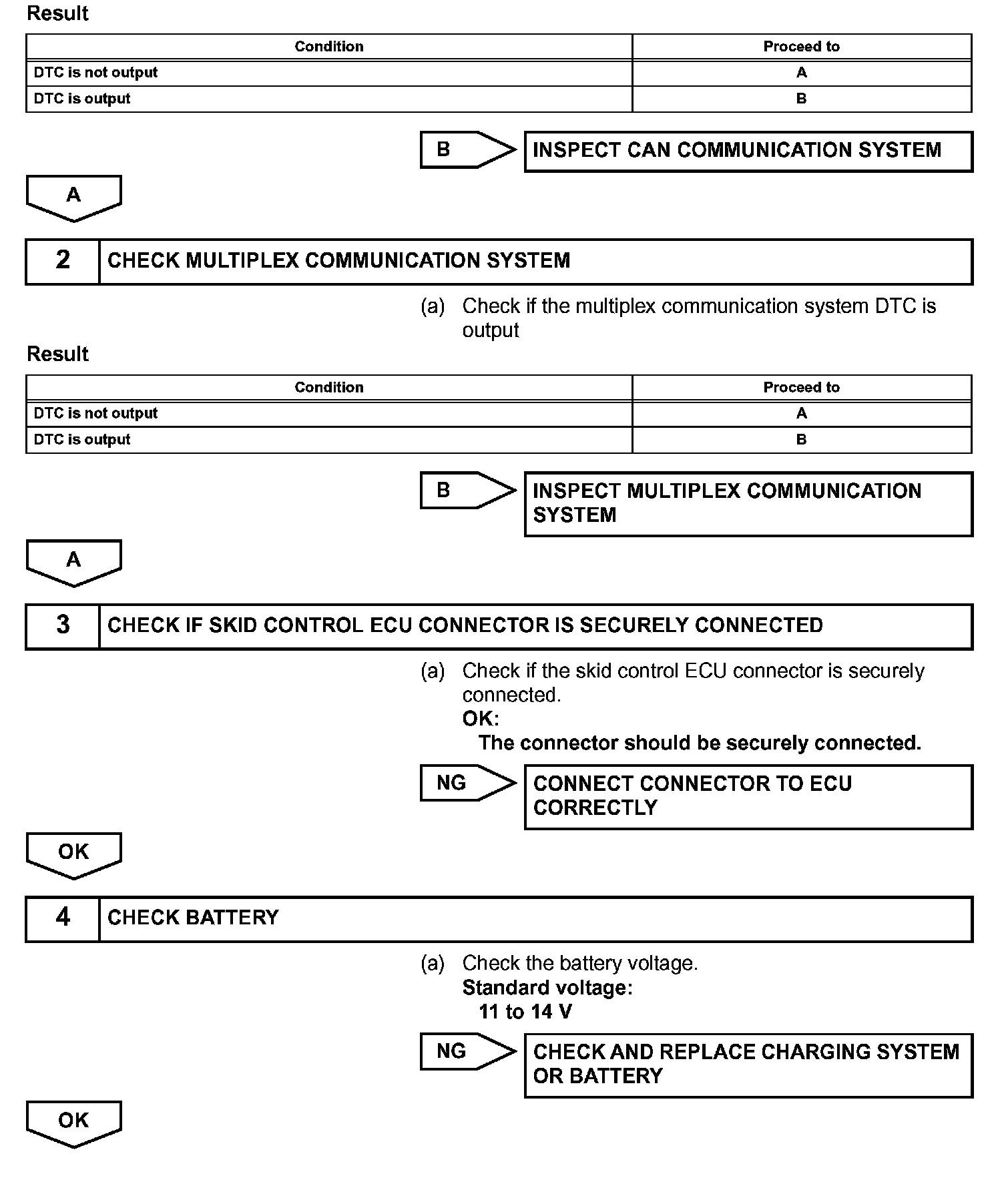

Steps 1 (Continued)-4:

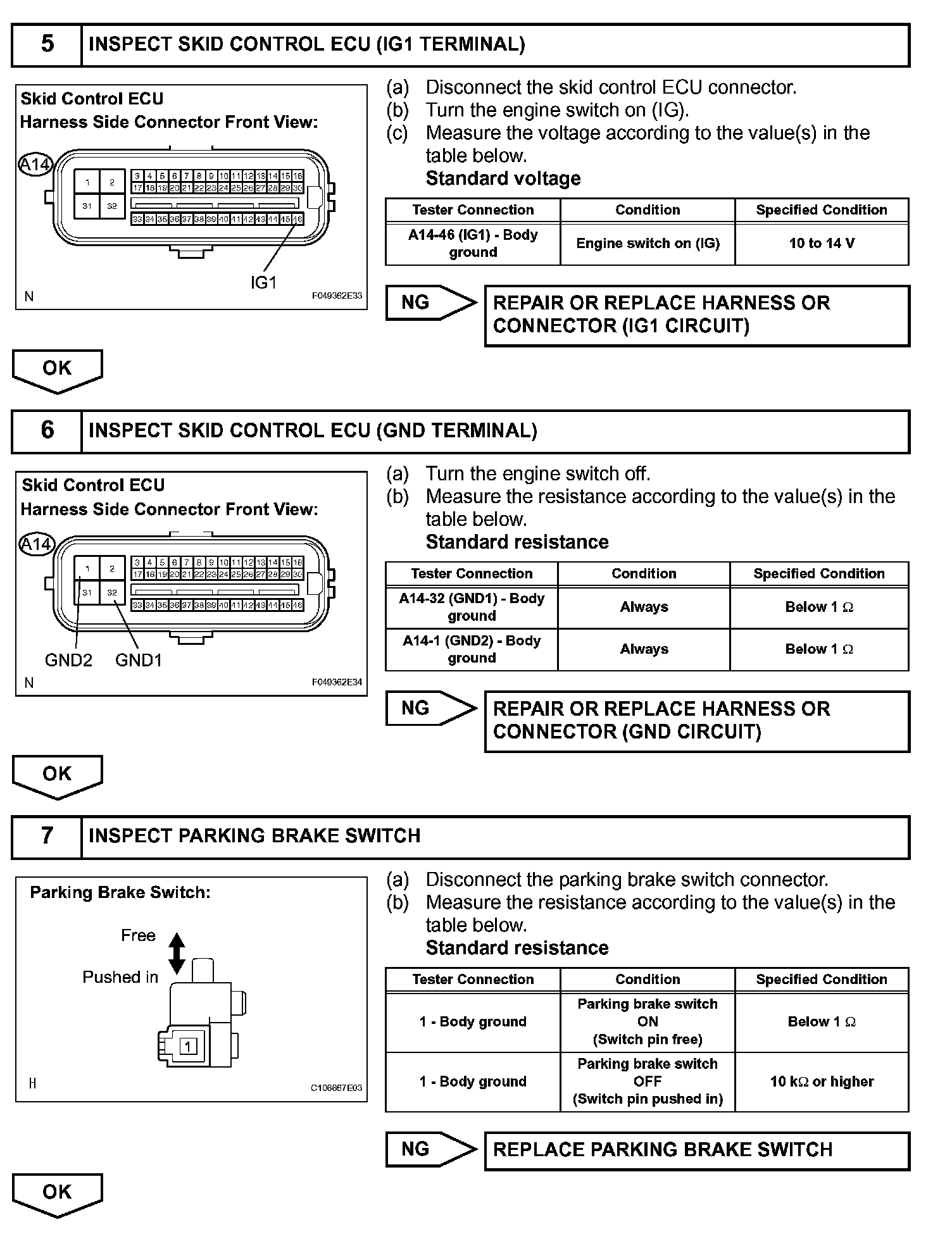

Steps 5-7:

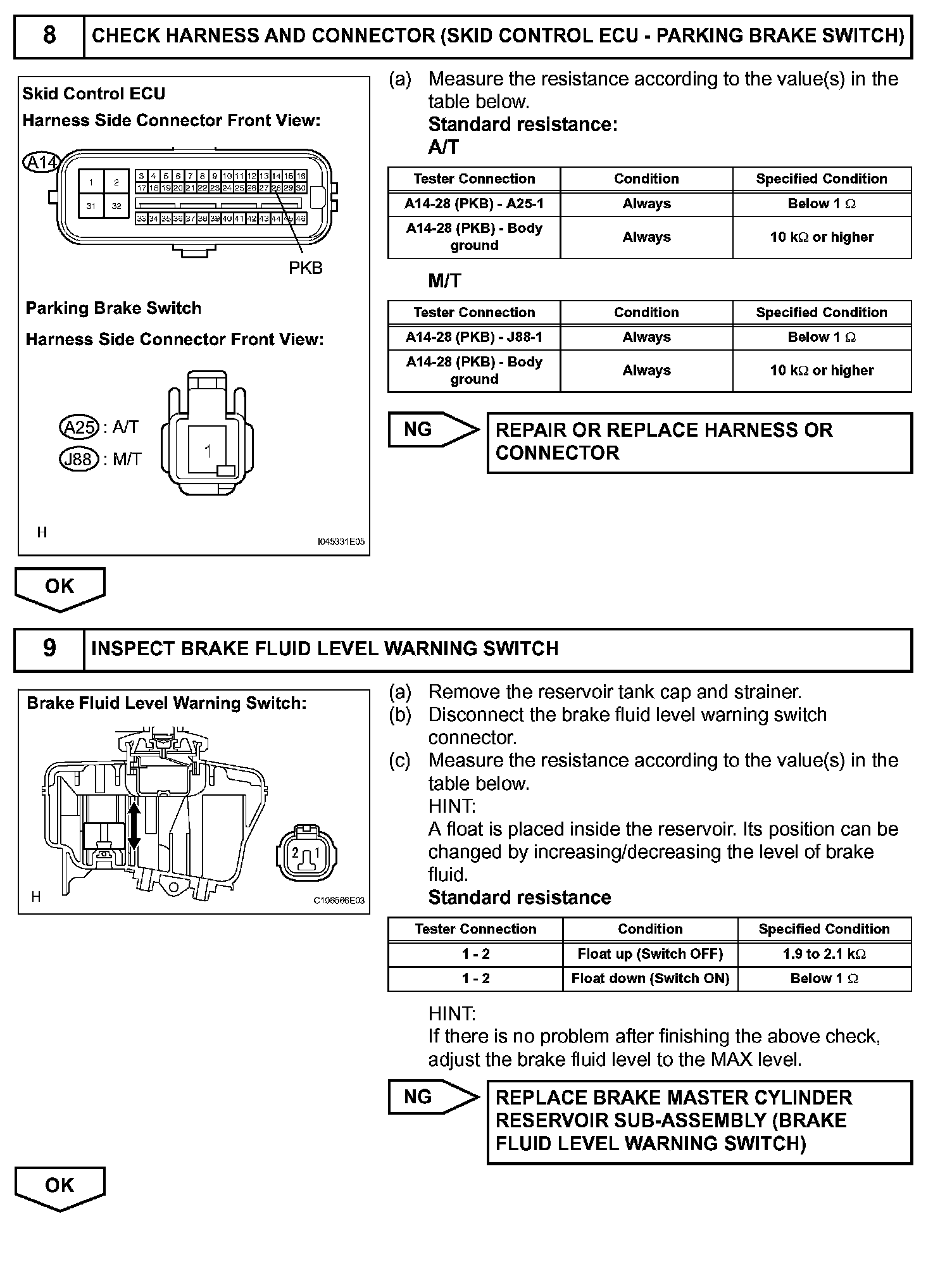

Steps 8-9:

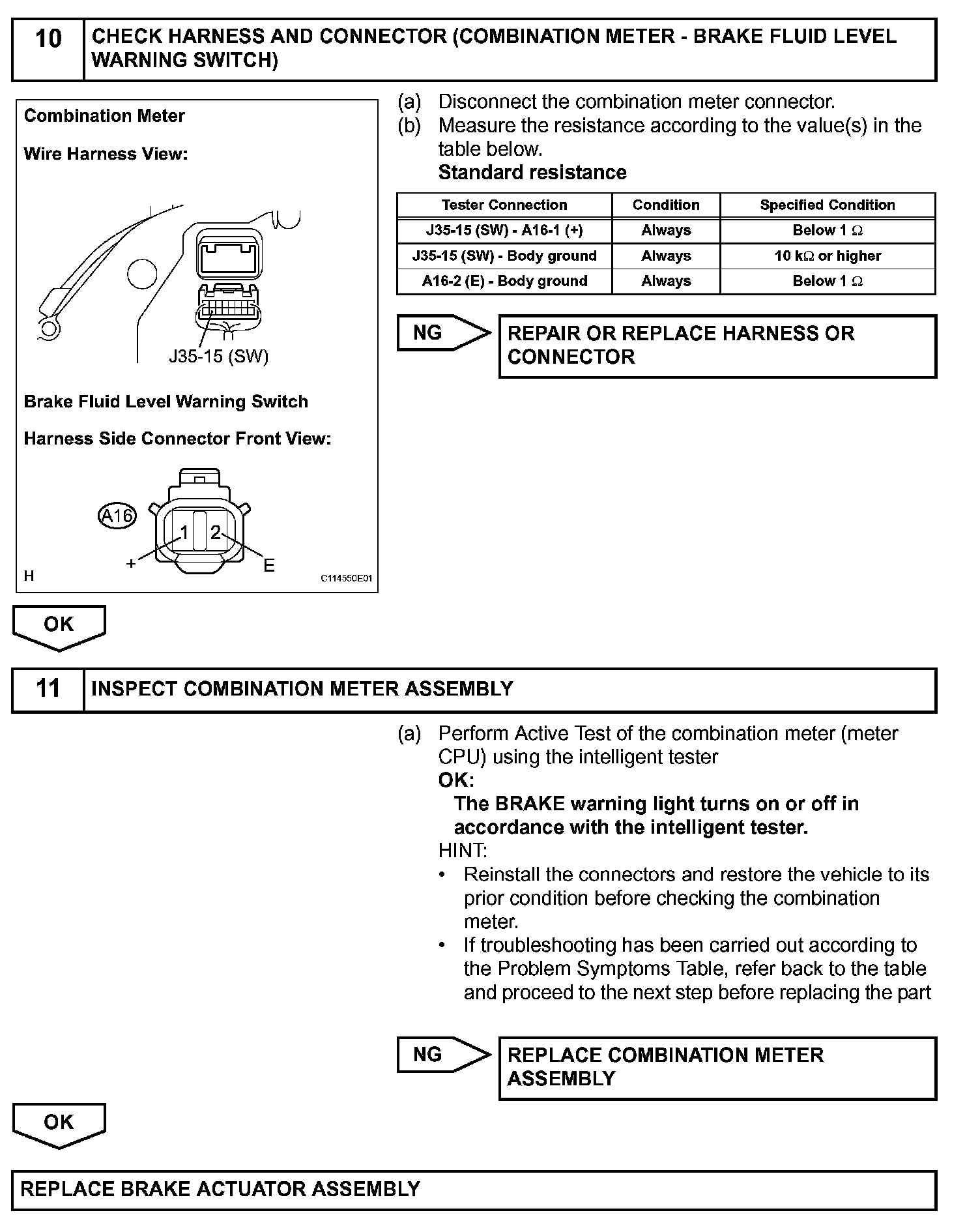

Steps 10-11:
