Seat Heater Control

INSPECTION

1. INSPECT FRONT SEAT HEATER CONTROL LH

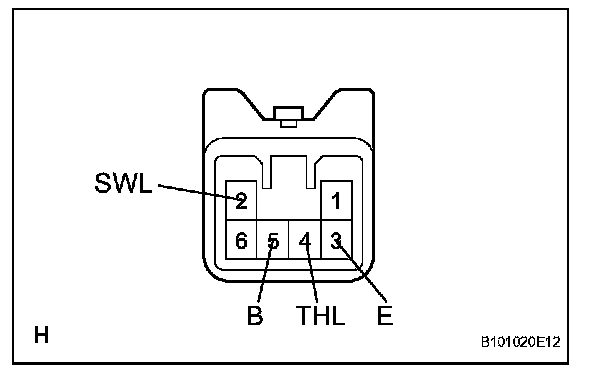

a. Disconnect the seat heater control LH connector.

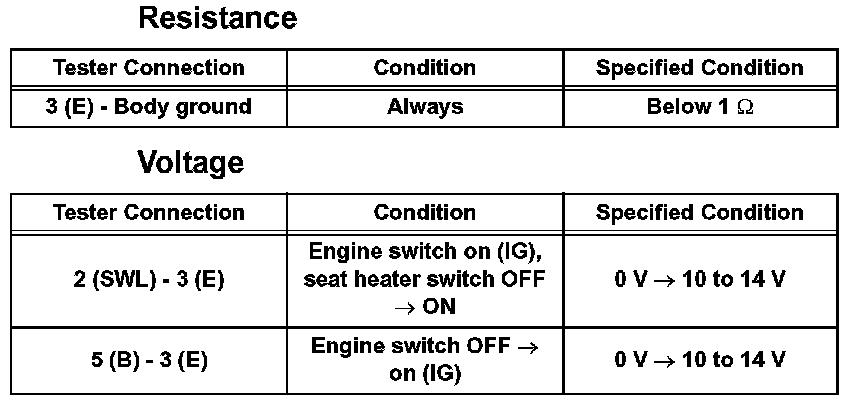

b. Measure the voltage and resistance according to the value(s) in the table.
c. Reconnect the seat heater control LH connector.

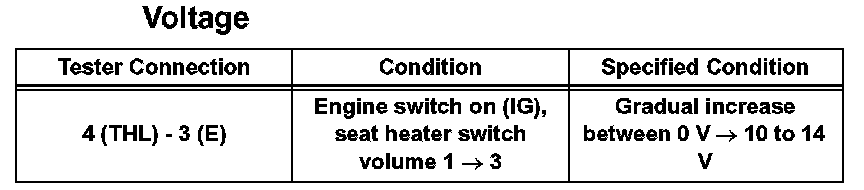

d. Measure the voltage according to the value(s) in the table.

2. INSPECT FRONT SEAT HEATER CONTROL RH

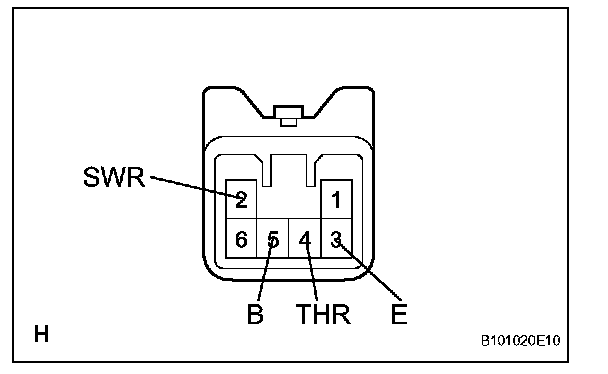

a. Disconnect the seat heater control RH connector.

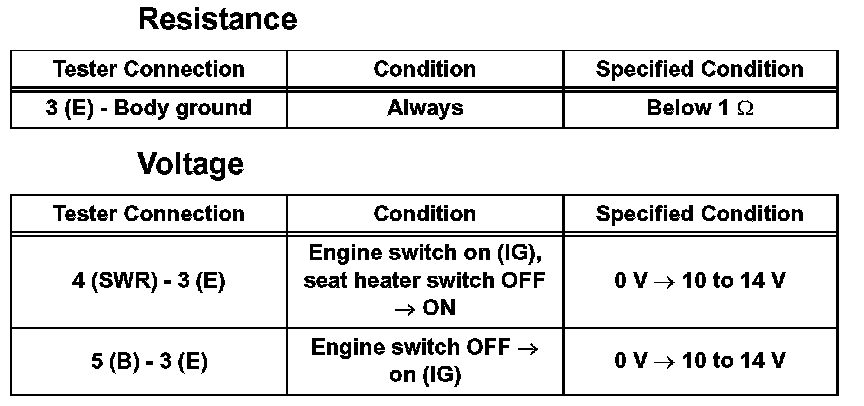

b. Measure the voltage and resistance according to the value(s) in the table.
c. Reconnect the seat heater control RH connector.

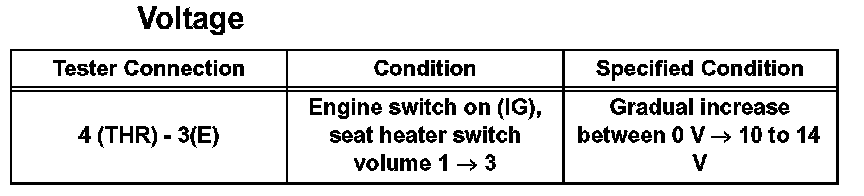

d. Measure the voltage according to the value(s) in the table.
