Rear Side Speaker
REMOVAL1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
3. REMOVE REAR DOOR TRIM BOARD SUBASSEMBLY
4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
5. REMOVE REAR SPEAKER ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 bolts and the rear speaker assembly.
NOTE: Do not touch the cone part of the speaker.

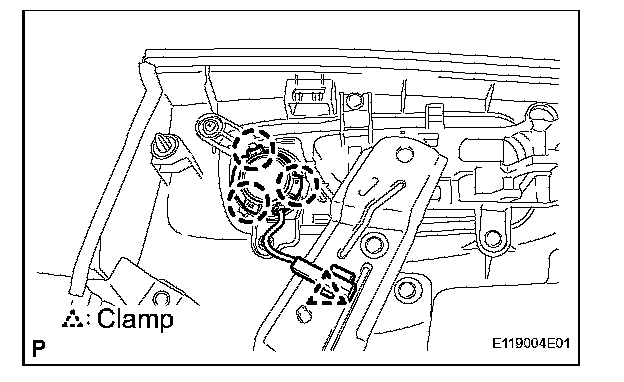

6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY
a. Disengage the speaker connector clamp.
b. Disengage the 3 claws and remove the rear No. 2 speaker assembly.
NOTE: Do not touch the cone part of the speaker.

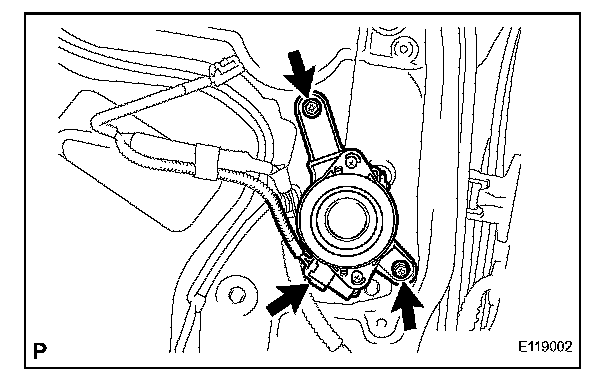

7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)
a. Disconnect the connector.
b. Remove the 2 bolts and the rear No. 3 speaker assembly.
NOTE: Do not touch the cone part of the speaker.
INSTALLATION

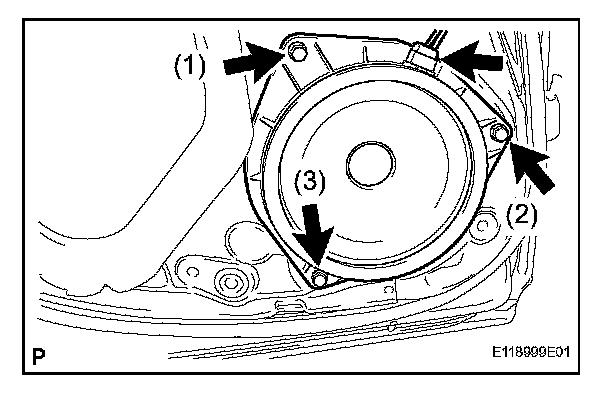

1. INSTALL REAR SPEAKER ASSEMBLY

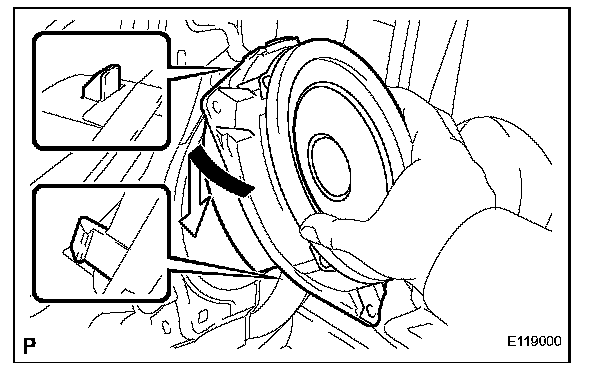

a. Engage the 2 claws as shown in the illustration to temporarily install the rear speaker assembly.
b. Install the rear speaker assembly with the 3 bolts.
HINT: Install the bolts in the order shown in the illustration.
c. Connect the connector.

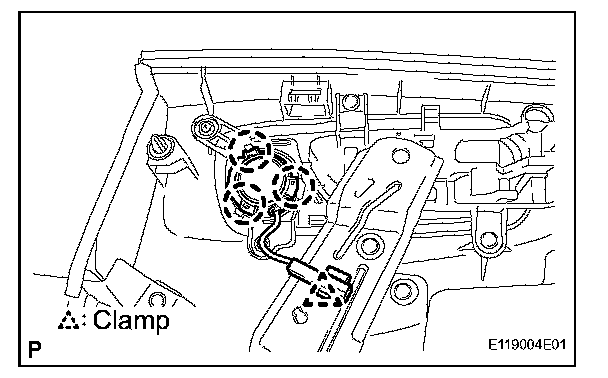

2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY
a. Engage the 3 claws and install the rear No. 2 speaker assembly.
b. Engage the speaker connector clamp.

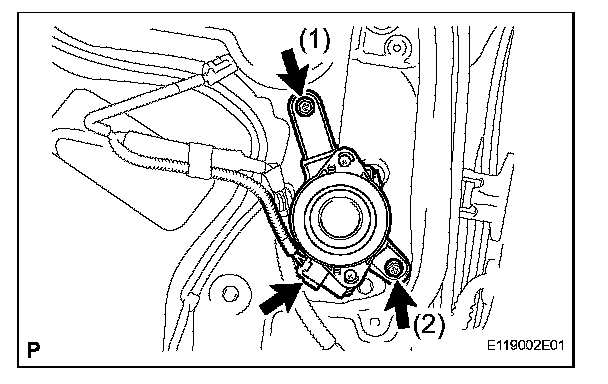

3. INSTALL REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)
a. Install the rear No. 3 speaker assembly with the 2 bolts.
HINT: Install the bolts in the order shown in the illustration.
b. Connect the connector.
4. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP
5. INSTALL REAR DOOR TRIM BOARD SUBASSEMBLY
6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
