Rear Center Speaker
REMOVAL1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEATBACK ASSEMBLY
5. REMOVE REAR DOOR SCUFF PLATE LH
6. REMOVE REAR DOOR SCUFF PLATE RH
7. REMOVE REAR SIDE SEAT GARNISH LH
8. REMOVE REAR SIDE SEAT GARNISH RH
9. REMOVE ROOF SIDE INNER GARNISH LH
10. REMOVE ROOF SIDE INNER GARNISH RH
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
12. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY
a. Disconnect the connector.

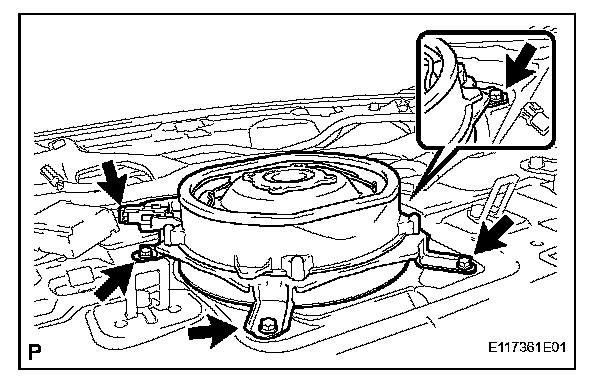

b. Remove the 4 bolts and stereo component speaker assembly.
NOTE: Do not touch the cone part of the speaker.
13. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker)
14. REMOVE REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)
a. Disconnect the connector.

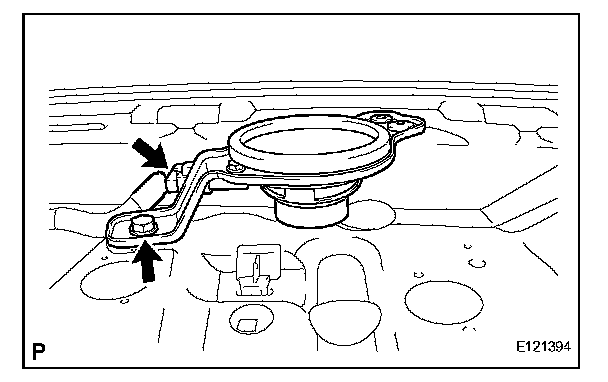

b. Remove the bolt.

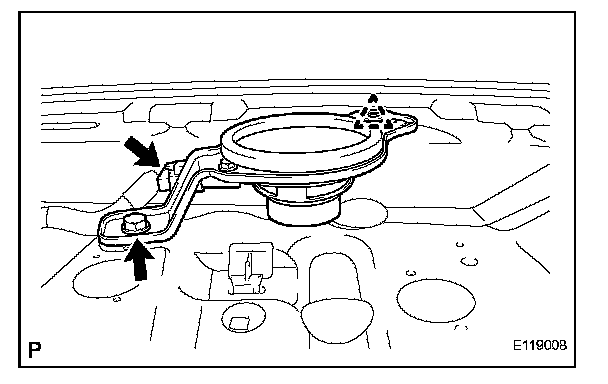

c. Disengage the clip and remove the rear stereo component speaker assembly.
NOTE: Do not touch the cone part of the speaker.
INSTALLATION
1. INSTALL REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)

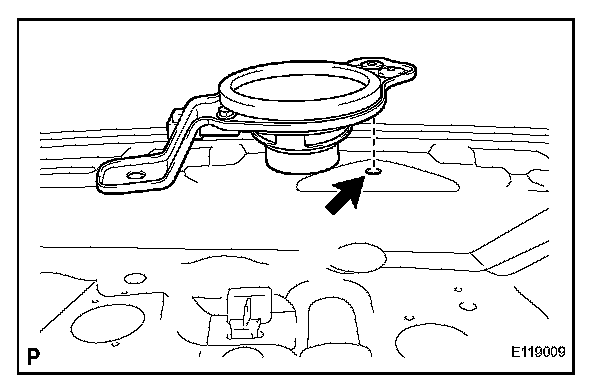

a. Engage the clip to the vehicle body to temporarily install the rear stereo component speaker assembly.
b. Install the rear stereo component speaker assembly with the bolt.
c. Connect the connector.
2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker)
3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
a. Install the stereo component speaker assembly with the 4 bolts.

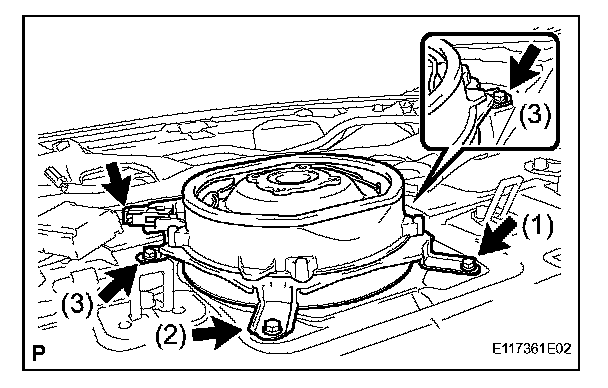

HINT: Install the bolts in the order shown in the illustration.
b. Connect the connector.
4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
5. INSTALL ROOF SIDE INNER GARNISH LH
6. INSTALL ROOF SIDE INNER GARNISH RH
7. INSTALL REAR SIDE SEAT GARNISH LH
8. INSTALL REAR SIDE SEAT GARNISH RH
9. INSTALL REAR DOOR SCUFF PLATE LH
10. INSTALL REAR DOOR SCUFF PLATE RH
11. INSTALL REAR SEATBACK ASSEMBLY
12. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
13. INSTALL REAR SEAT HEADREST ASSEMBLY
14. INSTALL REAR SEAT CUSHION ASSEMBLY
