Front Center Speaker (w/ Front Center Speaker)

REMOVAL

1. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY

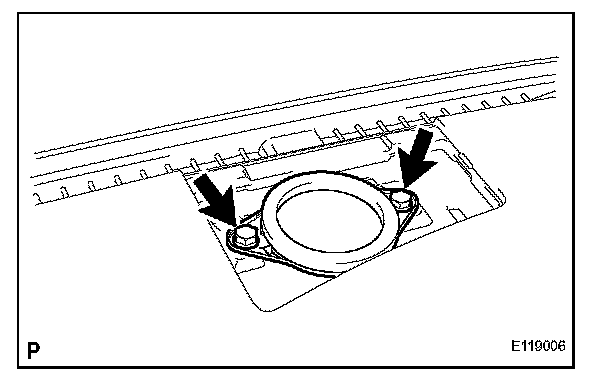

a. Remove the 2 bolts.
b. Lift the front stereo component speaker assembly and disconnect the connector to remove the speaker assembly.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
a. Connect the connector.




b. Install the front stereo component speaker assembly with the 2 bolts.

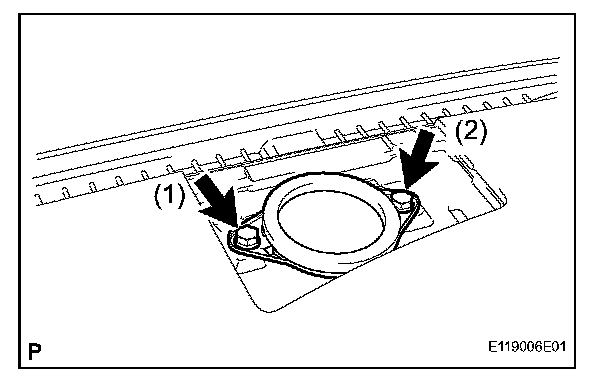

HINT: Install the bolts in the order shown in the illustration.

2. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
