Radio/Stereo: Service and Repair
REMOVAL1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
8. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY
10. REMOVE CONSOLE BOX
11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)

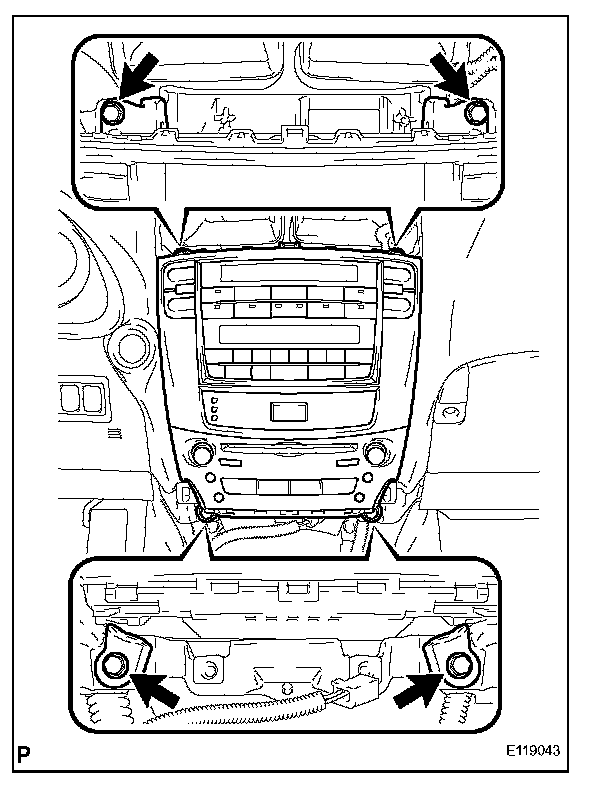

a. Remove the 4 bolts.
b. Pull the integration control panel w/ radio receiver assembly toward the rear of the vehicle.
c. Disconnect each connector and remove the panel.
14. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)

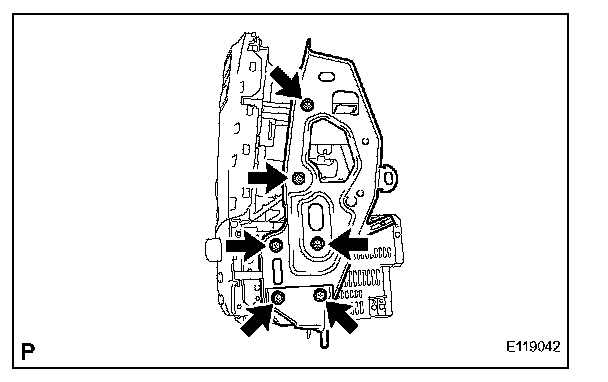

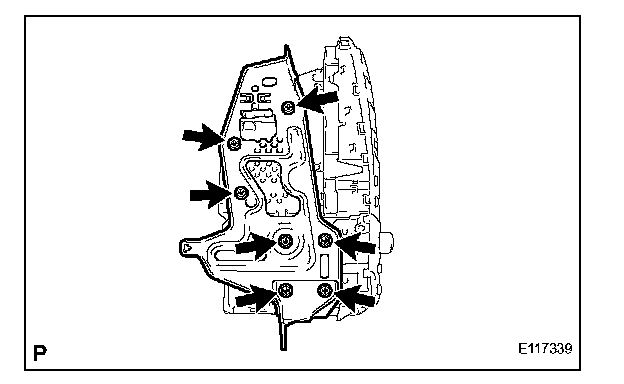

a. Remove the 6 bolts and radio No. 1 bracket.
15. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)

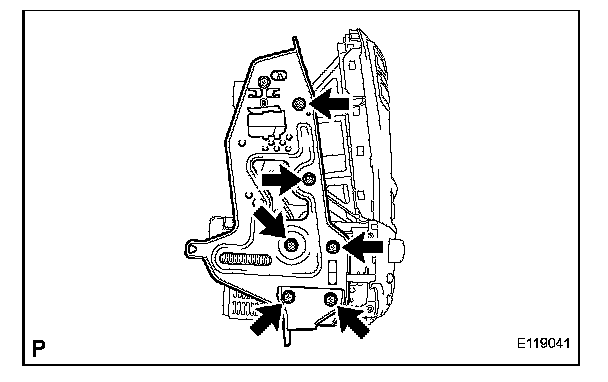

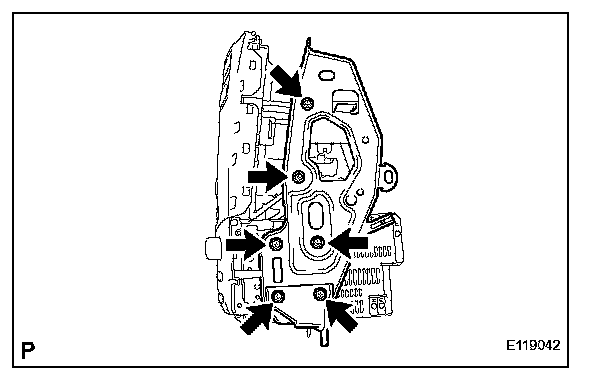

a. Remove the 6 bolts and radio No. 2 bracket.
16. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System)

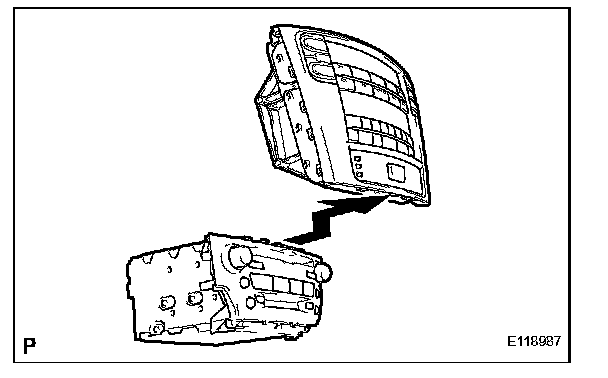

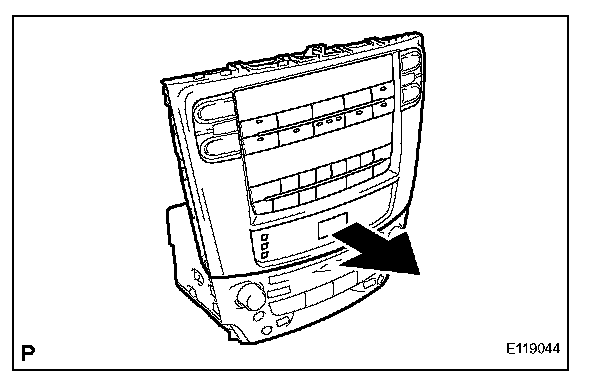

a. Slide the integration control panel in the direction shown by the arrow to remove the radio receiver assembly.
17. REMOVE MULTI- DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)

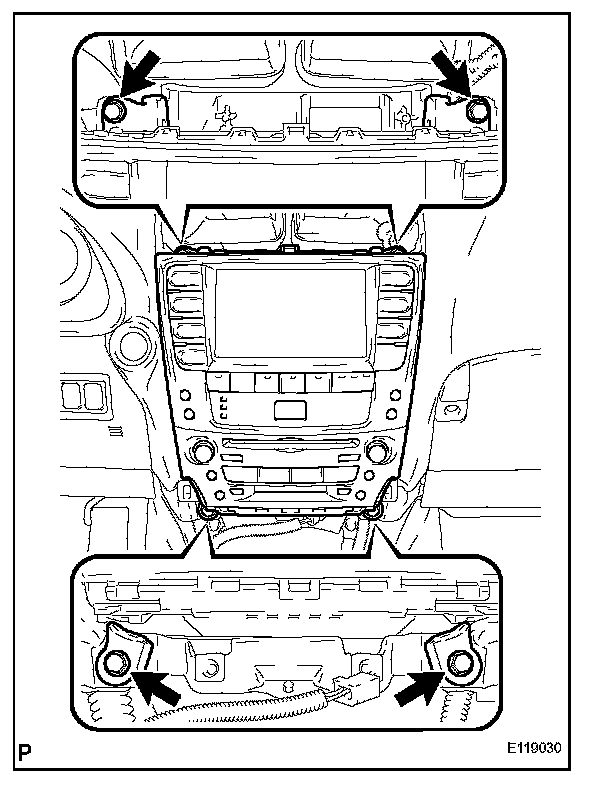

a. Remove the 4 bolts.

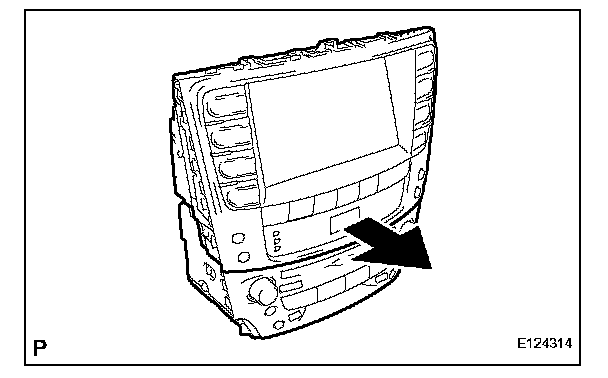

b. Pull the multi- display w/ radio receiver assembly toward the rear of the vehicle.
c. Disconnect each connector and remove the multidisplay.
18. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)

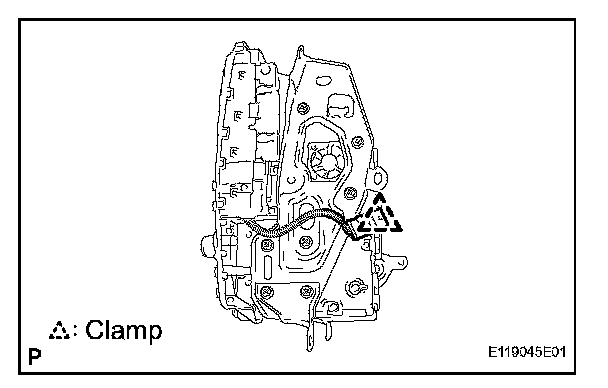

a. Disengage the connector clamp.

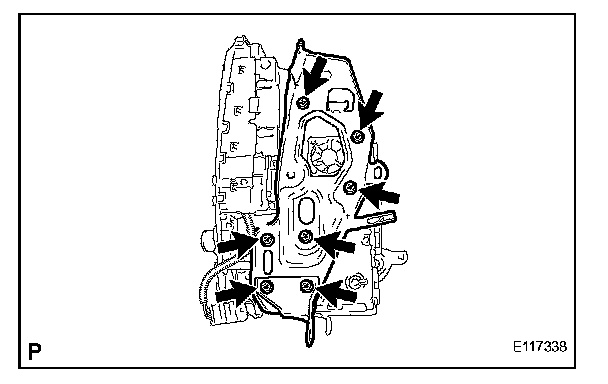

b. Remove the 7 bolts and radio No. 1 bracket.
19. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)

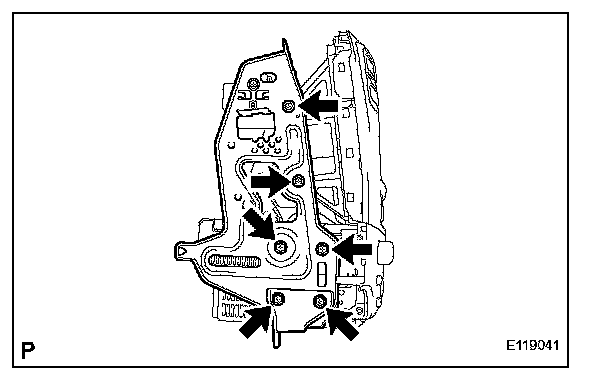

a. Remove the 7 bolts and radio No. 2 bracket.
20. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)

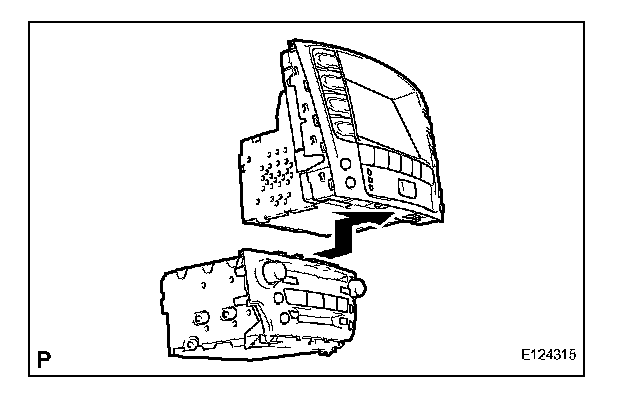

a. Slide the multi- display in the direction shown by the arrow to remove the radio receiver assembly.
INSTALLATION
1. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
a. Install the radio receiver assembly as shown in the illustration.
2. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)
a. Install the radio No. 2 bracket with the 6 bolts.
3. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)

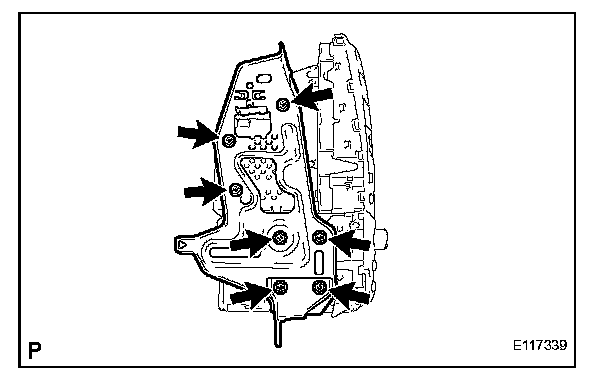

a. Install the radio No. 1 bracket with the 6 bolts.
4. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
a. Connect each connector.

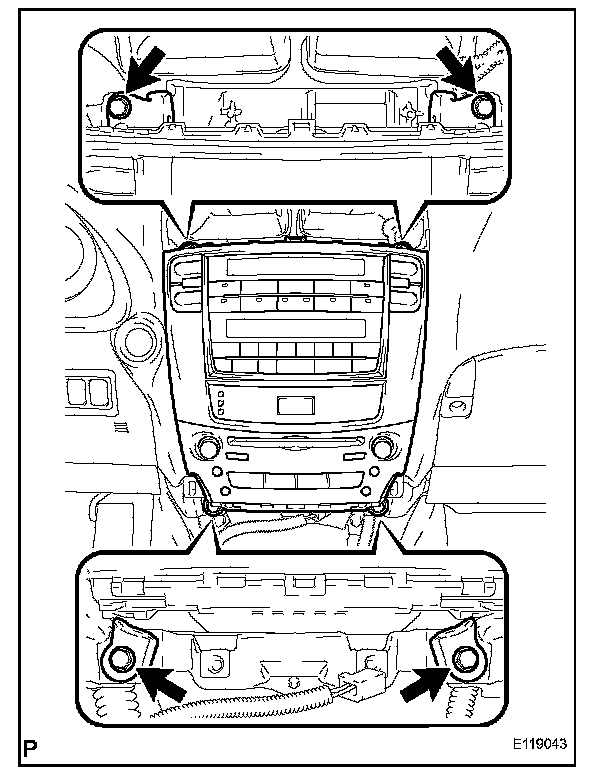

b. Install the integration control panel w/ radio receiver assembly with the 4 bolts.
5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
a. Install the radio receiver assembly as shown in the illustration.
6. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)
a. Install the radio No. 2 bracket with the 7 bolts.
7. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)
a. Install the radio No. 1 bracket with the 7 bolts

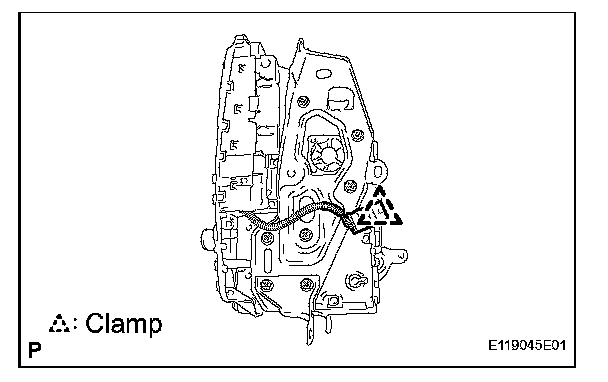

b. Engage the connector clamp.
8. INSTALL MULTI- DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
a. Connect each connector.
b. Install the the multi- display w/ radio receiver assembly with the 4 bolts.
9. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
10. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
11. INSTALL CONSOLE BOX
12. INSTALL CONSOLE BOX REGISTER ASSEMBLY
13. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY
14. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
15. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission
16. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission
17. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
18. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
21. ADJUST CLOCK
