Illumination Circuit

Illumination Circuit

DESCRIPTION
Power is supplied to the multi-display and steering pad switch assembly illumination when the light control switch is in the TAIL or HEAD position.

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the Supplemental Restraint System.

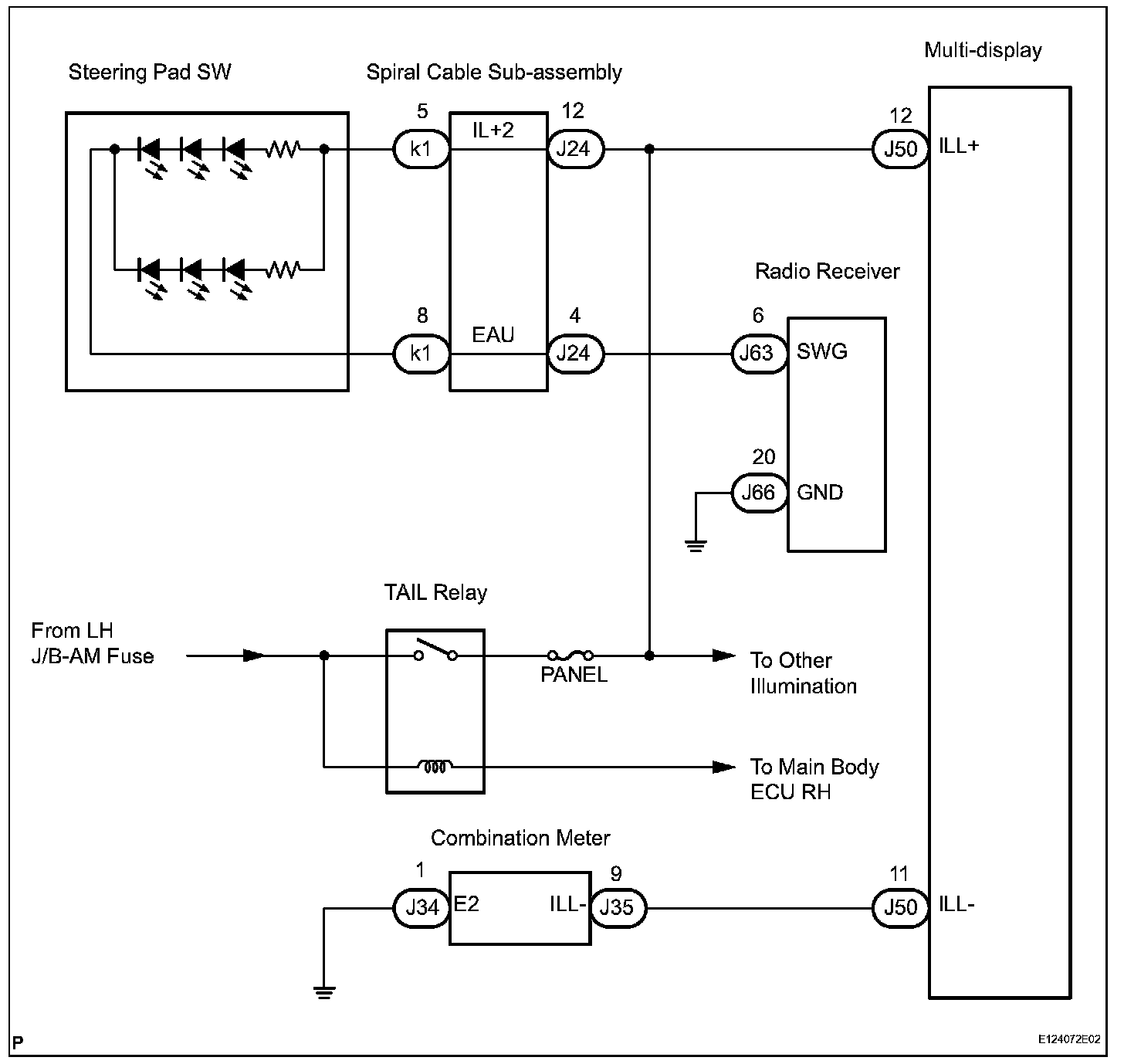

Wiring Diagram:

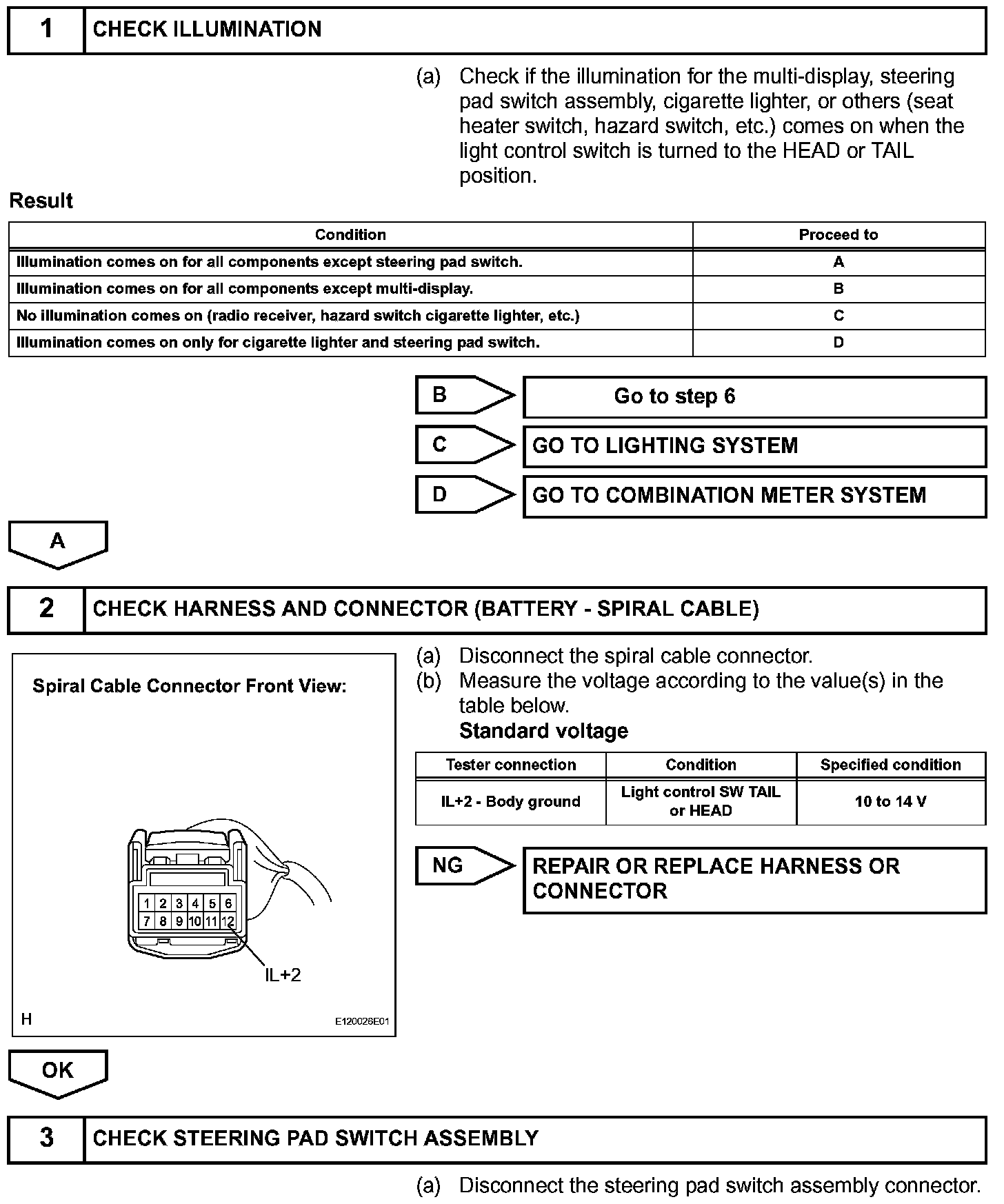

Step 1-3:

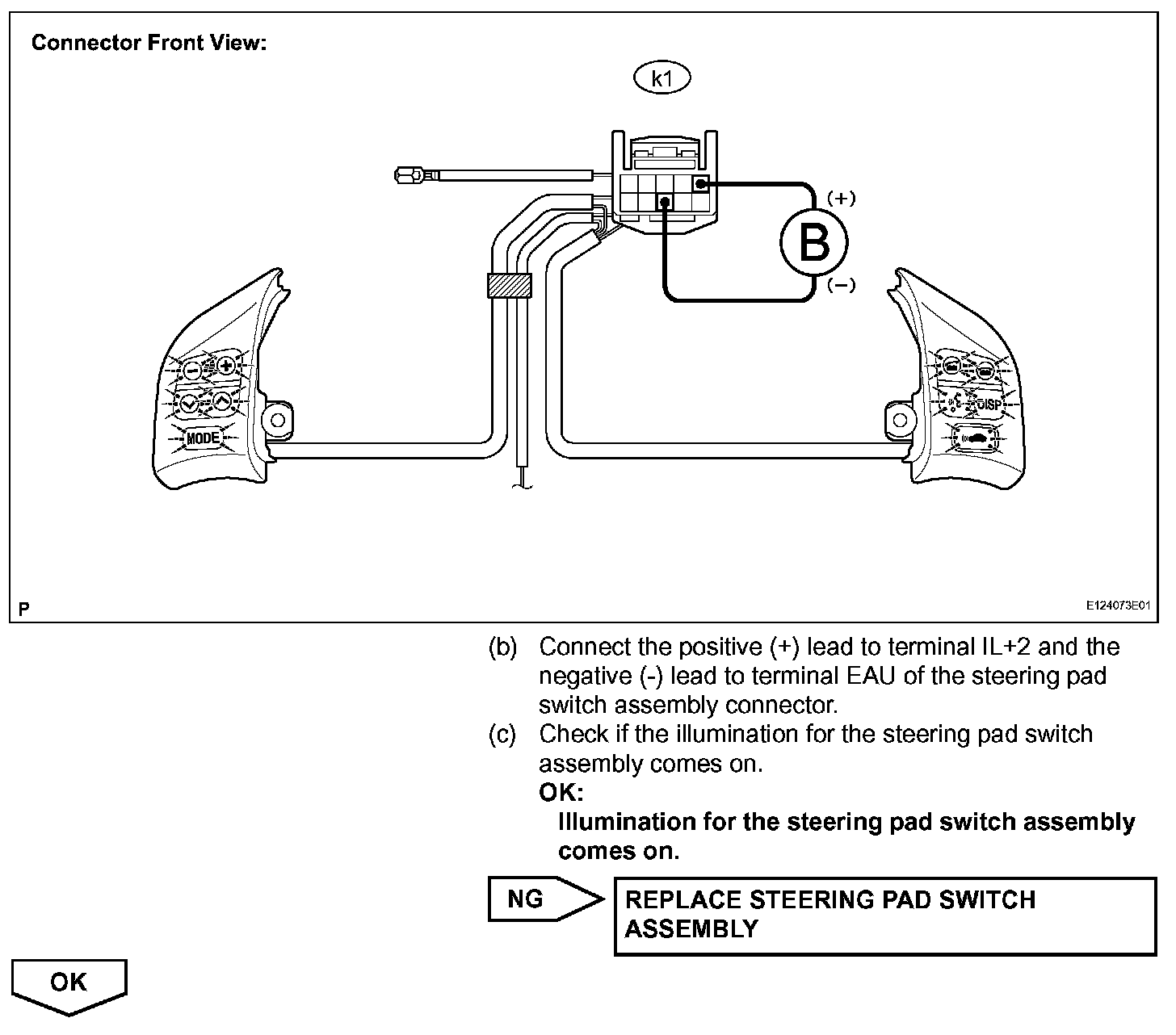

Step 3(continued):

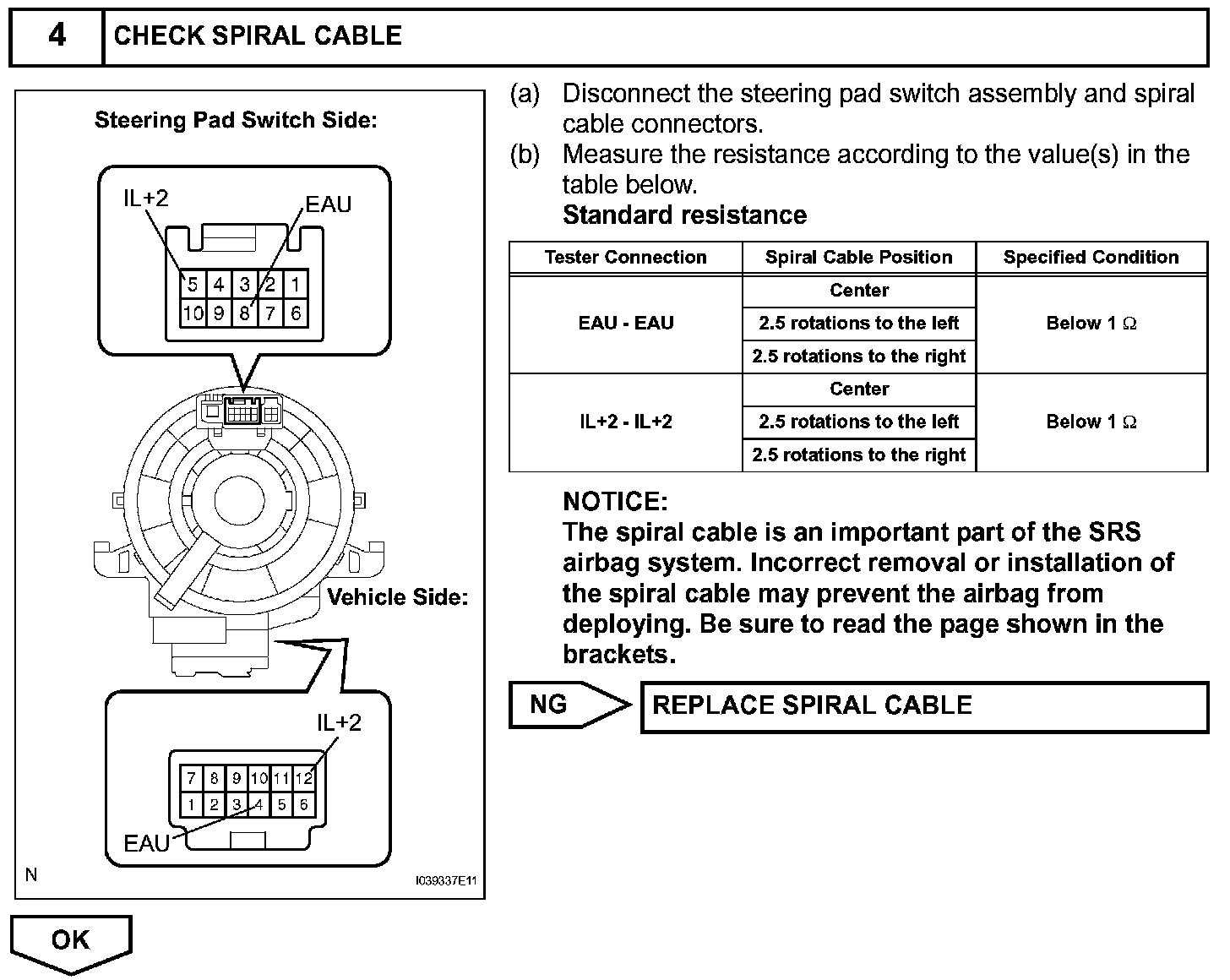

Step 4:

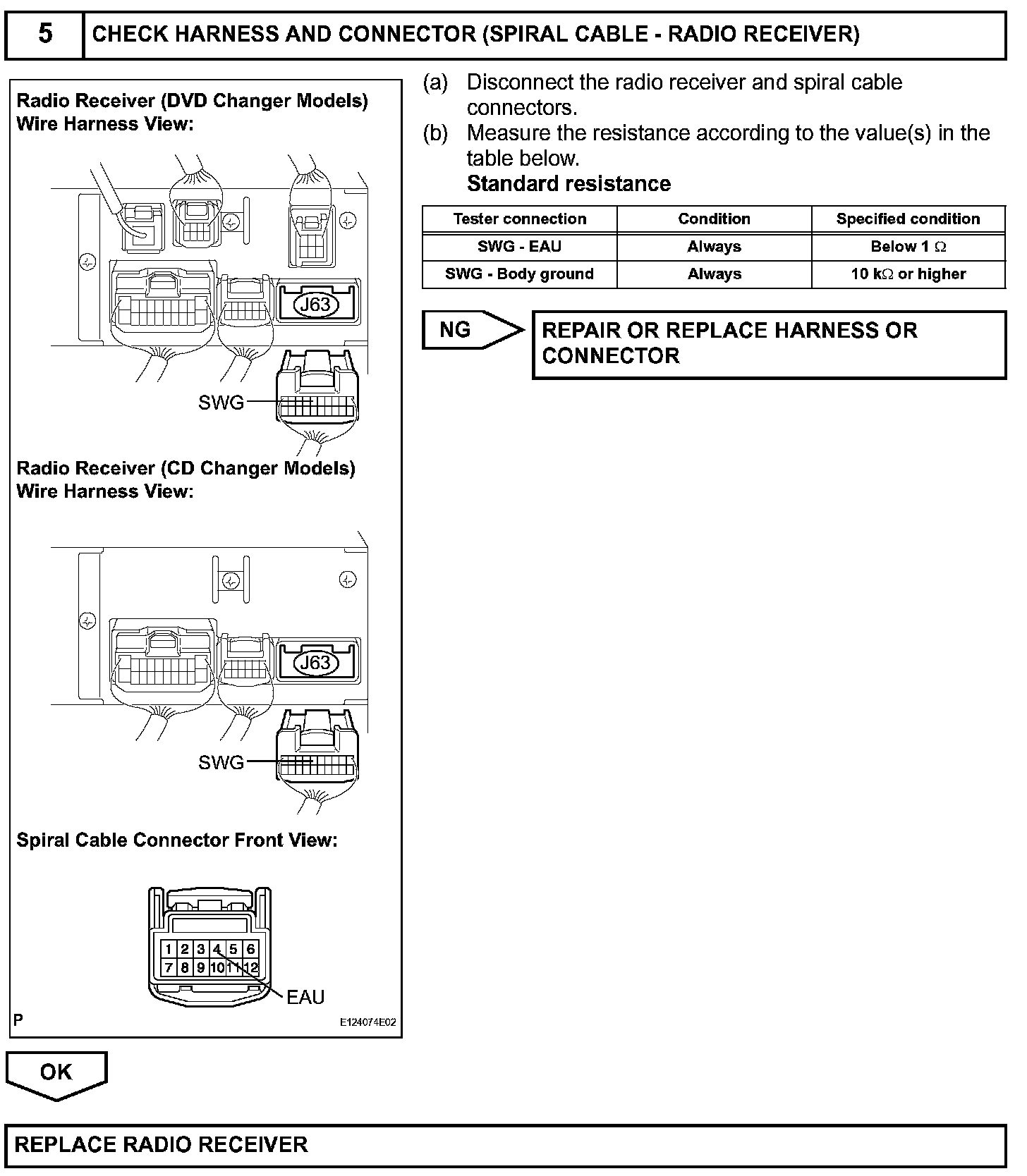

Step 5:

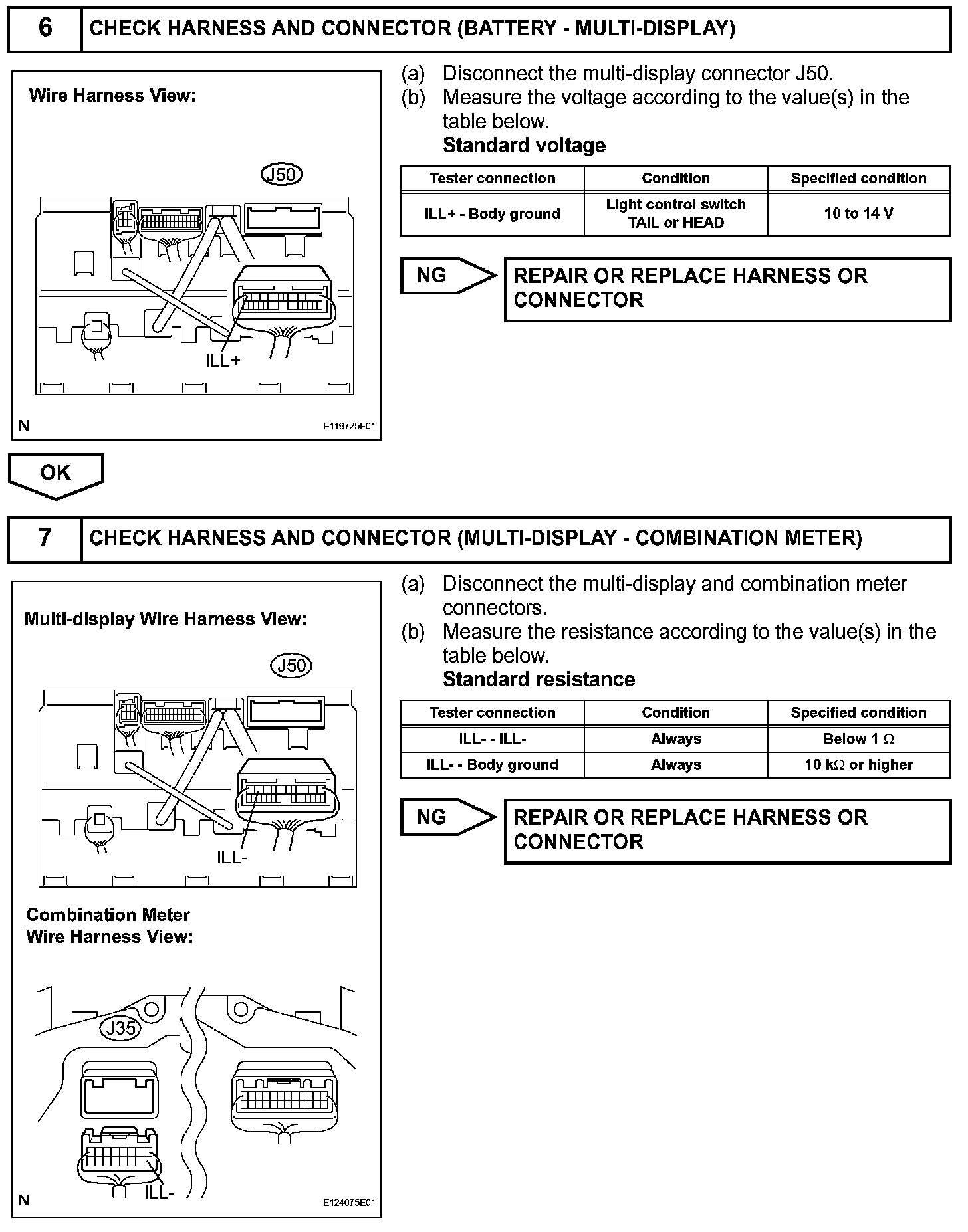

Step 6-7:

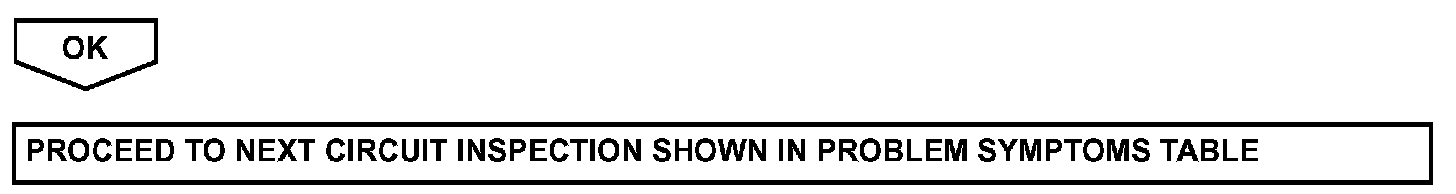

Step 7(continued):

INSPECTION PROCEDURE
