Antenna, Radio: Service and Repair

REMOVAL

1. PRECAUTION
2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
11. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY
12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
13. REMOVE CONSOLE BOX
14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
16. REMOVE MULTI- DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
17. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
18. REMOVE LOWER NO. 2 STEERING WHEEL COVER
19. REMOVE LOWER NO. 3 STEERING WHEEL COVER
20. REMOVE STEERING PAD
21. REMOVE STEERING WHEEL ASSEMBLY
22. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
23. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)
24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
25. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
26. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
27. REMOVE FRONT DOOR OPENING TRIM COVER LH
28. REMOVE SIDE INSTRUMENT PANEL LH
29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
30. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
31. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
33. REMOVE COMBINATION METER ASSEMBLY
34. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
35. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
36. REMOVE FRONT DOOR OPENING TRIM COVER RH
37. REMOVE SIDE INSTRUMENT PANEL RH
38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
40. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
41. REMOVE FRONT PILLAR GARNISH LH
42. REMOVE FRONT PILLAR GARNISH RH
43. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
44. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
45. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY
47. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
48. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
49. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
50. DISCONNECT PASSENGER AIRBAG CONNECTOR
51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

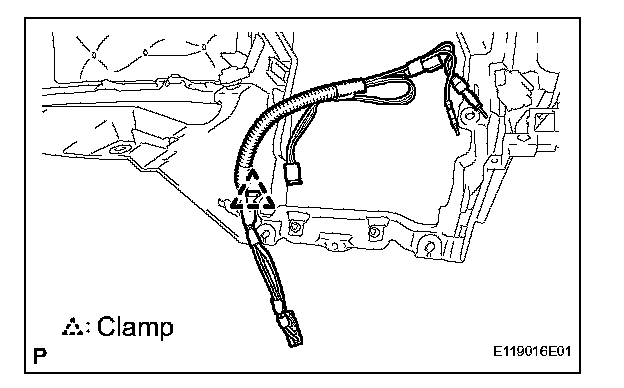

52. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY




a. Disengage the clamp and remove the No. 2 antenna cord SUB-ASSEMBLY.

53. REMOVE REAR SEAT CUSHION ASSEMBLY
54. REMOVE REAR SEAT HEADREST ASSEMBLY
55. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
56. REMOVE REAR SEATBACK ASSEMBLY
57. REMOVE REAR DOOR SCUFF PLATE

HINT: Removal procedure of the RH side is the same as that of the LH side.

58. REMOVE REAR SEAT SIDE GARNISH

HINT: Removal procedure of the RH side is the same as that of the LH side.

59. REMOVE ROOF SIDE INNER GARNISH

HINT: Removal procedure of the RH side is the same as that of the LH side.

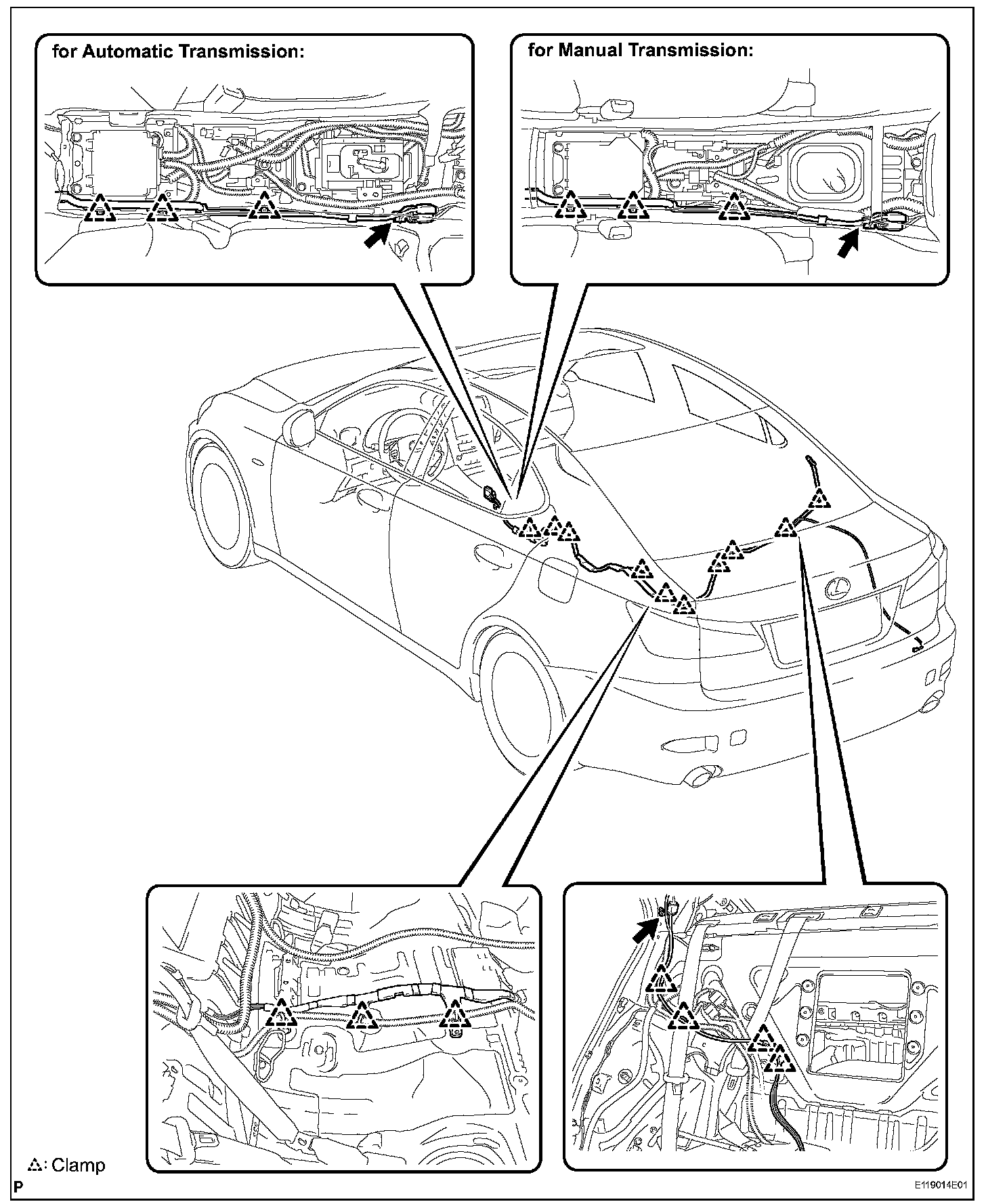

60. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)




a. Disconnect each connector.
b. Remove the 3 bolts and disengage the 19 clamps.
c. Remove the antenna cord sub-assembly.

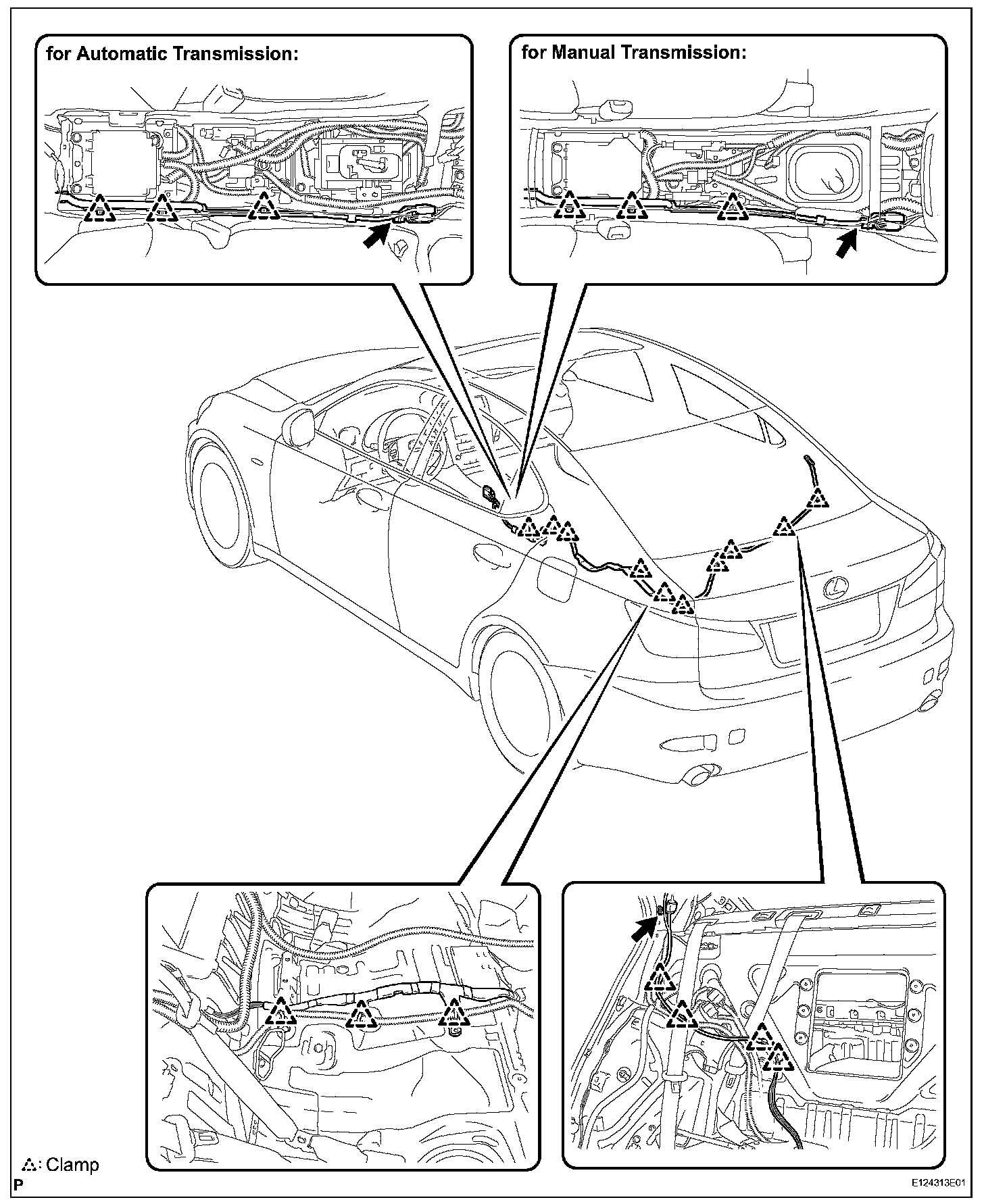

61. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)

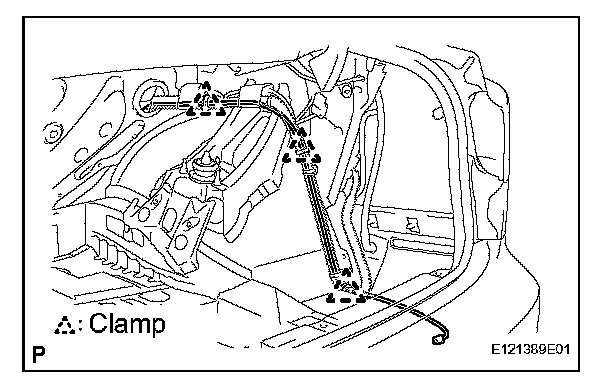

a. Disconnect the connectors.




b. Disengage the 3 clamps and separate the antenna cord.




c. Disconnect each connector.
d. Remove the 3 bolts and disengage the 19 clamps.
e. Remove the antenna cord SUB-ASSEMBLY.

INSTALLATION

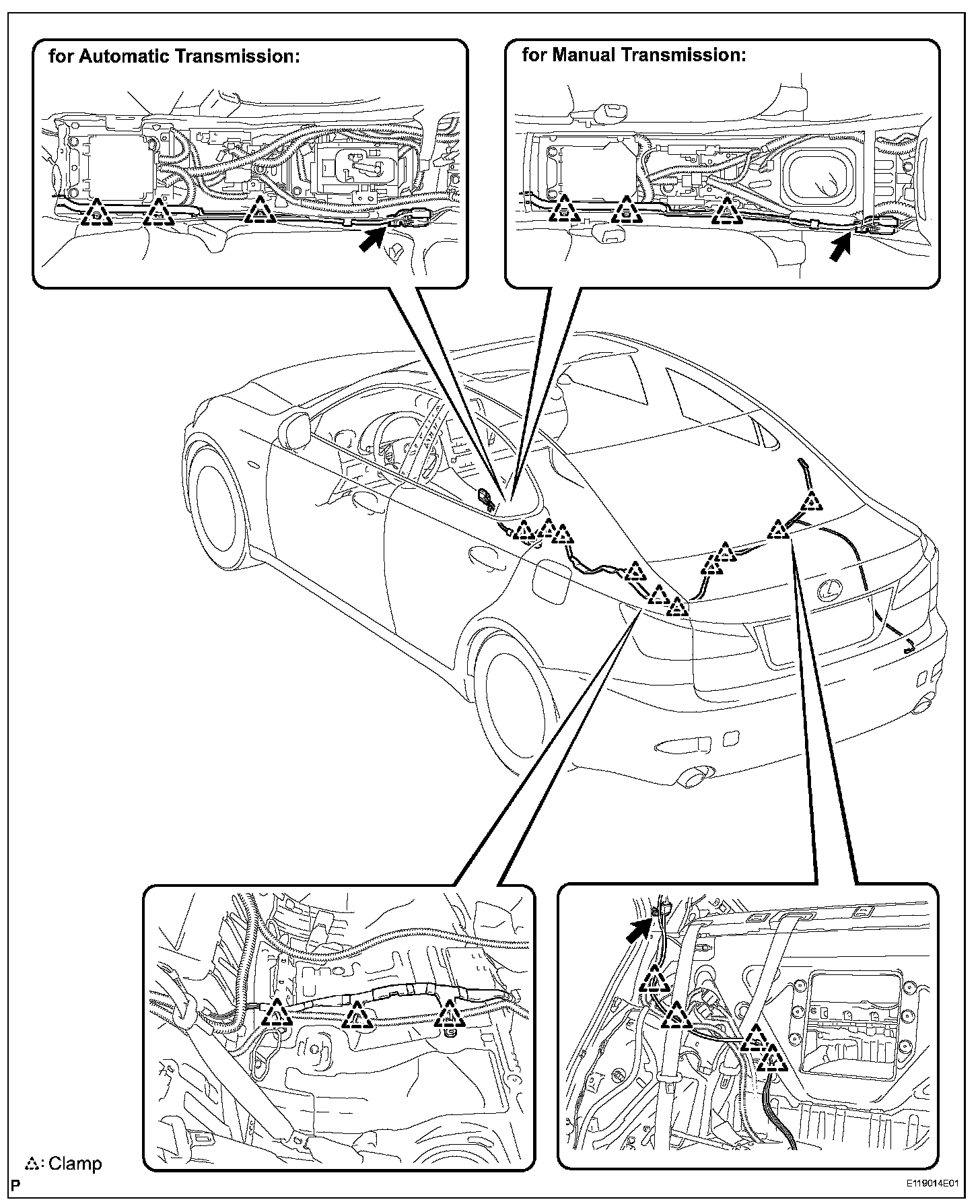

1. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)
a. Install the antenna cord SUB-ASSEMBLY with the 3 bolts.

Radio Antenna Cord:




b. Engage the 19 clamps.
c. Connect the connectors.

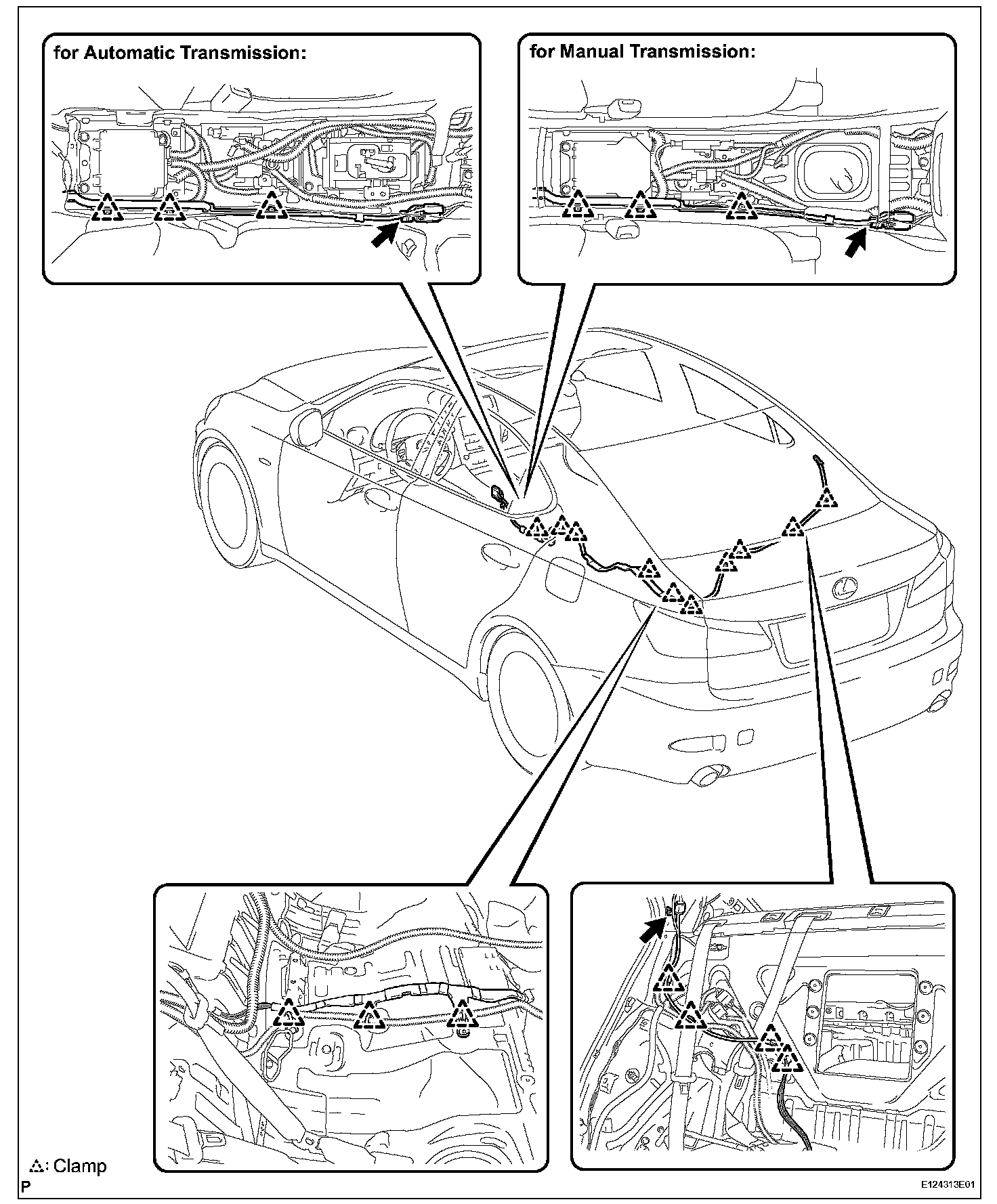

2. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)

Radio Antenna Cord:




a. Install the antenna cord SUB-ASSEMBLY with the 3 bolts.
b. Engage the 19 clamps.
c. Connect the connectors.




d. Engage the 3 clamps.
e. Connect the connectors.

3. INSTALL ROOF SIDE INNER GARNISH
4. INSTALL REAR SIDE SEAT GARNISH
5. INSTALL REAR DOOR SCUFF PLATE
6. INSTALL REAR SEATBACK ASSEMBLY
7. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
8. INSTALL REAR SEAT HEADREST ASSEMBLY
9. INSTALL REAR SEAT CUSHION ASSEMBLY
10. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY




a. Engage the clamp and install the No. 2 antenna cord SUB-ASSEMBLY.

11. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
12. CONNECT PASSENGER AIRBAG CONNECTOR
13. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
14. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
15. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
16. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY
17. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
18. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
19. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
20. INSTALL FRONT PILLAR GARNISH LH
21. INSTALL FRONT PILLAR GARNISH RH
22. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
23. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
24. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
25. INSTALL SIDE INSTRUMENT PANEL RH
26. INSTALL FRONT DOOR OPENING TRIM COVER RH
27. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
28. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
29. INSTALL COMBINATION METER ASSEMBLY
30. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
31. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
32. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
33. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
34. INSTALL SIDE INSTRUMENT PANEL LH
35. INSTALL FRONT DOOR OPENING TRIM COVER LH
36. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
37. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
38. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
39. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)
40. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
41. ADJUST SPIRAL CABLE SUB-ASSEMBLY
42. INSTALL STEERING WHEEL ASSEMBLY
43. INSTALL STEERING PAD
44. INSTALL LOWER NO. 3 STEERING WHEEL COVER
45. INSTALL LOWER NO. 2 STEERING WHEEL COVER
46. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
47. INSTALL MULTI- DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
48. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
49. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
50. INSTALL CONSOLE BOX
51. INSTALL CONSOLE BOX REGISTER ASSEMBLY
52. INSTALL FRONT ASH RECEPTACLE SUBASSEMBLY
53. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
54. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
55. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
56. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
57. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
58. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
59. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
60. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
61. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal.

62. INSPECT STEERING PAD
63. INSPECT SRS WARNING LIGHT
