Wiper and Washer Switch Circuit
Wiper and Washer Switch CircuitDESCRIPTION
This circuit provides power to operate the windshield wiper switch assembly. The manual operation signals are sent to the main body ECU LH (cowl side J/B LH).

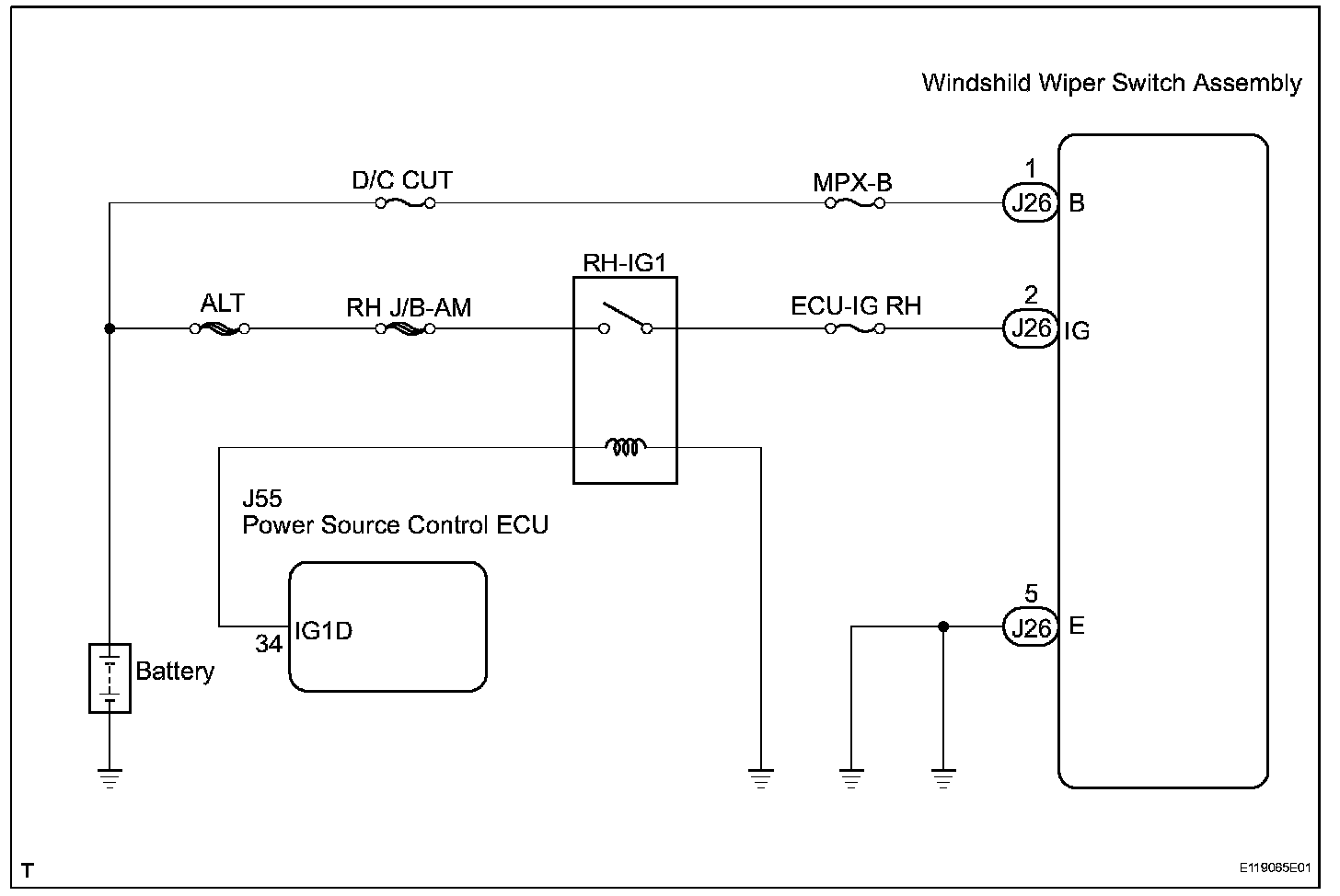

Wiring Diagram:
Step 1:

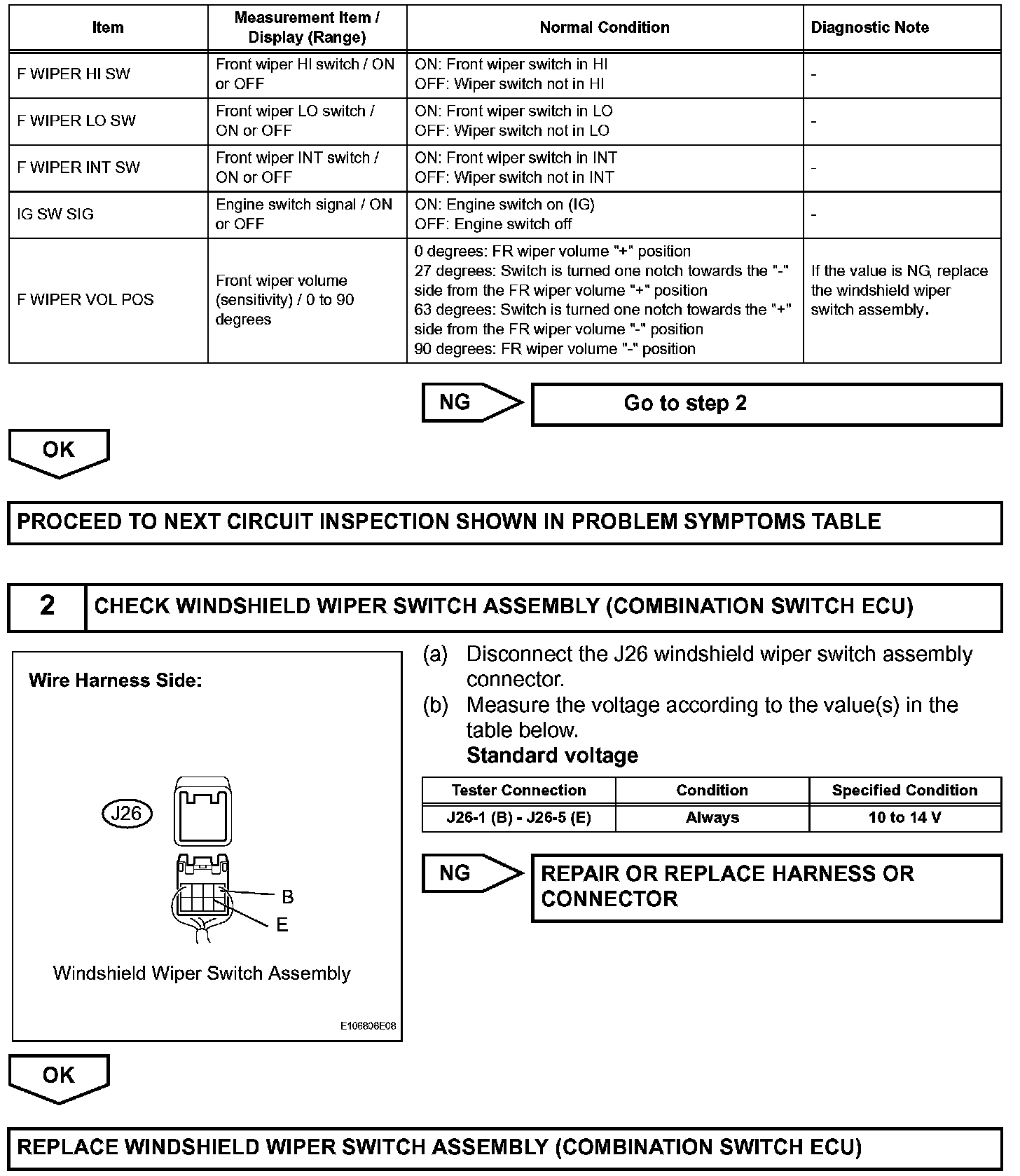

Step 1(continued)-2:
INSPECTION PROCEDURE
