Washer Motor Circuit
Washer Motor CircuitDESCRIPTION
The front controller receives washer switch condition (on or off) information from the windshield wiper switch assembly, and operates the WASH relay.
Wiring Diagram:

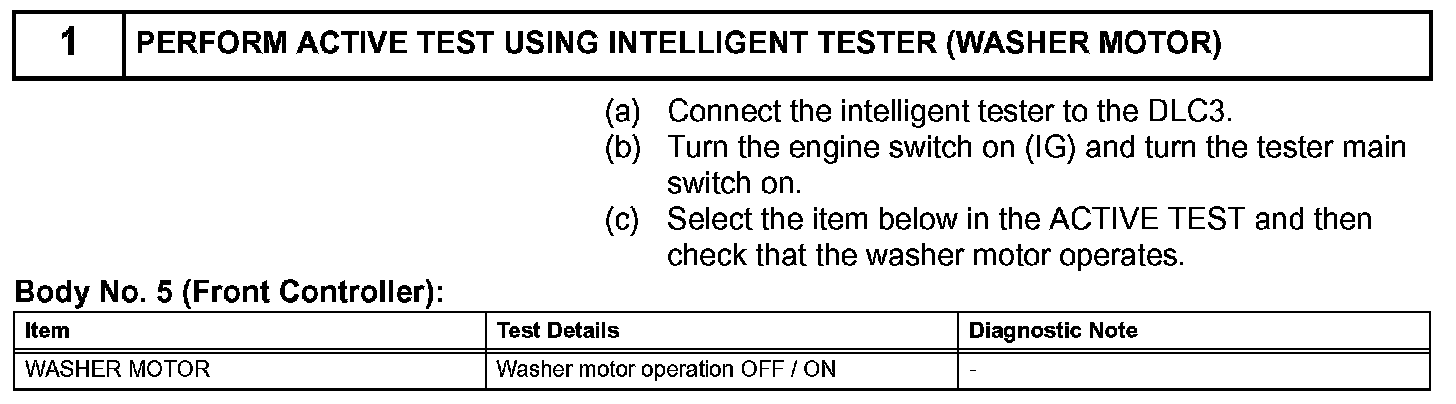

Step 1:

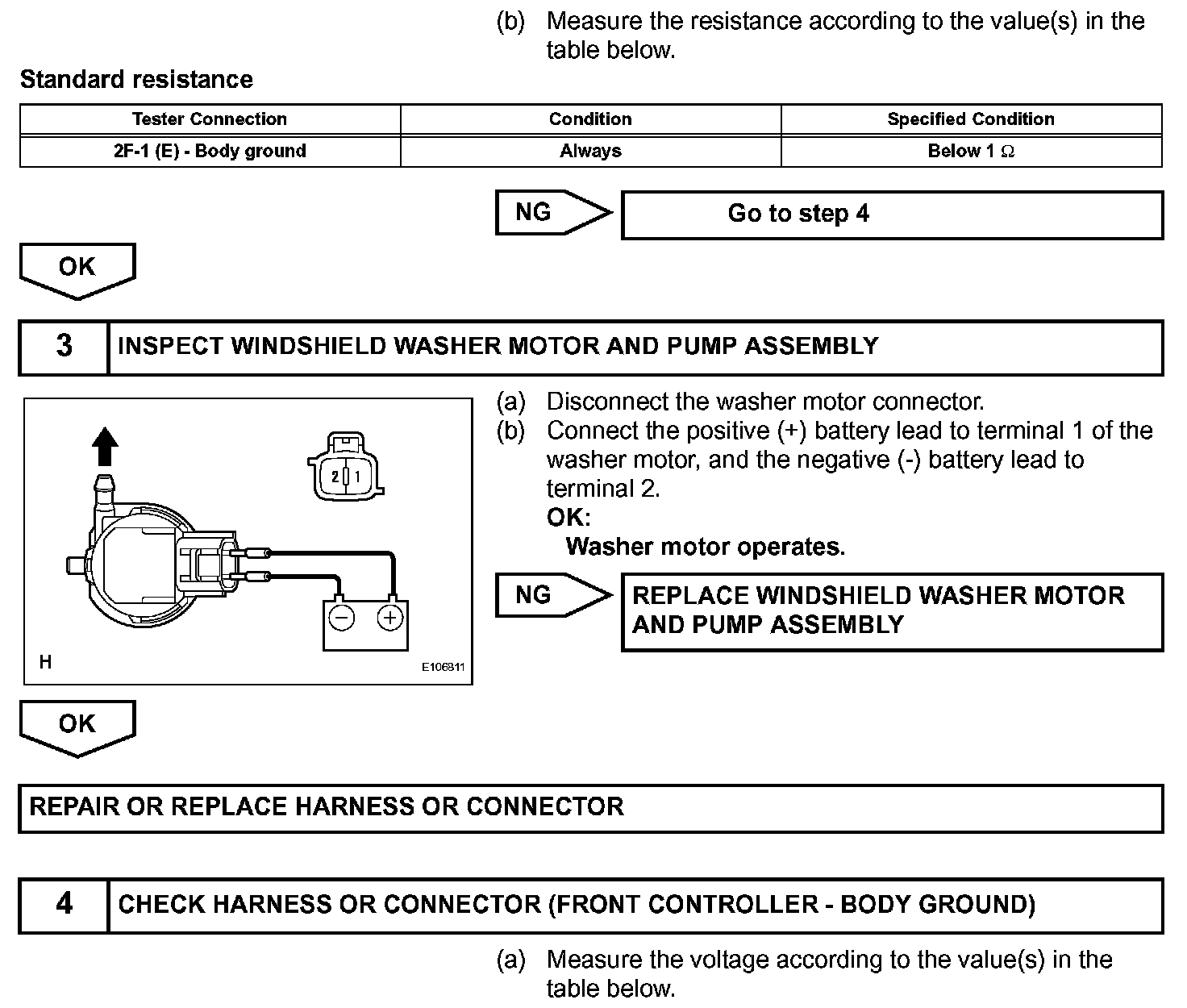

Step 1(continued)-2:

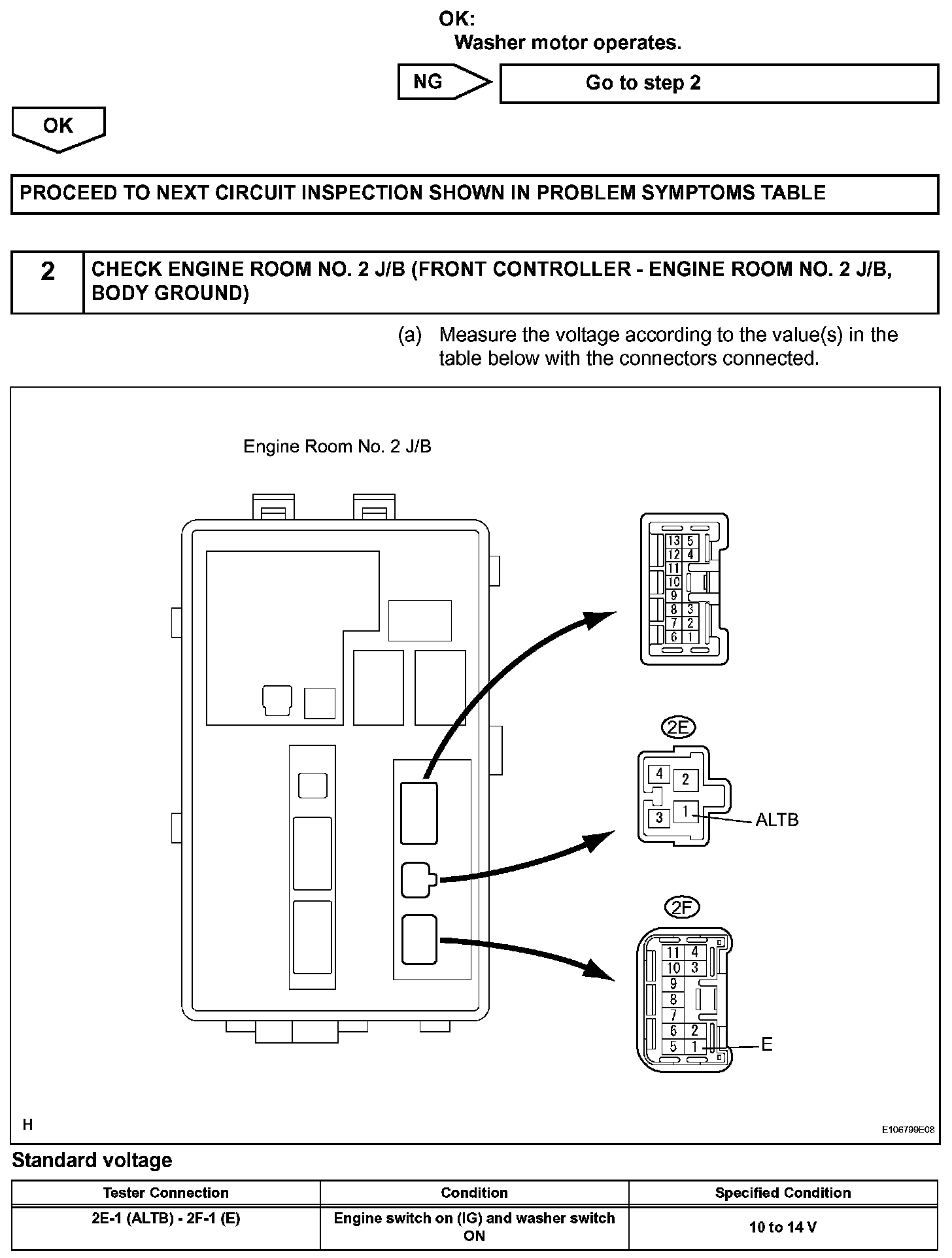

Step 2(continued)-4:

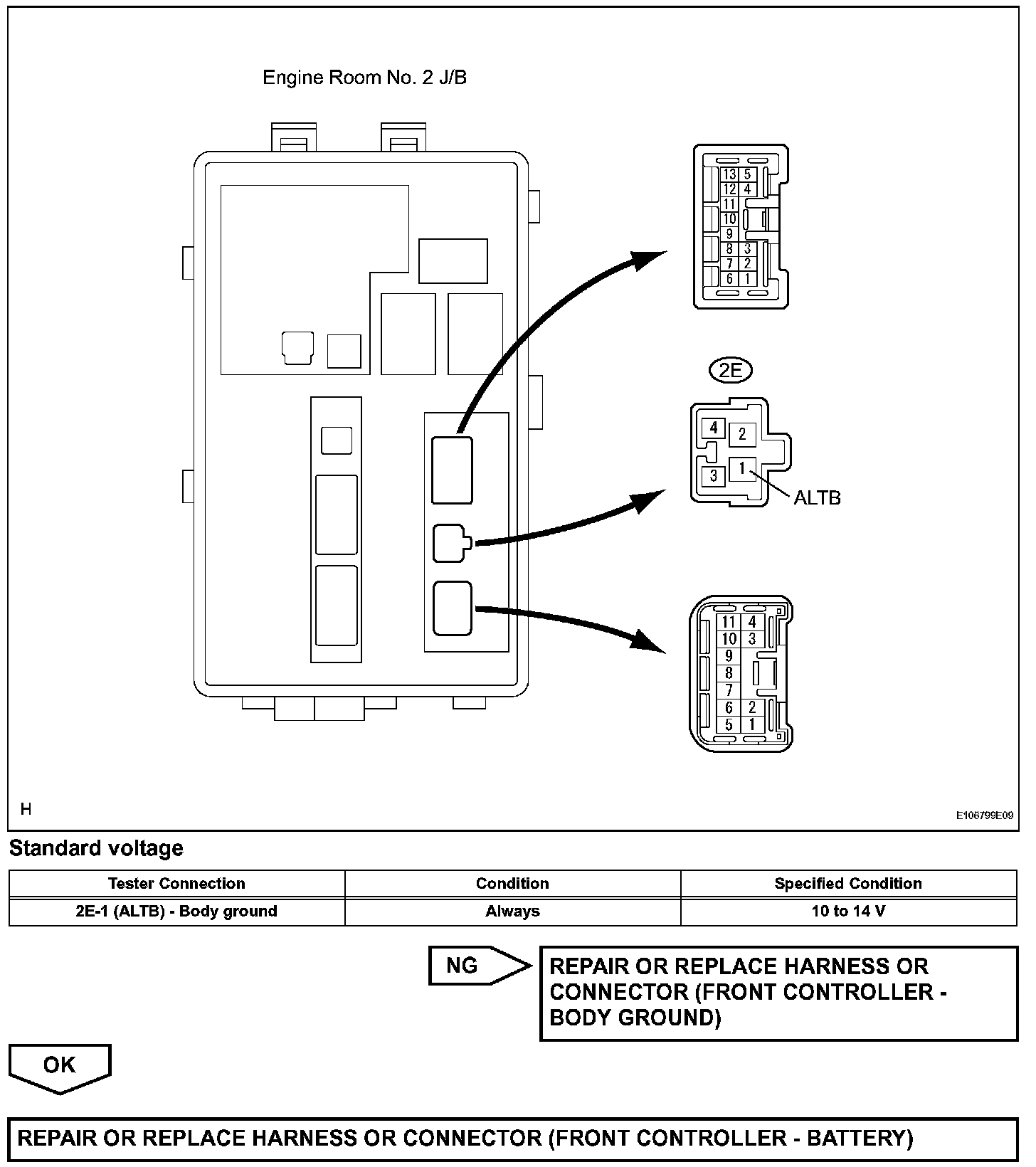

Step 4(continued):
INSPECTION PROCEDURE
