Rear Power Window Switch RH Circuit

Rear Power Window Switch RH Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network switch.

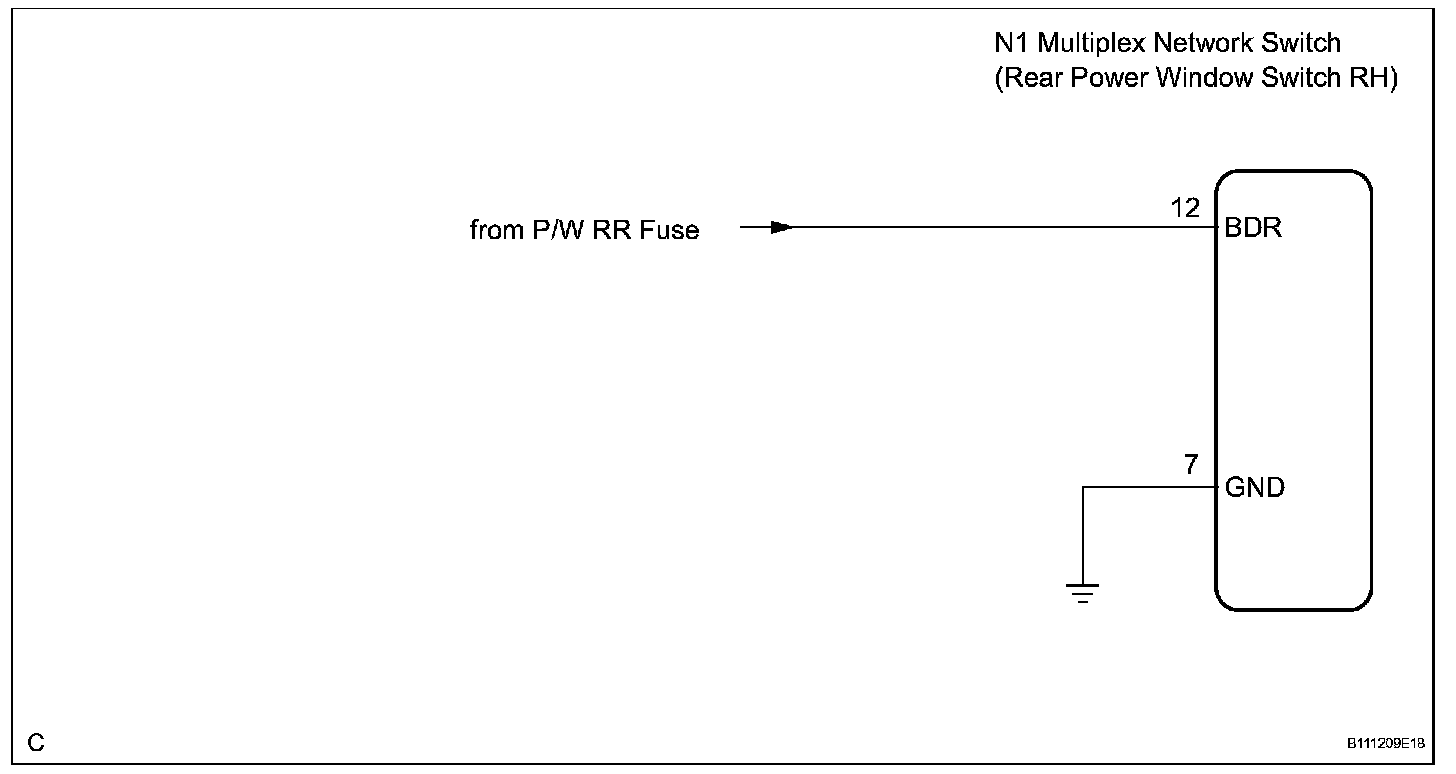

Wiring Diagram:






Step 1:

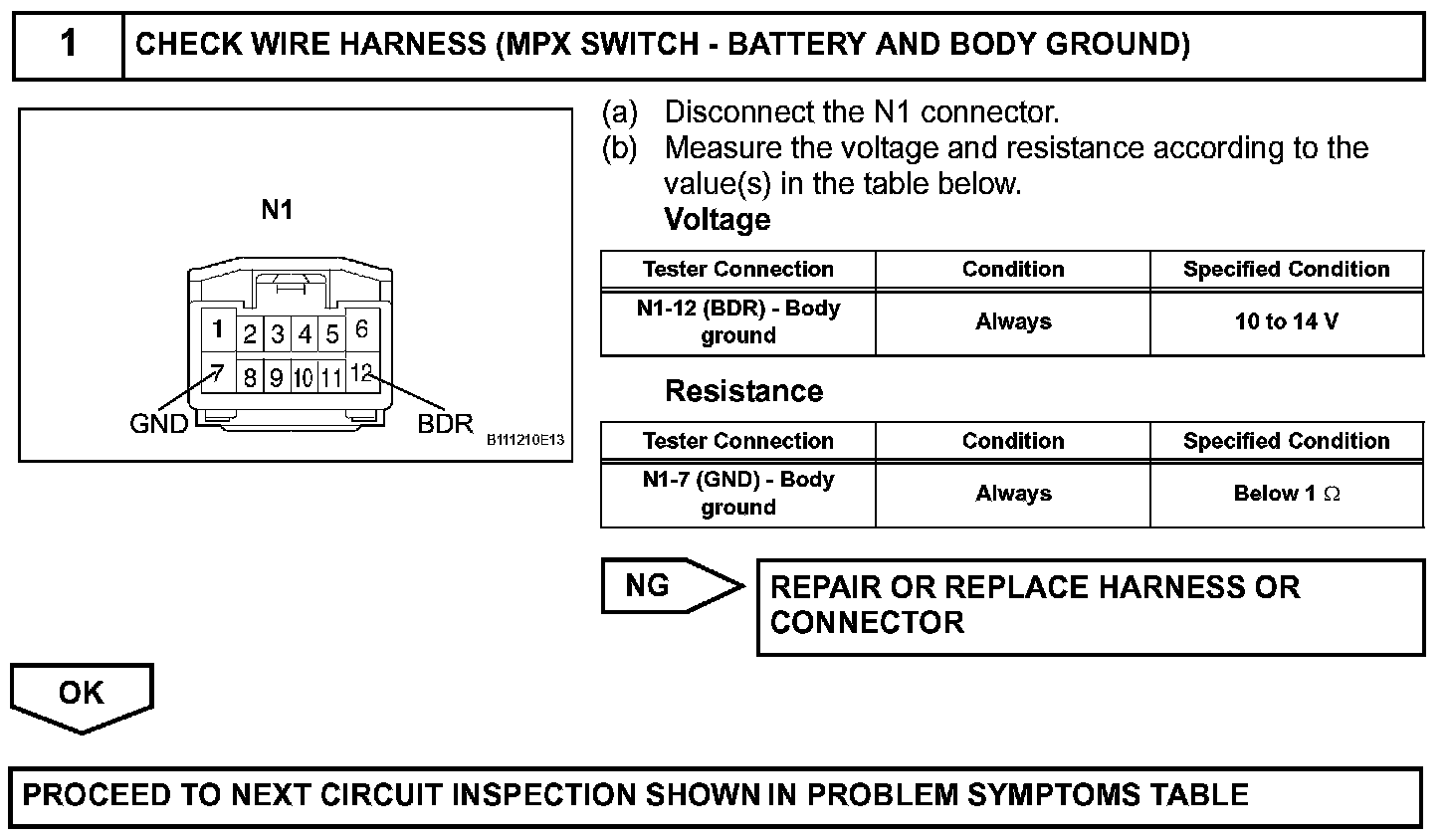

INSPECTION PROCEDURE
