Rear Power Window Motor LH Circuit
Rear Power Window Motor LH CircuitDESCRIPTION
This circuit transmits signals from the multiplex network switch to the power window regulator motor.

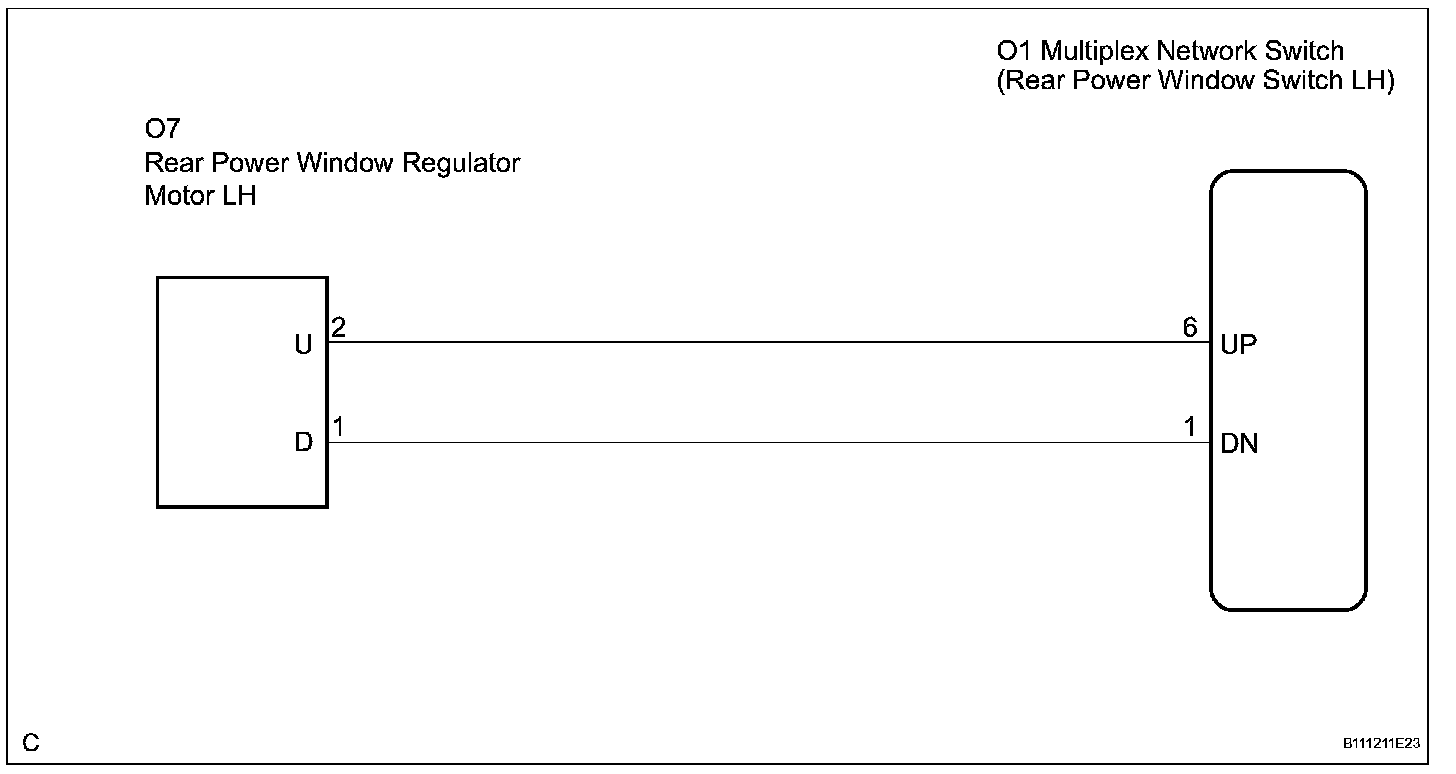

Wiring Diagram:

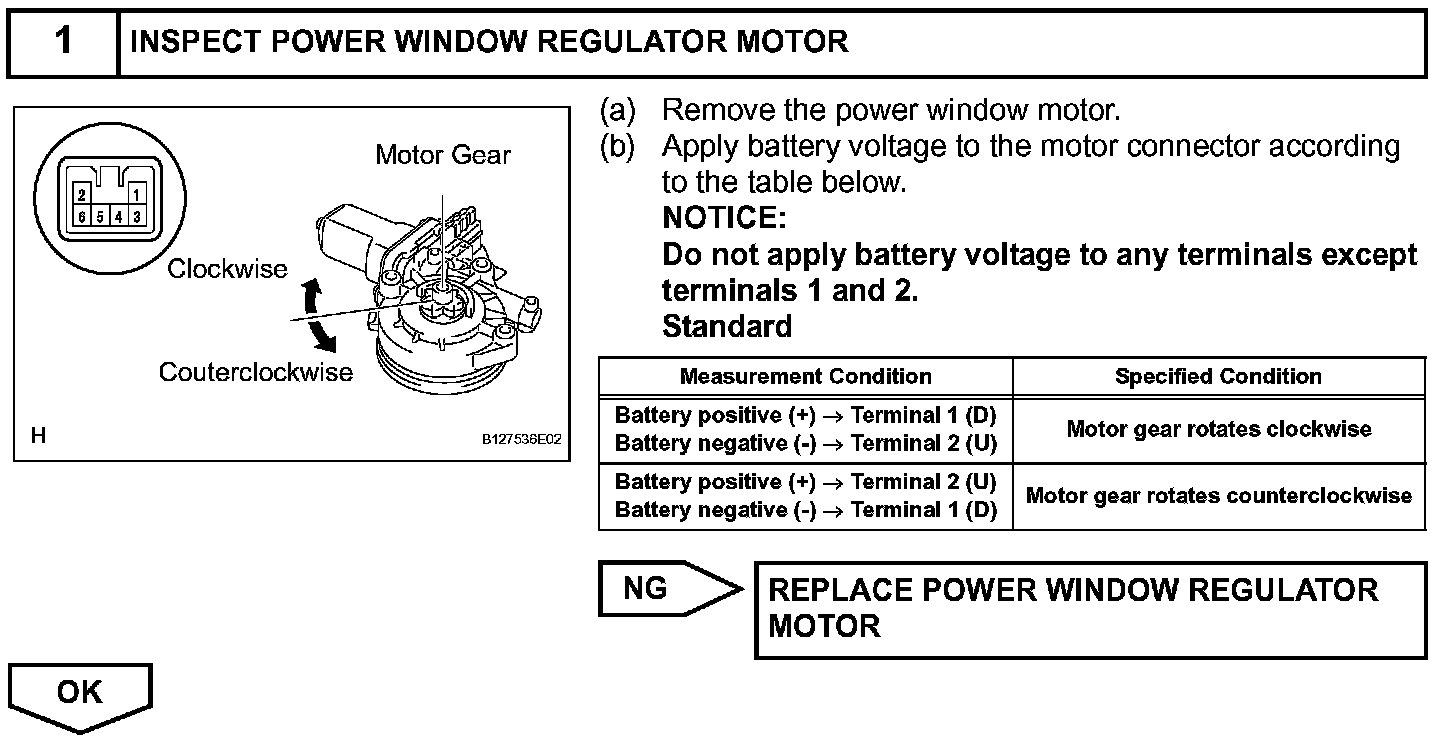

Step 1:

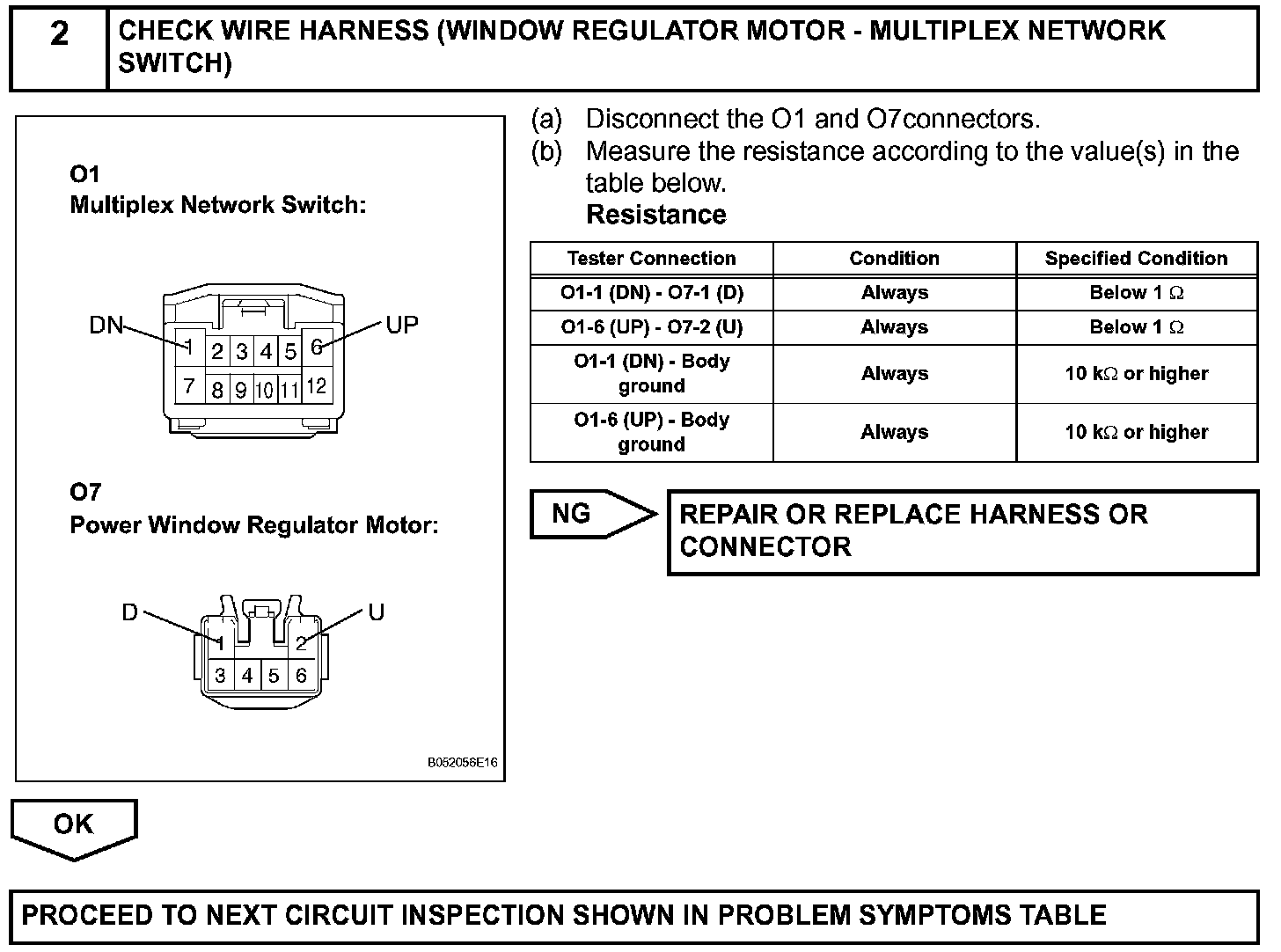

Step 2:
INSPECTION PROCEDURE
DESCRIPTION
This circuit transmits signals from the multiplex network switch to the power window regulator motor.
INSPECTION PROCEDURE
