Front Passenger Side Power Window Switch Power Source Circuit

Front Passenger Side Power Window Switch Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network switch.

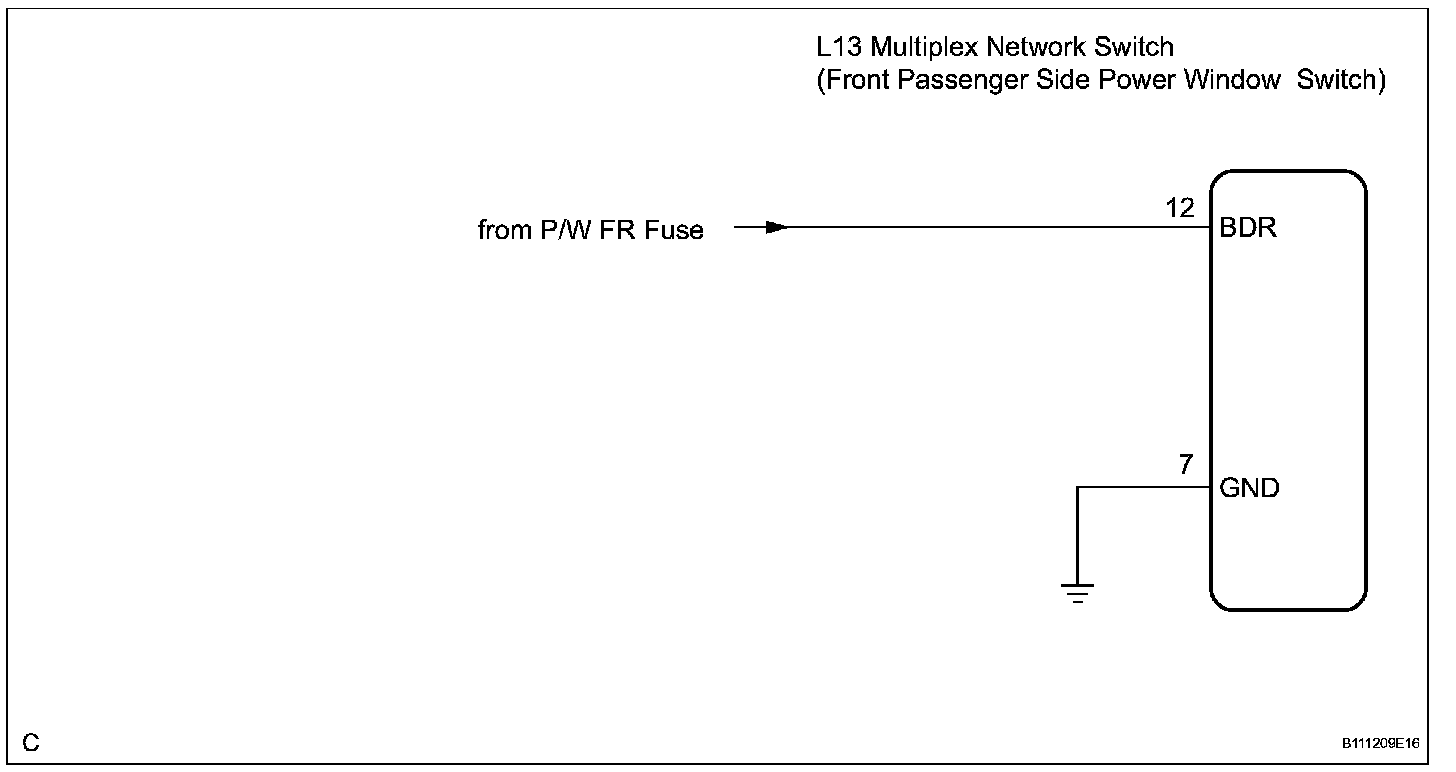

Wiring Diagram:

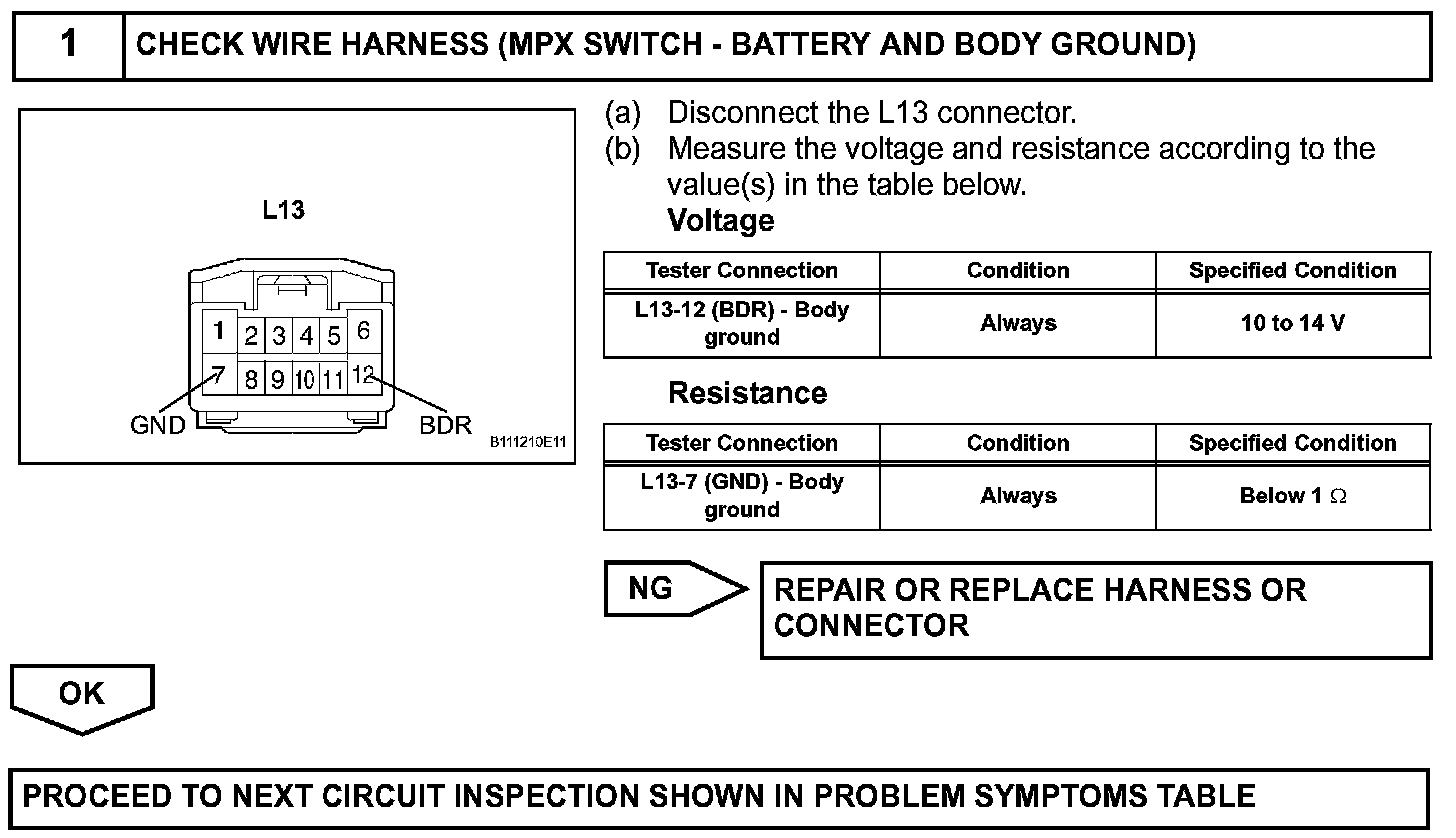

Step 1:




INSPECTION PROCEDURE
