Driver Side Power Window Motor Circuit

Driver Side Power Window Motor Circuit

DESCRIPTION
This circuit transmits signals from the multiplex network master switch to the power window regulator motor.

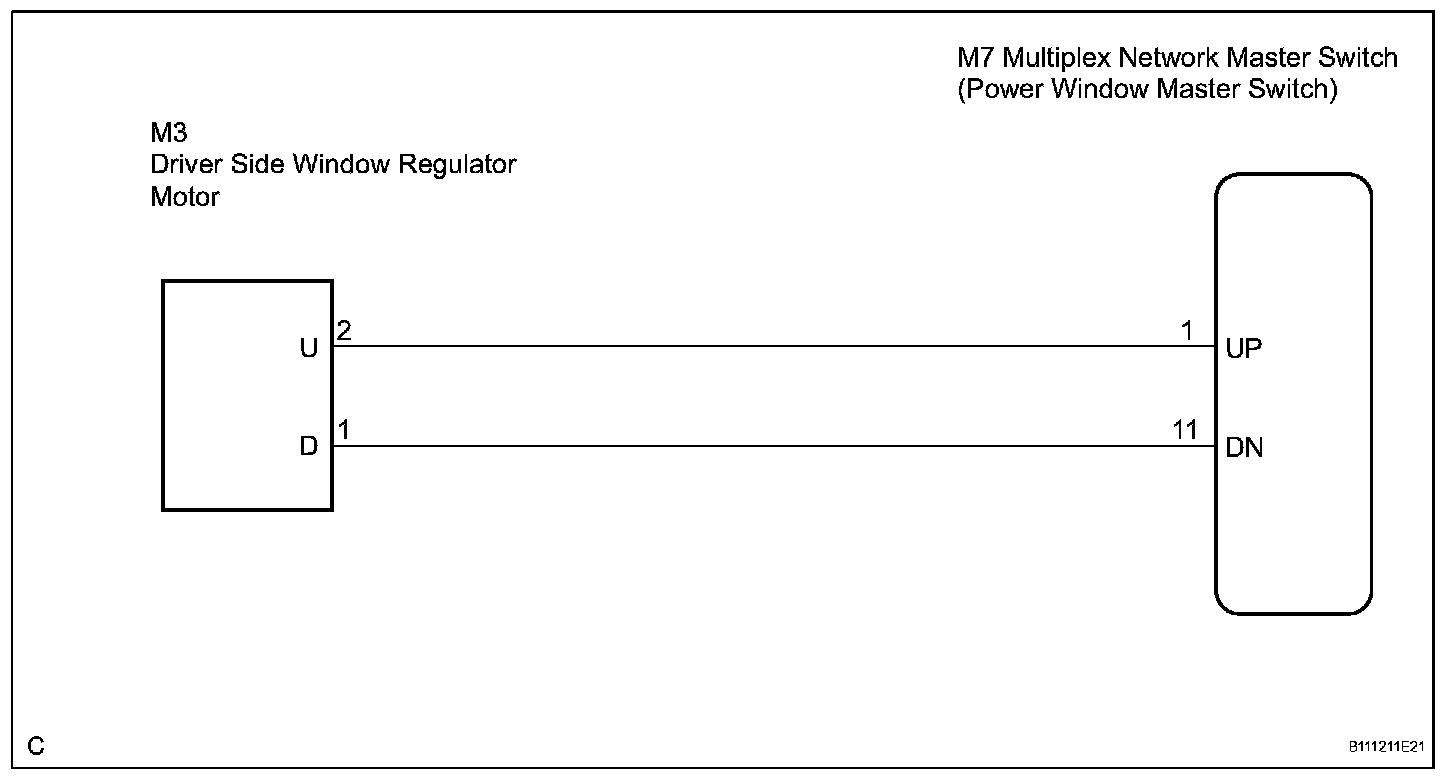

Wiring Diagram:

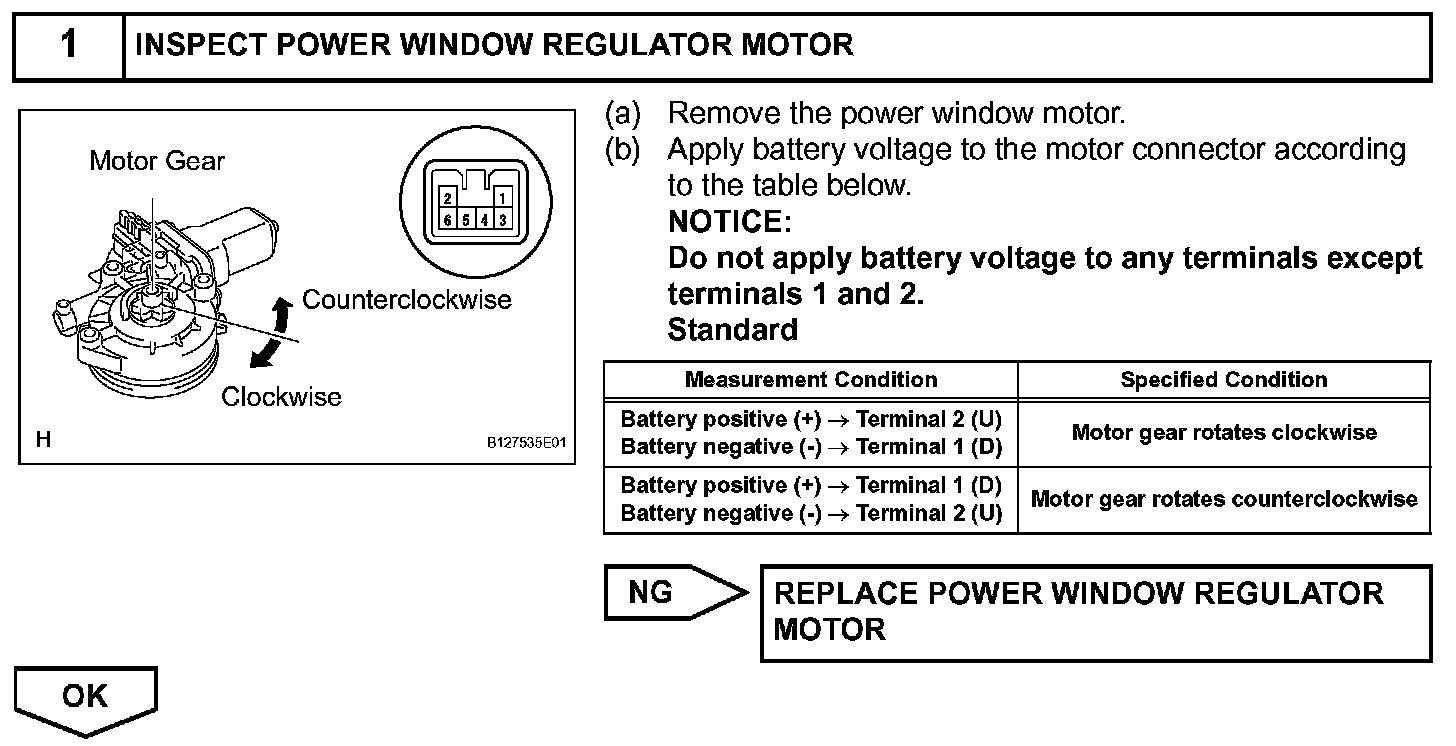

Step 1:




Step 2:




INSPECTION PROCEDURE
