Power Window Motor: Testing and Inspection

INSPECTION

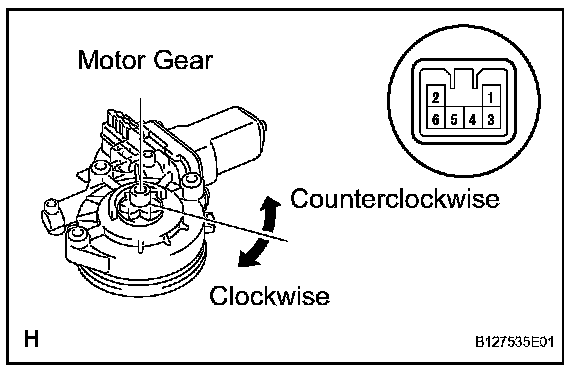

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)

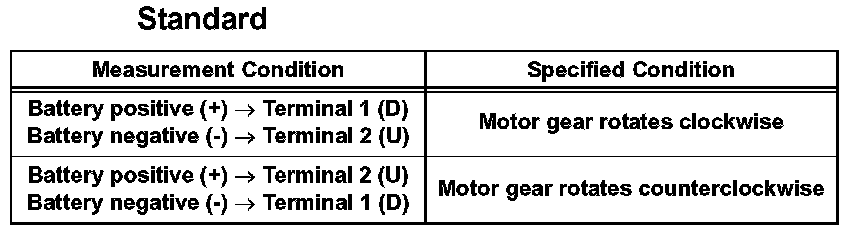

a. Apply battery voltage to the motor connector according to the table.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

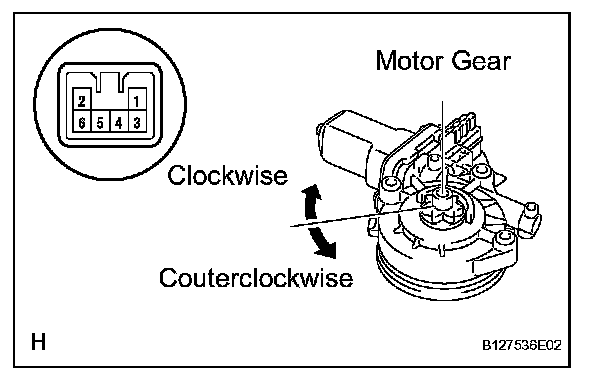

2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)

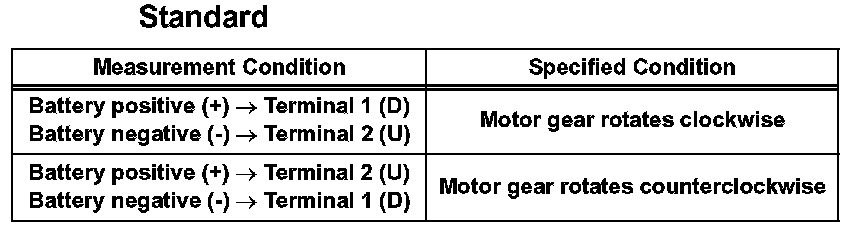

a. Apply battery voltage to the motor connector according to the table.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

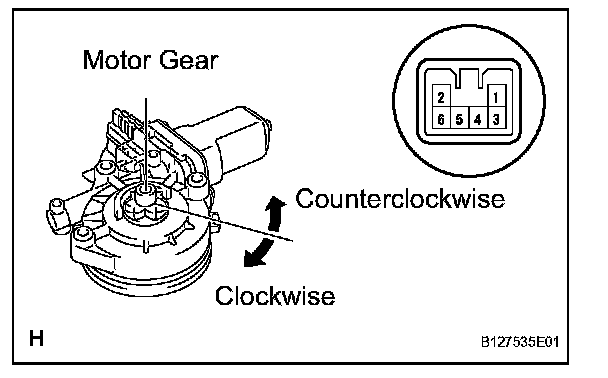

3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)

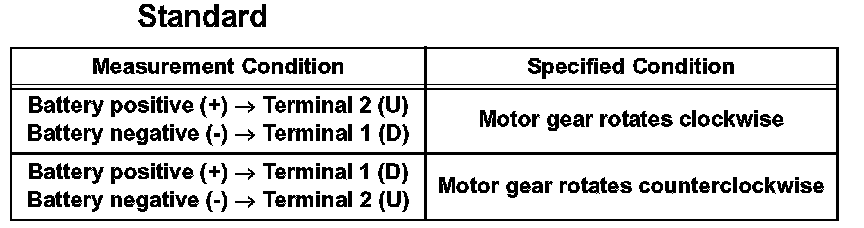

a. Apply battery voltage to the motor connector according to the table.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

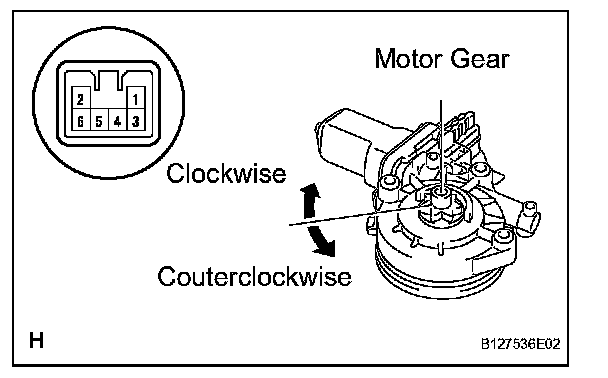

4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)

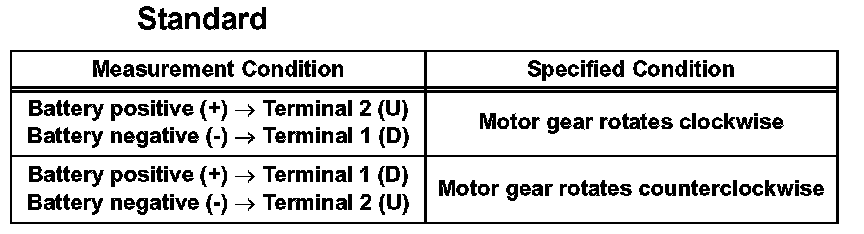

a. Apply battery voltage to the motor connector according to the table.

NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
