Heated Glass Element Relay: Testing and Inspection

ON-VEHICLE INSPECTION

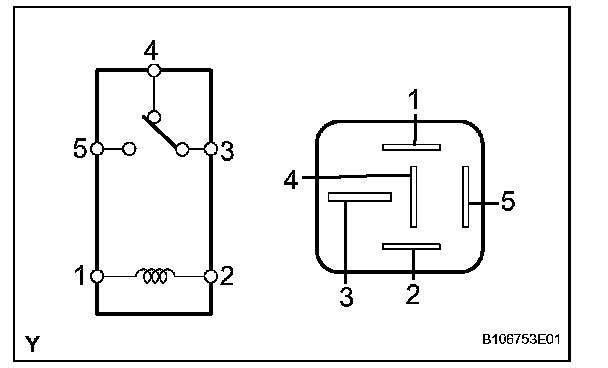

1. INSPECT DEFOGGER RELAY (Marking: DEFOG)

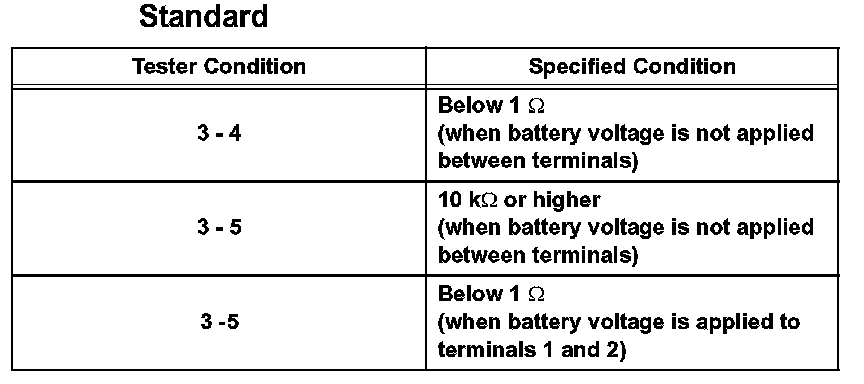

a. Measure the resistance of the DEFOG relay.
If the result is not as specified, replace the relay.
