Rear Window Defogger System Does Not Operate

Rear Window Defogger System does not Operate

DESCRIPTION
with Navigation System:
When the rear window defogger switch, which is built into the multi-media module display assembly, is operated, the operation signals are transmitted to the A/C amplifier assembly through AVC-LAN and BEAN. When the A/C amplifier assembly receives the signals, it turns on the DEFOG relay to operate the rear window defogger.

without Navigation System:
When the rear window defogger switch, which is built into the integration control & panel, is operated, the operation signals are transmitted to the A/C amplifier assembly through AVC-LAN and BEAN. When the A/C amplifier assembly receives the signals, it turns on the DEFOG relay to operate the rear window defogger.

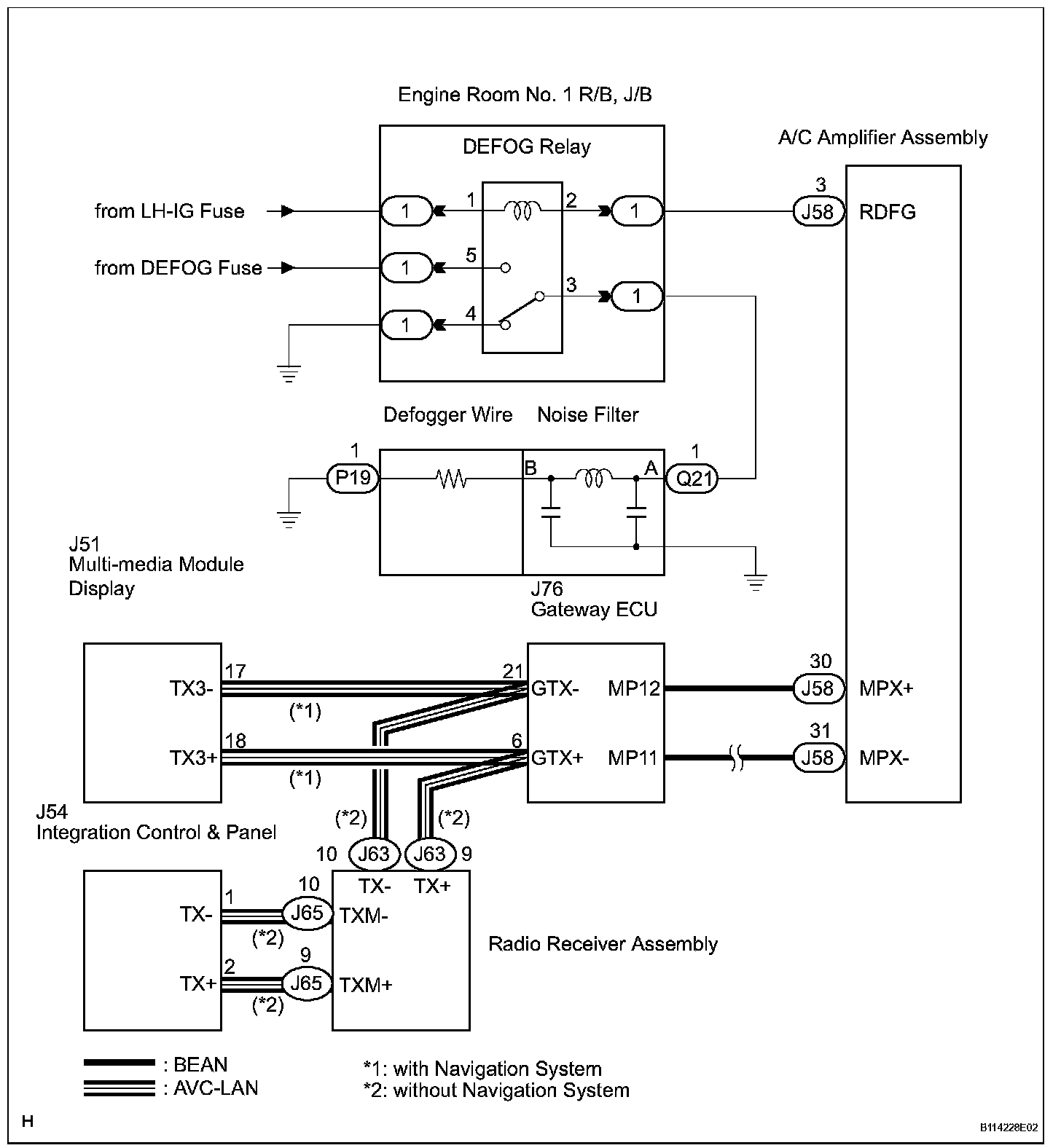

Wiring Diagram:

Step 1:

Step 1(continued)-4:

Step 5-9:

Step 10-12:

Step 13-15:

Step 15(continued)-17:

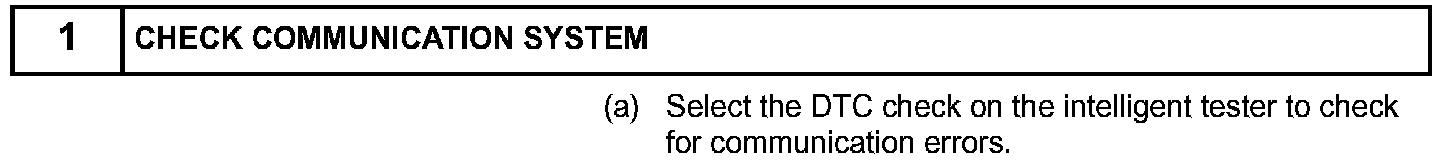

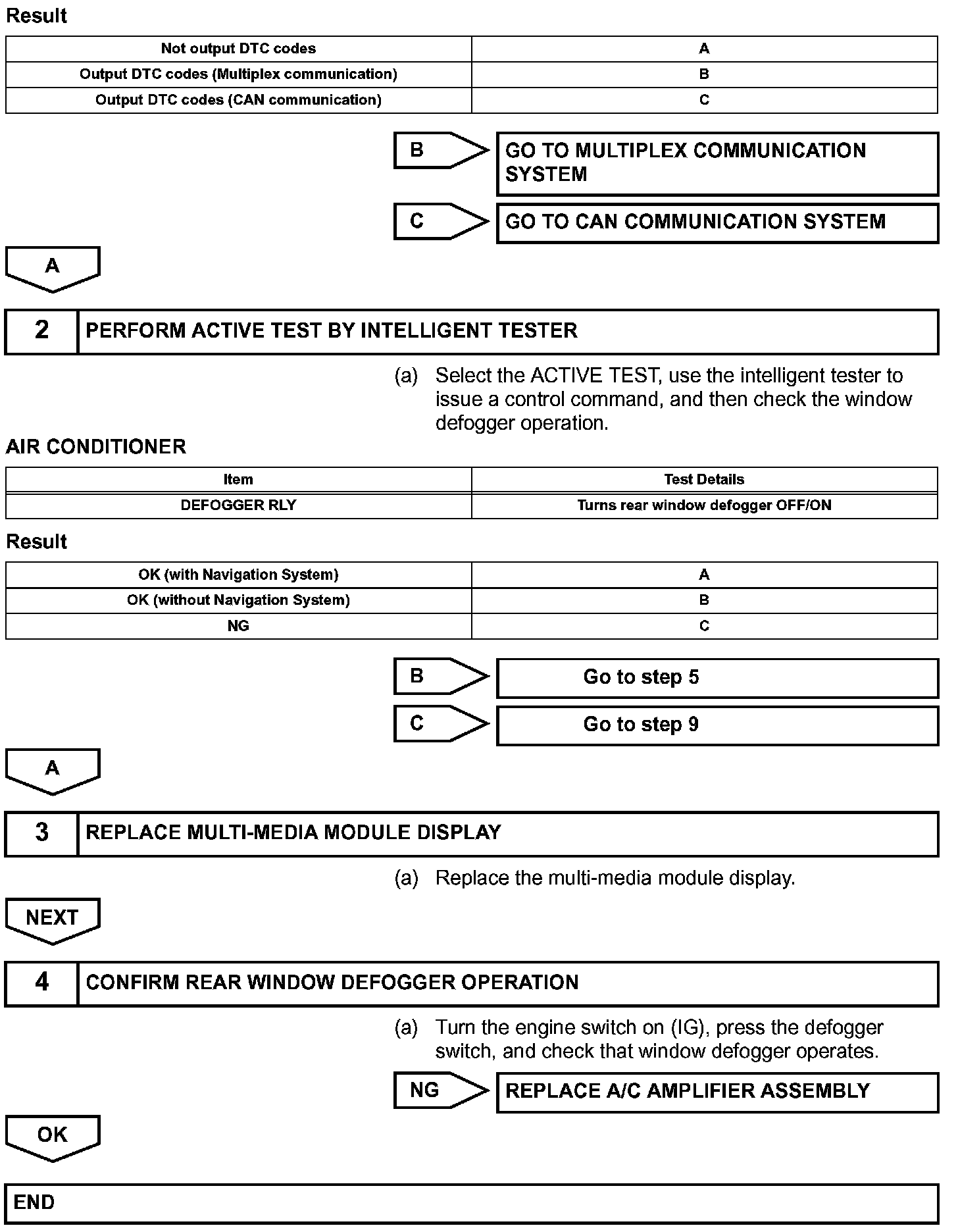

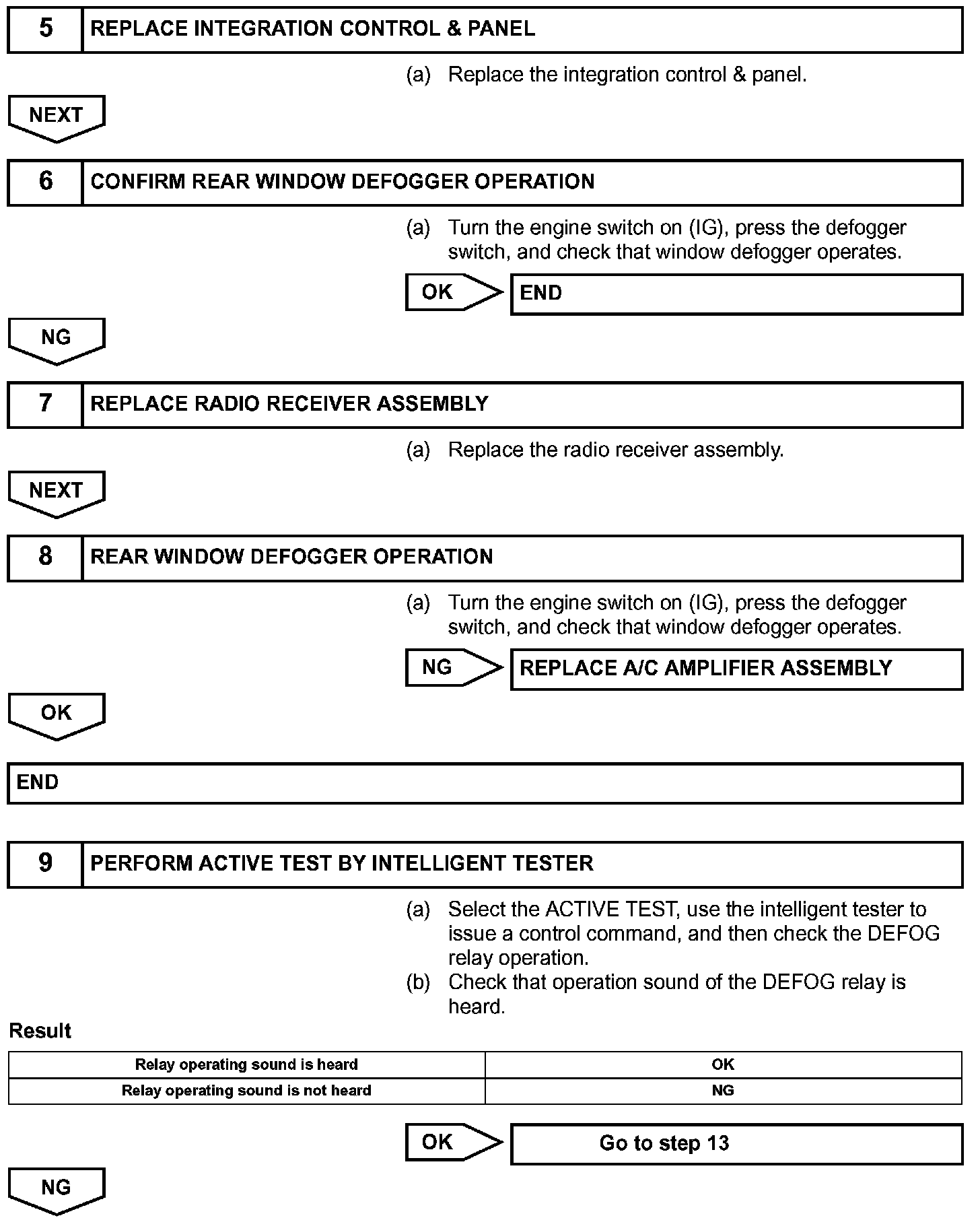

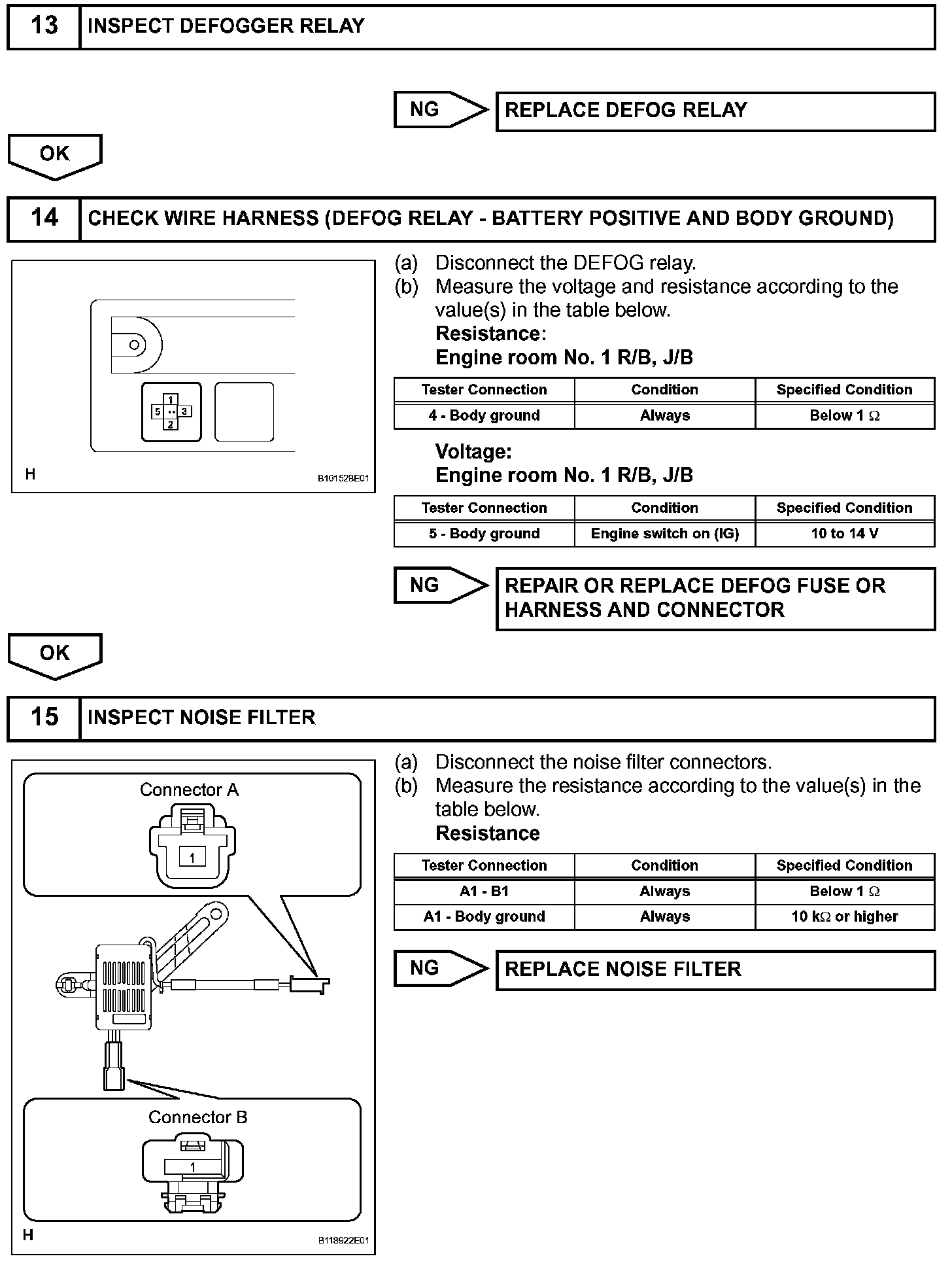

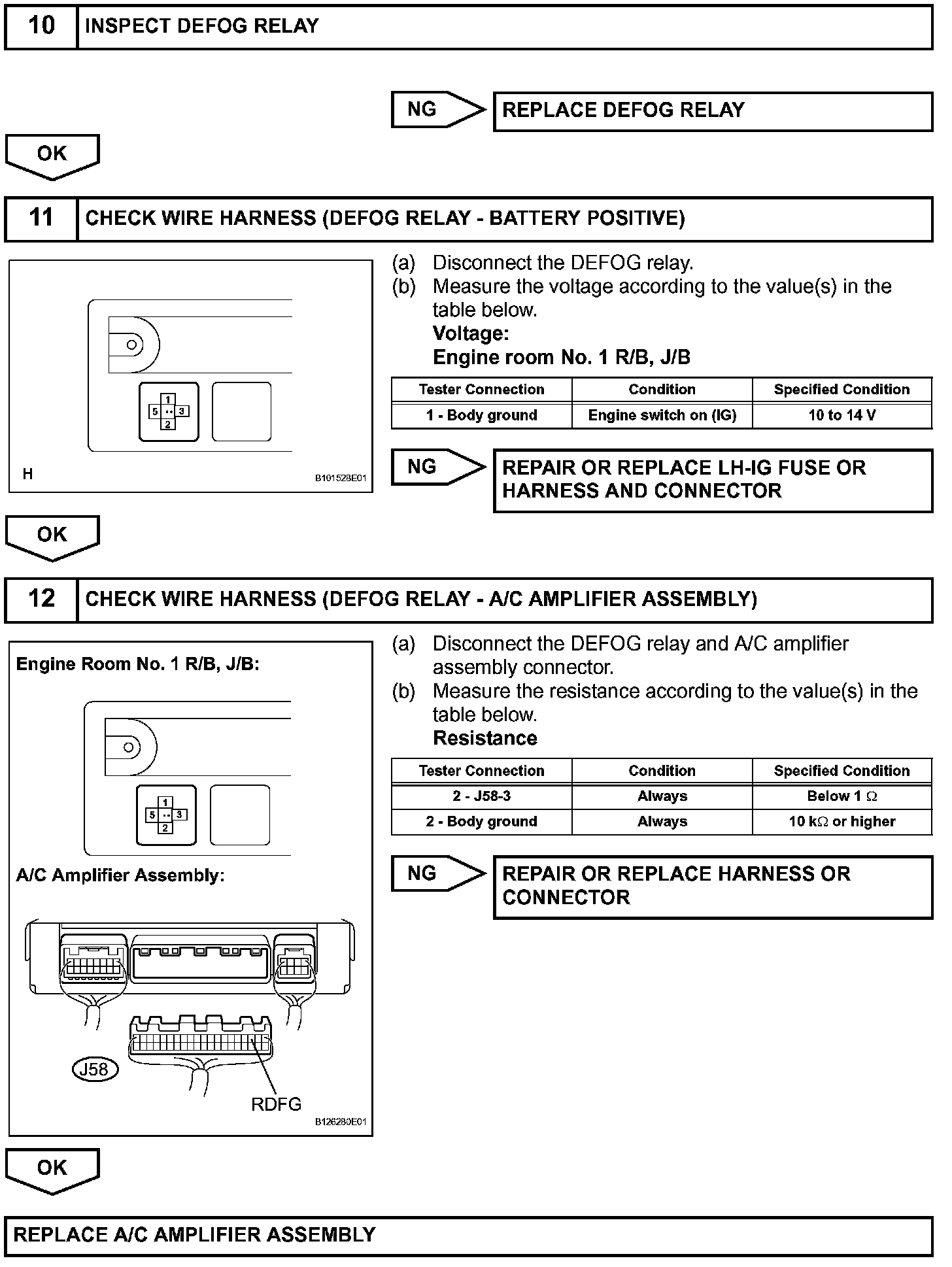

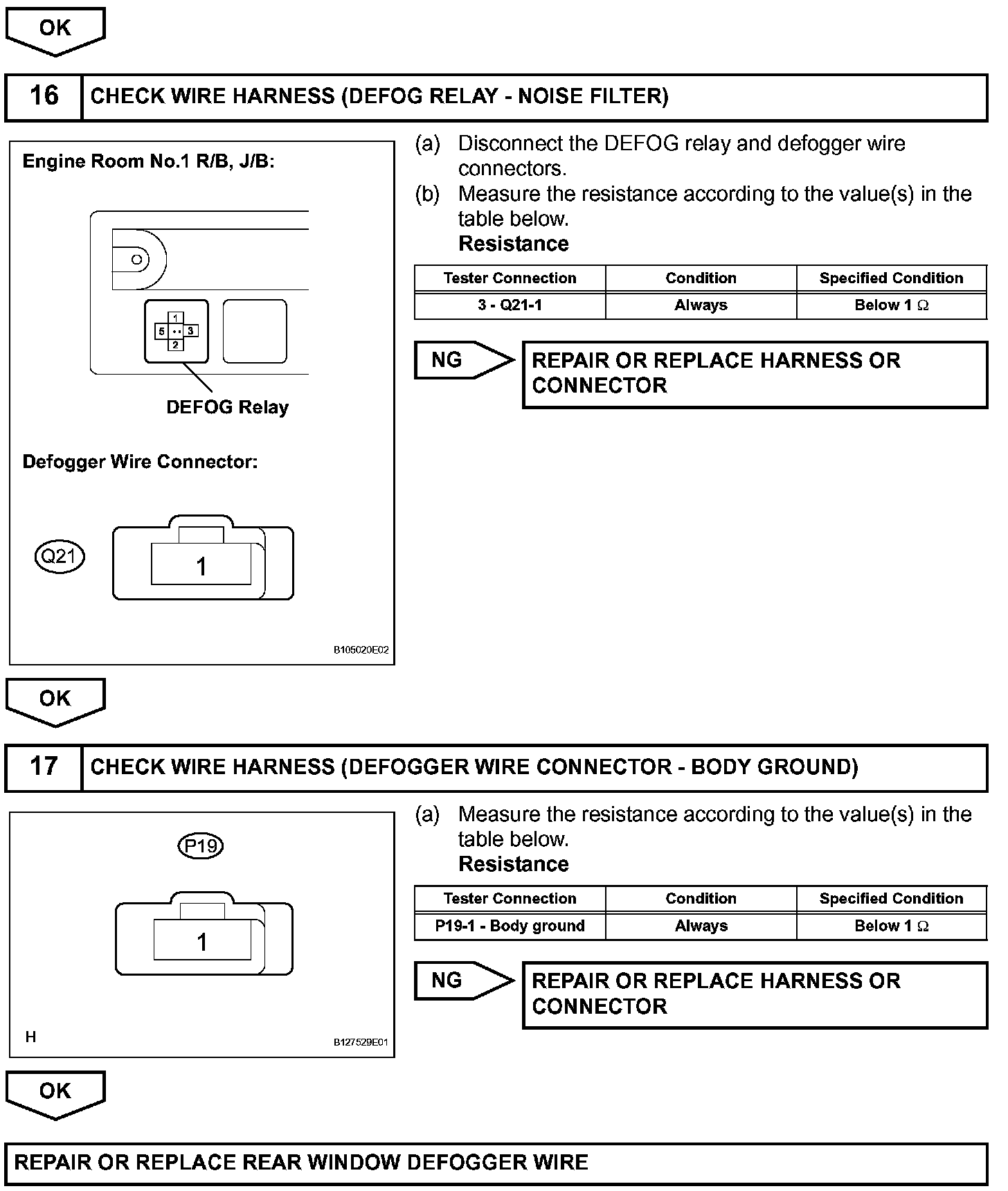

INSPECTION PROCEDURE
