Valve Body: Service and Repair

TRANSFER VALVE BODY ASSEMBLY

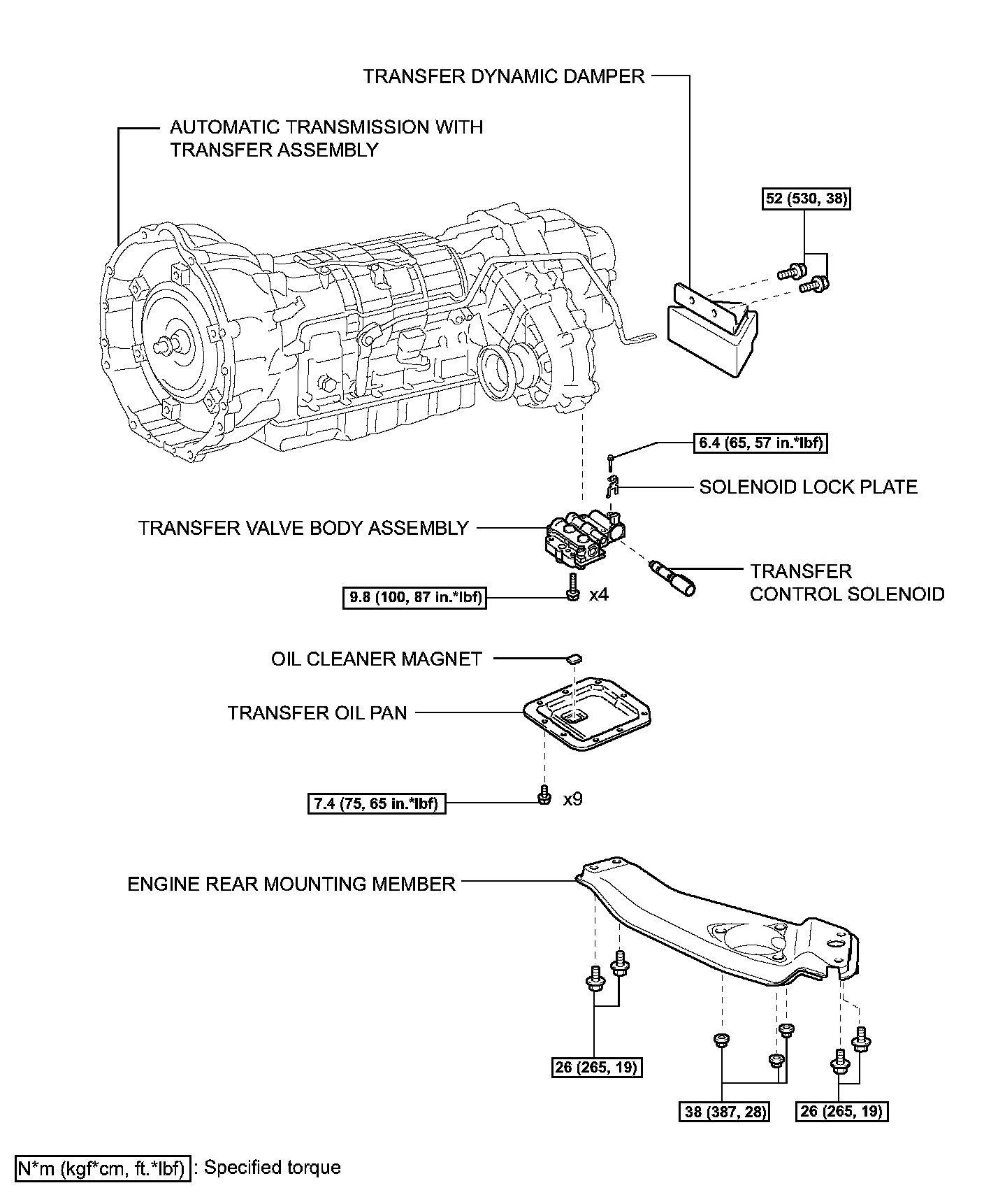

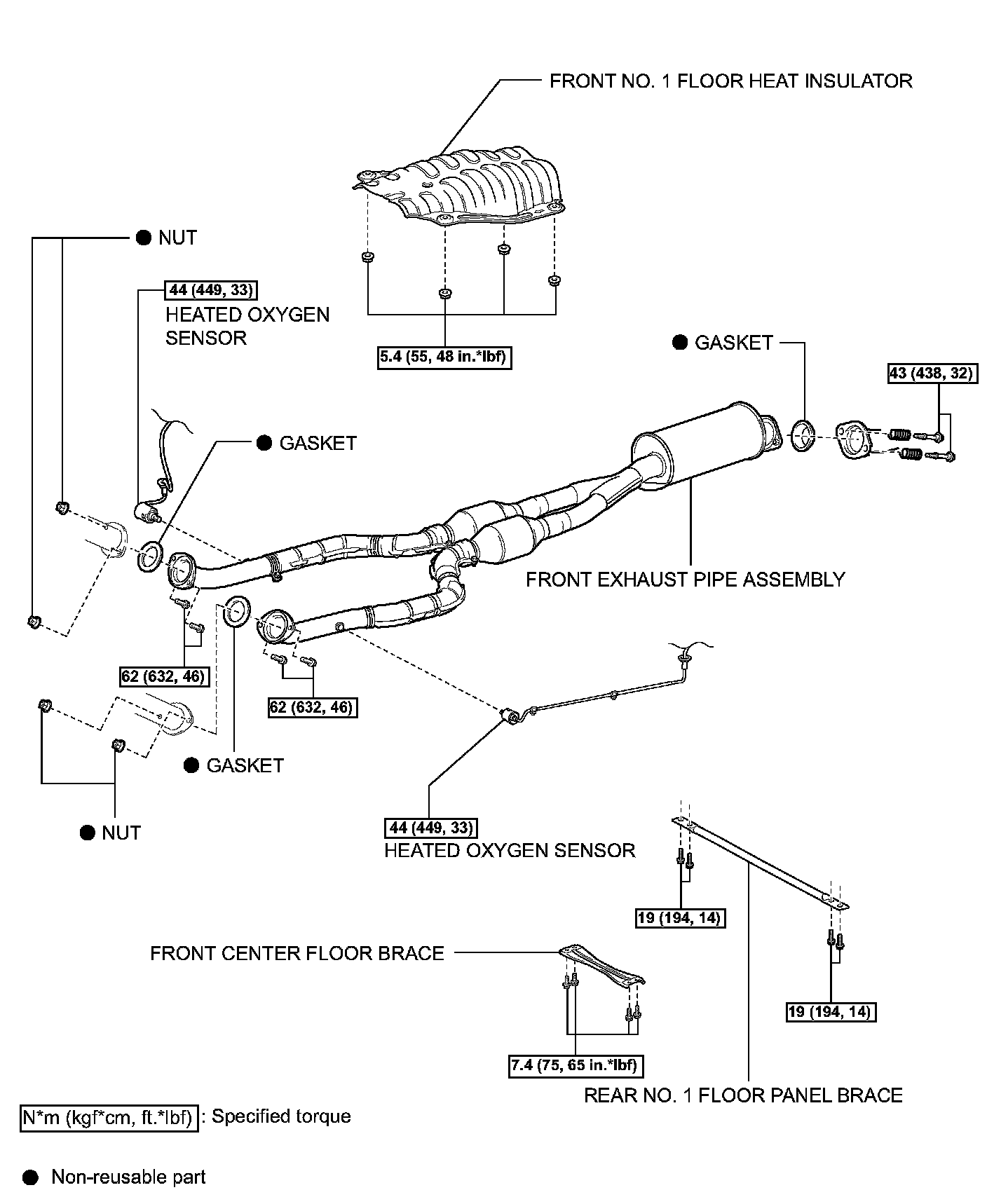

Components:

REMOVAL
1. DRAIN AUTOMATIC TRANSMISSION FLUID
2. REMOVE REAR NO.1 FLOOR PANEL BRACE
3. REMOVE FRONT CENTER FLOOR BRACE
4. DISCONNECT HEATED OXYGEN SENSOR
5. REMOVE FRONT EXHAUST PIPE ASSEMBLY
6. REMOVE FRONT NO.1 FLOOR HEAT INSULATOR
7. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY
8. REMOVE ENGINE REAR MOUNTING MEMBER
9. REMOVE TRANSFER DYNAMIC DAMPER
10. REMOVE TRANSFER OIL PAN
11. REMOVE TRANSFER VALVE BODY ASSEMBLY

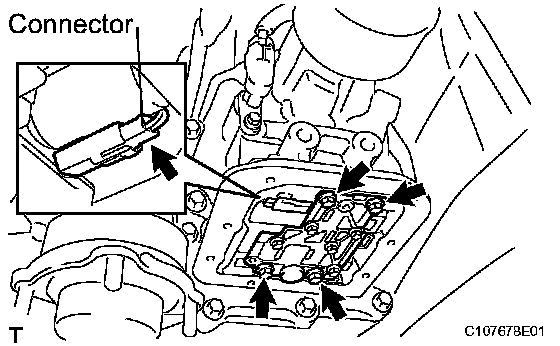

a) Remove the 4 bolts and the transfer upper valve body.
b) Disconnect the transfer wire connector from the transfer control solenoid.

12. REMOVE TRANSFER CONTROL SOLENOID

INSTALLATION
1. INSTALL TRANSFER CONTROL SOLENOID
2. INSTALL TRANSFER VALVE BODY ASSEMBLY

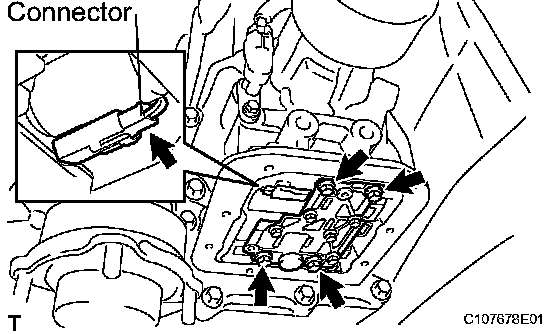

a) Connect the transfer wire connector to the transfer control solenoid.
b) Install the transfer upper valve body with the 4 bolts.
Torque: 9.8 Nm (100 kgf-cm, 87 inch lbs.)

3. INSTALL TRANSFER OIL PAN
4. INSTALL TRANSFER DYNAMIC DAMPER
5. INSTALL ENGINE REAR MOUNTING MEMBER
6. INSTALL FRONT NO.1 FLOOR HEAT INSULATOR
7. INSTALL FRONT EXHAUST PIPE ASSEMBLY
8. INSTALL HEATED OXYGEN SENSOR
9. INSTALL FRONT CENTER FLOOR BRACE
10. INSTALL REAR NO.1 FLOOR PANEL BRACE
11. ADD AUTOMATIC TRANSMISSION FLUID
12. CHECK FOR EXHAUST GAS LEAKS
