Pinout Values and Diagnostic Parameters

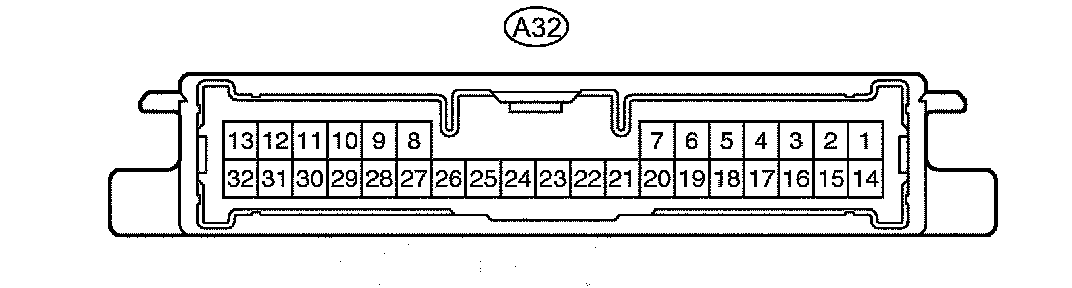

TERMINALS OF ECU

HINT: Inspect the connector from the back side while the connector is connected.

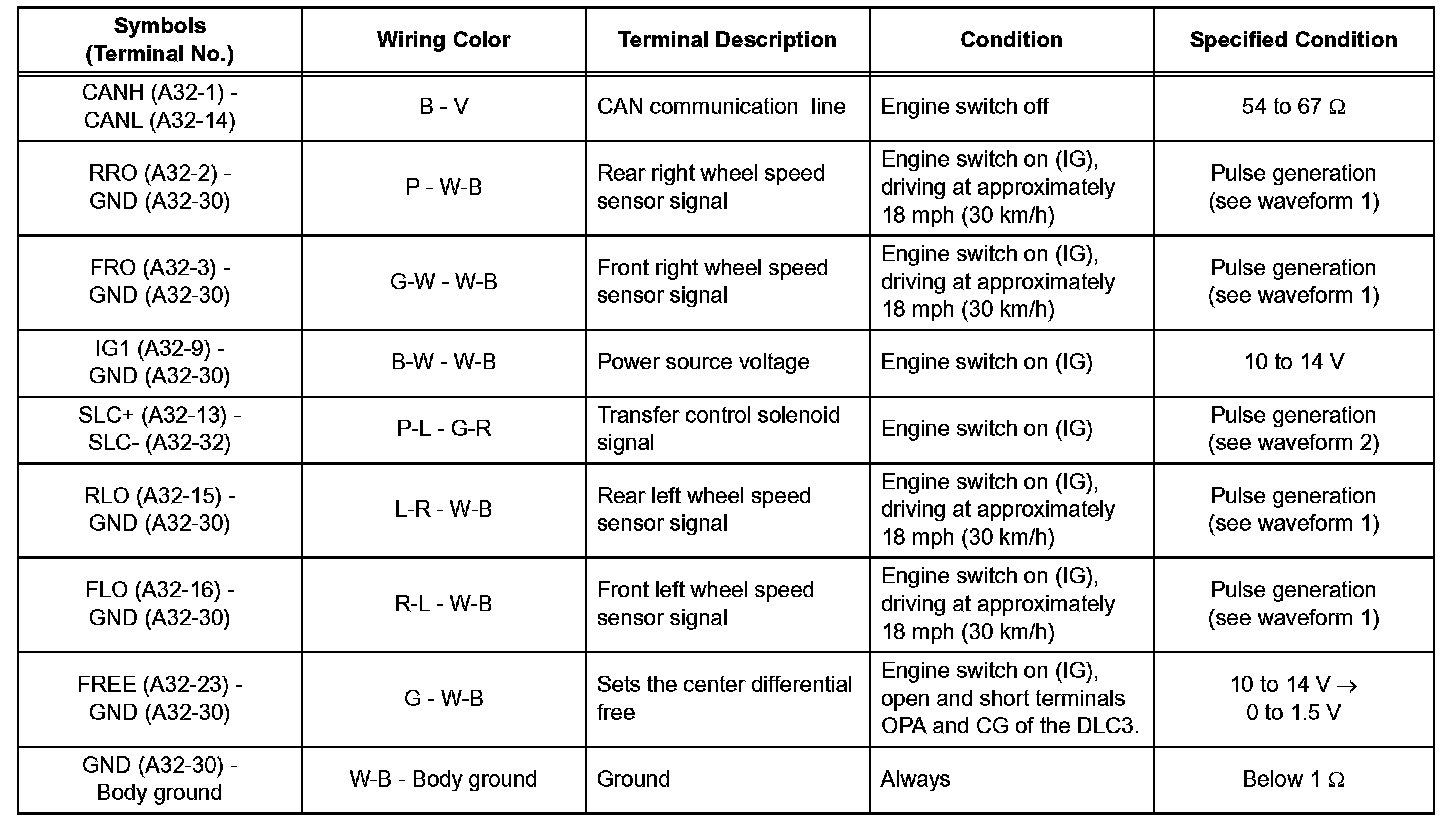

1. 4WD CONTROL ECU:

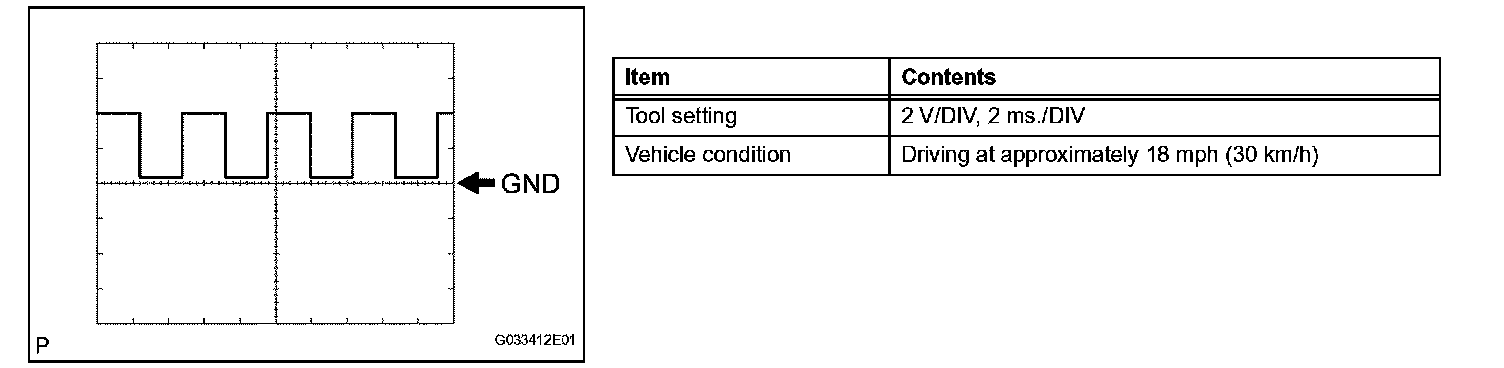

Waveform 1:

HINT: As vehicle speed (wheel rotation speed) increases, the width of the waveform narrows.

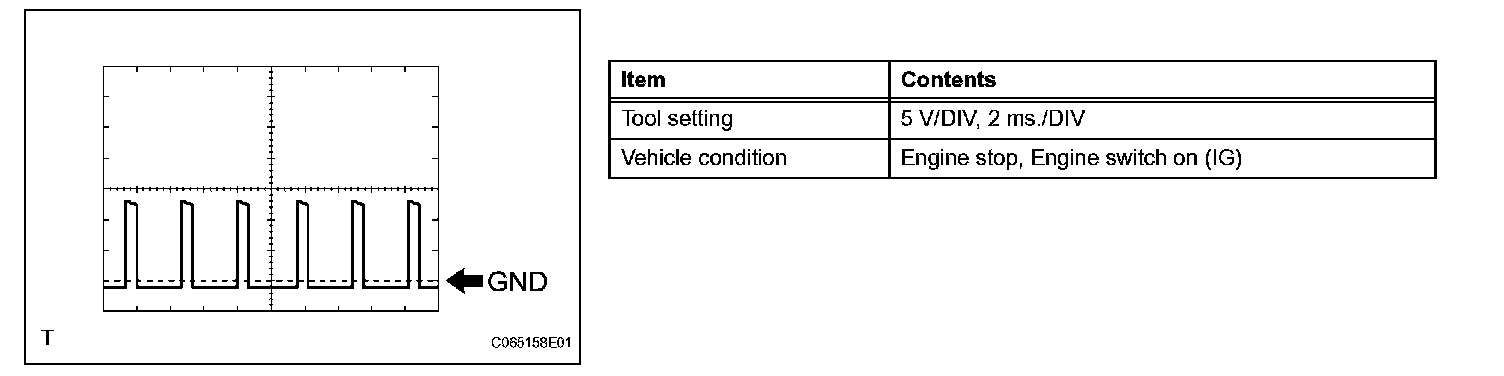

Waveform 2:
