M/T - RA62 Fluid Requirements Requirements

TRANSMISSION & CLUTCH
TC008-06

Title:
RA62 MANUAL TRANSMISSION
OIL REQUIREMENTS

Models:
'06 IS 250 (6-Speed MTM)

September 19, 2006

Introduction

This service bulletin provides information on the proper manual transmission oil to use in the RA62 (6-speed) manual transmission.

Applicable Vehicles

^ 2006 model year IS 250 vehicles equipped with the RA62 manual transmission.

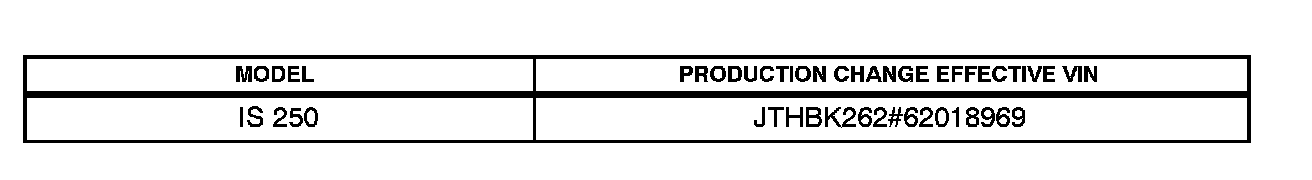

Production Change Information

Specifications

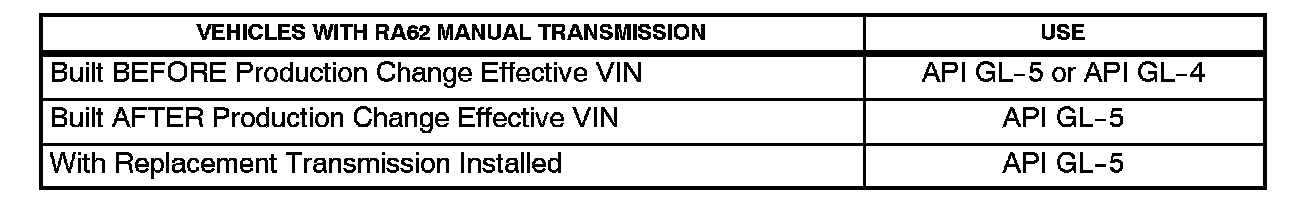

RA62 (6-speed) Manual Transmission Oil Type Requirements

For IS 250 vehicles that have the RA62 (6-speed) manual transmission with VINs produced AFTER the Production Change Effective VIN shown above, use ONLY manual transmission gear oil meeting API GL-5 designation.

CAUTION:
Using manual transmission gear oil other than API GL-5 may cause occurrence of gear noise and damage to the transmission.





For vehicles that have the RA62 (6-speed) manual transmission produced BEFORE the Production Change Effective VIN and have had the manual transmission replaced with a supply part, ONLY use API GL-5.

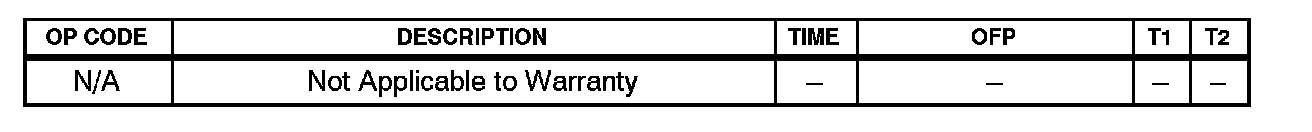

Warranty Information
