Shift Paddle Switch Circuit

Shift Paddle Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (first range) and "6" (sixth range). Shifting up "+" once raises one shift range position, and shifting down "-" lowers one shift range position.

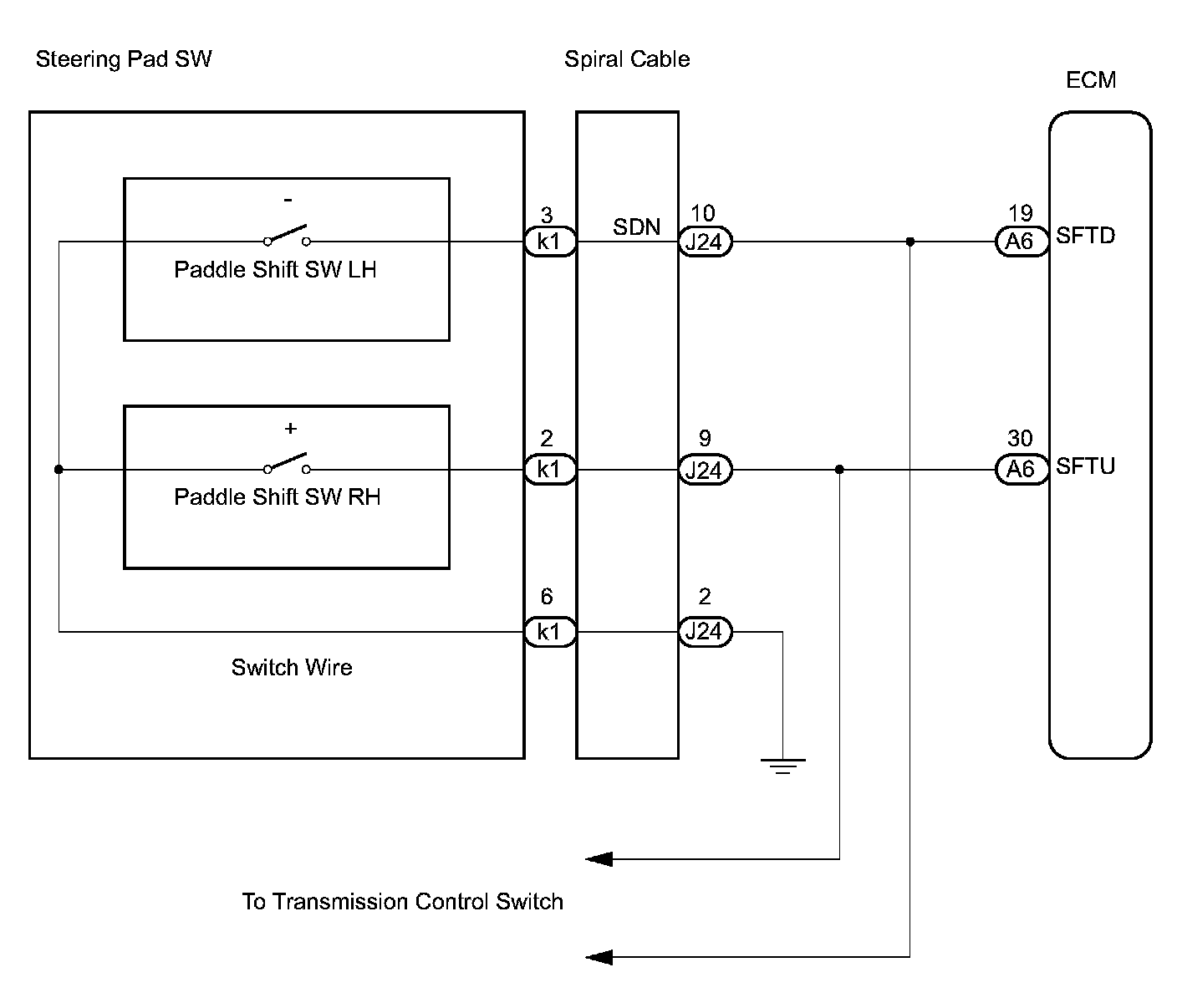

Wiring Diagram:

INSPECTION PROCEDURE

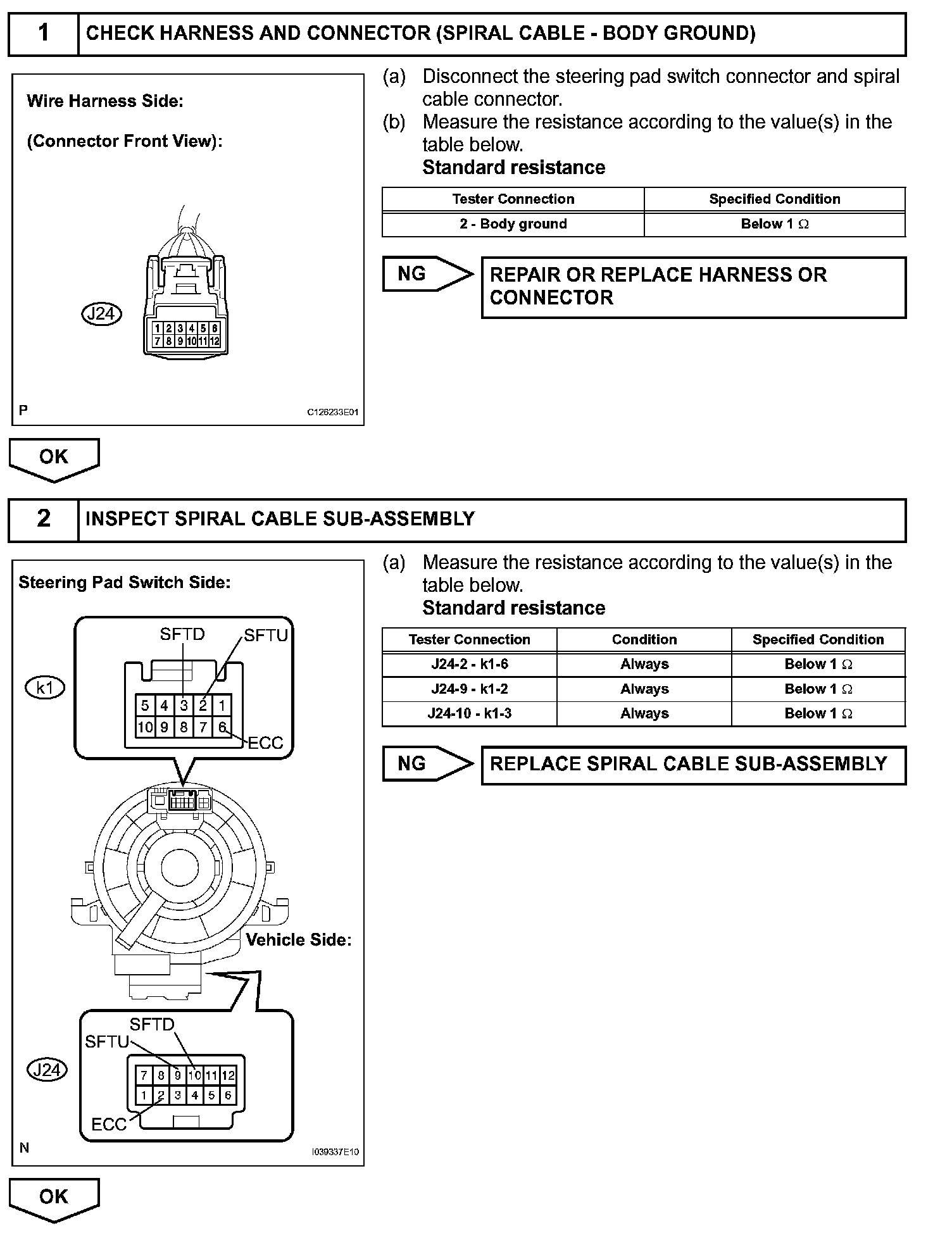

Steps 1-2:

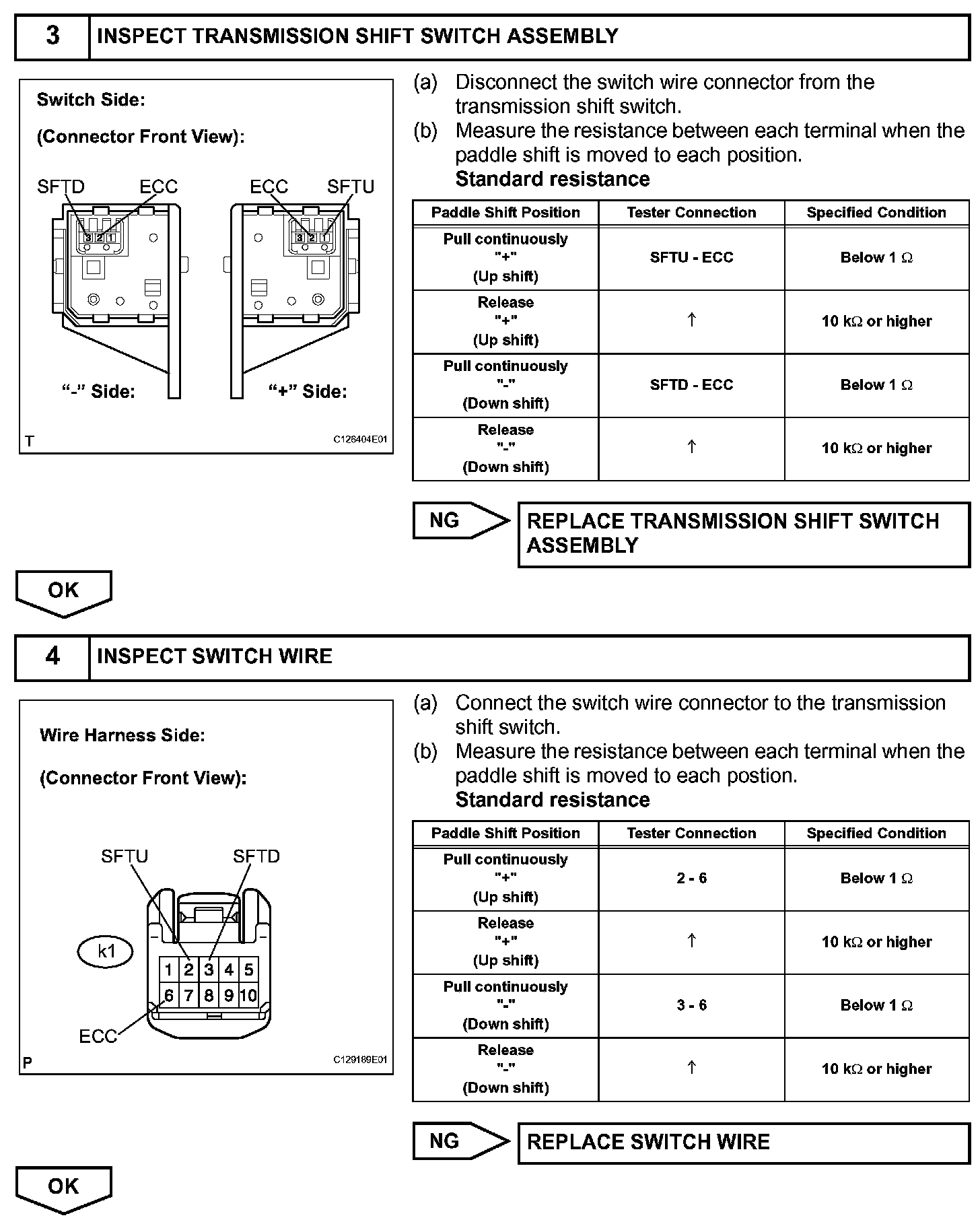

Steps 3-4:

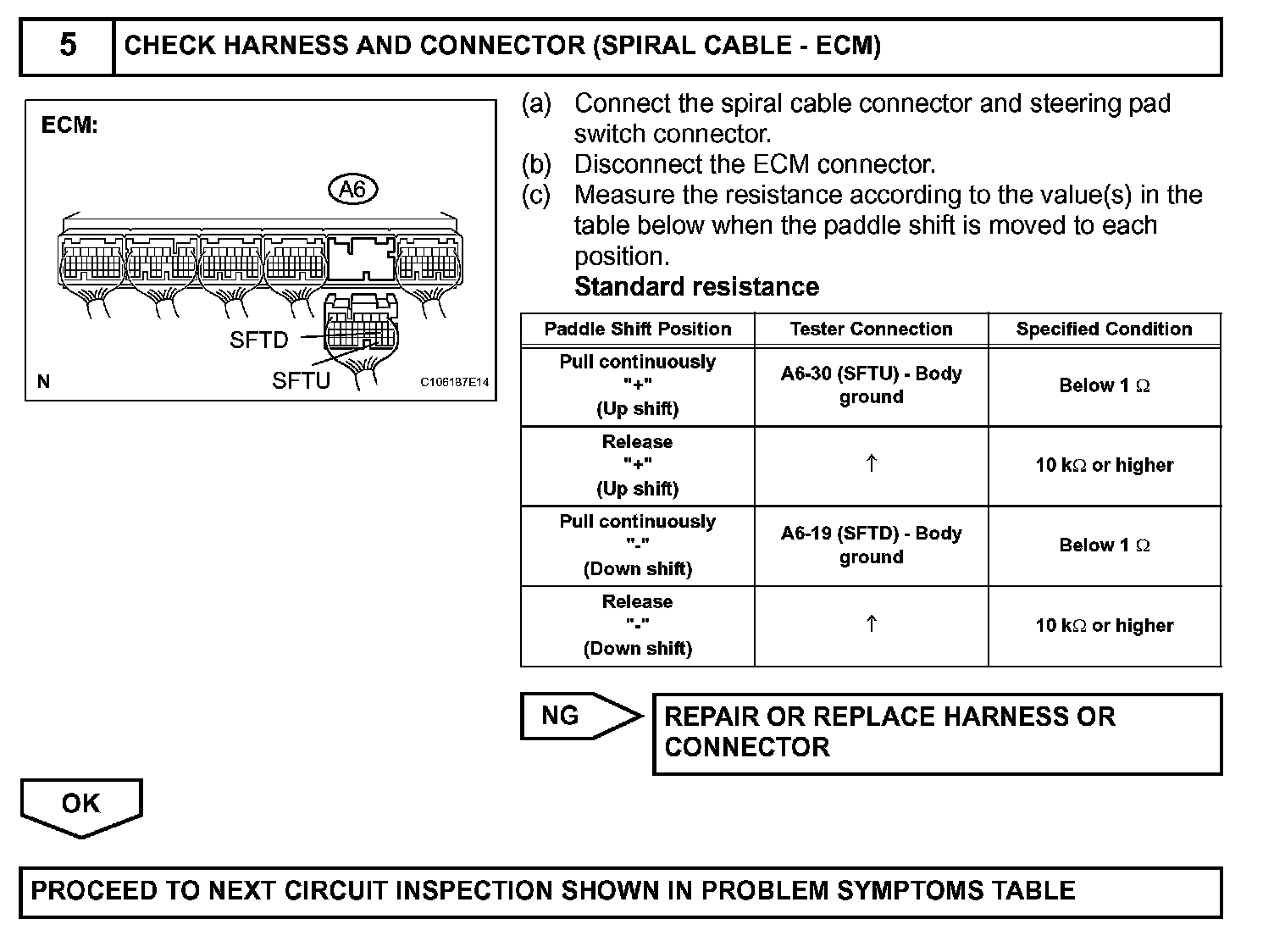

Step 5:
