Transmission Wire

TRANSMISSION WIRE

INSPECTION
1. INSPECT TRANSMISSION WIRE

Transmission Wire (Connector Front View):

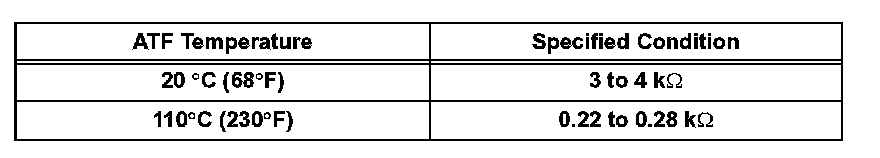

Standard Resistance:





a) Using an ohmmeter, measure the resistance between the terminals.
