Speed Sensor

SPEED SENSOR

INSPECTION

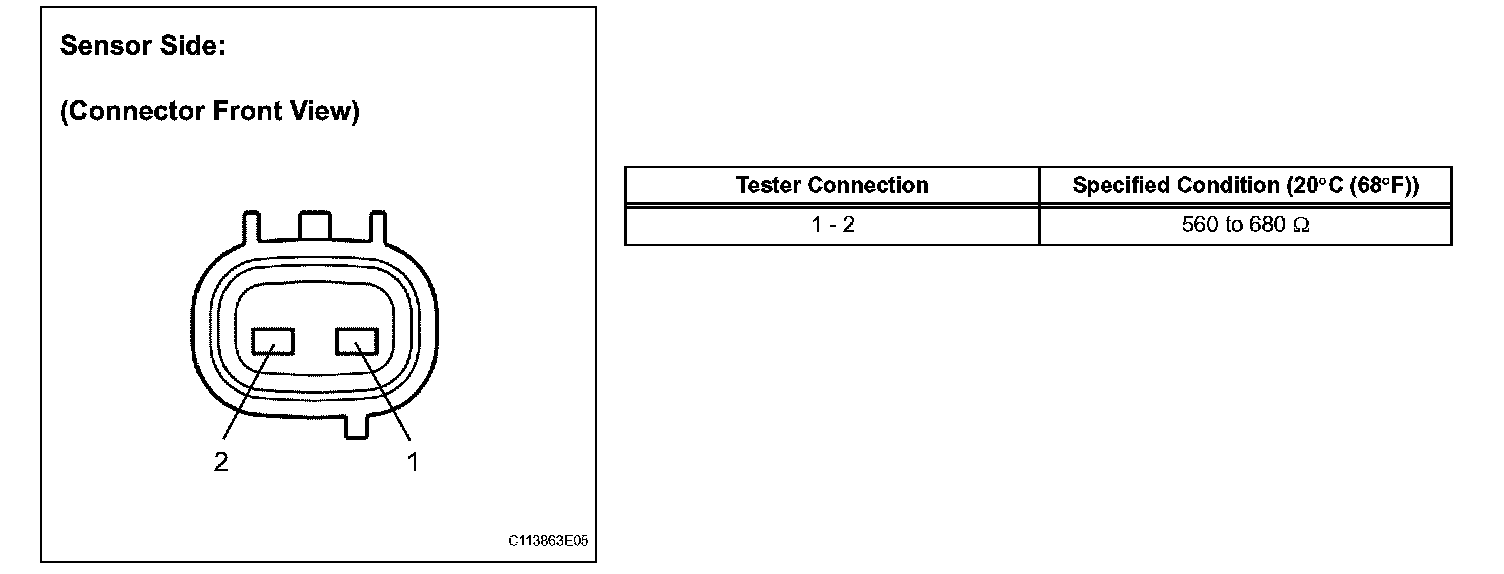

1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)





a) Measure the resistance according to the value(s) in the table.
If the resistance value is not as specified, replace the speed sensor.

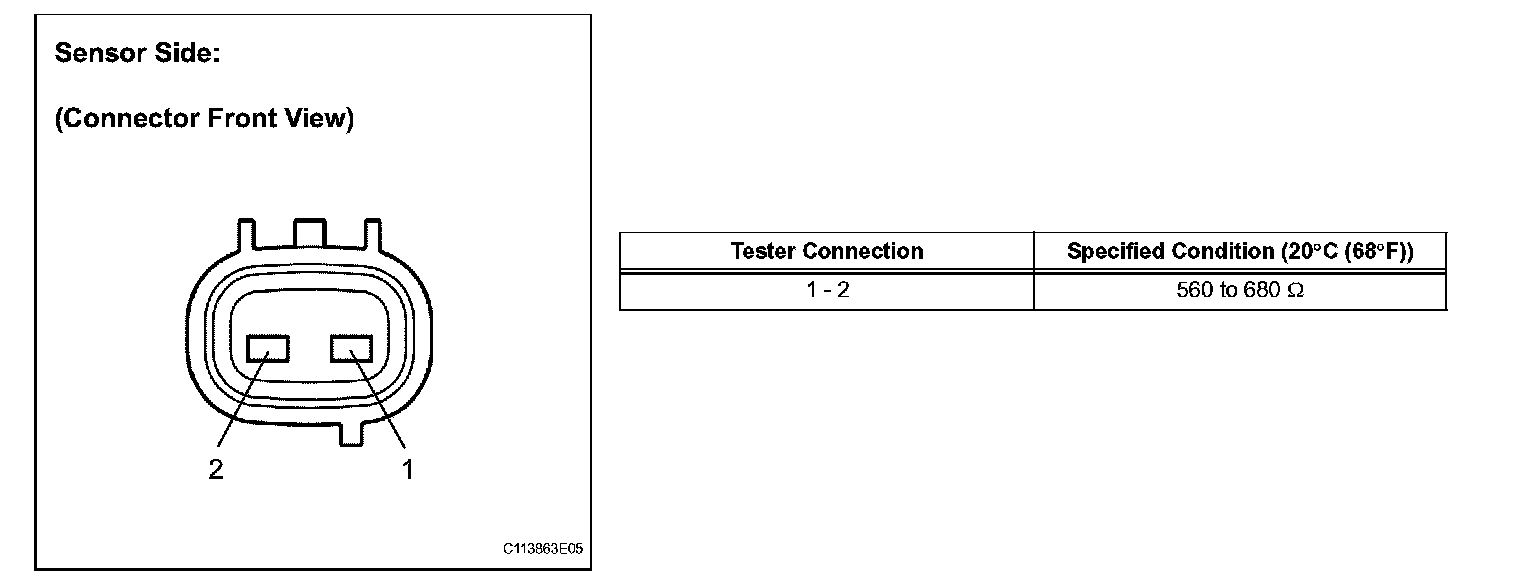

2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)





a) Measure the resistance according to the value(s) in the table.
If the resistance value is not as specified, replace the speed sensor.
