Suspension - Rear Suspension Clicking Noises
L-SB-0151-09October 14, 2009
F-Sport Rear Coil Spring Click Noise
Service Category
Suspension
Section
Rear Suspension
Market
USA

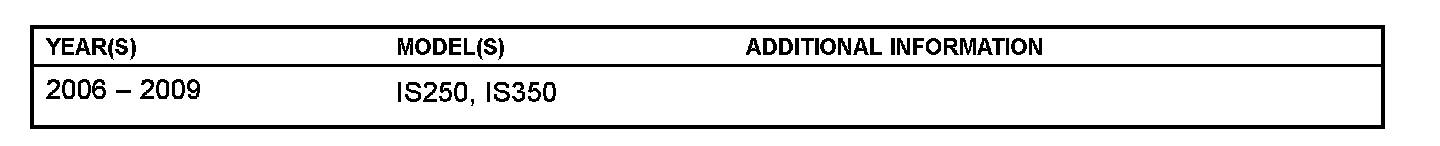

Applicability
Introduction
Some 2006 - 2009 model year IS vehicles equipped with F-Sport rear coil springs may exhibit a clicking noise from the rear suspension when driving. New rear coil spring assemblies are available to improve this condition. Follow the repair procedure in this TSIB to replace the rear coil spring assemblies.

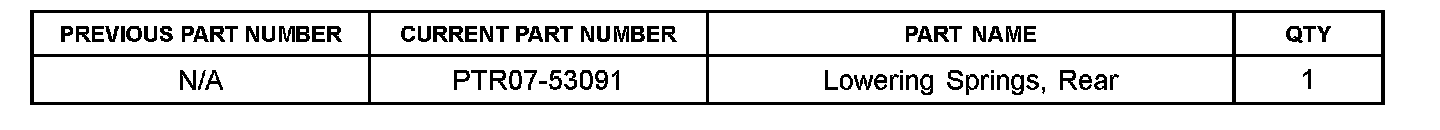

Parts Information

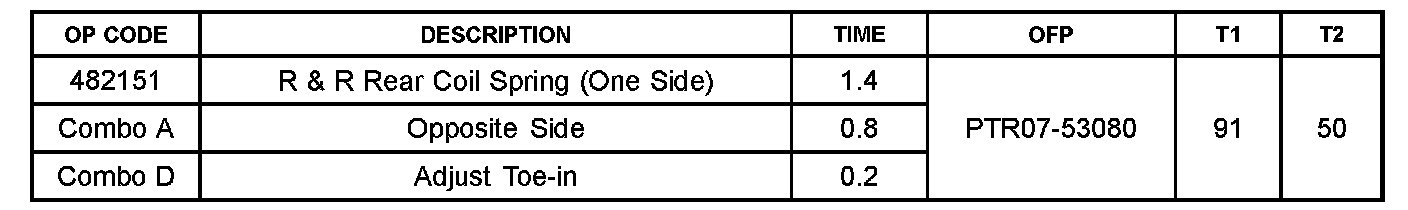

Warranty Information
APPLICABLE WARRANTY
^ F-Sport Performance Parts installed as original equipment are covered under the Lexus Accessory Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
^ F-Sport Performance Parts installed by a Lexus dealer are warranted for 12 months, regardless of mileage, from the date of installation on the vehicle, or the remainder of the applicable New Vehicle Limited Warranty, whichever provides the greater coverage.
^ F-Sport Performance Parts purchased over4he-counter are covered for 12 months from the date of purchase.
^ Warranty application is limited to occurrence of the specified condition described in this bulletin.

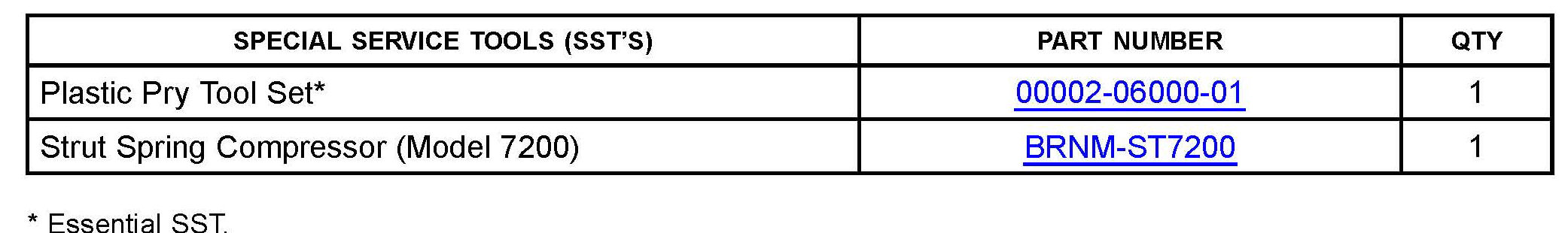

Required Tools & Equipment
NOTE
Additional SSTs may be ordered by calling 1-800-933-8335.
Repair Procedure
Please reference the Accessory Installation procedure found on the Technical Information System (TIS):
"2006-2009 IS 250-350 F Sport Lowering Springs PTR07-53080 Rev. A"
