Displaying & Reading Trouble Codes
DTC CHECK / CLEAR1. CHECK FOR DTCs

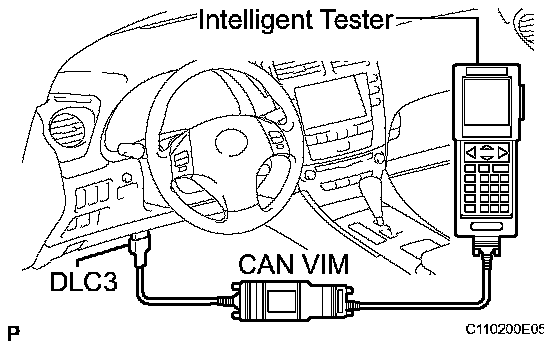

a) Connect the intelligent tester (with CAN VIM) to the DLC3.
b) Turn the engine switch on (IG).
c) Turn the intelligent tester on.
d) Read the DTCs by following the display on the intelligent tester.
HINT: Refer to the intelligent tester's operator's manual for further details.
2. CLEAR DTCs
a) Connect the intelligent tester (with CAN VIM) to the DLC3.
b) Turn the engine switch on (IG).
c) Turn the intelligent tester on.
d) Clear the DTCs by following the display on the intelligent tester.
HINT: Refer to the intelligent tester's operator's manual for further details.
