Steering Mounted Controls Transmitter: Testing and Inspection

INSPECTION

1. INSPECT STEERING PAD SWITCH

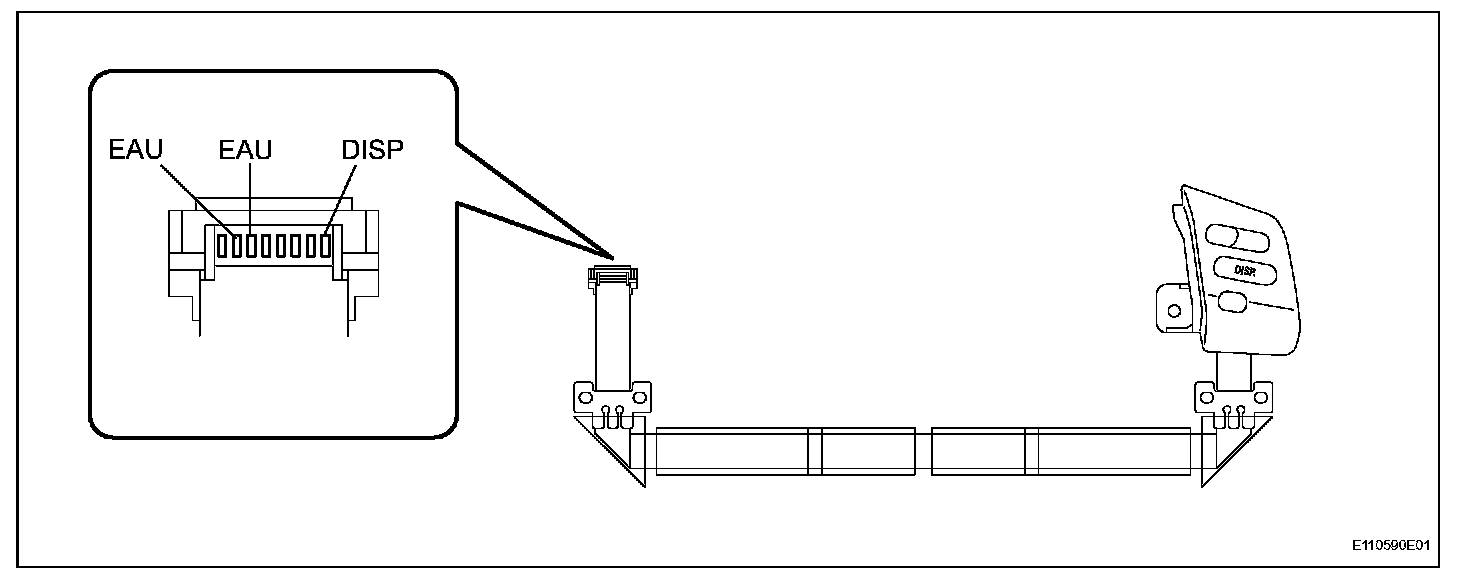

a. Remove the steering pad switch connector with the steering pad switch and spiral cable still connected.

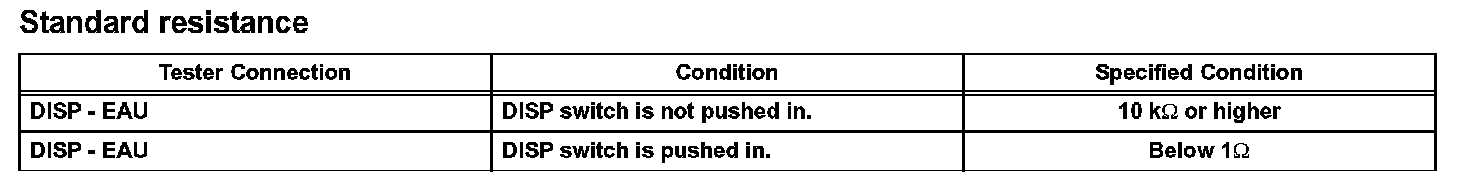

b. Measure the resistance according to the value(s) in the table.

HINT: If the value is not as specified, replace the steering pad switch.
