Reassembly

STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic)

REASSEMBLY
1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

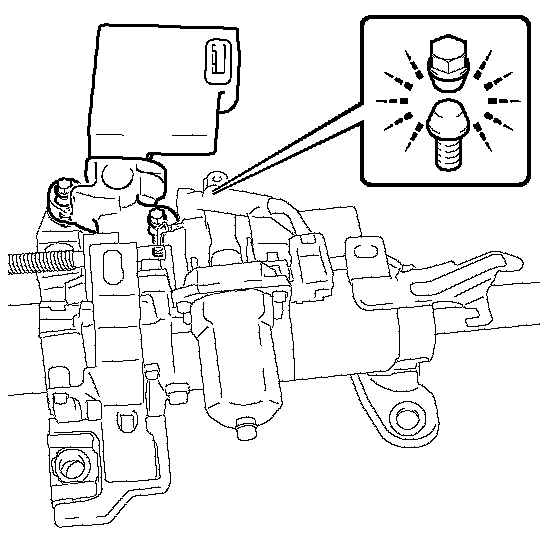

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY





a) Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
b) Tighten the 2 tapered-head bolts until the bolt heads break off.
