Disassembly

STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic)

Components:

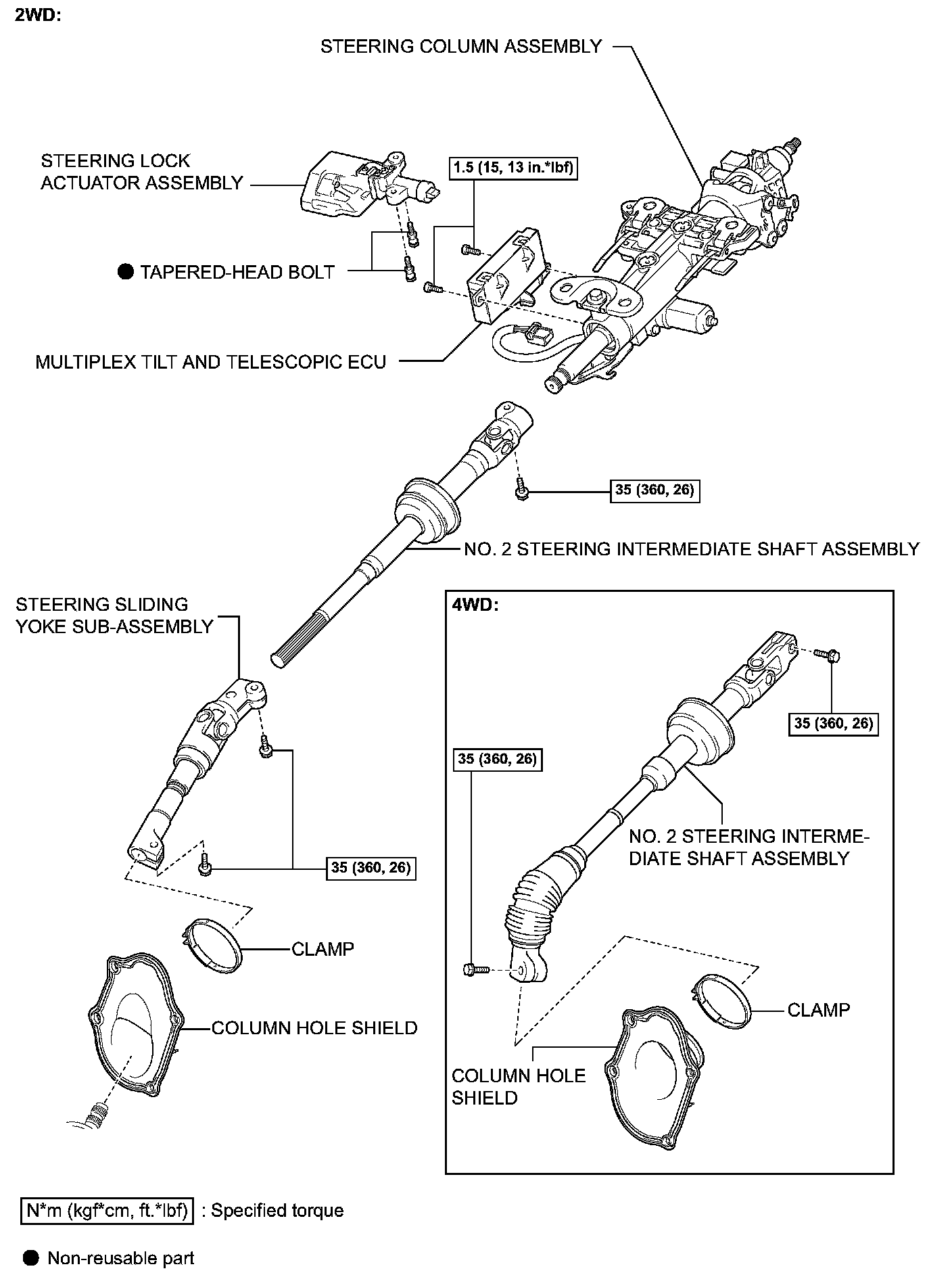

Components 2wd:

Components:

DISASSEMBLY
1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
a) Using a center punch, mark the center of the 2 tapered-head bolts.
b) Using a 3 to 4 mm (0.12 to 0.16 inch) drill, drill a hole in the 2 bolts.

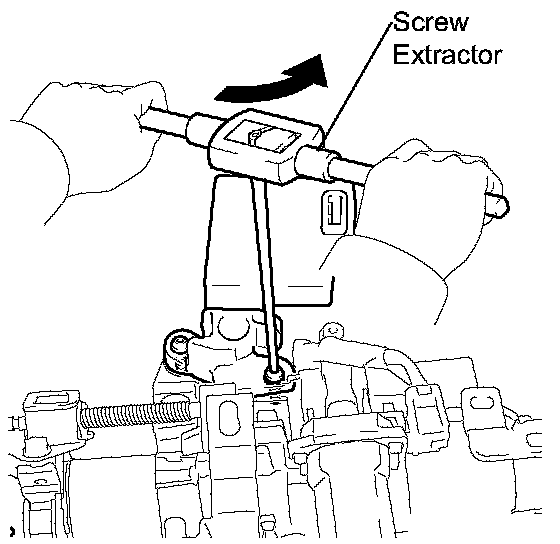

c) Using a screw extractor, remove the 2 bolts and steering lock actuator assembly from the steering column assembly

2. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU
