Engine Switch Indicator Circuit
Engine Switch Indicator CircuitDESCRIPTION
Engine start conditions or system malfunctions can be checked by the status of the engine switch
indicator light.

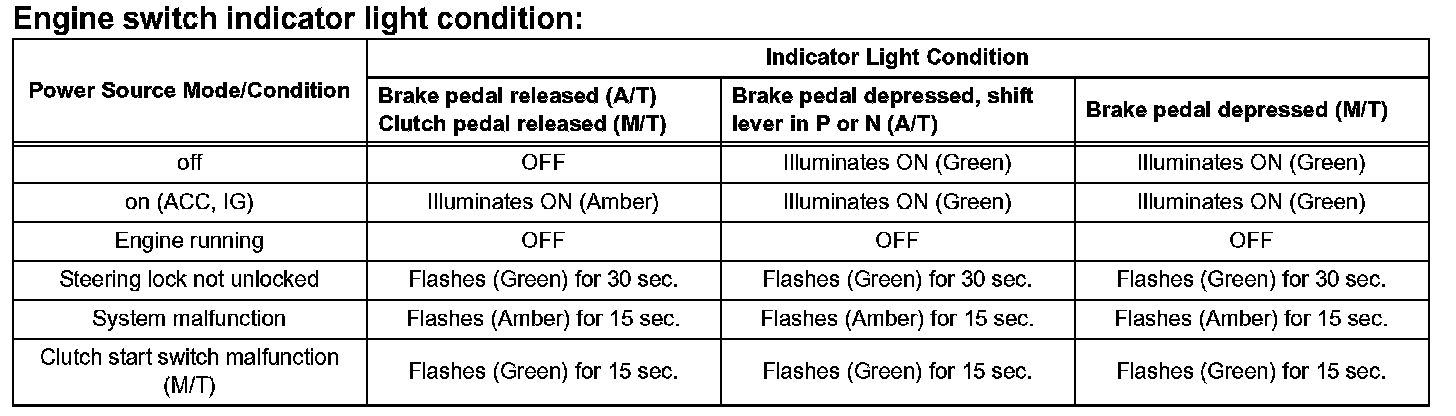

Engine switch indicator light condition:

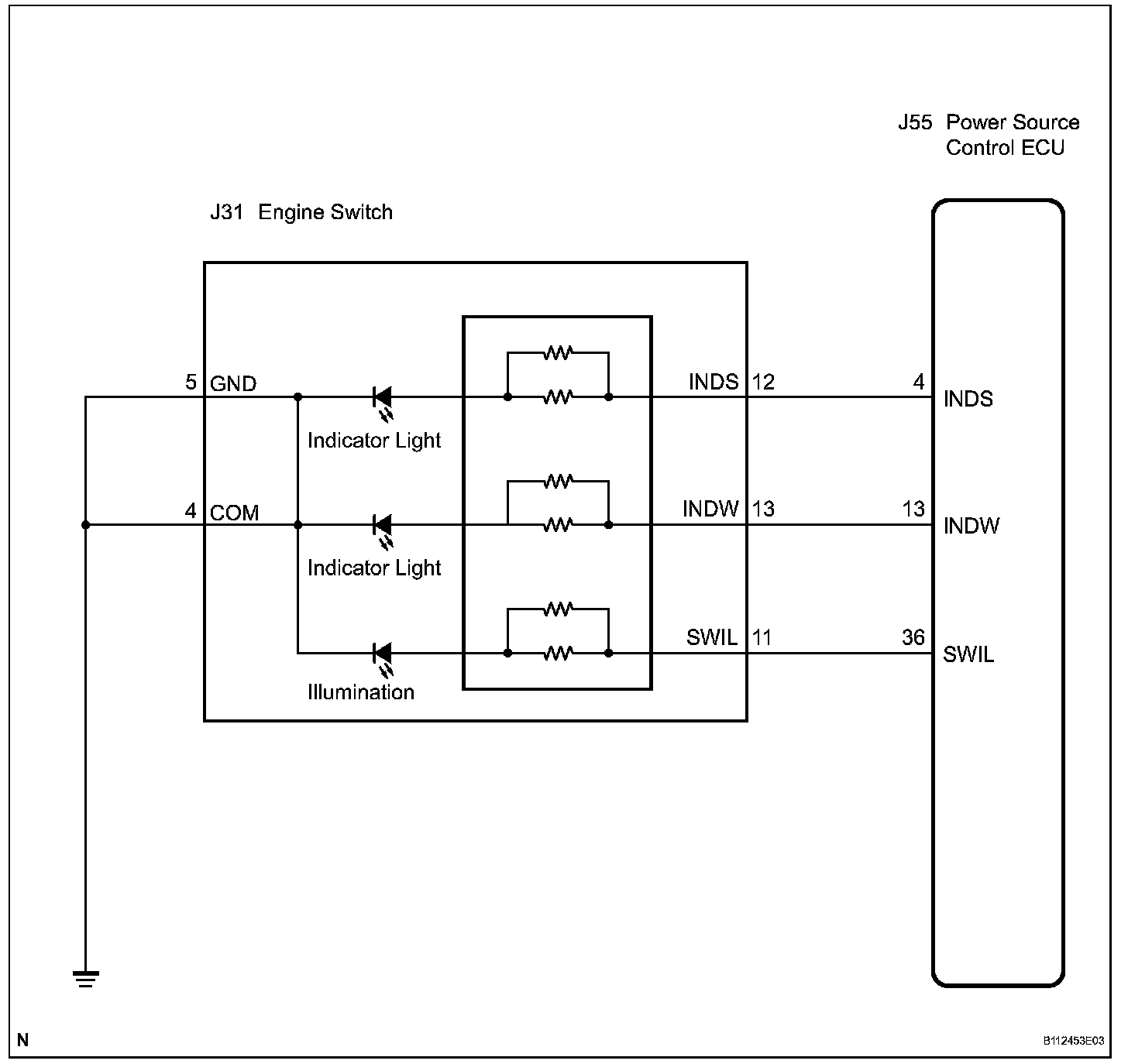

Wiring Diagram:

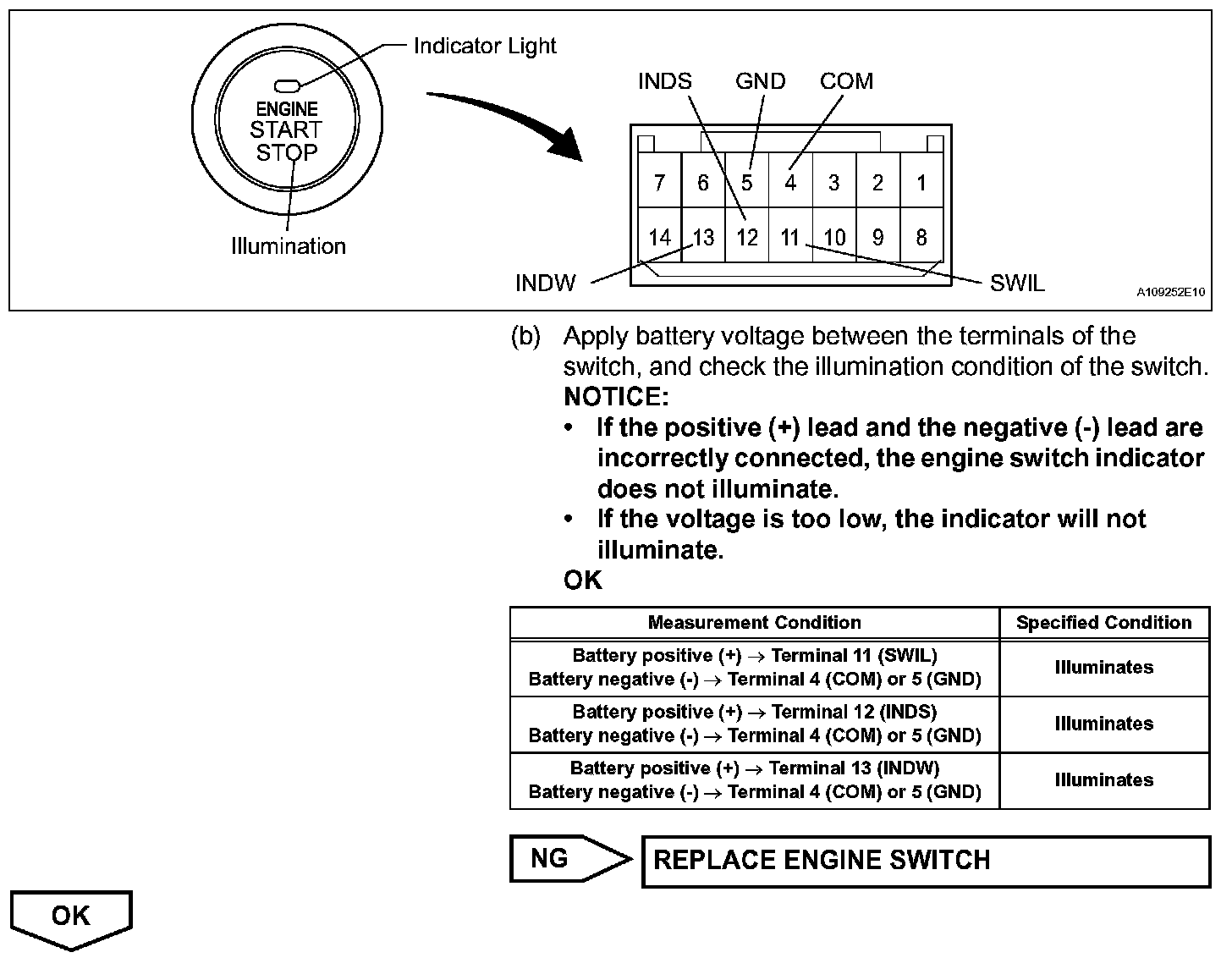

Step 1:
Step 1(continued):

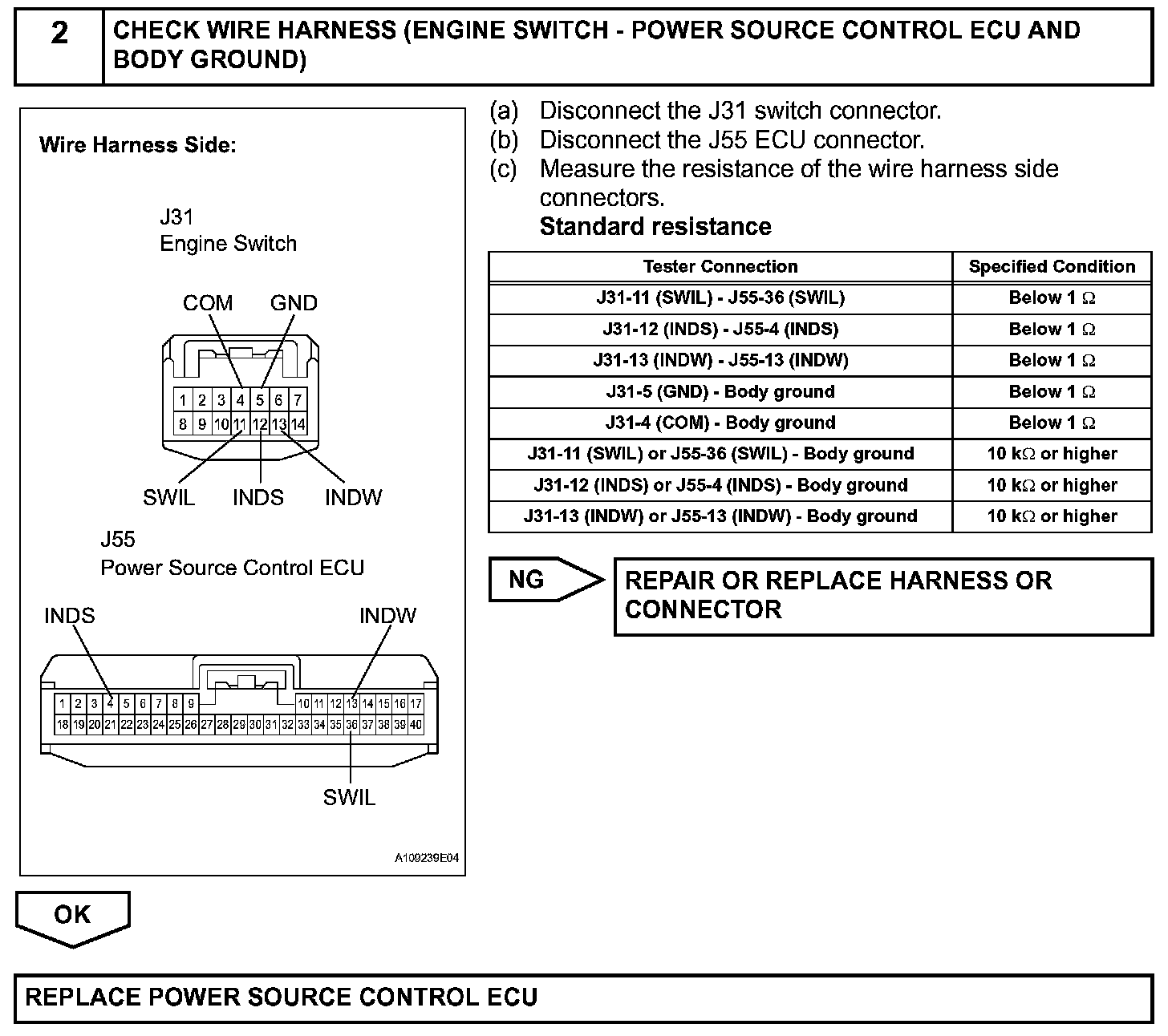

Step 2:
INSPECTION PROCEDURE
