Engine Room R/B No.1 and Engine Room J/B No.1

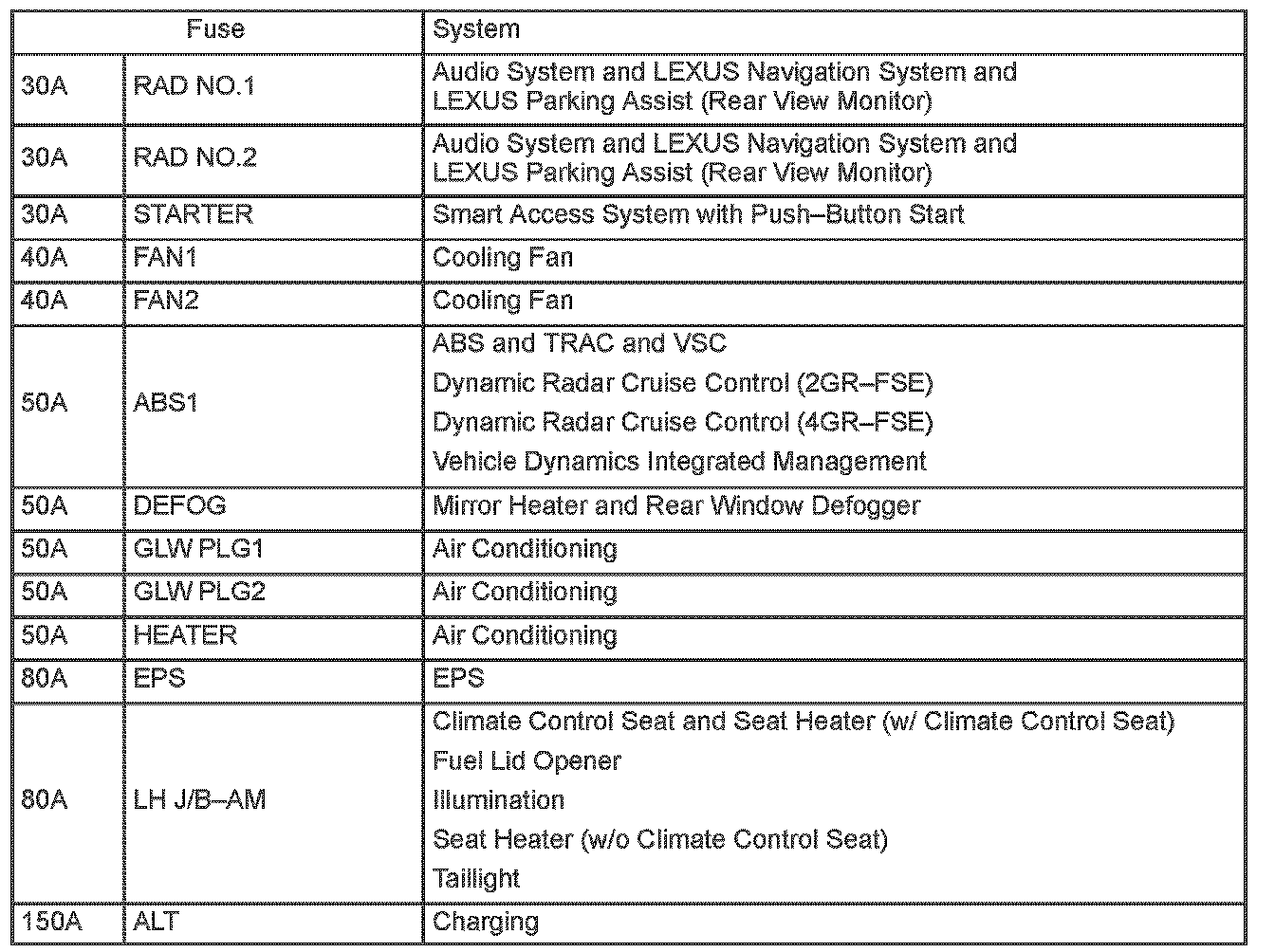

Engine Room R/B No.1 And Engine Room J/B No.1 (Part 1):

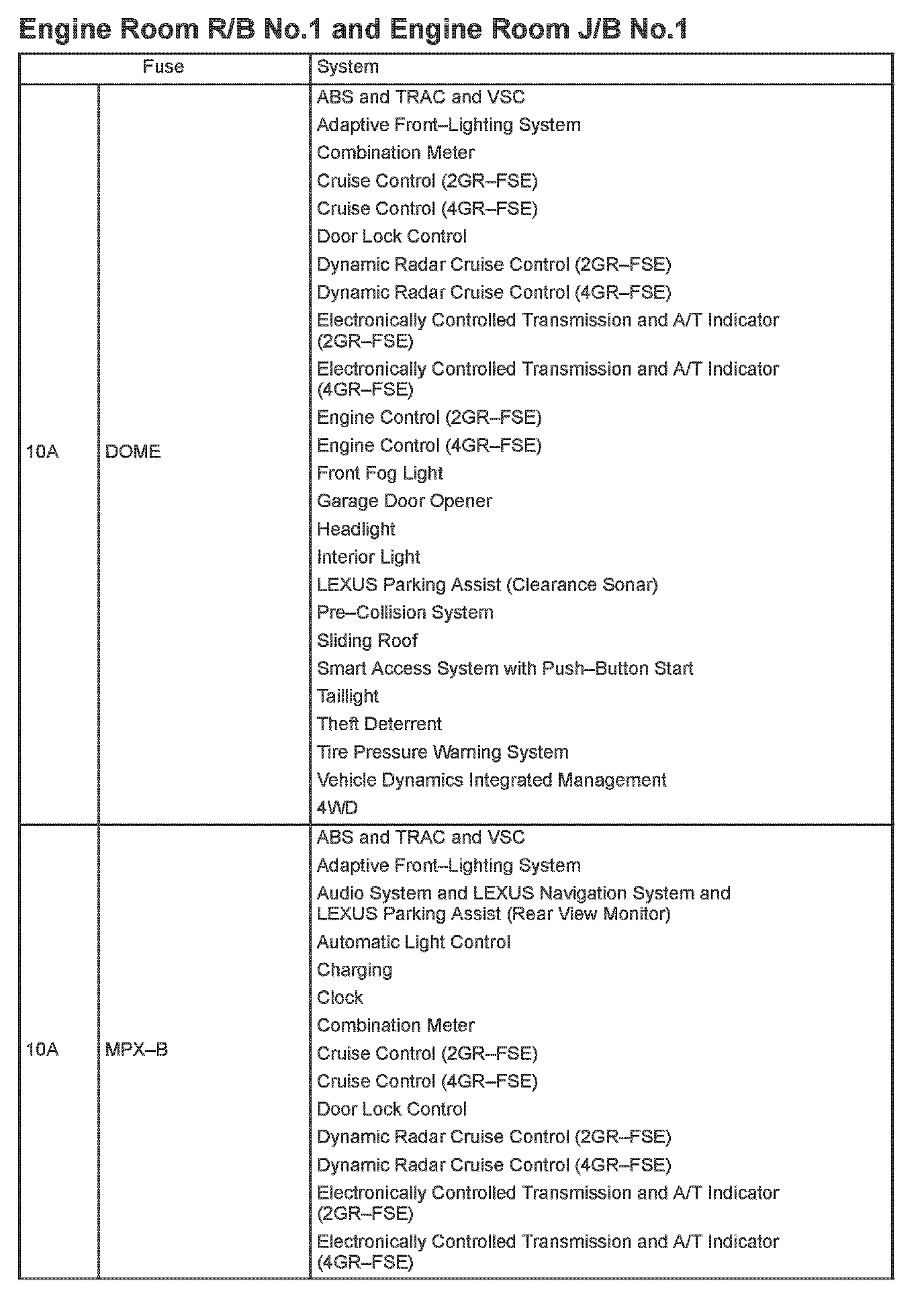

Engine Room R/B No.1 And Engine Room J/B No.1 (Part 2):

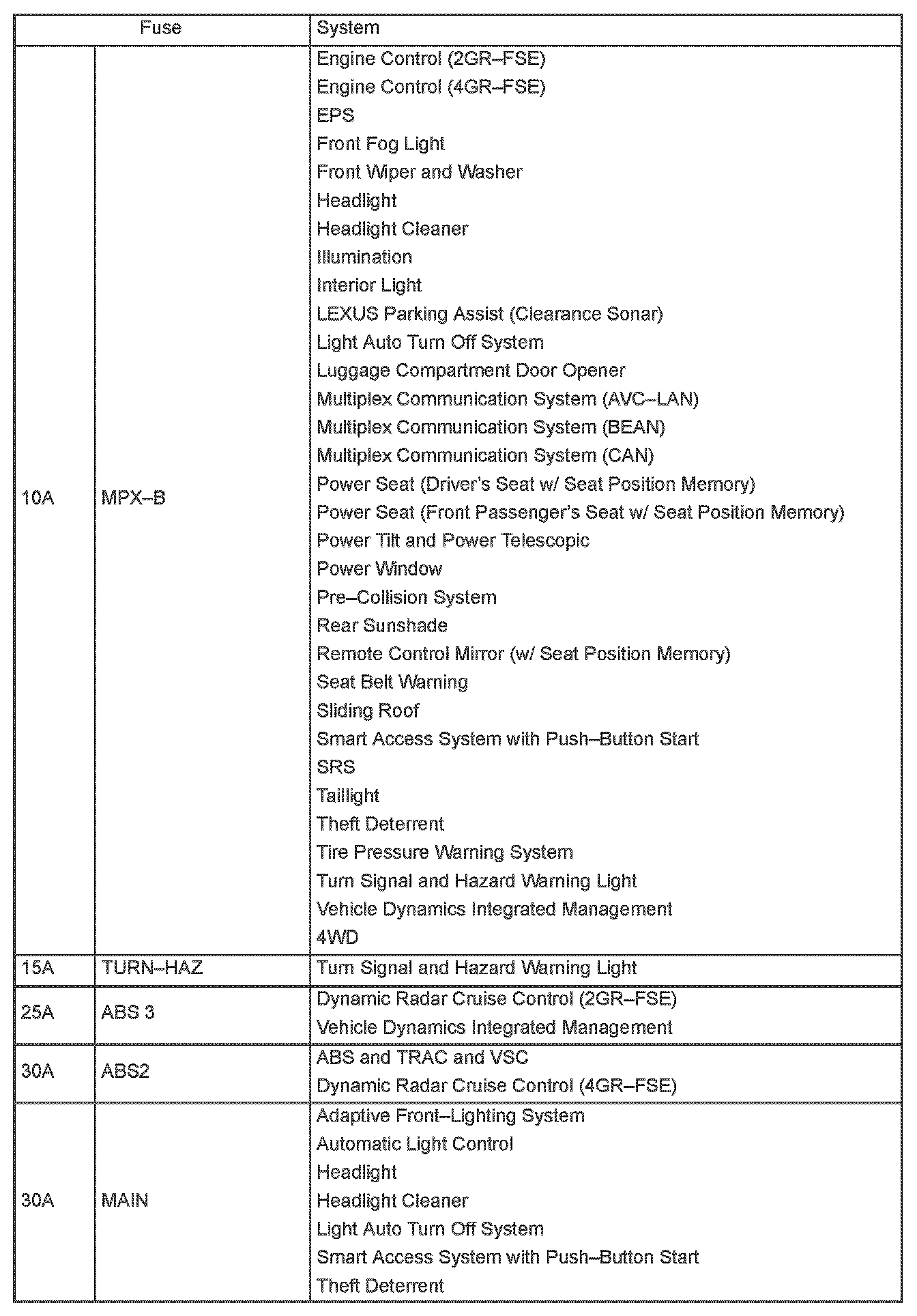

Engine Room R/B No.1 And Engine Room J/B No.1 (Part 3):
